An Operating Characteristic (OC) curve shows the probability of accepting a lot as a function of the true fraction defective in that lot. It is the primary tool for evaluating and comparing acceptance sampling plans, revealing how well an inspection plan discriminates between good and bad lots. The S-shaped curve highlights producer's risk (rejecting good lots) and consumer's risk (accepting bad lots), making it essential for designing effective quality inspection strategies.

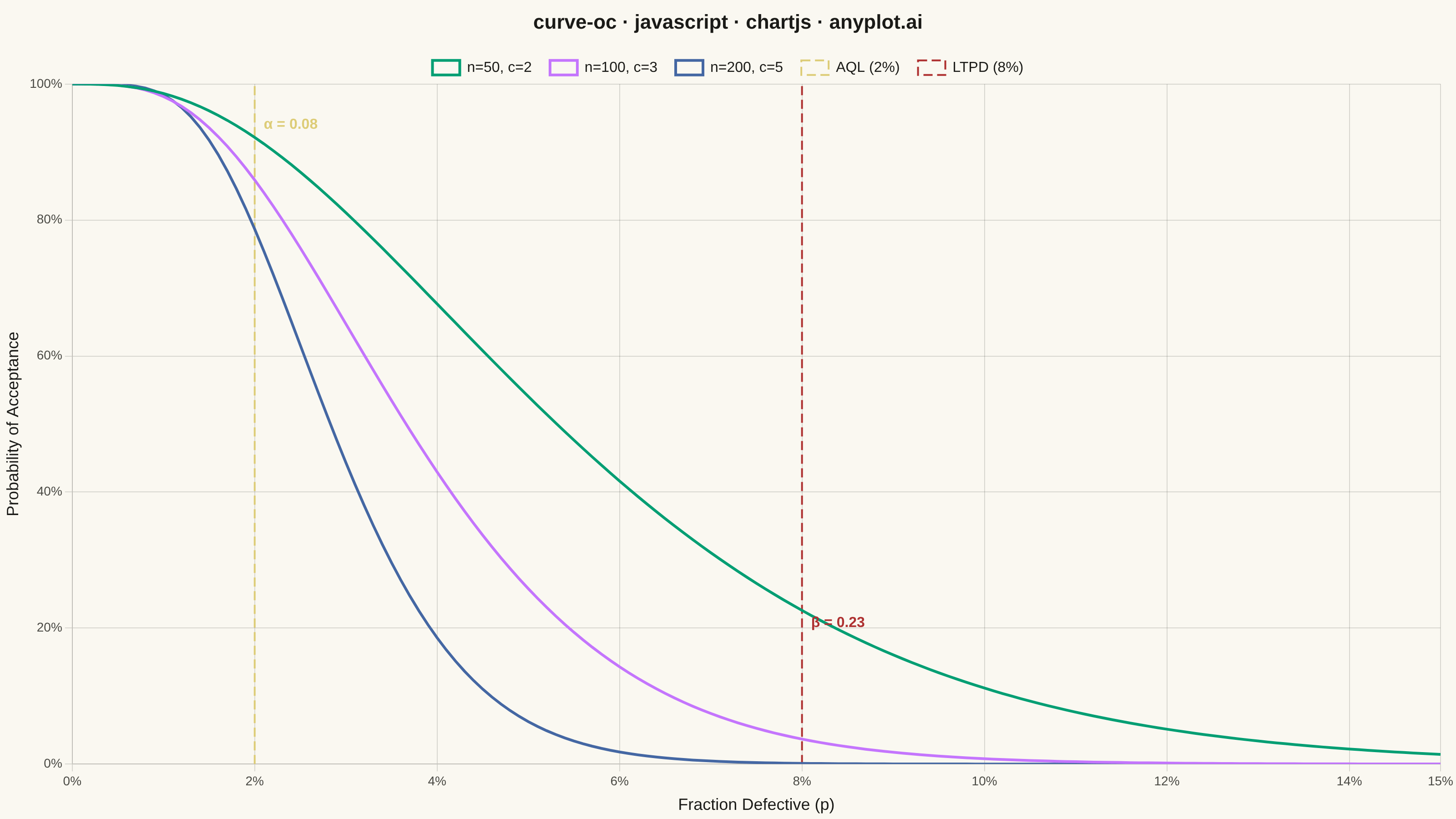

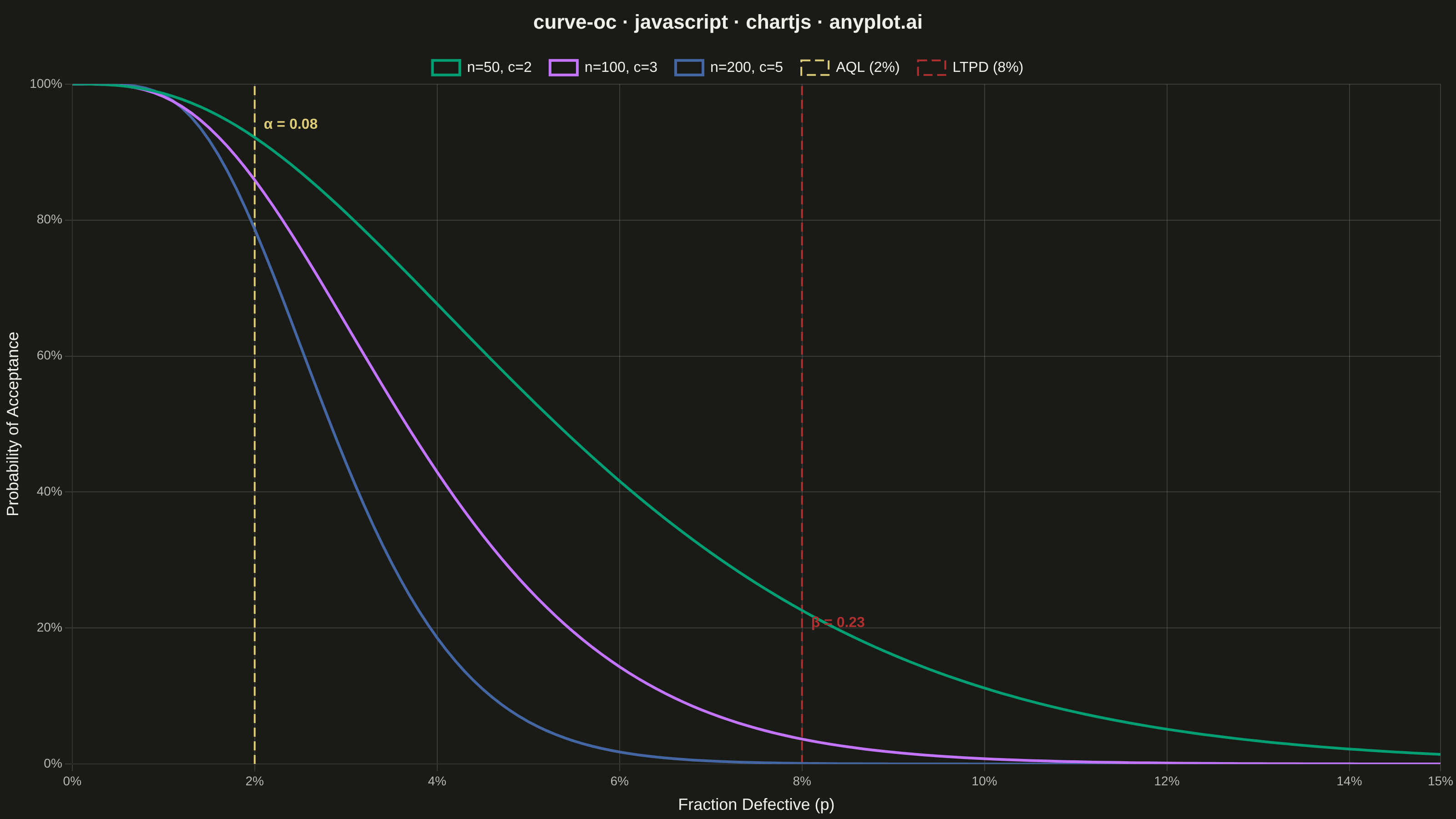

Operating Characteristic (OC) Curve rendered with Chart.js

JavaScript source (Chart.js)

// anyplot.ai
// curve-oc: Operating Characteristic (OC) Curve
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 90/100 | Created: 2026-06-20

const t = window.ANYPLOT_TOKENS;

// Binomial CDF: P(X ≤ c | n, p) via log-space for numerical stability
function probAccept(n, c, p) {
  if (p <= 0) return 1.0;
  if (p >= 1) return 0.0;
  const logP = Math.log(p);
  const logQ = Math.log(1 - p);
  let prob = 0;
  for (let k = 0; k <= c; k++) {
    let logBinom = 0;
    for (let i = 0; i < k; i++) {
      logBinom += Math.log(n - i) - Math.log(i + 1);
    }
    prob += Math.exp(logBinom + k * logP + (n - k) * logQ);
  }
  return Math.min(1, Math.max(0, prob));
}

// Quality thresholds
const AQL   = 0.02;  // Acceptable Quality Level (2%)
const LTPD  = 0.08;  // Lot Tolerance Percent Defective (8%)
const X_MAX = 0.15;  // x-axis upper bound

// Three sampling plans — vary n and c to show discrimination power
const plans = [
  { n: 50,  c: 2, label: "n=50, c=2"  },
  { n: 100, c: 3, label: "n=100, c=3" },
  { n: 200, c: 5, label: "n=200, c=5" },
];

// Build 151 (p, Pa) pairs per sampling plan
function buildOCCurve(n, c) {
  const pts = [];
  for (let i = 0; i <= 150; i++) {
    const p = (i / 150) * X_MAX;
    pts.push({ x: p, y: probAccept(n, c, p) });
  }
  return pts;
}

// OC curve datasets — Imprint palette positions 0, 1, 2
const datasets = plans.map((plan, i) => ({
  label: plan.label,
  data: buildOCCurve(plan.n, plan.c),
  showLine: true,
  fill: false,
  borderColor: t.palette[i],
  backgroundColor: "transparent",
  borderWidth: 3,
  pointRadius: 0,
  tension: 0,
}));

// AQL vertical reference line — amber (warning/acceptable threshold)
datasets.push({
  label: `AQL (${(AQL * 100).toFixed(0)}%)`,
  data: [{ x: AQL, y: 0 }, { x: AQL, y: 1 }],
  showLine: true,
  fill: false,
  borderColor: t.amber,
  backgroundColor: "transparent",
  borderWidth: 2,
  borderDash: [10, 5],
  pointRadius: 0,
  tension: 0,
});

// LTPD vertical reference line — matte red (rejection threshold)
datasets.push({
  label: `LTPD (${(LTPD * 100).toFixed(0)}%)`,
  data: [{ x: LTPD, y: 0 }, { x: LTPD, y: 1 }],
  showLine: true,
  fill: false,
  borderColor: t.palette[4],
  backgroundColor: "transparent",
  borderWidth: 2,
  borderDash: [10, 5],
  pointRadius: 0,
  tension: 0,
});

// Mount
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// Inline plugin: annotate α (producer's risk) and β (consumer's risk) from plan[0]
const riskLabels = {
  id: "riskLabels",
  afterDraw(chart) {
    const ctx = chart.ctx;
    const xsc = chart.scales.x;
    const ysc = chart.scales.y;
    const ref = plans[0];

    ctx.save();
    ctx.textBaseline = "middle";
    ctx.font = "bold 16px sans-serif";

    // α = producer's risk (probability of rejecting a good lot) at AQL
    const paAql = probAccept(ref.n, ref.c, AQL);
    ctx.fillStyle = t.amber;
    ctx.fillText(
      `α = ${(1 - paAql).toFixed(2)}`,
      xsc.getPixelForValue(AQL) + 10,
      ysc.getPixelForValue(paAql) - 14
    );

    // β = consumer's risk (probability of accepting a bad lot) at LTPD
    const paLtpd = probAccept(ref.n, ref.c, LTPD);
    ctx.fillStyle = t.palette[4];
    ctx.fillText(
      `β = ${paLtpd.toFixed(2)}`,
      xsc.getPixelForValue(LTPD) + 10,
      ysc.getPixelForValue(paLtpd) + 14
    );

    ctx.restore();
  },
};

// Chart
new Chart(canvas, {
  type: "scatter",
  plugins: [riskLabels],
  data: { datasets },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    plugins: {
      title: {
        display: true,
        text: "curve-oc · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22 },
        padding: { top: 12, bottom: 8 },
      },
      legend: {
        labels: {
          color: t.ink,
          font: { size: 16 },
          boxWidth: 30,
          padding: 20,
        },
      },
    },
    scales: {
      x: {
        type: "linear",
        min: 0,
        max: X_MAX,
        title: {
          display: true,
          text: "Fraction Defective (p)",
          color: t.ink,
          font: { size: 18 },
        },
        ticks: {
          color: t.inkSoft,
          font: { size: 14 },
          callback: (v) => (v * 100).toFixed(0) + "%",
          maxTicksLimit: 9,
        },
        grid: { color: t.grid },
      },
      y: {
        type: "linear",
        min: 0,
        max: 1,
        title: {
          display: true,
          text: "Probability of Acceptance",
          color: t.ink,
          font: { size: 18 },
        },
        ticks: {
          color: t.inkSoft,
          font: { size: 14 },
          callback: (v) => (v * 100).toFixed(0) + "%",
          maxTicksLimit: 6,
        },
        grid: { color: t.grid },
      },
    },
  },
});
