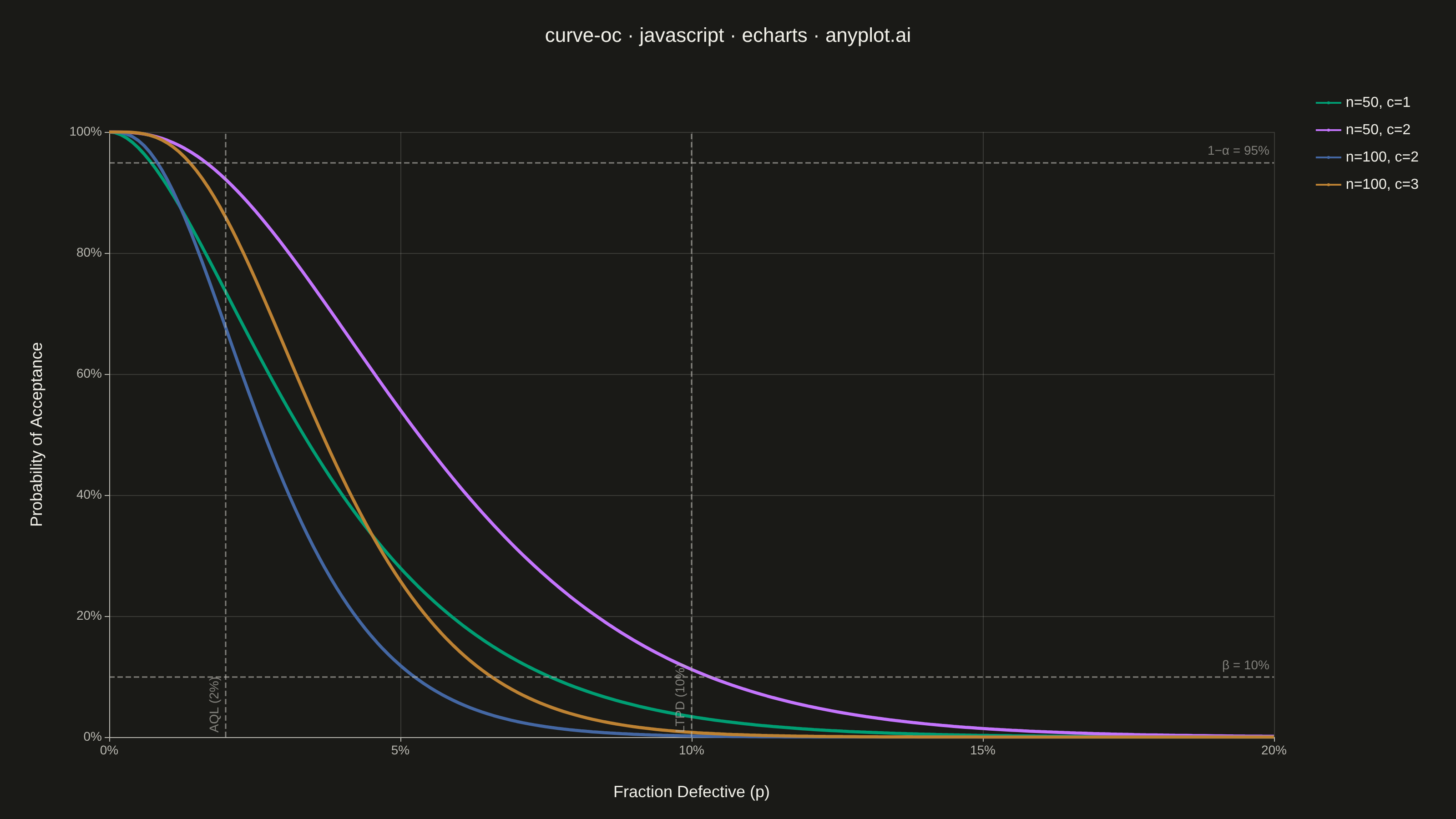

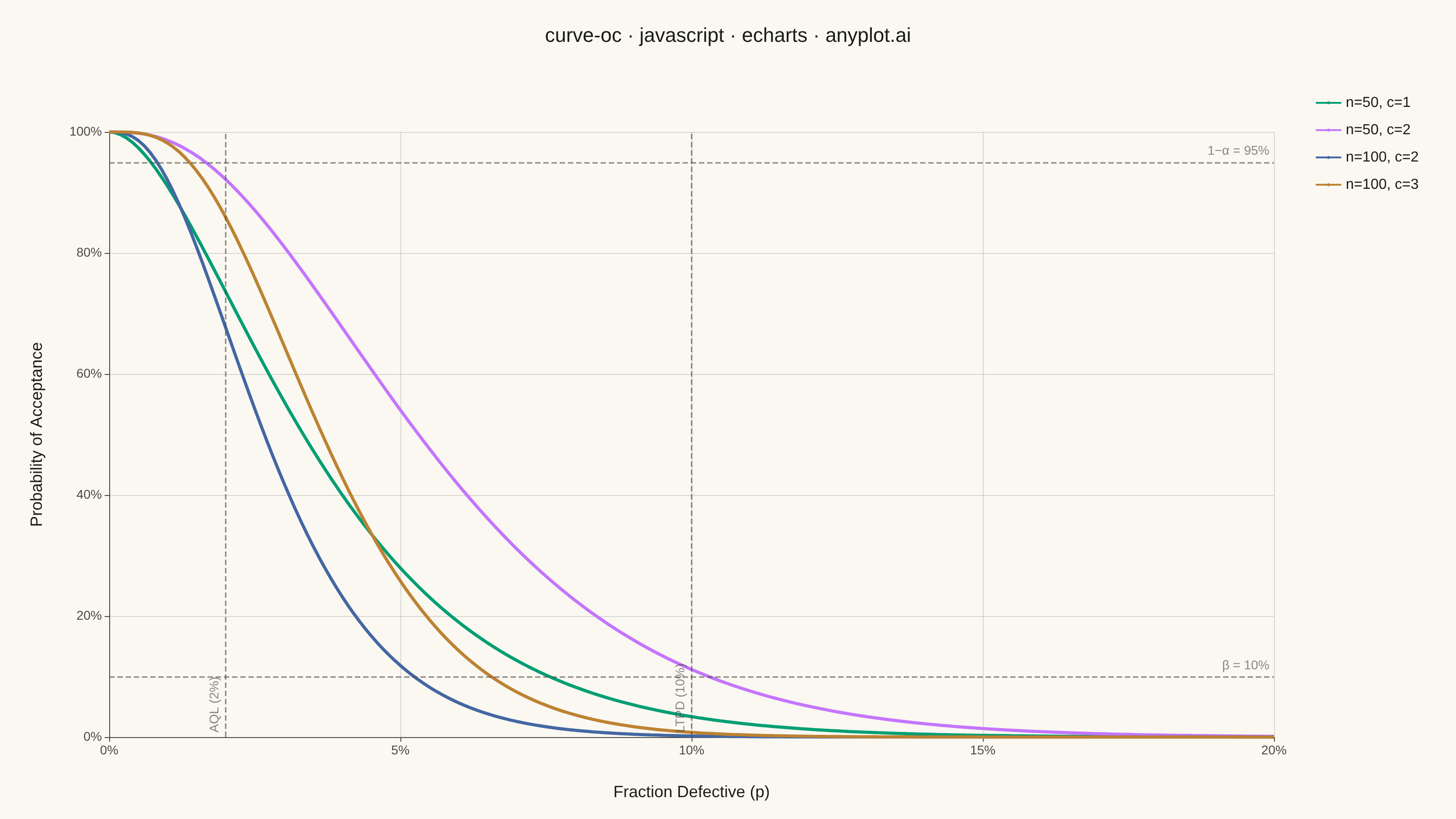

An Operating Characteristic (OC) curve shows the probability of accepting a lot as a function of the true fraction defective in that lot. It is the primary tool for evaluating and comparing acceptance sampling plans, revealing how well an inspection plan discriminates between good and bad lots. The S-shaped curve highlights producer's risk (rejecting good lots) and consumer's risk (accepting bad lots), making it essential for designing effective quality inspection strategies.
// anyplot.ai
// curve-oc: Operating Characteristic (OC) Curve
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 89/100 | Created: 2026-06-20
//# anyplot-orientation: landscape
// anyplot.ai
// curve-oc: Operating Characteristic (OC) Curve
// Library: echarts 5.5.1 | JavaScript 22
// Quality: pending | Created: 2026-06-20
const t = window.ANYPLOT_TOKENS;
// Binomial coefficient (numerically stable for n <= 200)
function binomCoeff(n, k) {
if (k === 0 || k === n) return 1;
if (k > n - k) k = n - k;
let c = 1;
for (let i = 0; i < k; i++) c = (c * (n - i)) / (i + 1);
return c;
}
// P(accept | n, c, p) = sum_{k=0}^{c} C(n,k) * p^k * (1-p)^(n-k)
function ocProb(n, c, p) {
if (p <= 0) return 1;
if (p >= 1) return 0;
let sum = 0;
for (let k = 0; k <= c; k++) {
sum += binomCoeff(n, k) * Math.pow(p, k) * Math.pow(1 - p, n - k);
}
return Math.min(1, Math.max(0, sum));
}
// --- Data -------------------------------------------------------------------
const X_MAX = 0.20;
const pVals = Array.from({ length: 201 }, (_, i) => (i * X_MAX) / 200);
const AQL = 0.02; // Acceptable Quality Level
const LTPD = 0.10; // Lot Tolerance Percent Defective
const PLANS = [
{ n: 50, c: 1, label: "n=50, c=1" },
{ n: 50, c: 2, label: "n=50, c=2" },
{ n: 100, c: 2, label: "n=100, c=2" },
{ n: 100, c: 3, label: "n=100, c=3" },
];
const refLineStyle = {
silent: true,
symbol: "none",
animation: false,
lineStyle: { type: "dashed", color: t.inkSoft, width: 1.5, opacity: 0.65 },
label: { show: true, fontSize: 14, color: t.inkSoft, formatter: "{b}" },
data: [
{ name: "AQL (2%)", xAxis: AQL, label: { position: "insideStartTop" } },
{ name: "LTPD (10%)", xAxis: LTPD, label: { position: "insideStartTop" } },
{ name: "1−α = 95%", yAxis: 0.95, label: { position: "insideEndTop" } },
{ name: "β = 10%", yAxis: 0.10, label: { position: "insideEndTop" } },
],
};
const curveSeries = PLANS.map((plan, idx) => ({
name: plan.label,
type: "line",
data: pVals.map((p) => [+(p.toFixed(6)), +(ocProb(plan.n, plan.c, p).toFixed(6))]),
lineStyle: { width: 3.5, color: t.palette[idx] },
itemStyle: { color: t.palette[idx] },
symbol: "none",
z: 3,
...(idx === 0 ? { markLine: refLineStyle } : {}),
}));
// --- Chart ------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "curve-oc · javascript · echarts · anyplot.ai",
left: "center",
top: 24,
textStyle: { color: t.ink, fontSize: 22, fontWeight: "500" },
},
subtitle: {
text: "Acceptance Sampling Plans — Probability of Acceptance vs Fraction Defective",
left: "center",
top: 58,
textStyle: { color: t.ink, fontSize: 17 },
},
legend: {
top: 100,
right: 36,
orient: "vertical",
textStyle: { color: t.ink, fontSize: 16 },
itemGap: 14,
itemWidth: 28,
itemHeight: 4,
},
grid: { left: 120, right: 200, top: 145, bottom: 90 },
xAxis: {
type: "value",
name: "Fraction Defective (p)",
nameLocation: "middle",
nameGap: 52,
nameTextStyle: { color: t.ink, fontSize: 18 },
min: 0,
max: X_MAX,
axisLabel: {
color: t.inkSoft,
fontSize: 14,
formatter: (v) => (v * 100).toFixed(0) + "%",
},
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "value",
name: "Probability of Acceptance",
nameLocation: "middle",
nameGap: 70,
nameTextStyle: { color: t.ink, fontSize: 18 },
min: 0,
max: 1,
axisLabel: {
color: t.inkSoft,
fontSize: 14,
formatter: (v) => (v * 100).toFixed(0) + "%",
},
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
tooltip: {
trigger: "axis",
backgroundColor: t.elevatedBg,
borderColor: t.grid,
textStyle: { color: t.ink, fontSize: 14 },
formatter: (params) => {
const p = params[0].data[0];
let s = `<b>p = ${(p * 100).toFixed(1)}%</b><br/>`;
params.forEach((item) => {
s += `${item.marker} ${item.seriesName}: ${(item.data[1] * 100).toFixed(1)}%<br/>`;
});
return s;
},
},
series: curveSeries,
});
