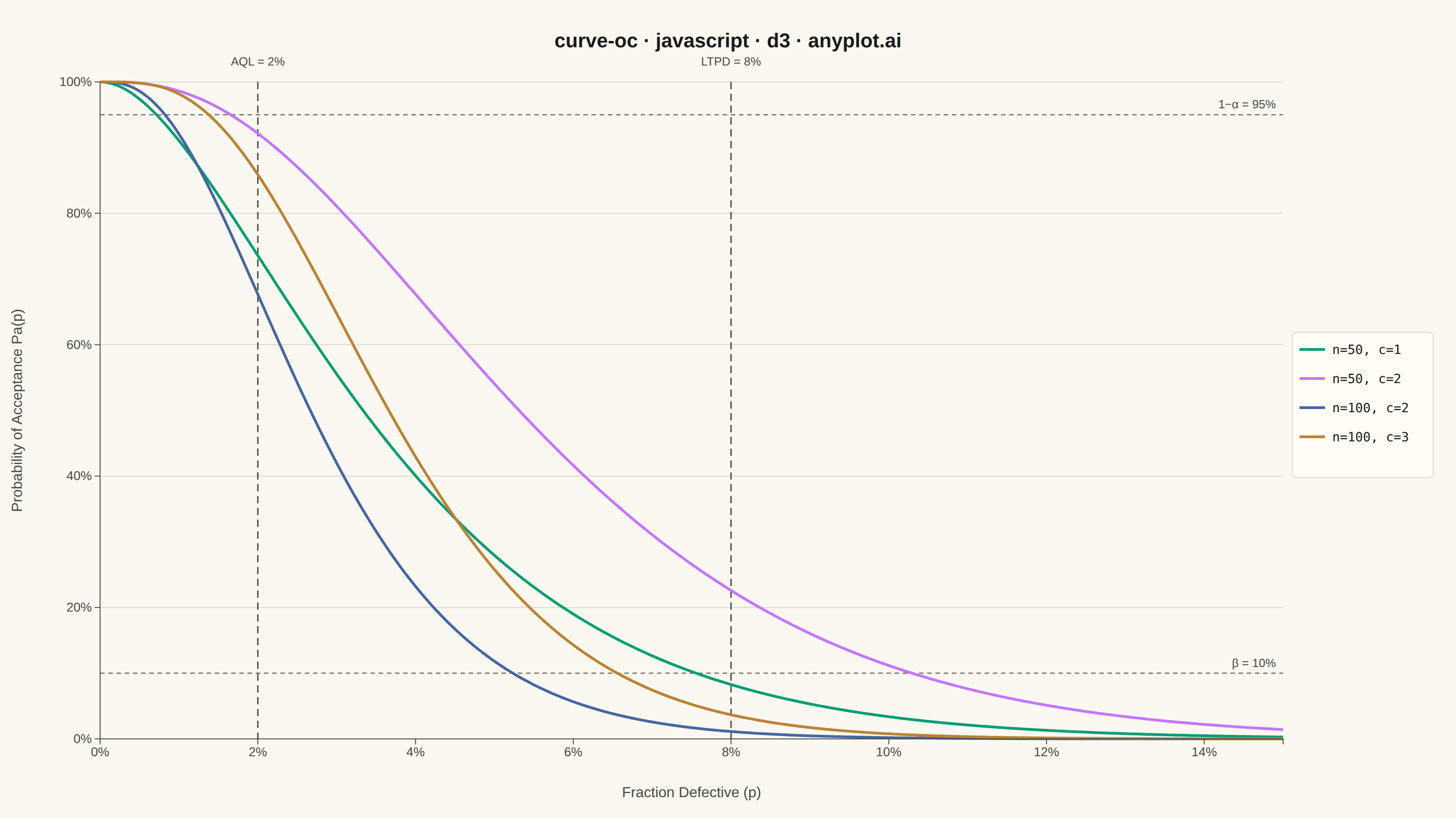

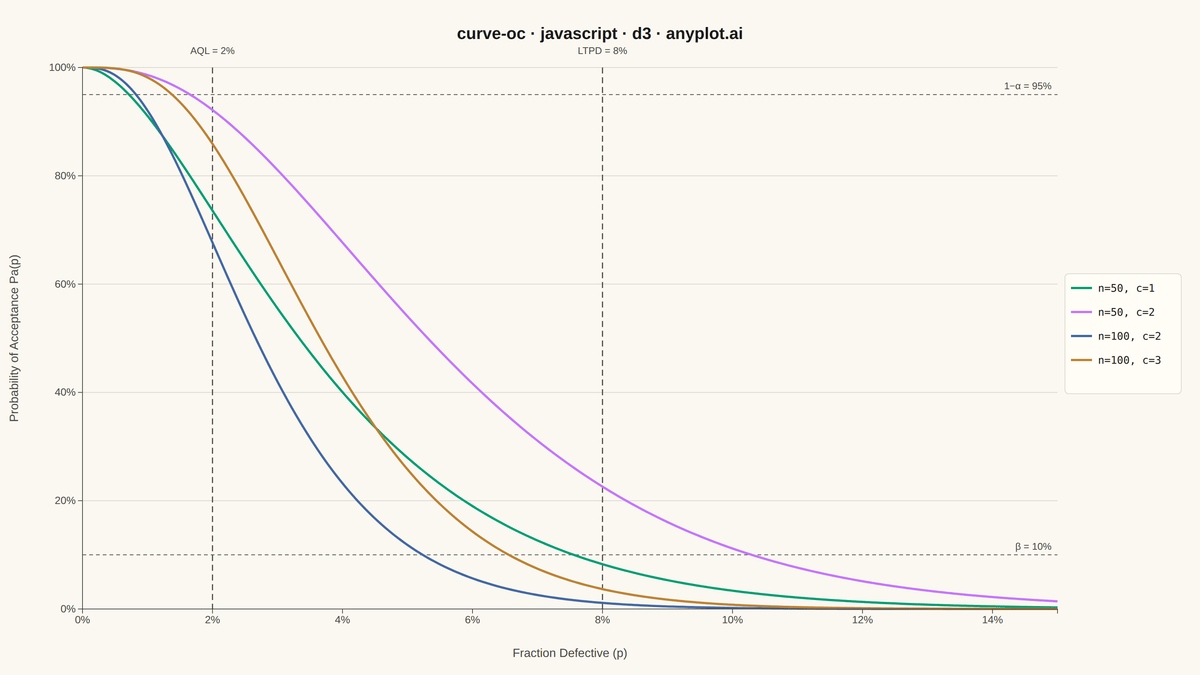

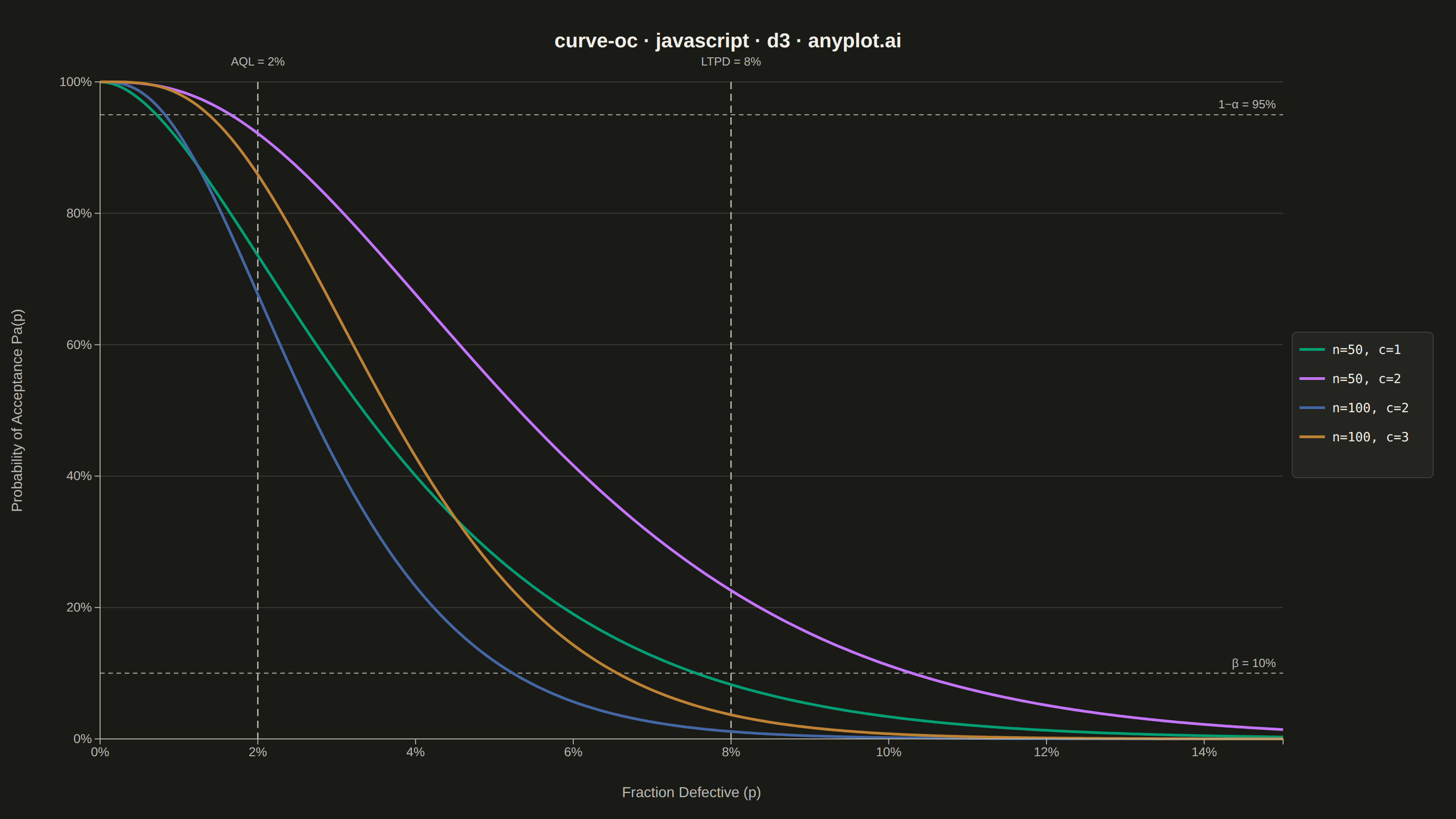

An Operating Characteristic (OC) curve shows the probability of accepting a lot as a function of the true fraction defective in that lot. It is the primary tool for evaluating and comparing acceptance sampling plans, revealing how well an inspection plan discriminates between good and bad lots. The S-shaped curve highlights producer's risk (rejecting good lots) and consumer's risk (accepting bad lots), making it essential for designing effective quality inspection strategies.
// anyplot.ai
// curve-oc: Operating Characteristic (OC) Curve
// Library: d3 7.9.0 | JavaScript 22.22.3
// Quality: 91/100 | Created: 2026-06-20
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 90, right: 190, bottom: 88, left: 110 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Helpers ------------------------------------------------------------------
function logFact(k) {
let s = 0;
for (let i = 2; i <= k; i++) s += Math.log(i);
return s;
}
function binomialCDF(n, c, p) {
if (p <= 0) return 1;
if (p >= 1) return c >= n ? 1 : 0;
const lp = Math.log(p);
const l1p = Math.log(1 - p);
const lfn = logFact(n);
let sum = 0;
for (let k = 0; k <= c; k++) {
sum += Math.exp(lfn - logFact(k) - logFact(n - k) + k * lp + (n - k) * l1p);
}
return Math.min(1, sum);
}
// --- Data ---------------------------------------------------------------------
const plans = [
{ label: "n=50, c=1", n: 50, c: 1, color: t.palette[0] },
{ label: "n=50, c=2", n: 50, c: 2, color: t.palette[1] },
{ label: "n=100, c=2", n: 100, c: 2, color: t.palette[2] },
{ label: "n=100, c=3", n: 100, c: 3, color: t.palette[3] },
];
const X_MAX = 0.15;
const fracs = d3.range(201).map(i => (i * X_MAX) / 200);
for (const plan of plans) {
plan.pts = fracs.map(p => ({ p, pa: binomialCDF(plan.n, plan.c, p) }));
}
// --- SVG mount ----------------------------------------------------------------
const svg = d3.select("#container")
.append("svg")
.attr("width", width)
.attr("height", height);
const g = svg.append("g")
.attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales -------------------------------------------------------------------
const x = d3.scaleLinear().domain([0, X_MAX]).range([0, iw]);
const y = d3.scaleLinear().domain([0, 1]).range([ih, 0]);
// --- Gridlines ----------------------------------------------------------------
g.append("g")
.selectAll("line")
.data(y.ticks(5))
.join("line")
.attr("x1", 0).attr("x2", iw)
.attr("y1", d => y(d)).attr("y2", d => y(d))
.attr("stroke", t.grid)
.attr("stroke-width", 1);
// --- Vertical reference lines: AQL and LTPD -----------------------------------
const vRefs = [
{ px: 0.02, label: "AQL = 2%" },
{ px: 0.08, label: "LTPD = 8%" },
];
for (const { px, label } of vRefs) {
g.append("line")
.attr("x1", x(px)).attr("x2", x(px))
.attr("y1", 0).attr("y2", ih)
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("stroke-dasharray", "8,5");
g.append("text")
.attr("x", x(px)).attr("y", -18)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "13px")
.text(label);
}
// --- Horizontal reference lines: producer / consumer risk ---------------------
const hRefs = [
{ pa: 0.95, label: "1−α = 95%" },
{ pa: 0.10, label: "β = 10%" },
];
for (const { pa, label } of hRefs) {
g.append("line")
.attr("x1", 0).attr("x2", iw)
.attr("y1", y(pa)).attr("y2", y(pa))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1)
.attr("stroke-dasharray", "5,4");
g.append("text")
.attr("x", iw - 8).attr("y", y(pa) - 7)
.attr("text-anchor", "end")
.attr("fill", t.inkSoft)
.style("font-size", "13px")
.text(label);
}
// --- OC curves ----------------------------------------------------------------
const lineGen = d3.line()
.x(d => x(d.p))
.y(d => y(d.pa))
.curve(d3.curveMonotoneX);
for (const plan of plans) {
g.append("path")
.datum(plan.pts)
.attr("fill", "none")
.attr("stroke", plan.color)
.attr("stroke-width", 3)
.attr("d", lineGen);
}
// --- Axes ---------------------------------------------------------------------
const xAxis = g.append("g")
.attr("transform", `translate(0,${ih})`)
.call(d3.axisBottom(x).ticks(5).tickFormat(d3.format(".0%")));
const yAxis = g.append("g")
.call(d3.axisLeft(y).ticks(5).tickFormat(d3.format(".0%")));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
ax.selectAll("line").attr("stroke", t.inkSoft);
ax.select(".domain").attr("stroke", t.inkSoft);
}
// --- Axis labels --------------------------------------------------------------
svg.append("text")
.attr("x", margin.left + iw / 2)
.attr("y", height - 24)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "16px")
.text("Fraction Defective (p)");
svg.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -(margin.top + ih / 2))
.attr("y", 24)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "16px")
.text("Probability of Acceptance Pa(p)");
// --- Legend (right margin) ---------------------------------------------------
const lgX = iw + 18;
const lgSpacing = 32;
const lgTotal = plans.length * lgSpacing + 20;
const lgY = (ih - lgTotal) / 2;
g.append("rect")
.attr("x", lgX - 8).attr("y", lgY - 12)
.attr("width", 155).attr("height", lgTotal + 12)
.attr("fill", t.elevatedBg)
.attr("rx", 5)
.attr("stroke", t.grid)
.attr("stroke-width", 1);
for (let i = 0; i < plans.length; i++) {
const ly = lgY + i * lgSpacing;
g.append("line")
.attr("x1", lgX).attr("x2", lgX + 28)
.attr("y1", ly + 7).attr("y2", ly + 7)
.attr("stroke", plans[i].color)
.attr("stroke-width", 3);
g.append("text")
.attr("x", lgX + 36).attr("y", ly + 12)
.attr("fill", t.ink)
.style("font-size", "14px")
.style("font-family", "monospace")
.text(plans[i].label);
}
// --- Title --------------------------------------------------------------------
svg.append("text")
.attr("x", width / 2)
.attr("y", 52)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("curve-oc · javascript · d3 · anyplot.ai");
