Operating Characteristic (OC) Curve — Seaborn

An Operating Characteristic (OC) curve shows the probability of accepting a lot as a function of the true fraction defective in that lot. It is the primary tool for evaluating and comparing acceptance sampling plans, revealing how well an inspection plan discriminates between good and bad lots. The S-shaped curve highlights producer's risk (rejecting good lots) and consumer's risk (accepting bad lots), making it essential for designing effective quality inspection strategies.

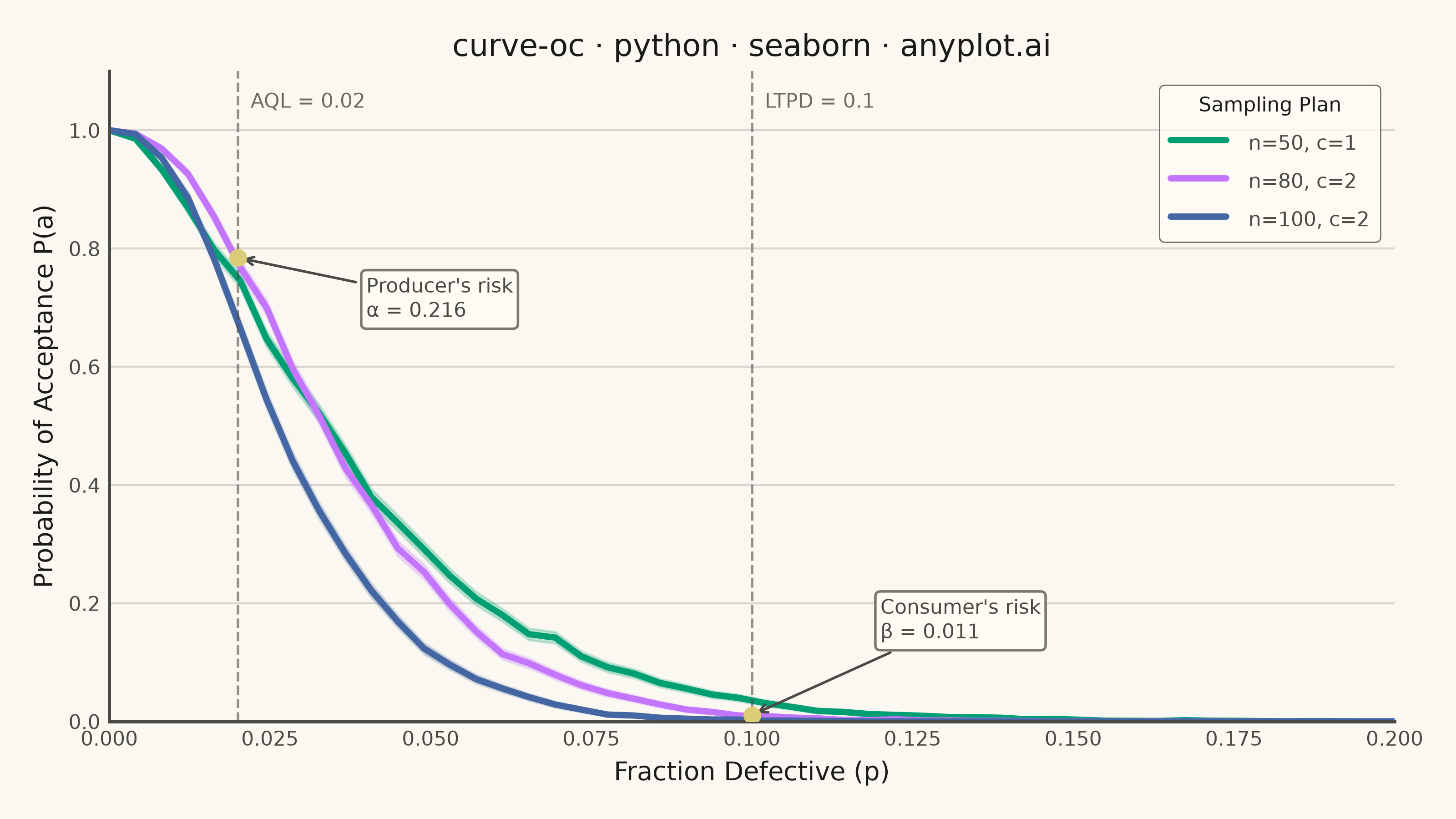

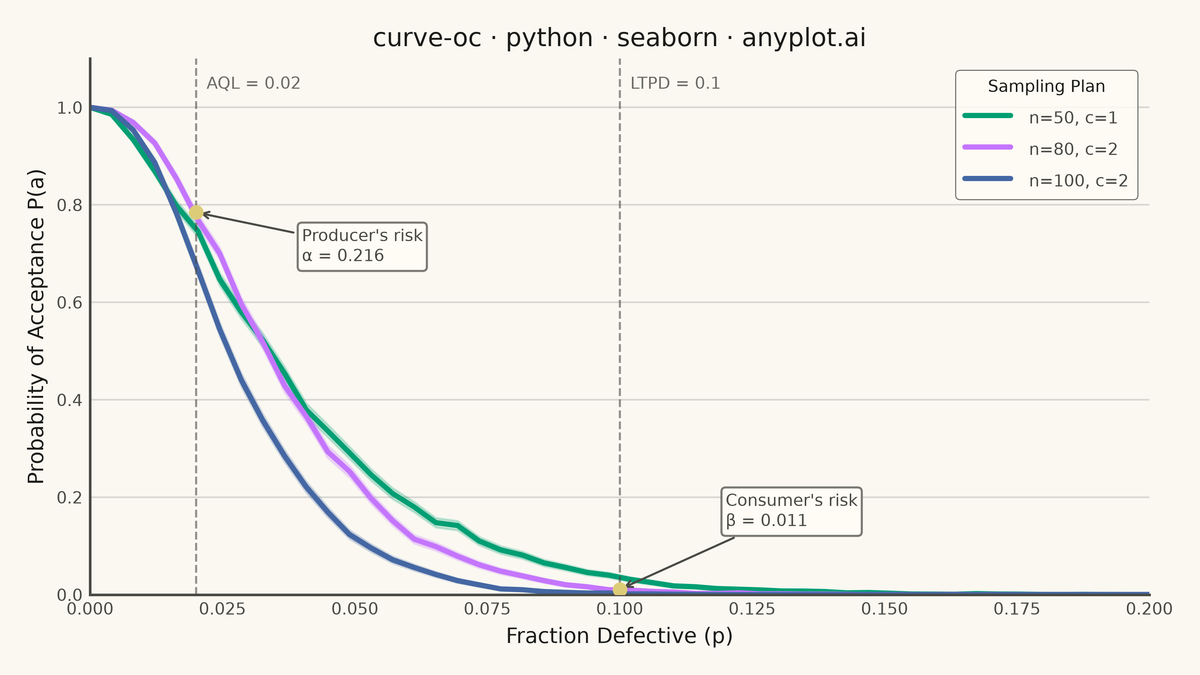

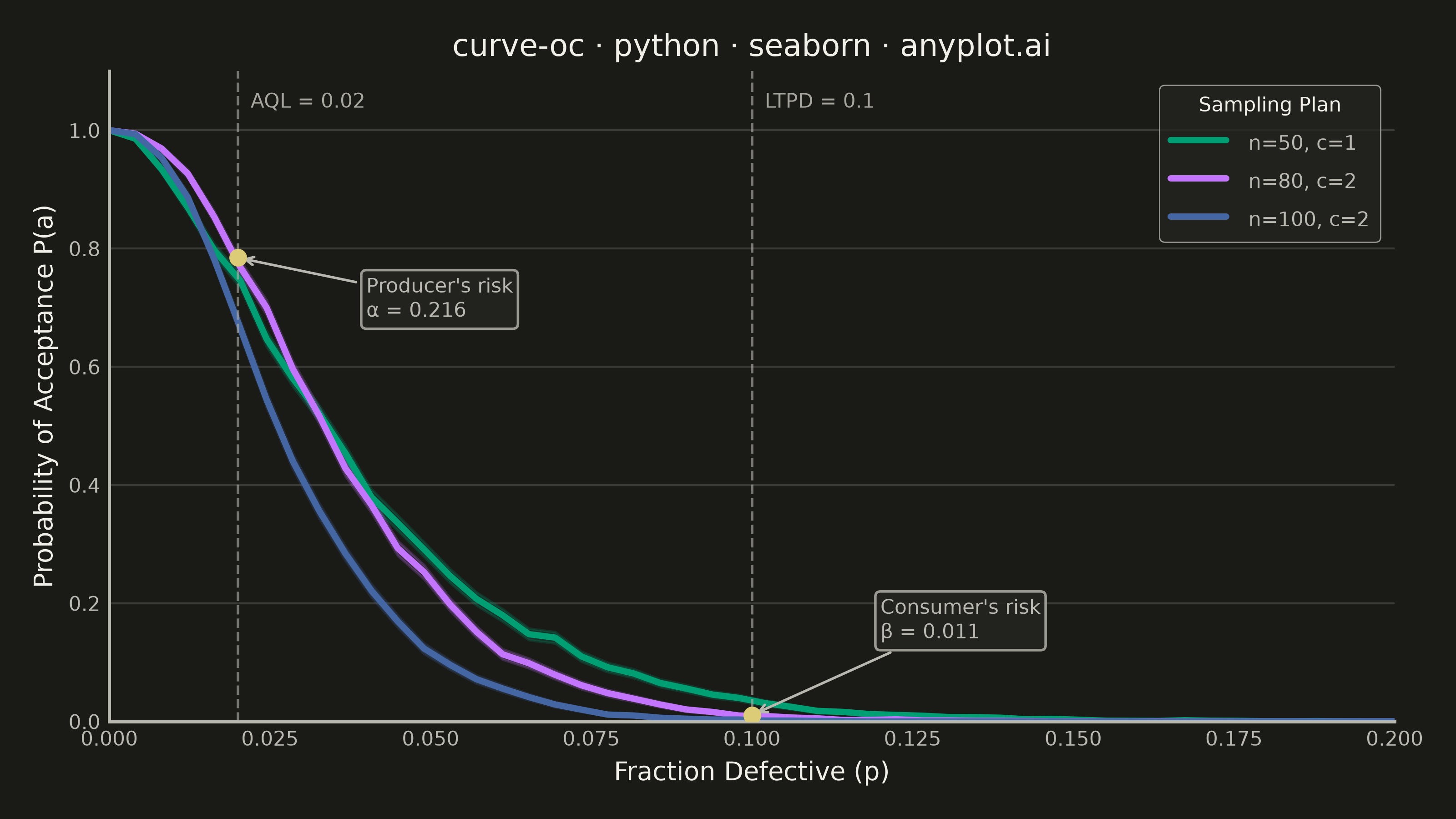

Operating Characteristic (OC) Curve rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
curve-oc: Operating Characteristic (OC) Curve
Library: seaborn 0.13.2 | Python 3.13.14
Quality: 90/100 | Updated: 2026-06-20
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
from scipy.stats import binom


# Theme tokens — Imprint palette chrome
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Imprint palette — first series always #009E73
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]
ANYPLOT_AMBER = "#DDCC77"  # warning / caution anchor for risk markers

sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.15,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)
sns.set_context("notebook", font_scale=1.0)

# Data — Monte Carlo lot-acceptance simulation; seaborn estimates empirical mean + 95% CI
np.random.seed(42)
N_SIMS = 5000  # runs per (plan, defect-level): large N → smooth curves + tight CI bands

fraction_defective = np.linspace(0, 0.20, 50)

plans = [
    {"n": 50, "c": 1, "label": "n=50, c=1"},
    {"n": 80, "c": 2, "label": "n=80, c=2"},
    {"n": 100, "c": 2, "label": "n=100, c=2"},
]

# Long-format DataFrame: each row is one simulated lot-inspection outcome (0 = reject, 1 = accept)
sim_dfs = []
for plan in plans:
    outcomes = np.random.binomial(plan["n"], fraction_defective[:, None], (len(fraction_defective), N_SIMS))
    accepted = (outcomes <= plan["c"]).astype(float)
    sim_dfs.append(
        pd.DataFrame(
            {
                "Fraction Defective (p)": np.repeat(fraction_defective, N_SIMS),
                "P(Accept)": accepted.ravel(),
                "Sampling Plan": plan["label"],
            }
        )
    )

df = pd.concat(sim_dfs, ignore_index=True)

aql = 0.02
ltpd = 0.10

# Theoretical risk values (binomial CDF) for annotation anchors on the n=80/c=2 curve
prob_at_aql = binom.cdf(plans[1]["c"], plans[1]["n"], aql)
beta_risk = binom.cdf(plans[1]["c"], plans[1]["n"], ltpd)
alpha_risk = 1 - prob_at_aql

# Plot
fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400, facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# seaborn aggregates empirical runs and adds 95% CI shading — distinctive statistical feature
sns.lineplot(
    data=df,
    x="Fraction Defective (p)",
    y="P(Accept)",
    hue="Sampling Plan",
    palette=IMPRINT_PALETTE[:3],
    linewidth=2.5,
    errorbar=("se", 1.96),
    ax=ax,
)

# AQL and LTPD reference lines
ax.axvline(x=aql, color=INK_SOFT, linestyle="--", linewidth=1.0, alpha=0.6)
ax.axvline(x=ltpd, color=INK_SOFT, linestyle="--", linewidth=1.0, alpha=0.6)
ax.text(aql + 0.002, 1.03, f"AQL = {aql}", fontsize=8, color=INK_MUTED, va="bottom")
ax.text(ltpd + 0.002, 1.03, f"LTPD = {ltpd}", fontsize=8, color=INK_MUTED, va="bottom")

# Risk markers using amber (warning/caution anchor) at theoretical values
ax.plot(aql, prob_at_aql, "o", color=ANYPLOT_AMBER, markersize=6, zorder=5)
ax.plot(ltpd, beta_risk, "o", color=ANYPLOT_AMBER, markersize=6, zorder=5)

# Annotation with filled background so text stands out against reference line dashes
bbox_style = {"boxstyle": "round,pad=0.25", "facecolor": ELEVATED_BG, "edgecolor": INK_MUTED, "alpha": 0.9}
ax.annotate(
    f"Producer's risk\nα = {alpha_risk:.3f}",
    xy=(aql, prob_at_aql),
    xytext=(aql + 0.020, prob_at_aql - 0.10),
    fontsize=8,
    color=INK_SOFT,
    arrowprops={"arrowstyle": "->", "color": INK_SOFT, "lw": 1.0},
    bbox=bbox_style,
)

ax.annotate(
    f"Consumer's risk\nβ = {beta_risk:.3f}",
    xy=(ltpd, beta_risk),
    xytext=(ltpd + 0.020, beta_risk + 0.13),
    fontsize=8,
    color=INK_SOFT,
    arrowprops={"arrowstyle": "->", "color": INK_SOFT, "lw": 1.0},
    bbox=bbox_style,
)

# Style
ax.set_title("curve-oc · python · seaborn · anyplot.ai", fontsize=12, fontweight="medium", color=INK)
ax.set_xlabel("Fraction Defective (p)", fontsize=10, color=INK)
ax.set_ylabel("Probability of Acceptance P(a)", fontsize=10, color=INK)
ax.tick_params(axis="both", labelsize=8, colors=INK_SOFT, length=0)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.spines["left"].set_color(INK_SOFT)
ax.spines["bottom"].set_color(INK_SOFT)
ax.yaxis.grid(True, alpha=0.15, linewidth=0.8, color=INK)
ax.set_xlim(0, 0.20)
ax.set_ylim(0, 1.10)

# Legend
legend = ax.get_legend()
legend.set_title("Sampling Plan")
plt.setp(legend.get_title(), fontsize=8, fontweight="medium", color=INK)
plt.setp(legend.get_texts(), fontsize=8, color=INK_SOFT)
legend.get_frame().set_facecolor(ELEVATED_BG)
legend.get_frame().set_edgecolor(INK_SOFT)
legend.get_frame().set_linewidth(0.5)

plt.tight_layout()

# Save — no bbox_inches='tight' to preserve exact 3200×1800 canvas
plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)

Part of Operating Characteristic (OC) Curve on anyplot.ai.
