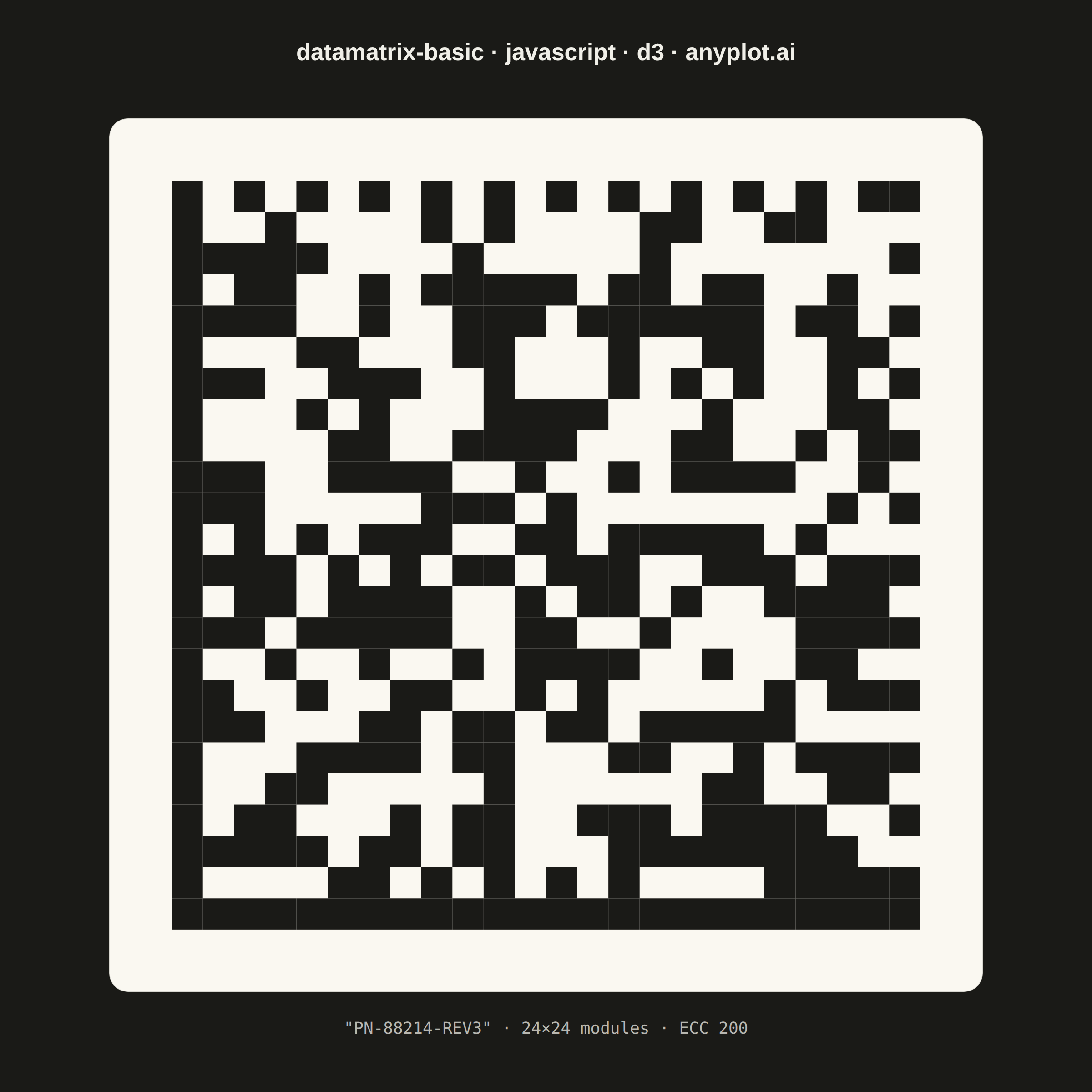

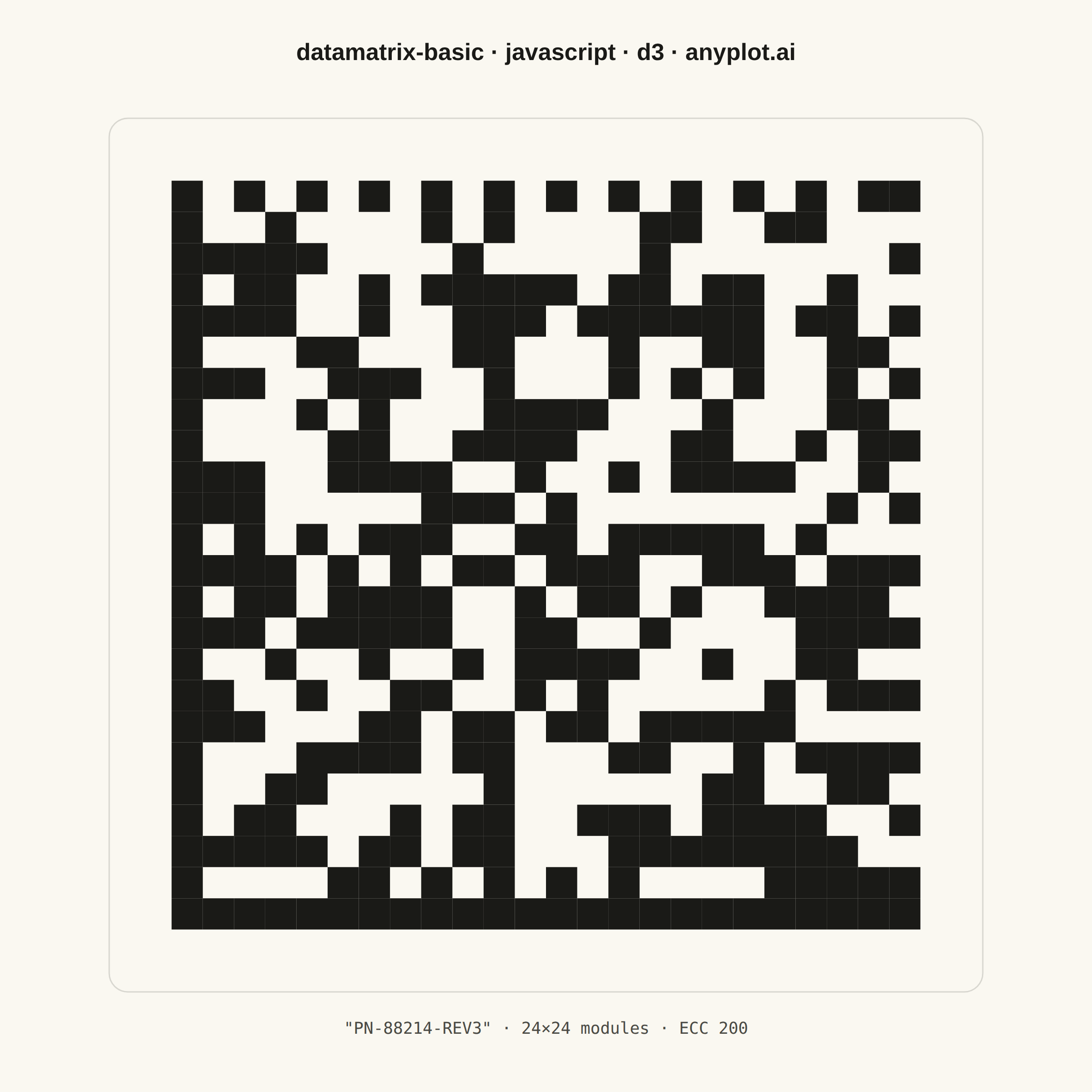

A Data Matrix 2D barcode visualization that encodes data into a compact square or rectangular matrix of black and white cells. Data Matrix codes follow the ISO/IEC 16022 standard, featuring an L-shaped finder pattern (solid borders on two adjacent sides) and alternating timing patterns on the opposite sides. This barcode format is ideal for marking small items and supports high data density with built-in error correction (ECC 200).
// anyplot.ai
// datamatrix-basic: Basic Data Matrix 2D Barcode
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-02
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
// --- Data --------------------------------------------------------------
// A Data Matrix encodes text into a square grid of modules bounded by an
// L-shaped solid finder (left + bottom) and an alternating timing pattern
// (top + right). MODULES=24 is a valid ISO/IEC 16022 symbol size, leaving a
// 22x22 interior for payload + ECC 200 parity.
const content = "PN-88214-REV3";
const MODULES = 24;
// Tiny deterministic LCG (the browser has no seeded RNG) seeded from the
// content string, so the interior pattern is stable across light/dark runs.
function hashString(s) {
let h = 2166136261;
for (let i = 0; i < s.length; i++) {
h ^= s.charCodeAt(i);
h = Math.imul(h, 16777619);
}
return h >>> 0;
}
function makeRng(seed) {
let state = seed >>> 0 || 1;
return () => {
state = (state * 1664525 + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rng = makeRng(hashString(content));
// Build the module grid: true = dark module.
const grid = Array.from({ length: MODULES }, () => new Array(MODULES).fill(false));
// Interior region: pseudo-random fill standing in for encoded payload + ECC 200 parity.
for (let r = 1; r < MODULES - 1; r++) {
for (let c = 1; c < MODULES - 1; c++) {
grid[r][c] = rng() > 0.5;
}
}
// Timing (clock) pattern: alternating modules on the top row and right column.
for (let c = 0; c < MODULES; c++) grid[0][c] = c % 2 === 0;
for (let r = 0; r < MODULES; r++) grid[r][MODULES - 1] = r % 2 === 0;
// L-shaped finder: solid modules on the left column and bottom row (drawn last so it wins corners).
for (let r = 0; r < MODULES; r++) grid[r][0] = true;
for (let c = 0; c < MODULES; c++) grid[MODULES - 1][c] = true;
// --- SVG mount ---------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
// --- Layout --------------------------------------------------------------
const margin = { top: 130, right: 90, bottom: 110, left: 90 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
const quiet = 2; // quiet-zone width in module-widths (spec requires >= 1)
const totalModules = MODULES + quiet * 2;
const cell = Math.min(iw, ih) / totalModules;
const plateSize = cell * totalModules;
const plateX = margin.left + (iw - plateSize) / 2;
const plateY = margin.top + (ih - plateSize) / 2;
// A Data Matrix must stay high-contrast dark-on-light to remain scannable
// (spec: "high contrast black on white for maximum readability"), so the
// plate + modules use fixed Imprint light-theme tokens in both themes —
// like a printed label affixed to the page — while the surrounding title
// and caption still flip with ANYPLOT_THEME.
const PLATE_BG = "#FAF8F1";
const MODULE_INK = "#1A1A17";
// --- Quiet-zone plate ------------------------------------------------------
svg
.append("rect")
.attr("x", plateX)
.attr("y", plateY)
.attr("width", plateSize)
.attr("height", plateSize)
.attr("rx", cell * 0.6)
.attr("fill", PLATE_BG)
.attr("stroke", MODULE_INK)
.attr("stroke-opacity", 0.15)
.attr("stroke-width", 1.5);
// --- Modules ---------------------------------------------------------------
const modules = [];
for (let r = 0; r < MODULES; r++) {
for (let c = 0; c < MODULES; c++) {
if (grid[r][c]) modules.push({ r, c });
}
}
svg
.selectAll("rect.module")
.data(modules)
.join("rect")
.attr("class", "module")
.attr("x", (d) => plateX + (quiet + d.c) * cell)
.attr("y", (d) => plateY + (quiet + d.r) * cell)
.attr("width", cell)
.attr("height", cell)
.attr("fill", MODULE_INK);
// --- Title -------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 66)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "26px")
.style("font-weight", "600")
.text("datamatrix-basic · javascript · d3 · anyplot.ai");
// --- Caption -------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", plateY + plateSize + 46)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "18px")
.style("font-family", "monospace")
.text(`"${content}" · ${MODULES}×${MODULES} modules · ECC 200`);
