Basic Data Matrix 2D Barcode — Plotly

A Data Matrix 2D barcode visualization that encodes data into a compact square or rectangular matrix of black and white cells. Data Matrix codes follow the ISO/IEC 16022 standard, featuring an L-shaped finder pattern (solid borders on two adjacent sides) and alternating timing patterns on the opposite sides. This barcode format is ideal for marking small items and supports high data density with built-in error correction (ECC 200).

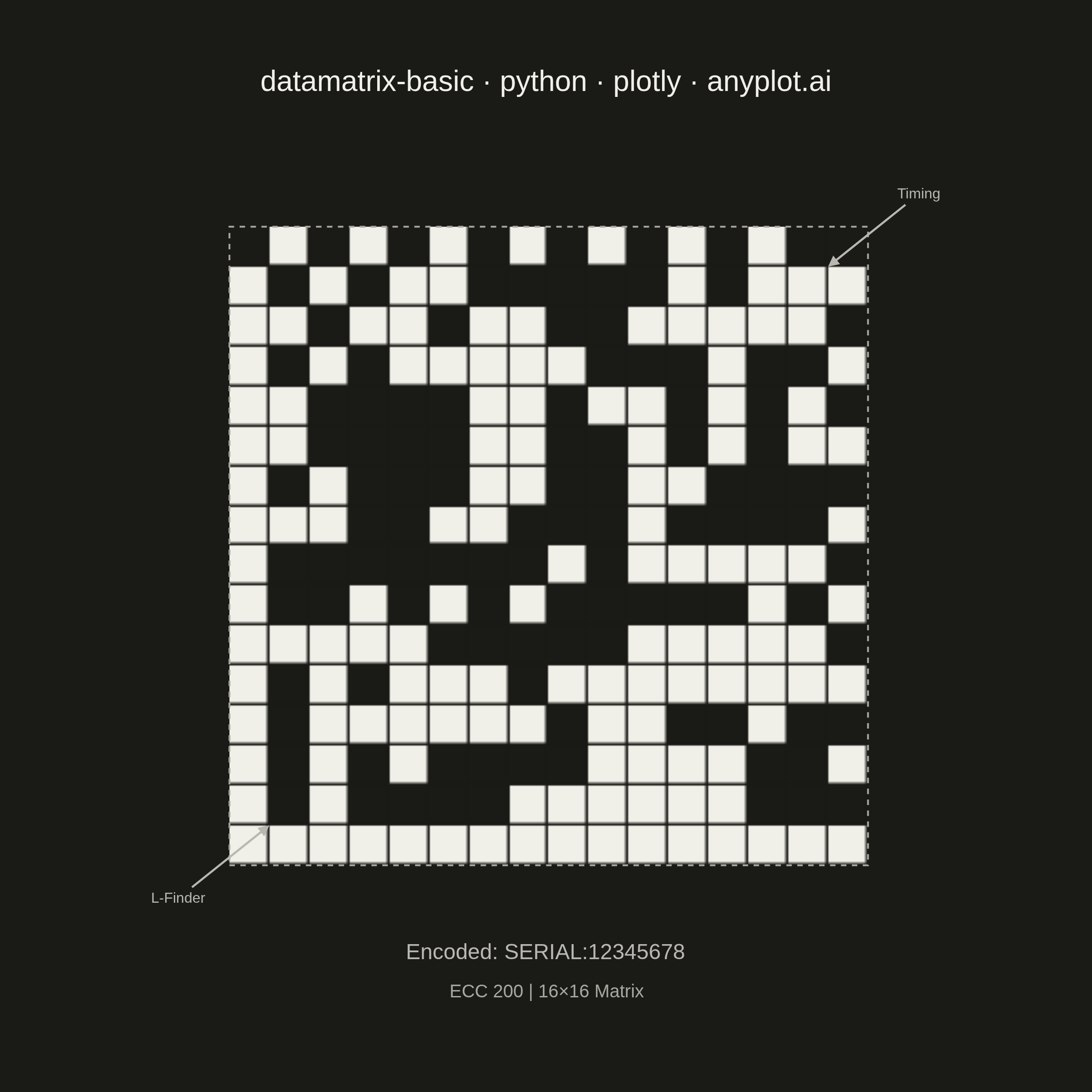

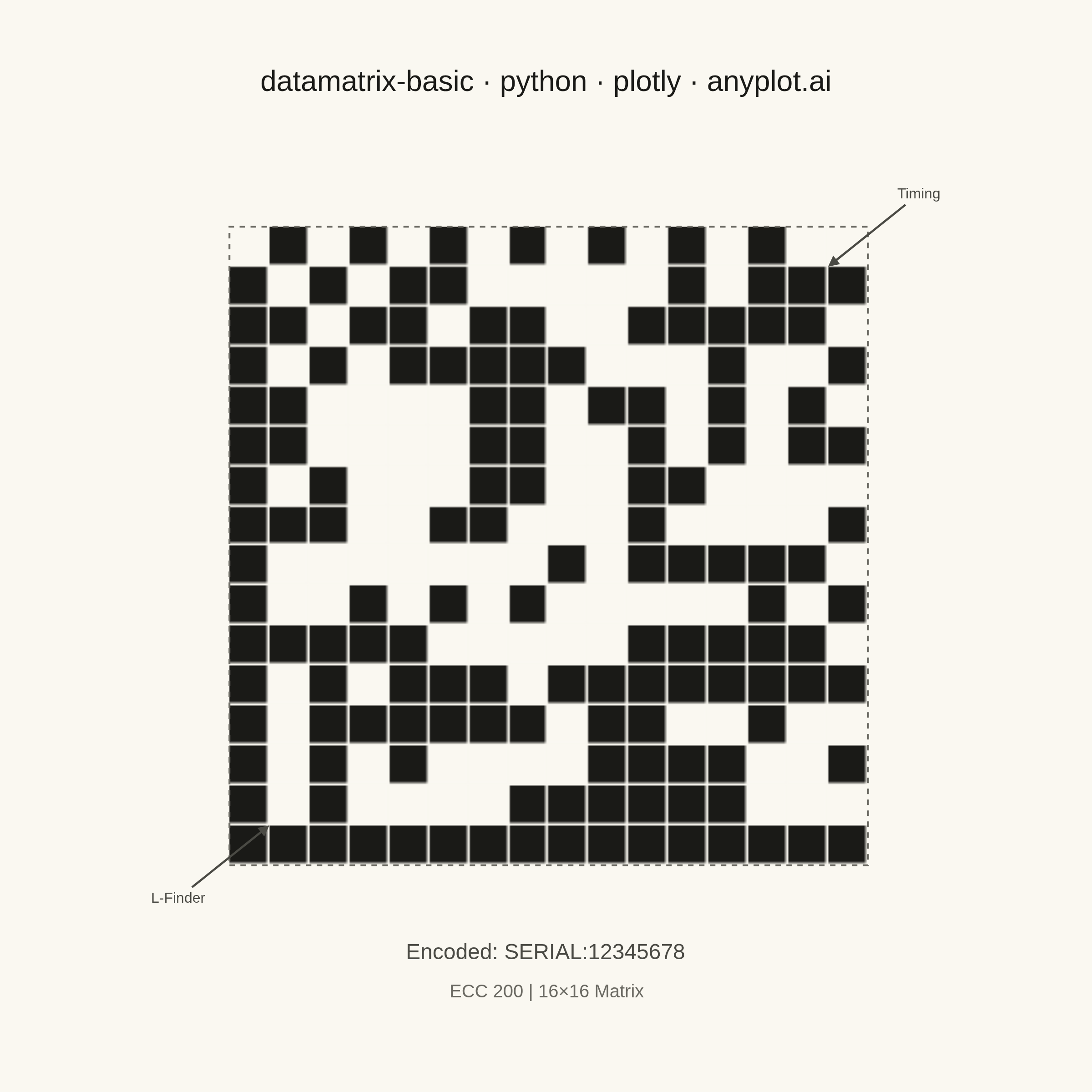

Basic Data Matrix 2D Barcode rendered with Plotly

Python source (Plotly)

""" anyplot.ai
datamatrix-basic: Basic Data Matrix 2D Barcode
Library: plotly 6.7.0 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-20
"""

import os

import numpy as np
import plotly.graph_objects as go


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Barcode cell colors — inverted per theme for contrast
CELL_ON = "#1A1A17" if THEME == "light" else "#F0EFE8"
CELL_OFF = PAGE_BG

# Data - encode a sample serial number into a 16×16 Data Matrix pattern
content = "SERIAL:12345678"
matrix_size = 16

matrix = np.zeros((matrix_size, matrix_size), dtype=int)

# L-shaped finder pattern (solid left column and bottom row)
matrix[:, 0] = 1
matrix[matrix_size - 1, :] = 1

# Alternating timing patterns (top row and right column)
for i in range(matrix_size):
    matrix[0, i] = i % 2
for i in range(matrix_size):
    matrix[i, matrix_size - 1] = i % 2

# Interior data cells — deterministic pattern based on content (simulated ECC 200)
content_hash = sum(ord(c) for c in content)
np.random.seed(content_hash)
for i in range(1, matrix_size - 1):
    for j in range(1, matrix_size - 1):
        matrix[i, j] = np.random.randint(0, 2)

# Flip for correct visual orientation (L-finder at left+bottom in display)
matrix = np.flipud(matrix)

# Cell type labels for interactive hover (post-flipud: row 0=bottom=finder, row 15=top=timing)
cell_type = np.empty((matrix_size, matrix_size), dtype=object)
for i in range(matrix_size):
    for j in range(matrix_size):
        if j == 0 or i == 0:
            cell_type[i, j] = "Finder"
        elif j == matrix_size - 1 or i == matrix_size - 1:
            cell_type[i, j] = "Timing"
        else:
            cell_type[i, j] = "Data"

# Plot
fig = go.Figure()

fig.add_trace(
    go.Heatmap(
        z=matrix,
        x=np.arange(matrix_size),
        y=np.arange(matrix_size),
        customdata=cell_type,
        hovertemplate="<b>%{customdata}</b><extra></extra>",
        colorscale=[[0, CELL_OFF], [1, CELL_ON]],
        showscale=False,
        xgap=1.5,
        ygap=1.5,
    )
)

# Quiet zone border — ISO/IEC 16022 requires at least 1 module of clear space
fig.add_shape(
    type="rect",
    x0=-0.5,
    y0=-0.5,
    x1=matrix_size - 0.5,
    y1=matrix_size - 0.5,
    xref="x",
    yref="y",
    line={"color": INK_MUTED, "width": 1, "dash": "dot"},
    fillcolor="rgba(0,0,0,0)",
)

fig.update_layout(
    title={
        "text": "datamatrix-basic · python · plotly · anyplot.ai",
        "font": {"size": 16, "color": INK},
        "x": 0.5,
        "xanchor": "center",
    },
    xaxis={
        "showticklabels": False,
        "showgrid": False,
        "zeroline": False,
        "scaleanchor": "y",
        "scaleratio": 1,
        "constrain": "domain",
    },
    yaxis={"showticklabels": False, "showgrid": False, "zeroline": False, "constrain": "domain"},
    plot_bgcolor=PAGE_BG,
    paper_bgcolor=PAGE_BG,
    margin={"l": 80, "r": 80, "t": 100, "b": 100},
    annotations=[
        {
            "text": f"Encoded: {content}",
            "xref": "paper",
            "yref": "paper",
            "x": 0.5,
            "y": -0.08,
            "showarrow": False,
            "font": {"size": 12, "color": INK_SOFT},
            "xanchor": "center",
        },
        {
            "text": "ECC 200 | 16×16 Matrix",
            "xref": "paper",
            "yref": "paper",
            "x": 0.5,
            "y": -0.13,
            "showarrow": False,
            "font": {"size": 10, "color": INK_MUTED},
            "xanchor": "center",
        },
        # L-Finder callout — arrow from margin into finder corner
        {
            "text": "L-Finder",
            "x": 0.5,
            "y": 0.5,
            "xref": "x",
            "yref": "y",
            "showarrow": True,
            "arrowhead": 2,
            "arrowwidth": 1.2,
            "arrowcolor": INK_SOFT,
            "ax": -50,
            "ay": 40,
            "font": {"size": 8, "color": INK_SOFT},
            "xanchor": "center",
        },
        # Timing callout — arrow from margin into timing corner
        {
            "text": "Timing",
            "x": 14.5,
            "y": 14.5,
            "xref": "x",
            "yref": "y",
            "showarrow": True,
            "arrowhead": 2,
            "arrowwidth": 1.2,
            "arrowcolor": INK_SOFT,
            "ax": 50,
            "ay": -40,
            "font": {"size": 8, "color": INK_SOFT},
            "xanchor": "center",
        },
    ],
)

fig.update_yaxes(scaleanchor="x", scaleratio=1)

# Save — square canvas (2400×2400 px) suits the symmetric barcode format
fig.write_image(f"plot-{THEME}.png", width=600, height=600, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Basic Data Matrix 2D Barcode on anyplot.ai.
