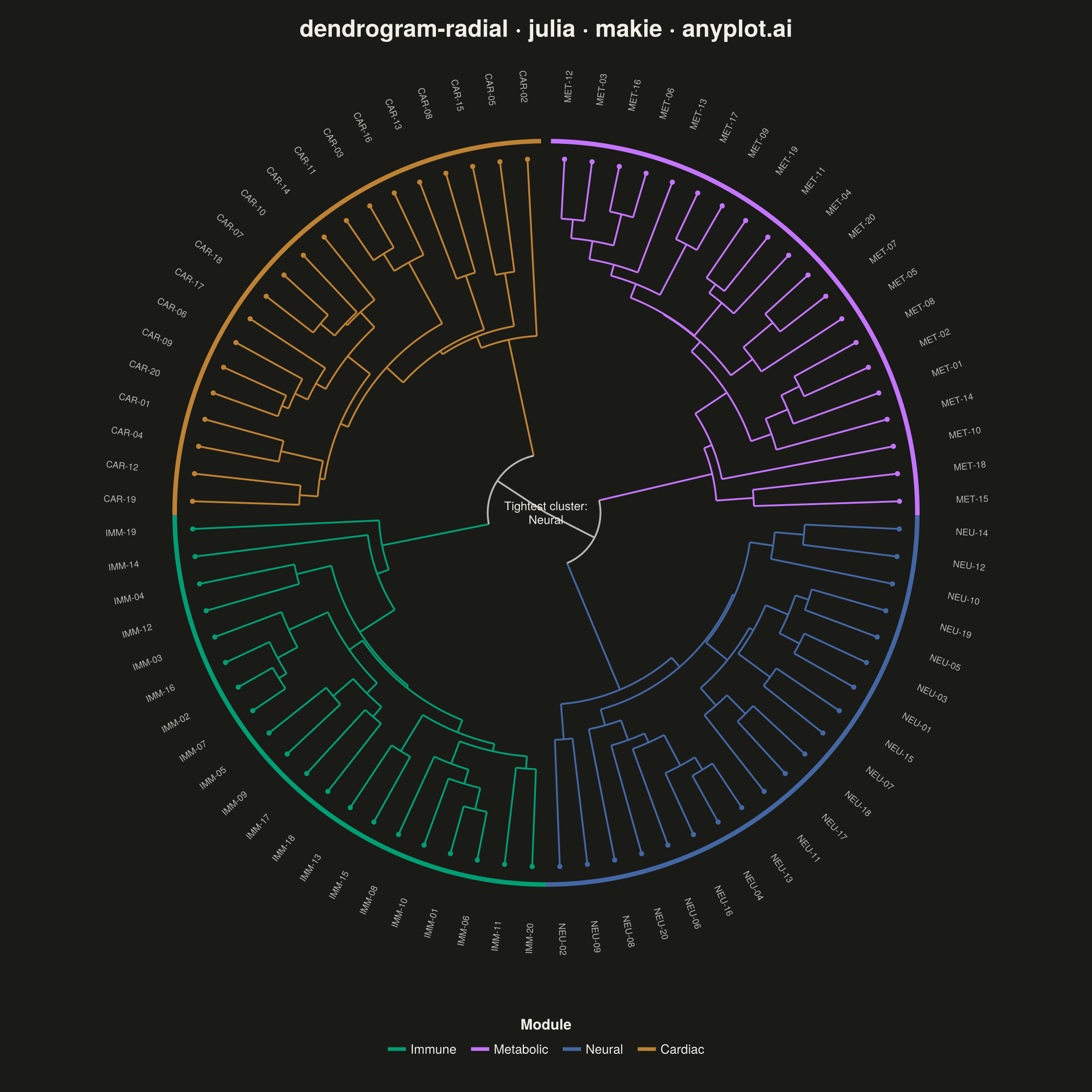

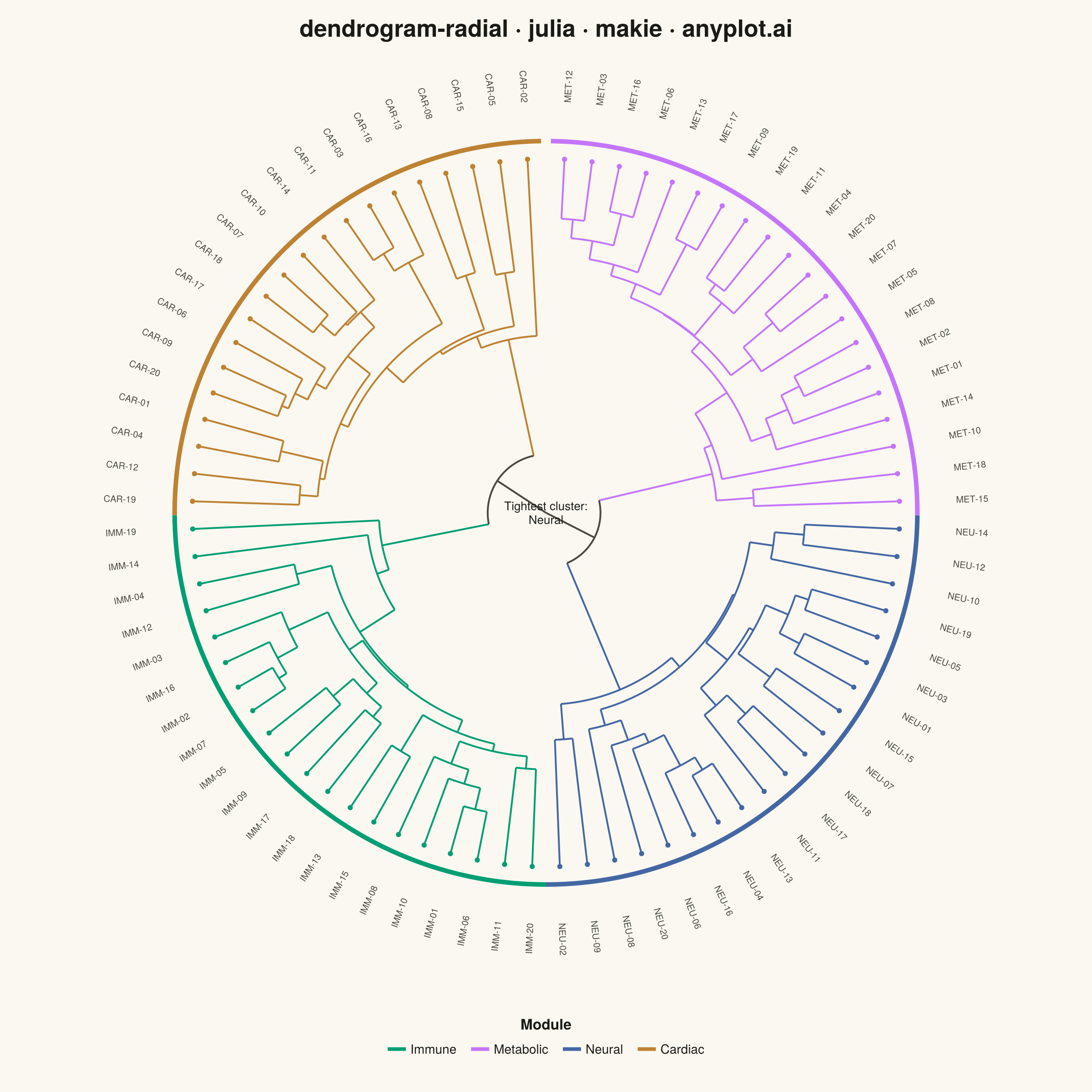

A radial dendrogram renders hierarchical clustering in a circular layout where the root node sits at the center and branches extend outward, with leaf nodes arranged around the circumference. This layout is a space-efficient alternative to linear dendrograms for large hierarchies, making it well-suited for datasets with hundreds of leaves. Branch lengths are proportional to distance or dissimilarity, preserving the quantitative interpretation of cluster merges.
# anyplot.ai
# dendrogram-radial: Radial Dendrogram
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 88/100 | Created: 2026-09-05
using CairoMakie
using Colors
using Random
# Theme tokens (see prompts/default-style-guide.md "Background" + "Theme-adaptive Chrome")
THEME = get(ENV, "ANYPLOT_THEME", "light")
PAGE_BG = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
INK = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
IMPRINT_PALETTE = [
colorant"#009E73", # 1 — brand green, Immune module
colorant"#C475FD", # 2 — lavender, Metabolic module
colorant"#4467A3", # 3 — blue, Neural module
colorant"#BD8233", # 4 — ochre, Cardiac module
]
# Data — synthetic gene-expression profiles for four functional modules,
# clustered hierarchically from scratch (no Clustering.jl in the CI runtime).
Random.seed!(42)
group_names = ["Immune", "Metabolic", "Neural", "Cardiac"]
group_prefixes = ["IMM", "MET", "NEU", "CAR"]
group_means = [
[3.0, 0.5, 0.2, 2.8, 0.4, 3.2],
[0.3, 3.1, 2.9, 0.5, 3.0, 0.2],
[2.9, 2.8, 0.3, 0.4, 0.3, 0.5],
[0.4, 0.3, 3.0, 3.1, 2.9, 2.8],
]
n_per_group = 20
n = n_per_group * length(group_names)
features = Matrix{Float64}(undef, n, 6)
leaf_group = Vector{Int}(undef, n)
labels = Vector{String}(undef, n)
for g in 1:length(group_names), k in 1:n_per_group
idx = (g - 1) * n_per_group + k
features[idx, :] = group_means[g] .+ 0.7 .* randn(6)
leaf_group[idx] = g
labels[idx] = group_prefixes[g] * "-" * lpad(k, 2, "0")
end
# Agglomerative clustering (UPGMA / average linkage) via the Lance-Williams
# update — produces a scipy-style merge sequence (id1, id2, distance, new_id)
# without needing an external clustering package.
distkey(a, b) = a < b ? (a, b) : (b, a)
dist = Dict{Tuple{Int,Int},Float64}()
for i in 1:n, j in (i + 1):n
dist[(i, j)] = sqrt(sum((features[i, :] .- features[j, :]) .^ 2))
end
sizes = Dict{Int,Int}(i => 1 for i in 1:n)
active = collect(1:n)
next_id = n + 1
merges = Tuple{Int,Int,Float64,Int}[]
while length(active) > 1
best_d = Inf
best_i = 0
best_j = 0
for a in 1:(length(active) - 1), b in (a + 1):length(active)
p, q = active[a], active[b]
d = dist[distkey(p, q)]
if d < best_d
best_d = d
best_i = p
best_j = q
end
end
ni, nj = sizes[best_i], sizes[best_j]
nid = next_id
for k in active
if k == best_i || k == best_j
continue
end
d_ik = dist[distkey(best_i, k)]
d_jk = dist[distkey(best_j, k)]
dist[distkey(nid, k)] = (ni * d_ik + nj * d_jk) / (ni + nj)
end
sizes[nid] = ni + nj
push!(merges, (best_i, best_j, best_d, nid))
filter!(x -> x != best_i && x != best_j, active)
push!(active, nid)
global next_id += 1
end
root_id = merges[end][4]
max_height = merges[end][3]
children = Dict{Int,Tuple{Int,Int}}()
for (i, j, d, nid) in merges
children[nid] = (i, j)
end
# Leaf order (iterative DFS, left child first) keeps sibling subtrees
# angularly contiguous so branches never cross.
order = Int[]
stack = [root_id]
while !isempty(stack)
node = pop!(stack)
if node <= n
push!(order, node)
else
i, j = children[node]
push!(stack, j)
push!(stack, i)
end
end
# Angle (leaves equally spaced, small gap at the top) and radius
# (proportional to merge distance, root at the center) per node.
R_max = 1.0
gap = deg2rad(6)
angle_span = 2 * pi - gap
start_angle = pi / 2 + gap / 2
angle_step = angle_span / (n - 1)
node_angle = Dict{Int,Float64}()
node_radius = Dict{Int,Float64}()
for (p, leaf) in enumerate(order)
node_angle[leaf] = start_angle + angle_step * (p - 1)
node_radius[leaf] = R_max
end
for (i, j, d, nid) in merges
node_angle[nid] = (node_angle[i] + node_angle[j]) / 2
node_radius[nid] = R_max * (1 - d / max_height)
end
# Pure-cluster color propagation: a node keeps its module color while every
# leaf beneath it shares the same module, else it falls back to neutral ink
# (mirrors the standard dendrogram color_threshold convention).
node_group = Dict{Int,Int}()
for leaf in 1:n
node_group[leaf] = leaf_group[leaf]
end
for (i, j, d, nid) in merges
gi, gj = node_group[i], node_group[j]
node_group[nid] = gi == gj ? gi : 0
end
# Data storytelling: the distance at which each module's own leaves last
# coalesce into one pure branch tells us how internally tight that module is.
group_top_d = Dict{Int,Float64}()
for (i, j, d, nid) in merges
g = node_group[nid]
if g != 0
group_top_d[g] = max(get(group_top_d, g, -Inf), d)
end
end
tightest_group = argmin(group_top_d)
tightest_name = group_names[tightest_group]
# Plot — see default-style-guide.md "Visual Sizing Defaults" for the canvas + sizing values
title_text = "dendrogram-radial · julia · makie · anyplot.ai"
fig = Figure(
resolution = (1200, 1200),
fontsize = 14,
backgroundcolor = PAGE_BG,
)
ax = Axis(
fig[1, 1];
title = title_text,
titlesize = 26,
titlecolor = INK,
aspect = DataAspect(),
backgroundcolor = PAGE_BG,
)
hidedecorations!(ax)
hidespines!(ax)
L = 1.32
limits!(ax, -L, L, -L, L)
for (i, j, d, nid) in merges
rp = node_radius[nid]
ai, aj = node_angle[i], node_angle[j]
color_i = node_group[i] == 0 ? INK_SOFT : IMPRINT_PALETTE[node_group[i]]
xi1, yi1 = node_radius[i] * cos(ai), node_radius[i] * sin(ai)
xi2, yi2 = rp * cos(ai), rp * sin(ai)
lines!(ax, [xi1, xi2], [yi1, yi2]; color = color_i, linewidth = 2.0)
color_j = node_group[j] == 0 ? INK_SOFT : IMPRINT_PALETTE[node_group[j]]
xj1, yj1 = node_radius[j] * cos(aj), node_radius[j] * sin(aj)
xj2, yj2 = rp * cos(aj), rp * sin(aj)
lines!(ax, [xj1, xj2], [yj1, yj2]; color = color_j, linewidth = 2.0)
color_nid = node_group[nid] == 0 ? INK_SOFT : IMPRINT_PALETTE[node_group[nid]]
a_lo, a_hi = ai < aj ? (ai, aj) : (aj, ai)
arc!(ax, Point2f(0, 0), rp, a_lo, a_hi; color = color_nid, linewidth = 2.0)
end
# Color-coded outer ring: contiguous leaf runs sharing a module, one arc per run.
ring_r = R_max * 1.05
half_step = angle_step / 2
seg_start = 1
for p in 2:(n + 1)
if p == n + 1 || leaf_group[order[p]] != leaf_group[order[seg_start]]
g = leaf_group[order[seg_start]]
a0 = node_angle[order[seg_start]] - half_step
a1 = node_angle[order[p - 1]] + half_step
arc!(ax, Point2f(0, 0), ring_r, a0, a1; color = IMPRINT_PALETTE[g], linewidth = 5)
global seg_start = p
end
end
leaf_x = [R_max * cos(node_angle[l]) for l in 1:n]
leaf_y = [R_max * sin(node_angle[l]) for l in 1:n]
leaf_colors = [IMPRINT_PALETTE[leaf_group[l]] for l in 1:n]
scatter!(ax, leaf_x, leaf_y; color = leaf_colors, markersize = 8, strokewidth = 0)
label_r = R_max * 1.16
for l in 1:n
a = node_angle[l]
flip = cos(a) < 0
rot = flip ? a + pi : a
halign = flip ? :right : :left
text!(
ax, label_r * cos(a), label_r * sin(a);
text = labels[l], rotation = rot, align = (halign, :center),
fontsize = 10, color = INK_SOFT,
)
end
# Data-storytelling callout: the root's empty center has no branches to
# collide with, so it doubles as free space for the tightest-module insight.
text!(
ax, 0, 0;
text = "Tightest cluster:\n$(tightest_name)", align = (:center, :center),
fontsize = 13, color = INK, justification = :center,
)
legend_elements = [LineElement(color = IMPRINT_PALETTE[g], linewidth = 4) for g in 1:4]
Legend(
fig[2, 1], legend_elements, group_names, "Module";
orientation = :horizontal, framevisible = false, labelcolor = INK, titlecolor = INK,
labelsize = 14, titlesize = 16,
)
rowsize!(fig.layout, 1, Relative(0.92))
rowsize!(fig.layout, 2, Relative(0.08))
# Save
save("plot-$(THEME).png", fig; px_per_unit = 2)
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/dendrogram-radial/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
