Basic Density Plot — Seaborn

A density plot (also known as Kernel Density Estimation or KDE plot) visualizes the distribution of a continuous variable by smoothing the data into a continuous probability density curve. Unlike histograms which use discrete bins, density plots provide a smooth representation of the underlying distribution, making it easier to identify patterns such as skewness, modality, and overall shape.

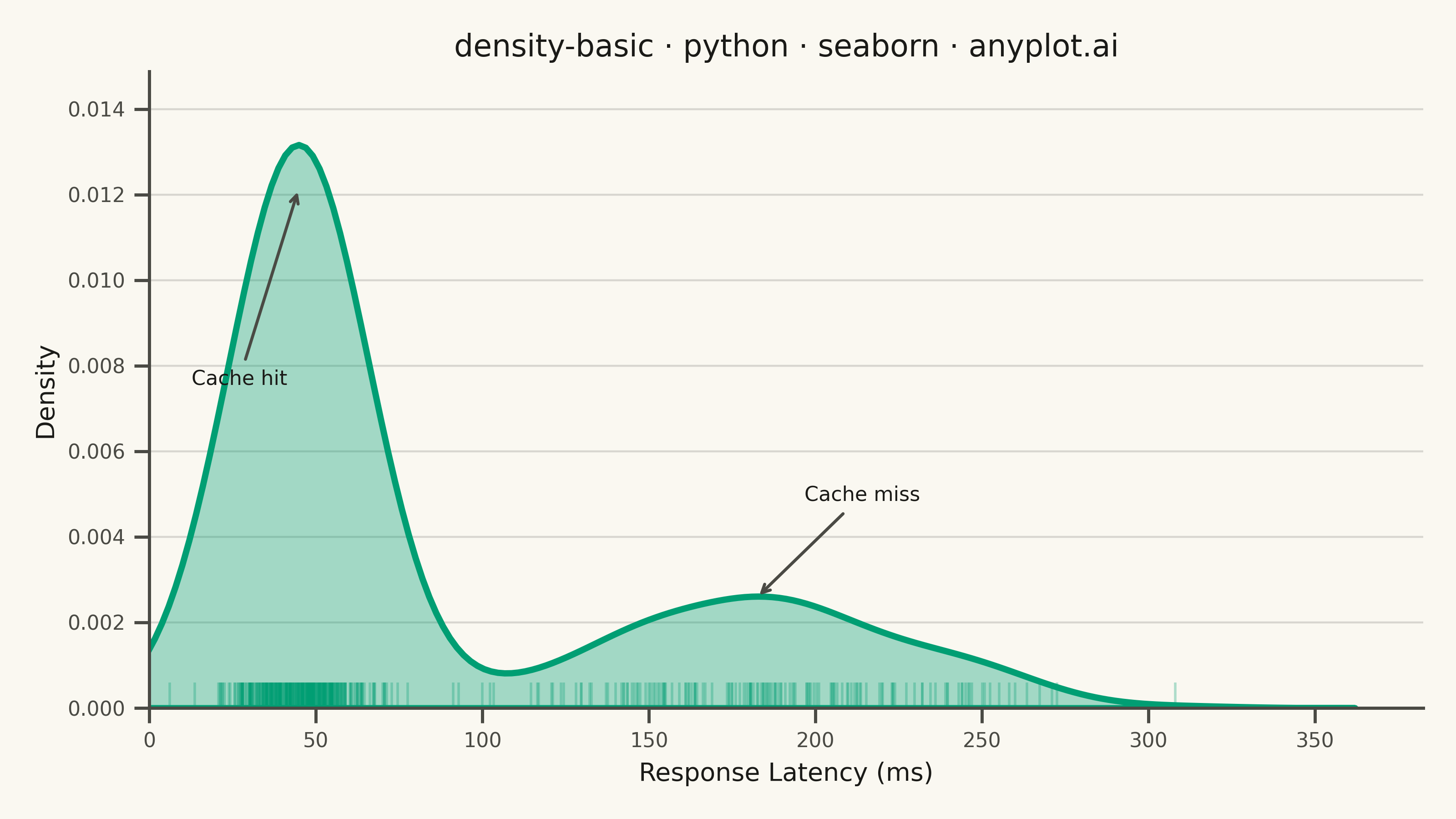

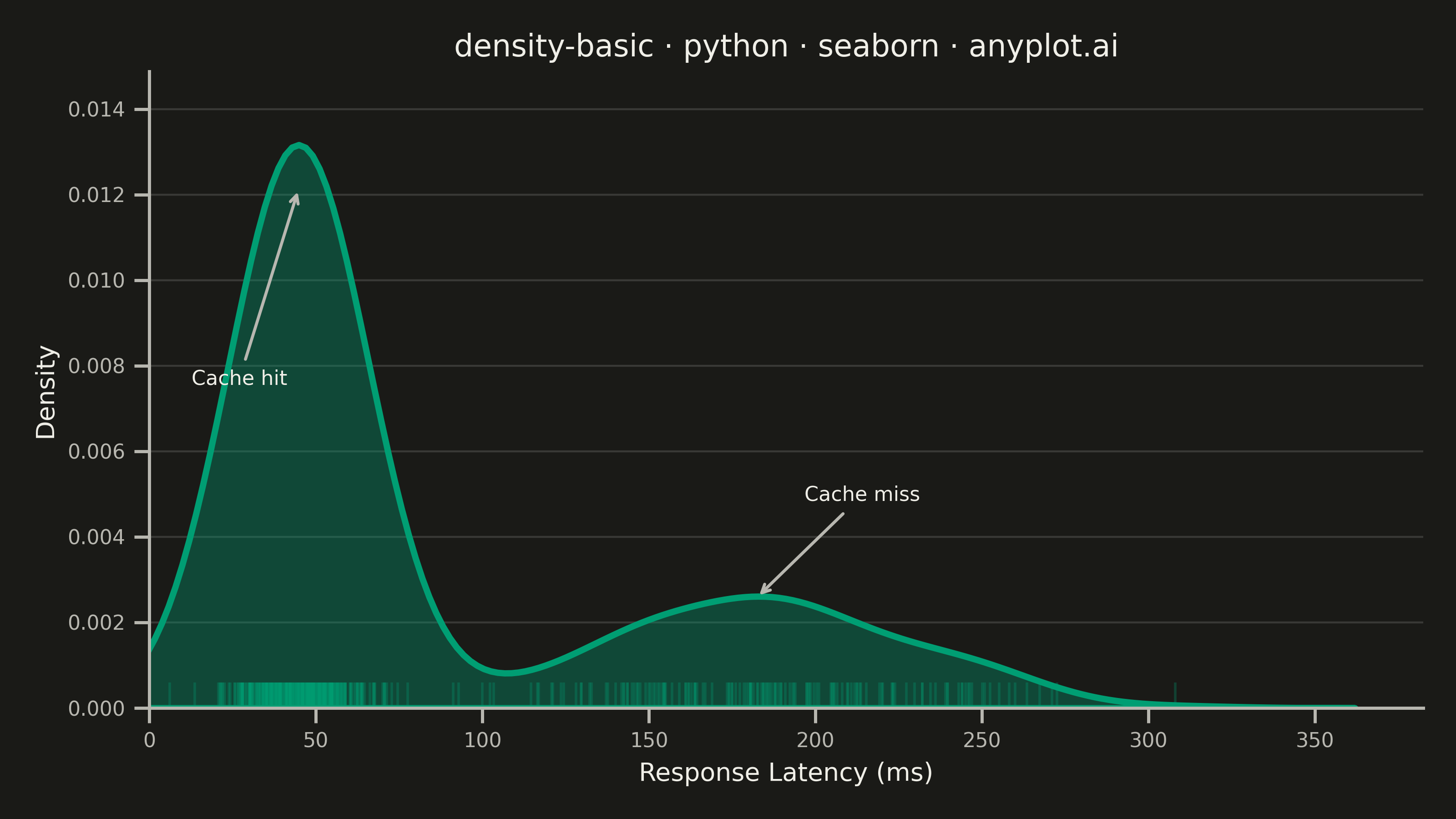

Basic Density Plot rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
density-basic: Basic Density Plot
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-30
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from scipy import stats


# Theme tokens — Imprint palette + theme-adaptive chrome
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"  # Imprint palette position 1 — always first series

sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.15,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Data — bimodal API response latencies: cache hits (fast) vs. cache misses (slow)
np.random.seed(42)
latencies = np.concatenate(
    [
        np.random.normal(45, 12, 350),  # Cache hit: fast path ~45ms
        np.random.normal(185, 40, 150),  # Cache miss: slow path ~185ms
    ]
)
latencies = np.clip(latencies, 5, 320)

# Pre-compute KDE peaks for annotation placement
kde_func = stats.gaussian_kde(latencies)
x_fine = np.linspace(5, 310, 1000)
y_fine = kde_func(x_fine)

peak1_mask = x_fine < 120
peak1_x = x_fine[peak1_mask][np.argmax(y_fine[peak1_mask])]
peak1_y = np.max(y_fine[peak1_mask])

peak2_mask = x_fine >= 120
peak2_x = x_fine[peak2_mask][np.argmax(y_fine[peak2_mask])]
peak2_y = np.max(y_fine[peak2_mask])

# Canvas: 3200 × 1800 px (16:9 landscape)
fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400, facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# KDE with native seaborn fill (idiomatic fill=True)
sns.kdeplot(data=latencies, ax=ax, fill=True, alpha=0.35, color=BRAND, linewidth=2.5, bw_adjust=0.9)

# Rug plot showing individual observations
sns.rugplot(data=latencies, ax=ax, color=BRAND, alpha=0.3, height=0.04)

# Peak annotations
ax.annotate(
    "Cache hit",
    xy=(peak1_x, peak1_y),
    xytext=(peak1_x - 18, peak1_y * 0.65),
    fontsize=8,
    fontweight="medium",
    color=INK,
    arrowprops={"arrowstyle": "->", "color": INK_SOFT, "lw": 1.2},
    ha="center",
    va="top",
)
ax.annotate(
    "Cache miss",
    xy=(peak2_x, peak2_y),
    xytext=(peak2_x + 32, peak2_y + peak1_y * 0.18),
    fontsize=8,
    fontweight="medium",
    color=INK,
    arrowprops={"arrowstyle": "->", "color": INK_SOFT, "lw": 1.2},
    ha="center",
    va="bottom",
)

# Style
title = "density-basic · python · seaborn · anyplot.ai"
n = len(title)
ratio = 67 / n if n > 67 else 1.0
title_fontsize = max(8, round(12 * ratio))

ax.set_xlabel("Response Latency (ms)", fontsize=10, color=INK)
ax.set_ylabel("Density", fontsize=10, color=INK)
ax.set_title(title, fontsize=title_fontsize, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=8)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for spine in ("left", "bottom"):
    ax.spines[spine].set_color(INK_SOFT)
ax.set_xlim(left=0)
ax.yaxis.grid(True, alpha=0.15, linewidth=0.8)

plt.tight_layout()
# No bbox_inches='tight' — preserves exact 3200×1800 canvas
plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)

Part of Basic Density Plot on anyplot.ai.
