A drawdown chart visualizes the percentage decline from peak value over time, showing how far an investment or asset has fallen from its highest point. This chart is essential for risk assessment and understanding the magnitude of losses during unfavorable market periods. The filled area below the zero line emphasizes the depth and duration of drawdowns, making it easy to identify maximum drawdown periods and recovery points.

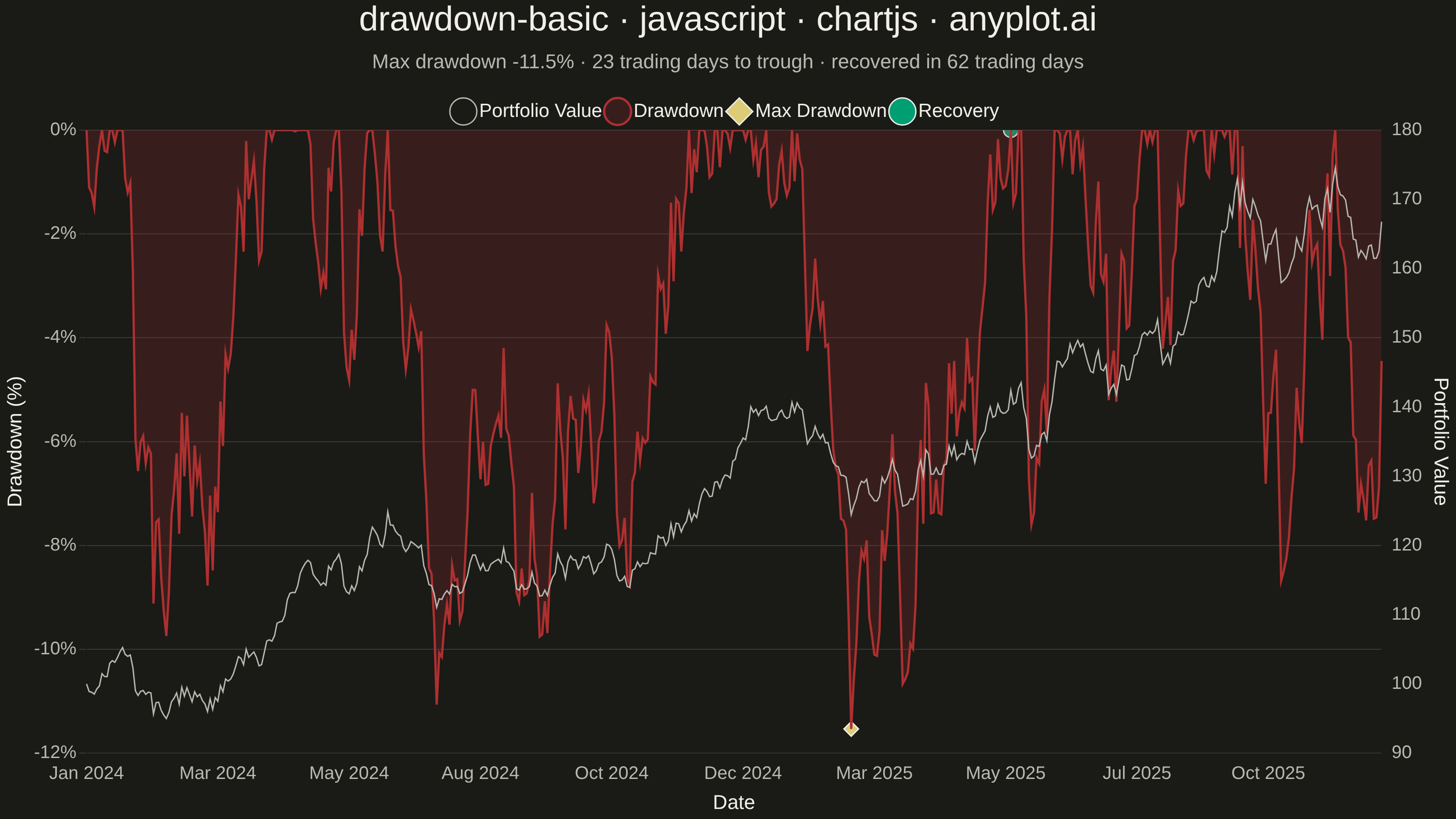

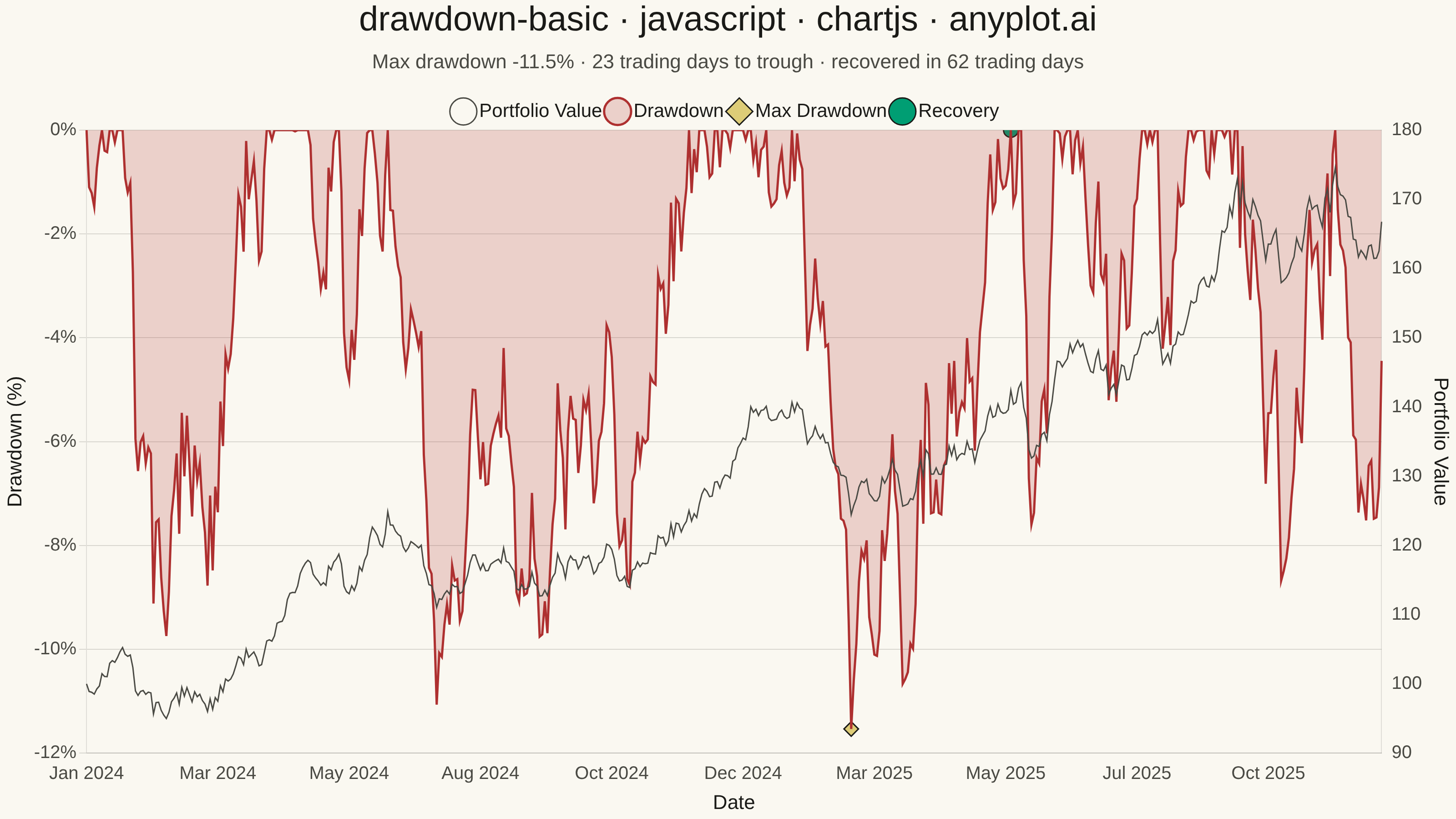

Drawdown Chart rendered with Chart.js

Renders

JavaScript source (Chart.js)

// anyplot.ai
// drawdown-basic: Drawdown Chart
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-08-24

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic fixed-seed LCG) -------------------------
let seed = 42;
function nextUniform() {
  seed = (seed * 1103515245 + 12345) & 0x7fffffff;
  return seed / 0x7fffffff;
}
function nextGaussian() {
  const u1 = Math.max(nextUniform(), 1e-9);
  const u2 = nextUniform();
  return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}

const TRADING_DAYS = 504; // ~2 years of daily data
const DRIFT = 0.00035; // ~9%/yr annualized
const VOLATILITY = 0.011; // ~17.5%/yr annualized

const dates = [];
const cursor = new Date(2024, 0, 2);
while (dates.length < TRADING_DAYS) {
  const weekday = cursor.getDay();
  if (weekday !== 0 && weekday !== 6) dates.push(new Date(cursor));
  cursor.setDate(cursor.getDate() + 1);
}

const portfolioValue = [100];
for (let i = 1; i < TRADING_DAYS; i++) {
  const dailyReturn = DRIFT + VOLATILITY * nextGaussian();
  portfolioValue.push(portfolioValue[i - 1] * (1 + dailyReturn));
}

const runningMax = [];
const drawdown = [];
let peak = portfolioValue[0];
for (let i = 0; i < TRADING_DAYS; i++) {
  peak = Math.max(peak, portfolioValue[i]);
  runningMax.push(peak);
  drawdown.push(((portfolioValue[i] - peak) / peak) * 100);
}

let troughIndex = 0;
for (let i = 1; i < TRADING_DAYS; i++) {
  if (drawdown[i] < drawdown[troughIndex]) troughIndex = i;
}
let peakIndex = troughIndex;
while (peakIndex > 0 && drawdown[peakIndex] < -1e-9) peakIndex--;
let recoveryIndex = -1;
for (let i = troughIndex + 1; i < TRADING_DAYS; i++) {
  if (drawdown[i] >= -1e-9) {
    recoveryIndex = i;
    break;
  }
}

const durationDays = troughIndex - peakIndex;
const recoveryText =
  recoveryIndex === -1
    ? "not yet recovered"
    : `recovered in ${recoveryIndex - troughIndex} trading days`;
const subtitleText = `Max drawdown ${drawdown[troughIndex].toFixed(1)}% · ${durationDays} trading days to trough · ${recoveryText}`;

const monthNames = ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"];
const labels = dates.map((d) => `${monthNames[d.getMonth()]} ${d.getFullYear()}`);

const maxDrawdownPoint = drawdown.map((v, i) => (i === troughIndex ? v : null));
const recoveryPoint = drawdown.map((v, i) => (i === recoveryIndex ? v : null));

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
  type: "line",
  data: {
    labels,
    datasets: [
      {
        label: "Portfolio Value",
        data: portfolioValue,
        borderColor: t.inkSoft,
        backgroundColor: "transparent",
        borderWidth: 1.5,
        pointRadius: 0,
        tension: 0,
        fill: false,
        yAxisID: "y1",
        order: 0,
      },
      {
        label: "Drawdown",
        data: drawdown,
        borderColor: t.palette[4],
        backgroundColor: `${t.palette[4]}33`,
        borderWidth: 2.5,
        pointRadius: 0,
        tension: 0,
        fill: "origin",
        yAxisID: "y",
        order: 1,
      },
      {
        label: "Max Drawdown",
        data: maxDrawdownPoint,
        borderColor: "transparent",
        backgroundColor: t.amber,
        pointRadius: 8,
        pointBorderColor: t.ink,
        pointBorderWidth: 1.5,
        pointStyle: "rectRot",
        showLine: false,
        yAxisID: "y",
        order: 2,
      },
      {
        label: "Recovery",
        data: recoveryPoint,
        borderColor: "transparent",
        backgroundColor: t.palette[0],
        pointRadius: 8,
        pointBorderColor: t.ink,
        pointBorderWidth: 1.5,
        pointStyle: "circle",
        showLine: false,
        yAxisID: "y",
        order: 2,
      },
    ],
  },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    interaction: { mode: "nearest", intersect: false },
    plugins: {
      title: {
        display: true,
        text: "drawdown-basic · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 38, weight: "500" },
        padding: { bottom: 10 },
      },
      subtitle: {
        display: true,
        text: subtitleText,
        color: t.inkSoft,
        font: { size: 22 },
        padding: { bottom: 20 },
      },
      legend: {
        labels: { color: t.ink, font: { size: 21 }, usePointStyle: true, boxWidth: 14 },
      },
    },
    scales: {
      x: {
        ticks: { color: t.inkSoft, font: { size: 20 }, maxTicksLimit: 10, autoSkip: true },
        grid: { display: false },
        title: { display: true, text: "Date", color: t.ink, font: { size: 22 } },
      },
      y: {
        position: "left",
        max: 0,
        ticks: {
          color: t.inkSoft,
          font: { size: 20 },
          callback: (value) => `${value}%`,
        },
        grid: { color: t.grid },
        title: { display: true, text: "Drawdown (%)", color: t.ink, font: { size: 22 } },
      },
      y1: {
        position: "right",
        ticks: { color: t.inkSoft, font: { size: 20 } },
        grid: { display: false },
        title: { display: true, text: "Portfolio Value", color: t.ink, font: { size: 22 } },
      },
    },
  },
});
