Drawdown Chart — Apache ECharts

A drawdown chart visualizes the percentage decline from peak value over time, showing how far an investment or asset has fallen from its highest point. This chart is essential for risk assessment and understanding the magnitude of losses during unfavorable market periods. The filled area below the zero line emphasizes the depth and duration of drawdowns, making it easy to identify maximum drawdown periods and recovery points.

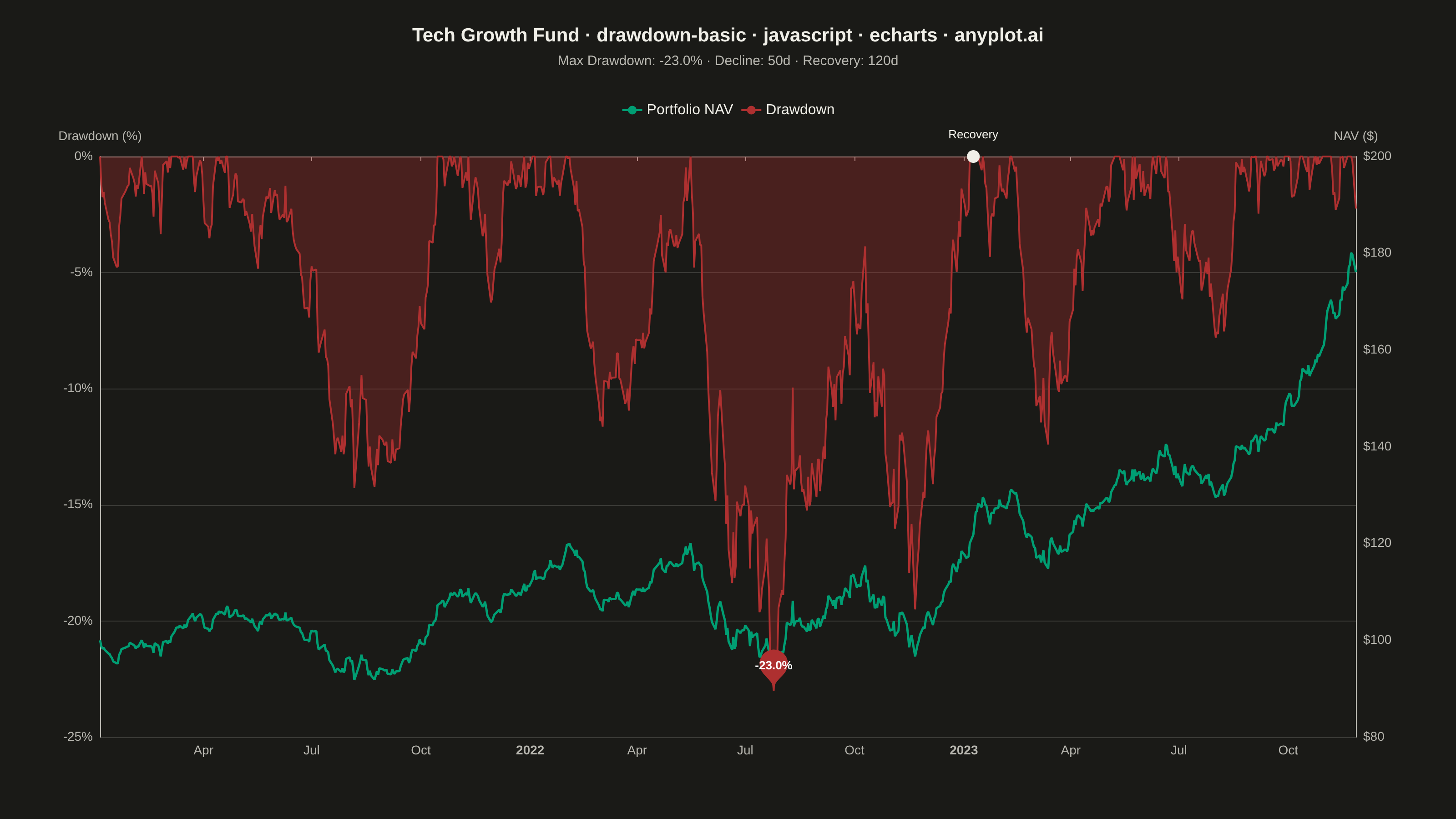

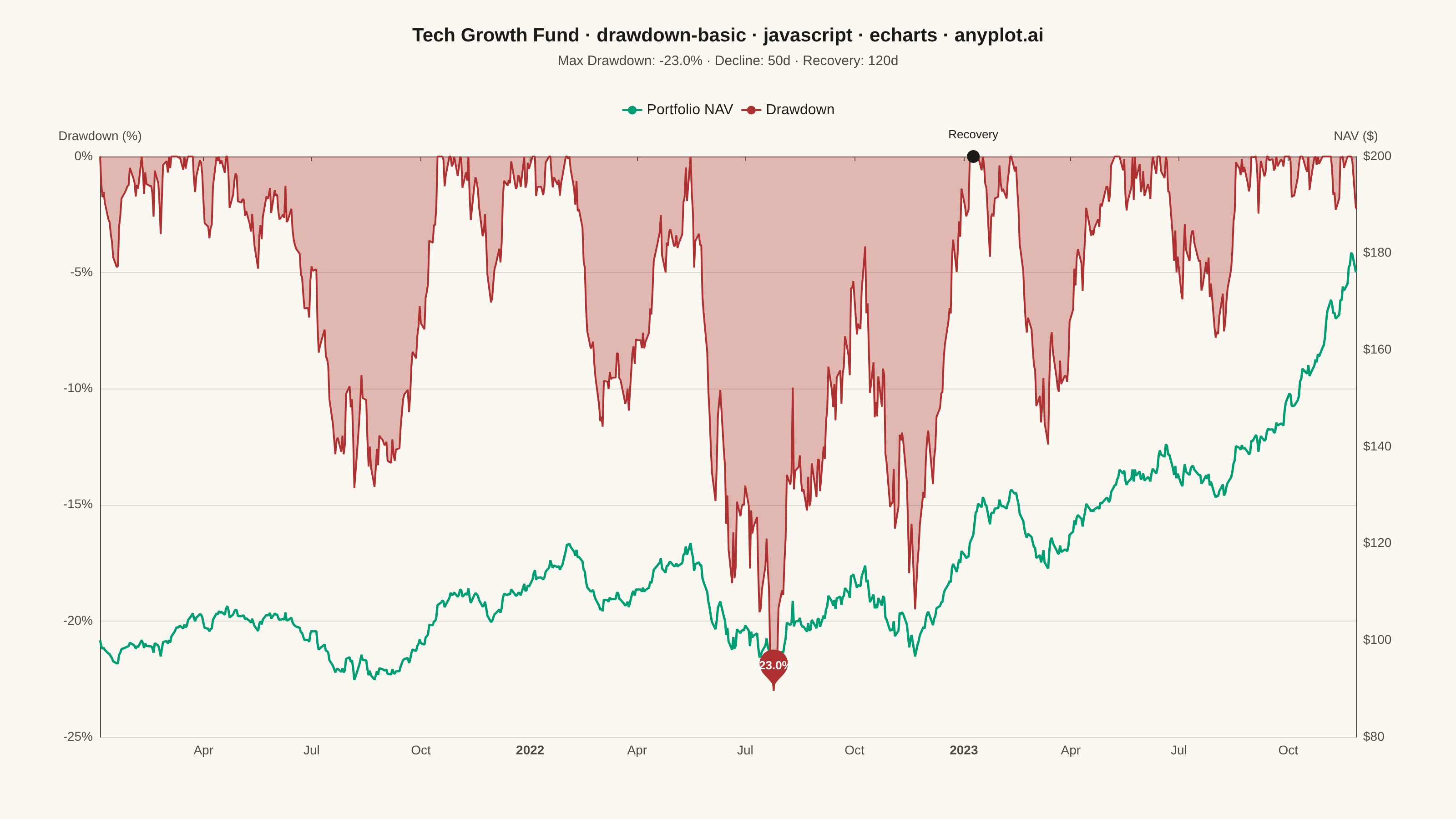

Drawdown Chart rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// drawdown-basic: Drawdown Chart
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-08-24

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Fixed-seed LCG + Box-Muller for reproducible pseudo-normal daily returns.
function lcg(seed) {
  let state = seed >>> 0;
  return function () {
    state = (state * 1664525 + 1013904223) >>> 0;
    return state / 4294967296;
  };
}
const rand = lcg(20260111);
function gaussian() {
  const u1 = rand() || 1e-9;
  const u2 = rand();
  return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}

// Trading dates: ~3 years of weekdays starting 2021-01-04.
const dates = [];
const cursor = new Date(Date.UTC(2021, 0, 4));
while (dates.length < 756) {
  const weekday = cursor.getUTCDay();
  if (weekday !== 0 && weekday !== 6) dates.push(new Date(cursor.getTime()));
  cursor.setUTCDate(cursor.getUTCDate() + 1);
}

// Simulated NAV: uptrend, then a bear-market decline, then a recovery leg.
const nav = [100];
for (let i = 1; i < dates.length; i++) {
  let mu, sigma;
  if (i < 350) {
    mu = 0.0009;
    sigma = 0.0085;
  } else if (i < 500) {
    mu = -0.0022;
    sigma = 0.016;
  } else {
    mu = 0.0012;
    sigma = 0.01;
  }
  nav.push(nav[i - 1] * (1 + mu + sigma * gaussian()));
}

// Drawdown = decline from the running maximum NAV, as a percentage.
const runningMax = [];
let peak = -Infinity;
for (let i = 0; i < nav.length; i++) {
  peak = Math.max(peak, nav[i]);
  runningMax.push(peak);
}
const drawdown = nav.map((v, i) => ((v - runningMax[i]) / runningMax[i]) * 100);

let maxDdIdx = 0;
for (let i = 1; i < drawdown.length; i++) {
  if (drawdown[i] < drawdown[maxDdIdx]) maxDdIdx = i;
}
let peakIdx = maxDdIdx;
for (let i = maxDdIdx; i >= 0; i--) {
  if (drawdown[i] === 0) {
    peakIdx = i;
    break;
  }
}
let recoveryIdx = null;
for (let i = maxDdIdx + 1; i < drawdown.length; i++) {
  if (drawdown[i] >= -0.001) {
    recoveryIdx = i;
    break;
  }
}

const navSeriesData = dates.map((d, i) => [d.getTime(), Number(nav[i].toFixed(2))]);
const drawdownSeriesData = dates.map((d, i) => [d.getTime(), Number(drawdown[i].toFixed(2))]);

const maxDdPct = drawdown[maxDdIdx].toFixed(1);
const declineDays = maxDdIdx - peakIdx;
const statsText =
  recoveryIdx !== null
    ? `Max Drawdown: ${maxDdPct}% · Decline: ${declineDays}d · Recovery: ${recoveryIdx - maxDdIdx}d`
    : `Max Drawdown: ${maxDdPct}% · Decline: ${declineDays}d · Recovery: ongoing`;

// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option ---------------------------------------------------------------
const markPointData = [
  {
    name: "Max Drawdown",
    coord: [dates[maxDdIdx].getTime(), drawdown[maxDdIdx]],
    symbol: "pin",
    symbolSize: 52,
    itemStyle: { color: t.palette[4] },
    label: { color: "#FFFFFF", fontSize: 13, fontWeight: 600, formatter: () => `${maxDdPct}%` },
  },
];
if (recoveryIdx !== null) {
  markPointData.push({
    name: "Recovery",
    coord: [dates[recoveryIdx].getTime(), drawdown[recoveryIdx]],
    symbol: "circle",
    symbolSize: 14,
    itemStyle: { color: t.ink },
    label: { show: true, position: "top", distance: 10, color: t.ink, fontSize: 13, formatter: "Recovery" },
  });
}

chart.setOption({
  animation: false,
  backgroundColor: "transparent",
  title: {
    text: "Tech Growth Fund · drawdown-basic · javascript · echarts · anyplot.ai",
    subtext: statsText,
    left: "center",
    top: 24,
    textStyle: { color: t.ink, fontSize: 21, fontWeight: 600 },
    subtextStyle: { color: t.inkSoft, fontSize: 15 },
  },
  legend: {
    data: ["Portfolio NAV", "Drawdown"],
    top: 108,
    left: "center",
    textStyle: { color: t.ink, fontSize: 16 },
    itemWidth: 22,
    itemHeight: 12,
  },
  grid: { left: 110, right: 110, top: 172, bottom: 90 },
  xAxis: {
    type: "time",
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    splitLine: { show: false },
  },
  yAxis: [
    {
      type: "value",
      name: "Drawdown (%)",
      nameTextStyle: { color: t.inkSoft, fontSize: 14 },
      max: 0,
      position: "left",
      axisLabel: { color: t.inkSoft, fontSize: 14, formatter: "{value}%" },
      axisLine: { show: true, lineStyle: { color: t.inkSoft } },
      splitLine: { lineStyle: { color: t.grid } },
    },
    {
      type: "value",
      name: "NAV ($)",
      nameTextStyle: { color: t.inkSoft, fontSize: 14 },
      position: "right",
      scale: true,
      axisLabel: { color: t.inkSoft, fontSize: 14, formatter: "${value}" },
      axisLine: { show: true, lineStyle: { color: t.inkSoft } },
      splitLine: { show: false },
    },
  ],
  series: [
    {
      name: "Portfolio NAV",
      type: "line",
      yAxisIndex: 1,
      data: navSeriesData,
      symbol: "none",
      lineStyle: { color: t.palette[0], width: 2.5 },
      itemStyle: { color: t.palette[0] },
    },
    {
      name: "Drawdown",
      type: "line",
      yAxisIndex: 0,
      data: drawdownSeriesData,
      symbol: "none",
      lineStyle: { color: t.palette[4], width: 2 },
      itemStyle: { color: t.palette[4] },
      areaStyle: { color: t.palette[4], opacity: 0.32 },
      markPoint: { data: markPointData },
    },
  ],
});

Part of Drawdown Chart on anyplot.ai.
