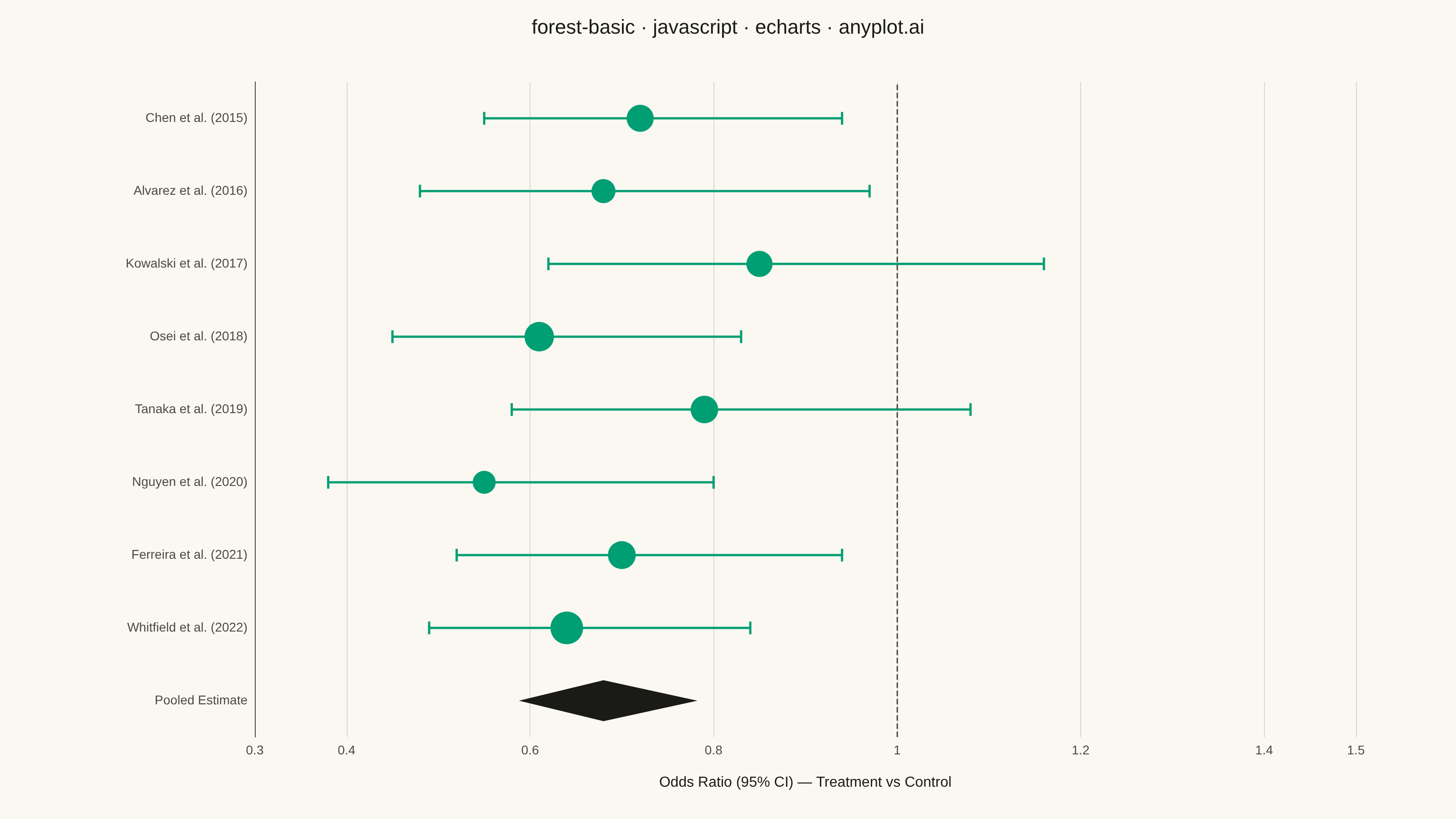

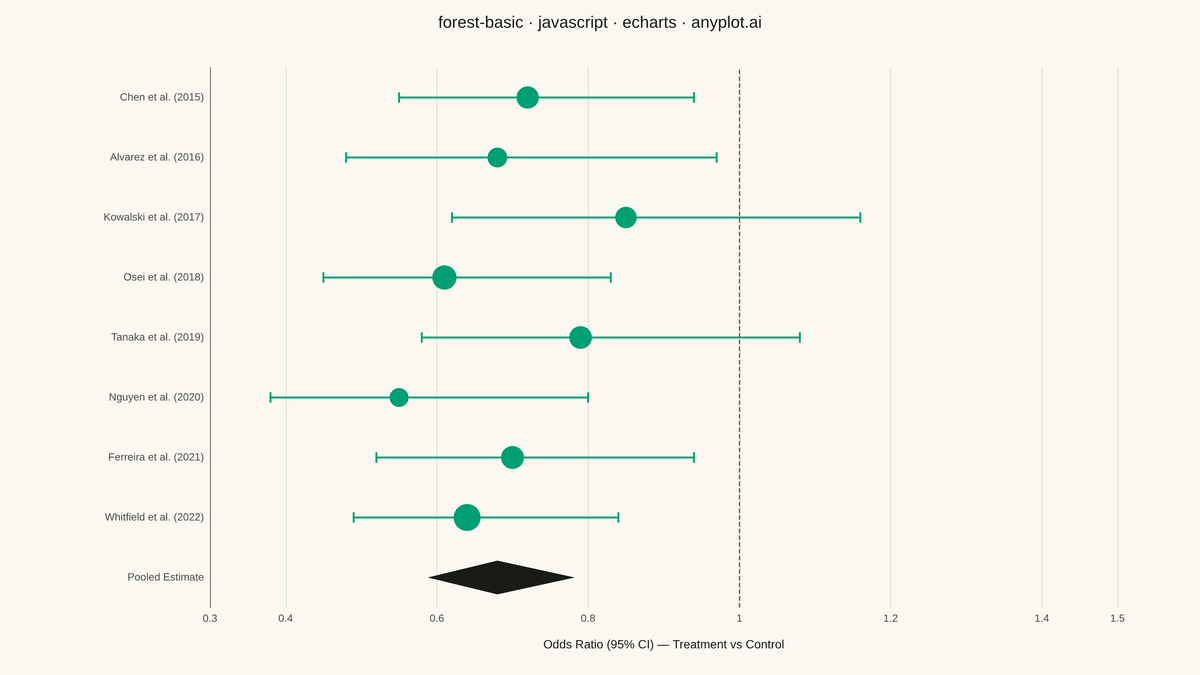

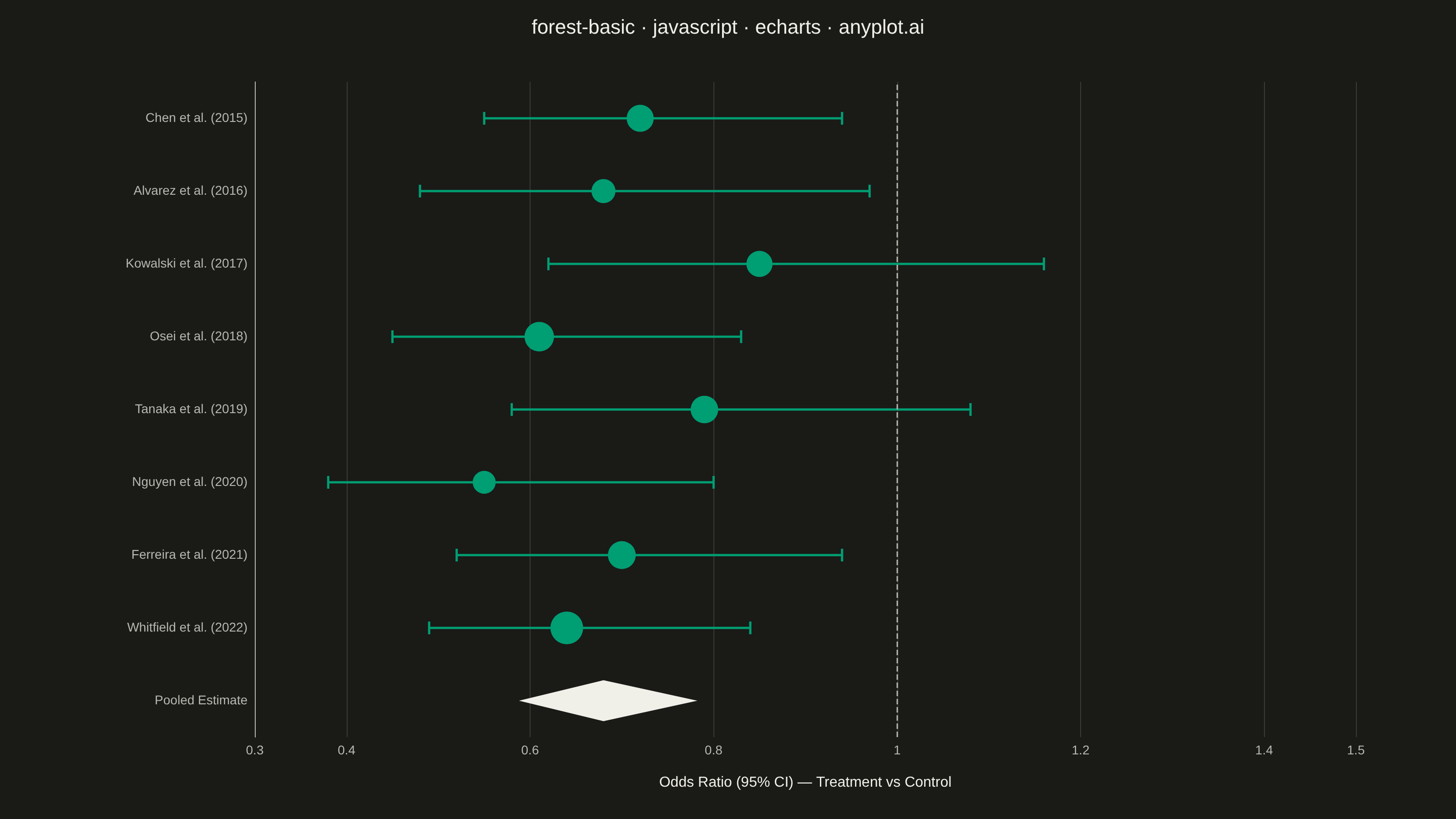

A forest plot displays effect sizes with confidence intervals from multiple studies in a meta-analysis. Each study is represented as a point estimate with horizontal whiskers showing the confidence interval, and a diamond at the bottom shows the pooled estimate. The plot includes a vertical reference line at the null effect (typically 0 or 1), making it easy to assess statistical significance and heterogeneity across studies.
// anyplot.ai
// forest-basic: Meta-Analysis Forest Plot
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-05
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic): meta-analysis of RCTs, treatment vs control on 30-day readmission
const studies = [
{ name: "Chen et al. (2015)", effect: 0.72, lower: 0.55, upper: 0.94, weight: 9.5 },
{ name: "Alvarez et al. (2016)", effect: 0.68, lower: 0.48, upper: 0.97, weight: 7.2 },
{ name: "Kowalski et al. (2017)", effect: 0.85, lower: 0.62, upper: 1.16, weight: 8.8 },
{ name: "Osei et al. (2018)", effect: 0.61, lower: 0.45, upper: 0.83, weight: 11.3 },
{ name: "Tanaka et al. (2019)", effect: 0.79, lower: 0.58, upper: 1.08, weight: 9.9 },
{ name: "Nguyen et al. (2020)", effect: 0.55, lower: 0.38, upper: 0.8, weight: 6.4 },
{ name: "Ferreira et al. (2021)", effect: 0.7, lower: 0.52, upper: 0.94, weight: 10.1 },
{ name: "Whitfield et al. (2022)", effect: 0.64, lower: 0.49, upper: 0.84, weight: 13.8 },
];
const pooled = { name: "Pooled Estimate", effect: 0.68, lower: 0.59, upper: 0.78, weight: 100 };
// Category axis places index 0 at the bottom; the pooled diamond anchors the
// bottom row, studies stack upward in chronological order (oldest on top).
const rows = [pooled, ...studies.slice().reverse()];
const categories = rows.map((row) => row.name);
const maxWeight = Math.max(...studies.map((row) => row.weight));
const seriesData = rows.map((row, index) => [
row.effect,
index,
row.lower,
row.upper,
row.weight,
row === pooled ? 1 : 0,
]);
// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Render: per-row whisker + point-estimate circle, pooled row a diamond
function renderItem(params, api) {
const yIndex = api.value(1);
const isPooled = api.value(5) === 1;
const lowerPt = api.coord([api.value(2), yIndex]);
const upperPt = api.coord([api.value(3), yIndex]);
const pointPt = api.coord([api.value(0), yIndex]);
const color = isPooled ? t.ink : t.palette[0];
if (isPooled) {
const halfHeight = 22;
return {
type: "polygon",
shape: {
points: [
[pointPt[0], pointPt[1] - halfHeight],
[upperPt[0], pointPt[1]],
[pointPt[0], pointPt[1] + halfHeight],
[lowerPt[0], pointPt[1]],
],
},
style: { fill: color, stroke: color },
};
}
const radius = 8 + (api.value(4) / maxWeight) * 10;
const capHalf = 7;
return {
type: "group",
children: [
{
type: "line",
shape: { x1: lowerPt[0], y1: lowerPt[1], x2: upperPt[0], y2: upperPt[1] },
style: { stroke: color, lineWidth: 2.5 },
},
{
type: "line",
shape: { x1: lowerPt[0], y1: lowerPt[1] - capHalf, x2: lowerPt[0], y2: lowerPt[1] + capHalf },
style: { stroke: color, lineWidth: 2.5 },
},
{
type: "line",
shape: { x1: upperPt[0], y1: upperPt[1] - capHalf, x2: upperPt[0], y2: upperPt[1] + capHalf },
style: { stroke: color, lineWidth: 2.5 },
},
{
type: "circle",
shape: { cx: pointPt[0], cy: pointPt[1], r: radius },
style: { fill: color },
},
],
};
}
// --- Option ---------------------------------------------------------------
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "forest-basic · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
grid: { left: 280, right: 110, top: 90, bottom: 90 },
xAxis: {
type: "value",
min: 0.3,
max: 1.5,
name: "Odds Ratio (95% CI) — Treatment vs Control",
nameLocation: "middle",
nameGap: 42,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "category",
data: categories,
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
series: [
{
type: "custom",
encode: { x: 0, y: 1 },
data: seriesData,
renderItem: renderItem,
markLine: {
symbol: "none",
silent: true,
label: { show: false },
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5 },
data: [{ xAxis: 1 }],
},
z: 3,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/forest-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "forest-basic",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/forest-basic/javascript/echarts",
"hub": "https://anyplot.ai/forest-basic",
"code_json": "https://api.anyplot.ai/specs/forest-basic/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/forest-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/forest-basic/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/forest-basic/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/forest-basic/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/forest-basic/javascript/echarts/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Meta-Analysis Forest Plot on anyplot.ai.
