Music Chromagram (Pitch Class Distribution over Time) in MUI X Charts (JavaScript)

The same plot in 14 other libraries — JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts; Python: Altair, Bokeh, lets-plot, Matplotlib, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl. Compare all 15 side by side: Music Chromagram (Pitch Class Distribution over Time) in Python, R, Julia and JavaScript.

A heatmap-style visualization showing the energy distribution across the 12 pitch classes (C, C#, D, D#, E, F, F#, G, G#, A, A#, B) over time. Each column represents a time frame and each row a pitch class, with color intensity indicating the energy or magnitude at that pitch-time point. Widely used in music information retrieval to analyze harmonic content, detect chords, estimate musical key, and study tonal progressions in audio signals.

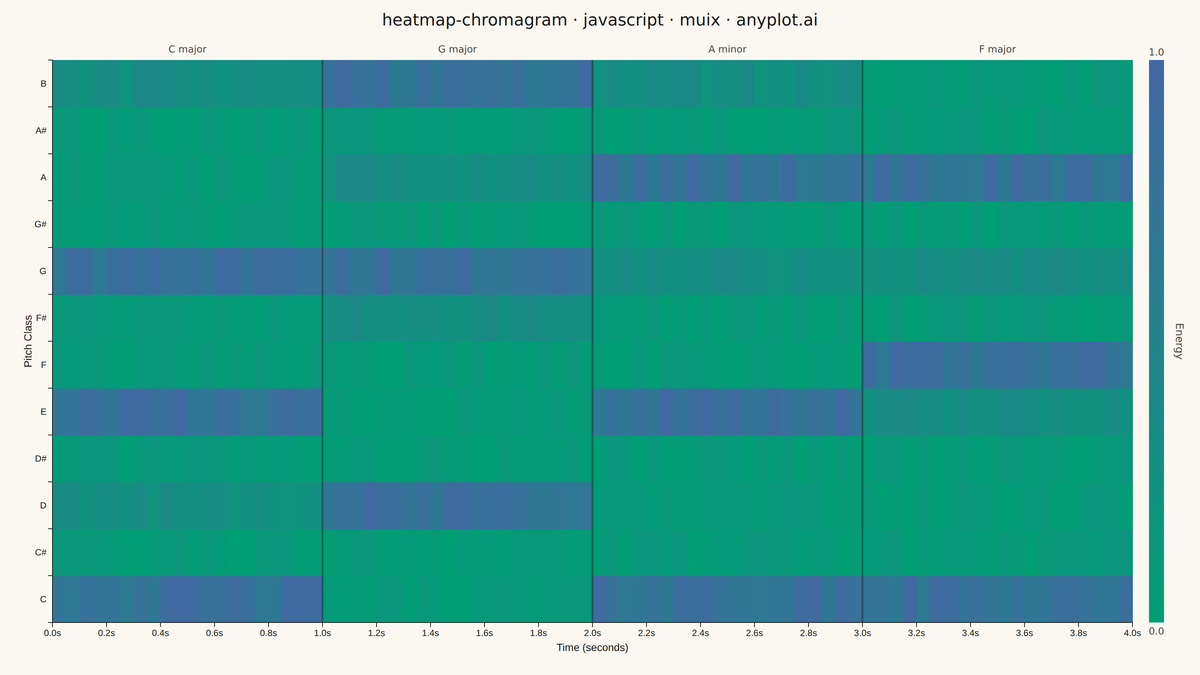

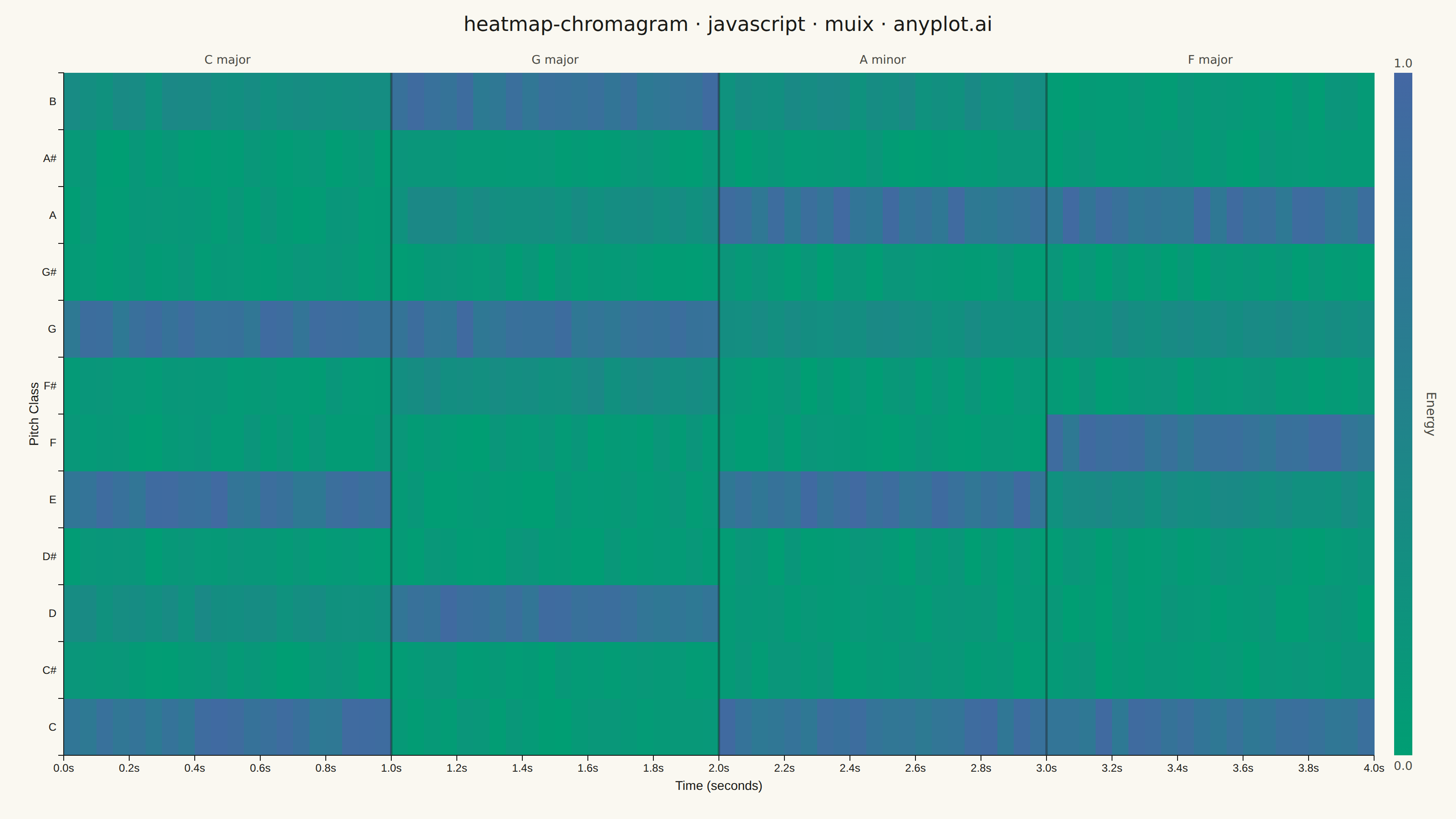

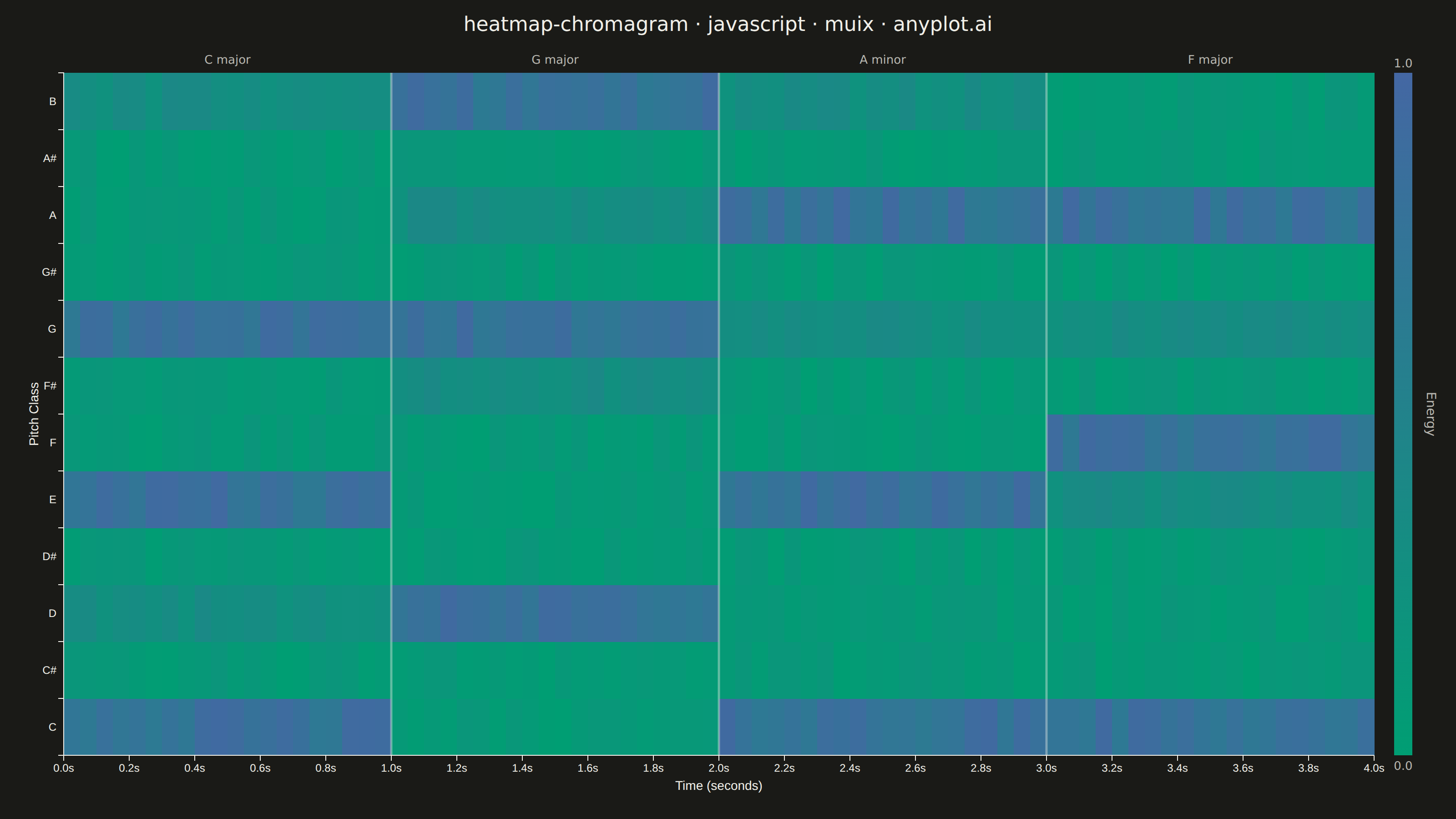

Music Chromagram (Pitch Class Distribution over Time) rendered with MUI X Charts

Renders

JavaScript source (MUI X Charts)

// anyplot.ai
// heatmap-chromagram: Music Chromagram (Pitch Class Distribution over Time)
// Library: muix 9.16.0 | JavaScript 22.23.3
// Quality: 87/100 | Updated: 2026-10-24
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";
import { ChartsDataProvider } from "@mui/x-charts/ChartsDataProvider";
import { ContinuousColorLegend } from "@mui/x-charts/ChartsLegend";
import { ChartsSurface } from "@mui/x-charts/ChartsSurface";
import { ChartsWrapper } from "@mui/x-charts/ChartsWrapper";
import { ChartsXAxis } from "@mui/x-charts/ChartsXAxis";
import { ChartsYAxis } from "@mui/x-charts/ChartsYAxis";
import { useDrawingArea, useXScale, useZColorScale } from "@mui/x-charts/hooks";

const t = window.ANYPLOT_TOKENS;

// Constants
const { width, height } = window.ANYPLOT_SIZE;
const TITLE = "heatmap-chromagram · javascript · muix · anyplot.ai";
const FONT = "Inter, system-ui, sans-serif";
const PITCH_CLASSES = ["C", "C#", "D", "D#", "E", "F", "F#", "G", "G#", "A", "A#", "B"];
const ENERGY_MIN = 0;
const ENERGY_MAX = 1;
const LEGEND_W = 110;
const LEGEND_H = 520;

// Columns: set these to your data's column names
const TIME = "Time (s)"; // role: time
const PITCH_CLASS = "Pitch class"; // role: pitch_class
const ENERGY = "Energy"; // role: energy
const CHORD = "Chord";

// Data: replace this block with your own records
const N_FRAMES = 80;
const SEC_PER_FRAME = 0.05;

const CHORD_SECTIONS = [
  "C major|0,4,7|0|20",
  "G major|7,11,2|20|40",
  "A minor|9,0,4|40|60",
  "F major|5,9,0|60|80",
];

const parsedChords = CHORD_SECTIONS.map((s) => {
  const [label, pcsStr, startStr, endStr] = s.split("|");
  const pcs = pcsStr.split(",").map(Number);
  const overtones = pcs.map((p) => (p + 7) % 12);
  return {
    label,
    pcs,
    overtones,
    start: Number(startStr),
    end: Number(endStr),
  };
});

let lcgState = 42 >>> 0;
const data: Record<string, string | number>[] = [];

for (let pc = 0; pc < PITCH_CLASSES.length; pc++) {
  const pitchName = PITCH_CLASSES[pc];
  for (let f = 0; f < N_FRAMES; f++) {
    lcgState = (((lcgState * 1664525) >>> 0) + 1013904223) >>> 0;
    const randVal = lcgState / 0x100000000;
    const chord = parsedChords.find((c) => f >= c.start && f < c.end)!;
    const isActive = chord.pcs.includes(pc);
    const isOvertone = chord.overtones.includes(pc);
    const rawEnergy = isActive
      ? 0.65 + randVal * 0.3
      : isOvertone
        ? 0.22 + randVal * 0.18
        : randVal * 0.16;
    const energy = Number(Math.min(ENERGY_MAX, rawEnergy).toFixed(4));
    const timeSec = Number((f * SEC_PER_FRAME).toFixed(3));
    data.push({
      [TIME]: timeSec,
      [PITCH_CLASS]: pitchName,
      [ENERGY]: energy,
      [CHORD]: chord.label,
    });
  }
}

// Plot: reads only data and the constants above
const pitchOrder = Array.from(new Set(data.map((r) => String(r[PITCH_CLASS]))));
const pitchIndexMap = new Map<string, number>(pitchOrder.map((p, idx) => [p, idx]));
const uniqueTimes = Array.from(new Set(data.map((r) => Number(r[TIME])))).sort((a, b) => a - b);
const frameStepSec = uniqueTimes[1] - uniqueTimes[0];
const minTimeSec = uniqueTimes[0];
const maxTimeSec = uniqueTimes[uniqueTimes.length - 1] + frameStepSec;
const timeUnitMatch = TIME.match(/\(([^)]+)\)/);
const timeUnit = timeUnitMatch ? timeUnitMatch[1] : "";

const timeToChord = new Map<number, string>();
for (const r of data) {
  const tVal = Number(r[TIME]);
  if (!timeToChord.has(tVal)) {
    timeToChord.set(tVal, String(r[CHORD]));
  }
}

type ChordSpan = { label: string; startSec: number; endSec: number };
const chordSpans: ChordSpan[] = [];
for (const tVal of uniqueTimes) {
  const lbl = timeToChord.get(tVal)!;
  const last = chordSpans[chordSpans.length - 1];
  if (!last || last.label !== lbl) {
    chordSpans.push({ label: lbl, startSec: tVal, endSec: tVal + frameStepSec });
  } else {
    last.endSec = tVal + frameStepSec;
  }
}
const chordDividers = chordSpans.slice(1).map((c) => c.startSec);

const cells = data.map((row, idx) => {
  const timeSec = Number(row[TIME]);
  const pcIdx = pitchIndexMap.get(String(row[PITCH_CLASS]))!;
  return {
    key: `${pcIdx}-${idx}`,
    pcIdx,
    timeSec,
    nextTimeSec: timeSec + frameStepSec,
    energy: Number(row[ENERGY]),
  };
});

function ChromagramLayer() {
  const { top, height: gH } = useDrawingArea();
  const xScale = useXScale() as (v: number) => number;
  const colorScale = useZColorScale() as (v: number) => string;

  const nRows = pitchOrder.length;
  const step = gH / nRows;

  return (
    <g>
      {cells.map((cell) => {
        const x0 = xScale(cell.timeSec);
        const x1 = xScale(cell.nextTimeSec);
        return (
          <rect
            key={cell.key}
            x={x0}
            y={top + (nRows - 1 - cell.pcIdx) * step}
            width={x1 - x0 + 0.5}
            height={step + 0.5}
            fill={colorScale(cell.energy)}
          />
        );
      })}

      {/* Chord-change vertical dividers */}
      {chordDividers.map((sec) => {
        const sx = xScale(sec);
        return (
          <line
            key={sec}
            x1={sx}
            y1={top}
            x2={sx}
            y2={top + gH}
            stroke={t.ink}
            strokeOpacity={0.45}
            strokeWidth={2.5}
          />
        );
      })}

      {/* Chord section headers */}
      {chordSpans.map((c) => {
        const midSec = (c.startSec + c.endSec) / 2;
        return (
          <text
            key={`${c.label}-${c.startSec}`}
            x={xScale(midSec)}
            y={top - 12}
            textAnchor="middle"
            fontSize={14}
            fontWeight={600}
            fill={t.inkSoft}
            fontFamily={FONT}
          >
            {c.label}
          </text>
        );
      })}
    </g>
  );
}

export default function Chart() {
  const chordProgressionText = chordSpans.map((c) => c.label).join(" → ");
  const subtitle = `${ENERGY} across ${pitchOrder.length} ${PITCH_CLASS}es · ${chordProgressionText} (${uniqueTimes.length} frames)`;

  return (
    <ChartsDataProvider
      width={width - LEGEND_W}
      height={height}
      series={[]}
      skipAnimation
      zAxis={[
        {
          colorMap: {
            type: "continuous",
            min: ENERGY_MIN,
            max: ENERGY_MAX,
            color: [t.seq[0], t.seq[1]],
          },
        },
      ]}
      xAxis={[
        {
          scaleType: "linear",
          min: minTimeSec,
          max: maxTimeSec,
          height: 56,
          label: TIME,
          valueFormatter: (v: number) => `${v.toFixed(1)}${timeUnit}`,
          tickLabelStyle: { fontSize: 14, fill: t.inkSoft, fontFamily: FONT },
          labelStyle: { fontSize: 15, fill: t.ink, fontFamily: FONT },
        },
      ]}
      yAxis={[
        {
          scaleType: "band",
          data: [...pitchOrder].reverse(),
          width: 82,
          label: PITCH_CLASS,
          tickLabelStyle: { fontSize: 14, fill: t.inkSoft, fontFamily: FONT },
          labelStyle: { fontSize: 15, fill: t.ink, fontFamily: FONT },
        },
      ]}
      margin={{ left: 20, right: 24, top: 112, bottom: 24 }}
    >
      <ChartsWrapper
        legendPosition={{ vertical: "middle", horizontal: "end" }}
        legendDirection="vertical"
        sx={{ width, height }}
      >
        <Box
          sx={{
            gridArea: "legend",
            width: LEGEND_W,
            height: LEGEND_H,
            display: "flex",
            flexDirection: "column",
            alignItems: "center",
            fontFamily: FONT,
          }}
        >
          <Typography sx={{ color: t.ink, fontSize: 15, fontFamily: FONT, mb: "8px" }}>
            {ENERGY}
          </Typography>
          <ContinuousColorLegend
            direction="vertical"
            thickness={20}
            labelPosition="end"
            minLabel={({ value }) => Number(value).toFixed(1)}
            maxLabel={({ value }) => Number(value).toFixed(1)}
            sx={{ flex: 1, color: t.inkSoft, fontSize: 14, fontFamily: FONT }}
          />
        </Box>
        <ChartsSurface>
          <text
        x={width / 2}
        y={38}
        textAnchor="middle"
        fontSize={22}
        fontWeight={600}
        fill={t.ink}
        fontFamily={FONT}
      >
        {TITLE}
      </text>
      <text
        x={width / 2}
        y={64}
        textAnchor="middle"
        fontSize={15}
        fill={t.inkSoft}
        fontFamily={FONT}
      >
        {subtitle}
      </text>
          <ChromagramLayer />
          <ChartsXAxis />
          <ChartsYAxis />
        </ChartsSurface>
      </ChartsWrapper>
    </ChartsDataProvider>
  );
}

Retrieve this implementation
