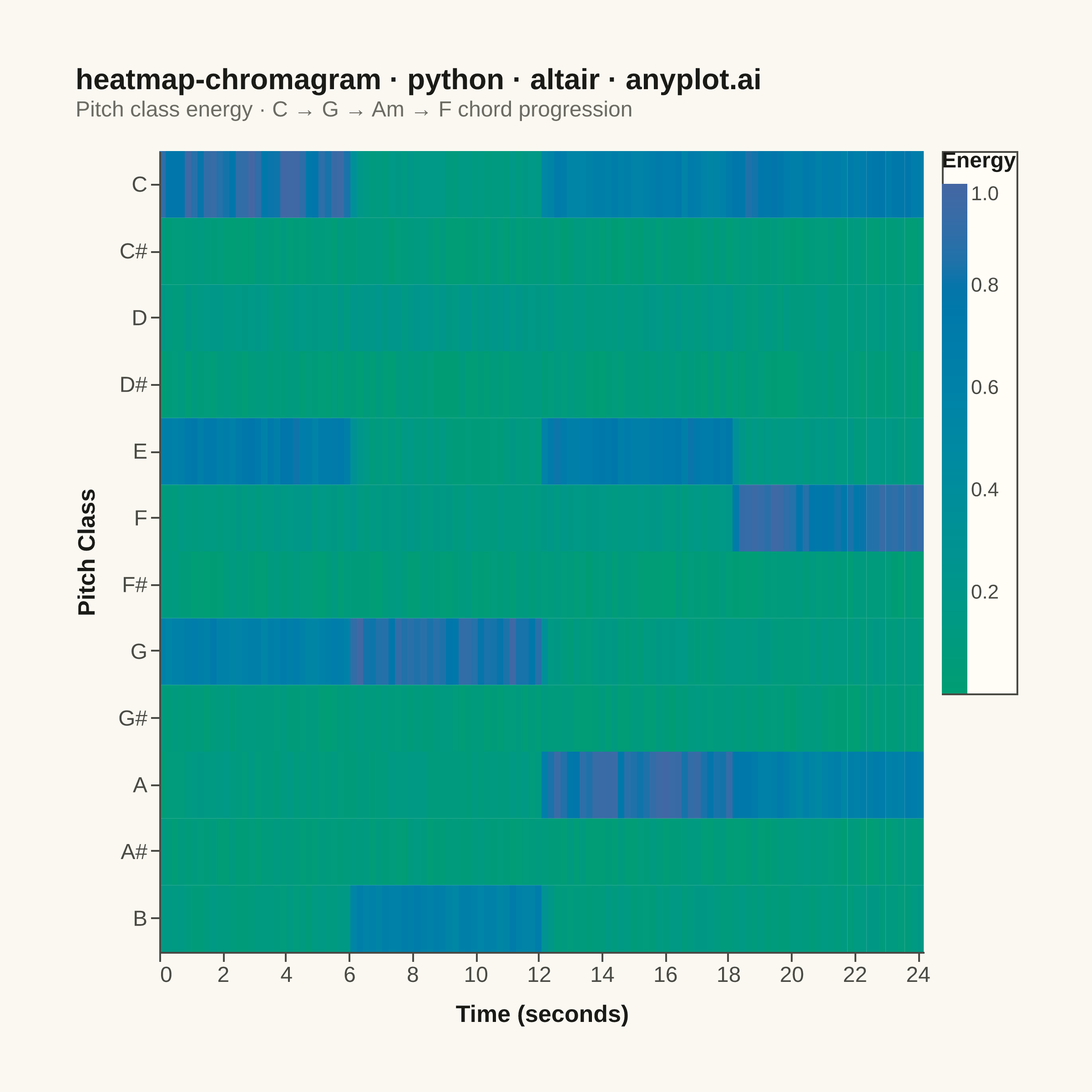

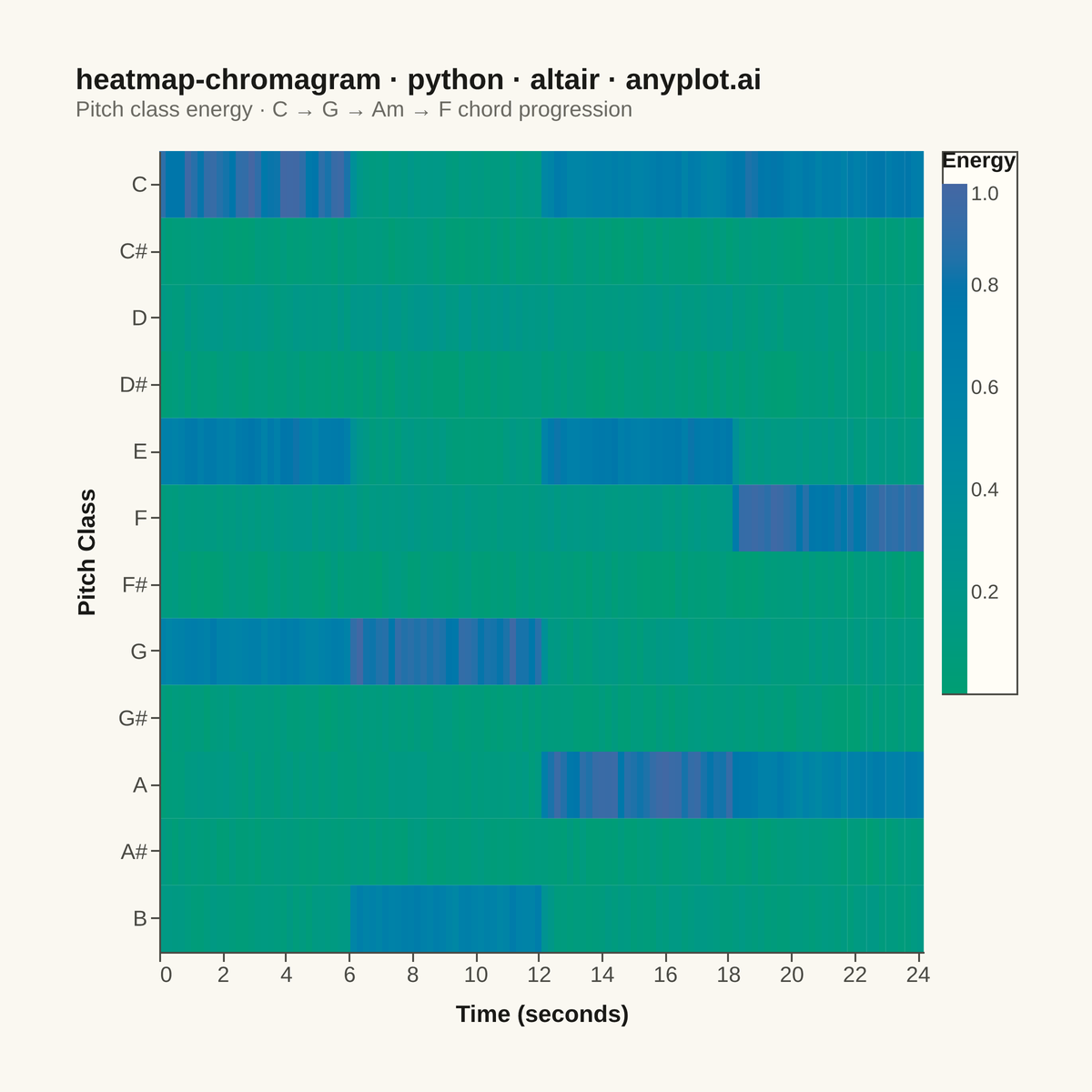

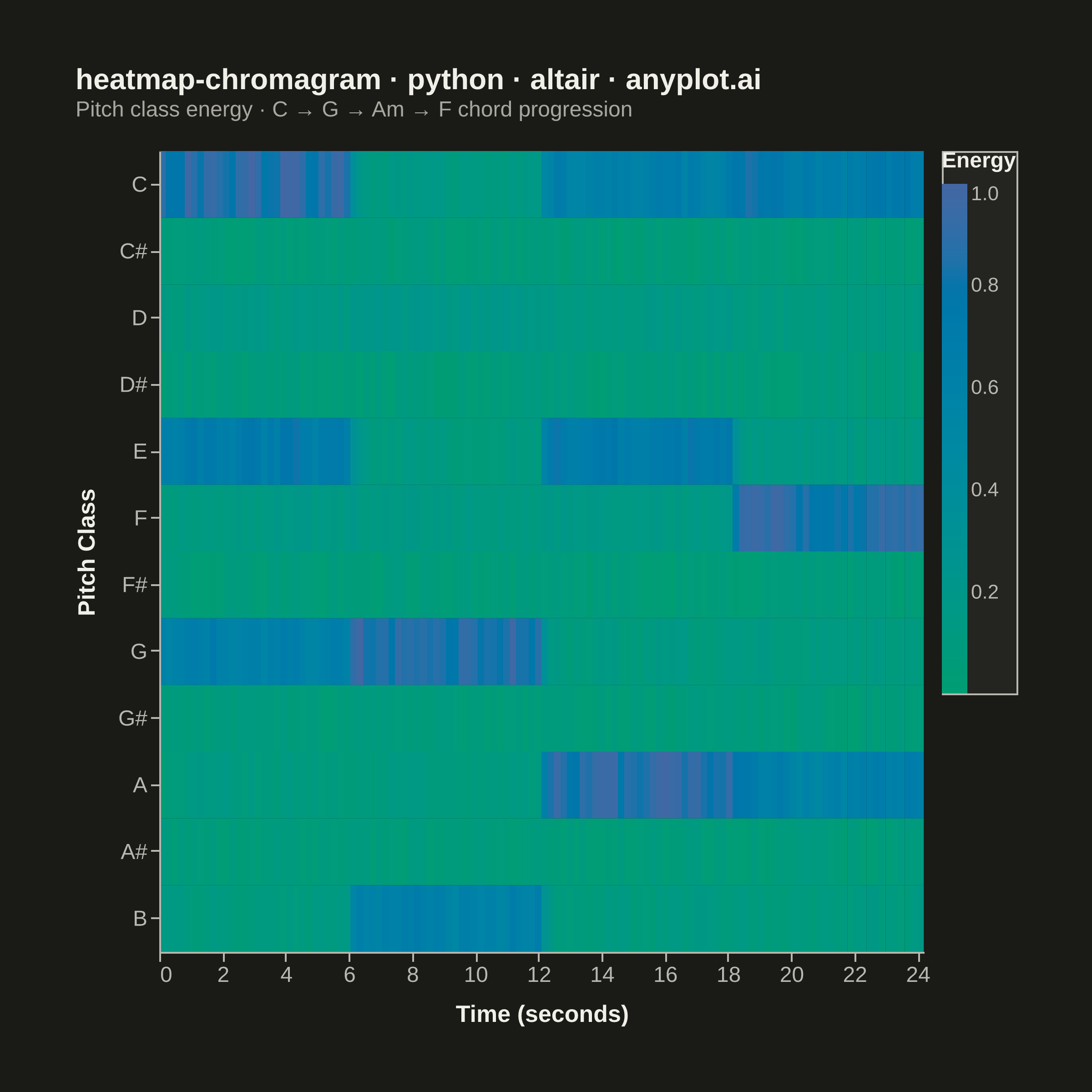

A heatmap-style visualization showing the energy distribution across the 12 pitch classes (C, C#, D, D#, E, F, F#, G, G#, A, A#, B) over time. Each column represents a time frame and each row a pitch class, with color intensity indicating the energy or magnitude at that pitch-time point. Widely used in music information retrieval to analyze harmonic content, detect chords, estimate musical key, and study tonal progressions in audio signals.
""" anyplot.ai
heatmap-chromagram: Music Chromagram (Pitch Class Distribution over Time)
Library: altair 6.2.2 | Python 3.13.14
Quality: 87/100 | Updated: 2026-06-24
"""
import importlib
import os
import sys
# Remove script directory from sys.path so `altair` resolves to the package, not this file
_this_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if os.path.abspath(p or ".") != _this_dir]
alt = importlib.import_module("altair")
np = importlib.import_module("numpy")
pd = importlib.import_module("pandas")
Image = importlib.import_module("PIL.Image")
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
# Imprint sequential colormap for continuous single-polarity energy data
IMPRINT_SEQ = ["#009E73", "#4467A3"]
# Data - simulate a chromagram with chord progressions
np.random.seed(42)
pitch_classes = ["C", "C#", "D", "D#", "E", "F", "F#", "G", "G#", "A", "A#", "B"]
n_frames = 120
time_seconds = np.linspace(0, 24, n_frames)
frame_width = time_seconds[1] - time_seconds[0]
# Chord templates (relative energy per pitch class)
c_major = np.array([1.0, 0.0, 0.1, 0.0, 0.8, 0.1, 0.0, 0.7, 0.0, 0.05, 0.0, 0.05])
g_major = np.array([0.1, 0.0, 0.15, 0.0, 0.05, 0.1, 0.0, 1.0, 0.0, 0.05, 0.0, 0.7])
a_minor = np.array([0.7, 0.0, 0.1, 0.0, 0.8, 0.1, 0.0, 0.05, 0.0, 1.0, 0.0, 0.05])
f_major = np.array([0.8, 0.0, 0.05, 0.0, 0.1, 1.0, 0.0, 0.05, 0.0, 0.7, 0.0, 0.05])
# Build chromagram: cycle through C -> G -> Am -> F progression
energy = np.zeros((12, n_frames))
chord_sequence = [c_major, g_major, a_minor, f_major]
frames_per_chord = n_frames // len(chord_sequence)
for i, chord in enumerate(chord_sequence):
start = i * frames_per_chord
end = start + frames_per_chord if i < len(chord_sequence) - 1 else n_frames
for j in range(start, end):
blend = np.random.uniform(0.7, 1.0)
noise = np.random.uniform(0.0, 0.15, 12)
energy[:, j] = chord * blend + noise
# Smooth transitions between chords
for i in range(1, n_frames):
energy[:, i] = 0.7 * energy[:, i] + 0.3 * energy[:, i - 1]
# Normalize to 0-1
energy = energy / energy.max()
# Build long-form dataframe with bin edges for proper rect rendering
rows = []
for t_idx, t_val in enumerate(time_seconds):
for p_idx, pitch in enumerate(pitch_classes):
rows.append(
{
"t1": round(t_val, 3),
"t2": round(t_val + frame_width, 3),
"Pitch Class": pitch,
"Energy": round(energy[p_idx, t_idx], 3),
}
)
df = pd.DataFrame(rows)
# Plot
title_text = "heatmap-chromagram · python · altair · anyplot.ai"
heatmap = (
alt.Chart(df)
.mark_rect()
.encode(
x=alt.X(
"t1:Q",
title="Time (seconds)",
axis=alt.Axis(labelFontSize=12, titleFontSize=13, titlePadding=10, values=list(range(0, 25, 2))),
scale=alt.Scale(domain=[0, 24.2]),
),
x2="t2:Q",
y=alt.Y(
"Pitch Class:N",
title="Pitch Class",
sort=pitch_classes,
axis=alt.Axis(labelFontSize=12, titleFontSize=13, titlePadding=10),
),
color=alt.Color(
"Energy:Q",
scale=alt.Scale(range=IMPRINT_SEQ),
legend=alt.Legend(
title="Energy",
titleFontSize=12,
labelFontSize=11,
gradientLength=280,
gradientThickness=14,
titlePadding=6,
offset=10,
direction="vertical",
),
),
tooltip=[
alt.Tooltip("Pitch Class:N"),
alt.Tooltip("t1:Q", title="Time (s)", format=".1f"),
alt.Tooltip("Energy:Q", format=".3f"),
],
)
)
chart = (
heatmap.properties(
width=420,
height=440,
background=PAGE_BG,
title=alt.Title(
title_text,
subtitle="Pitch class energy · C → G → Am → F chord progression",
fontSize=16,
subtitleFontSize=12,
color=INK,
subtitleColor=INK_MUTED,
anchor="start",
offset=16,
),
padding={"left": 0, "right": 0, "top": 0, "bottom": 0},
)
.configure_view(fill=PAGE_BG, strokeWidth=0, continuousWidth=420, continuousHeight=440)
.configure_axis(domainColor=INK_SOFT, tickColor=INK_SOFT, grid=False, labelColor=INK_SOFT, titleColor=INK)
.configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
)
# Save PNG then pad to exact canonical target (2400 × 2400 — square for heatmaps)
chart.save(f"plot-{THEME}.png", scale_factor=4.0)
TW, TH = 2400, 2400
_img = Image.open(f"plot-{THEME}.png").convert("RGB")
_w, _h = _img.size
if _w > TW or _h > TH:
raise SystemExit(
f"altair vl-convert produced {_w}×{_h}, exceeds target {TW}×{TH}. "
f"Shrink chart .properties(width=, height=) values and re-render."
)
if _w < TW or _h < TH:
_canvas = Image.new("RGB", (TW, TH), PAGE_BG)
_canvas.paste(_img, ((TW - _w) // 2, (TH - _h) // 2))
_canvas.save(f"plot-{THEME}.png")
chart.save(f"plot-{THEME}.html")
Part of Music Chromagram (Pitch Class Distribution over Time) on anyplot.ai.
