Music Chromagram (Pitch Class Distribution over Time) — Makie.jl

A heatmap-style visualization showing the energy distribution across the 12 pitch classes (C, C#, D, D#, E, F, F#, G, G#, A, A#, B) over time. Each column represents a time frame and each row a pitch class, with color intensity indicating the energy or magnitude at that pitch-time point. Widely used in music information retrieval to analyze harmonic content, detect chords, estimate musical key, and study tonal progressions in audio signals.

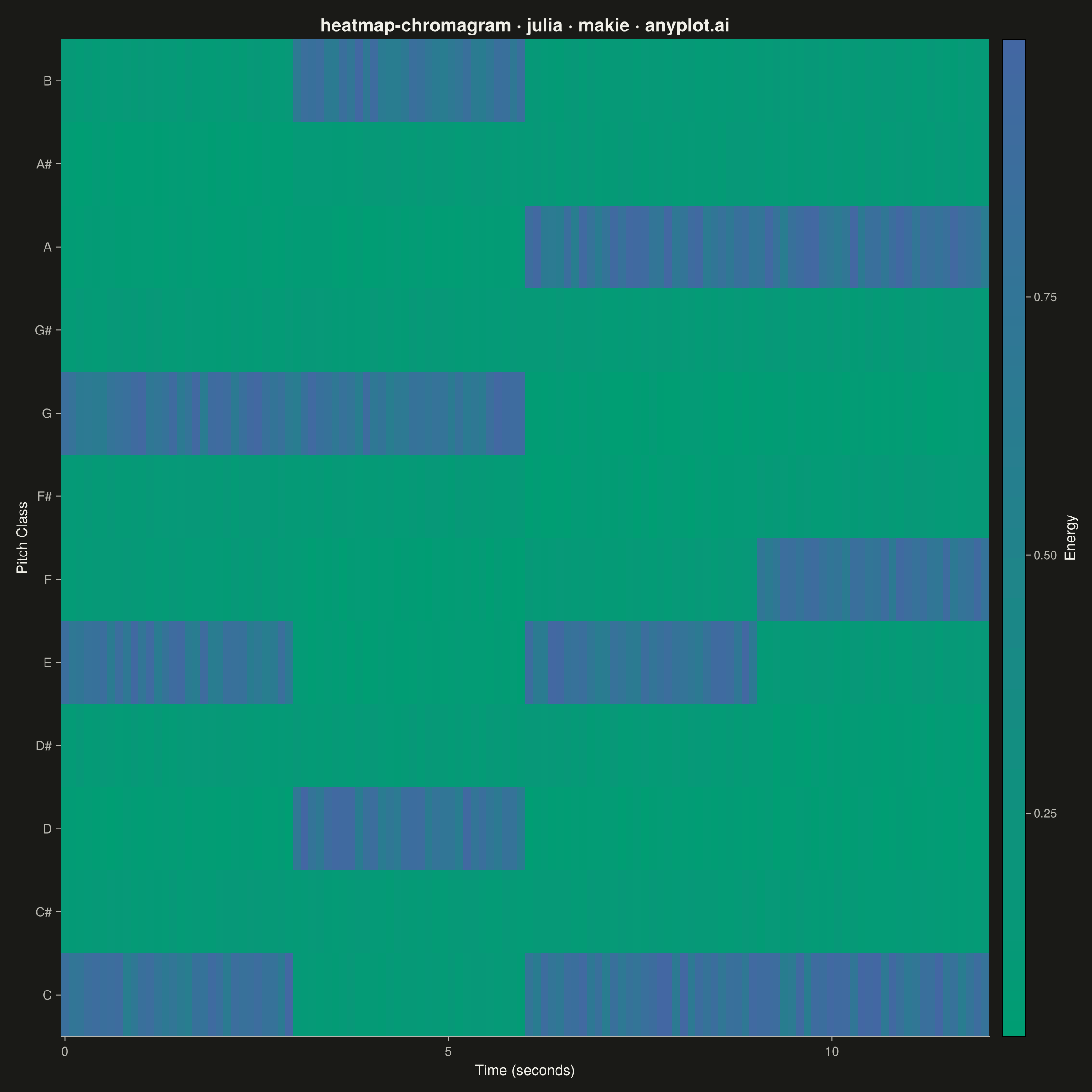

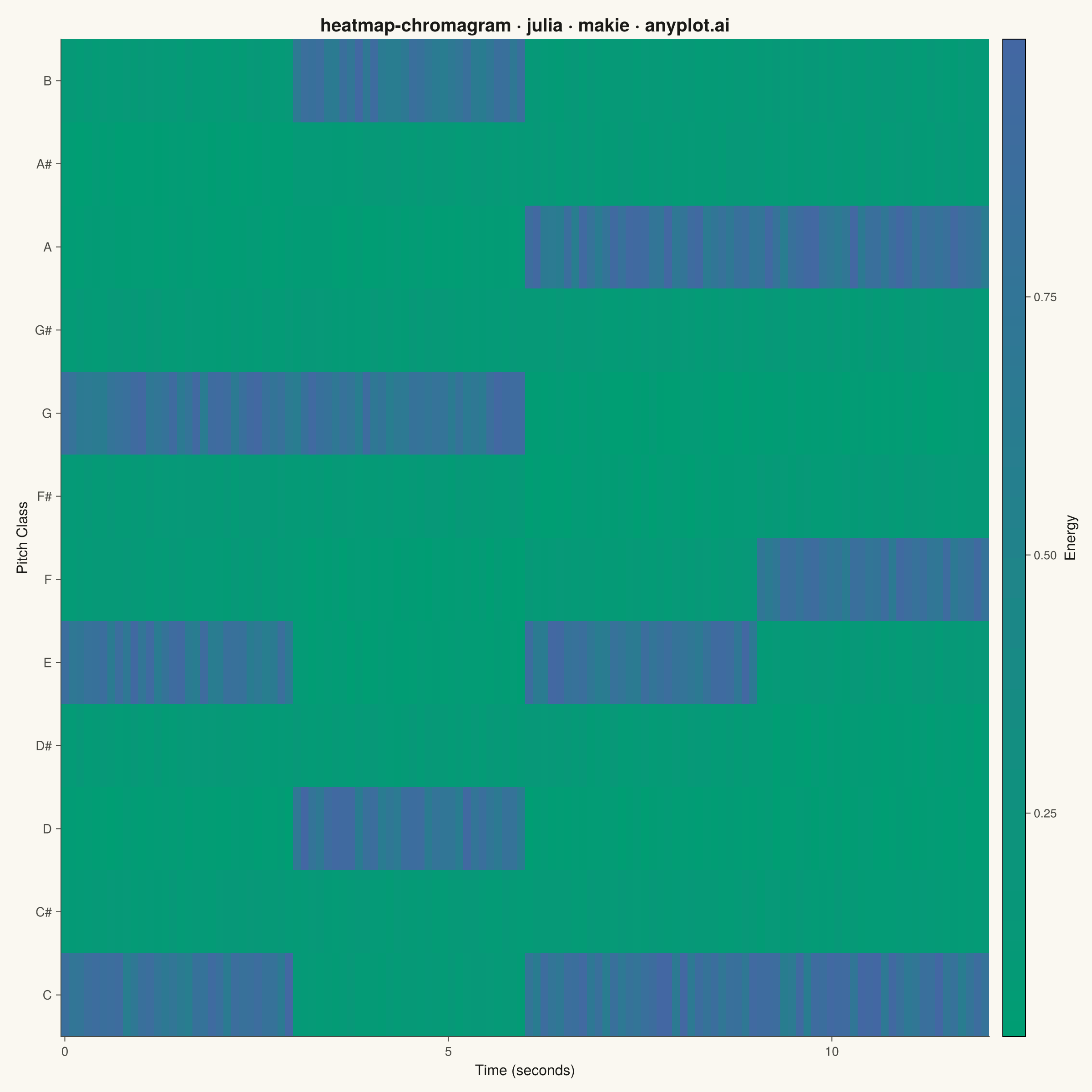

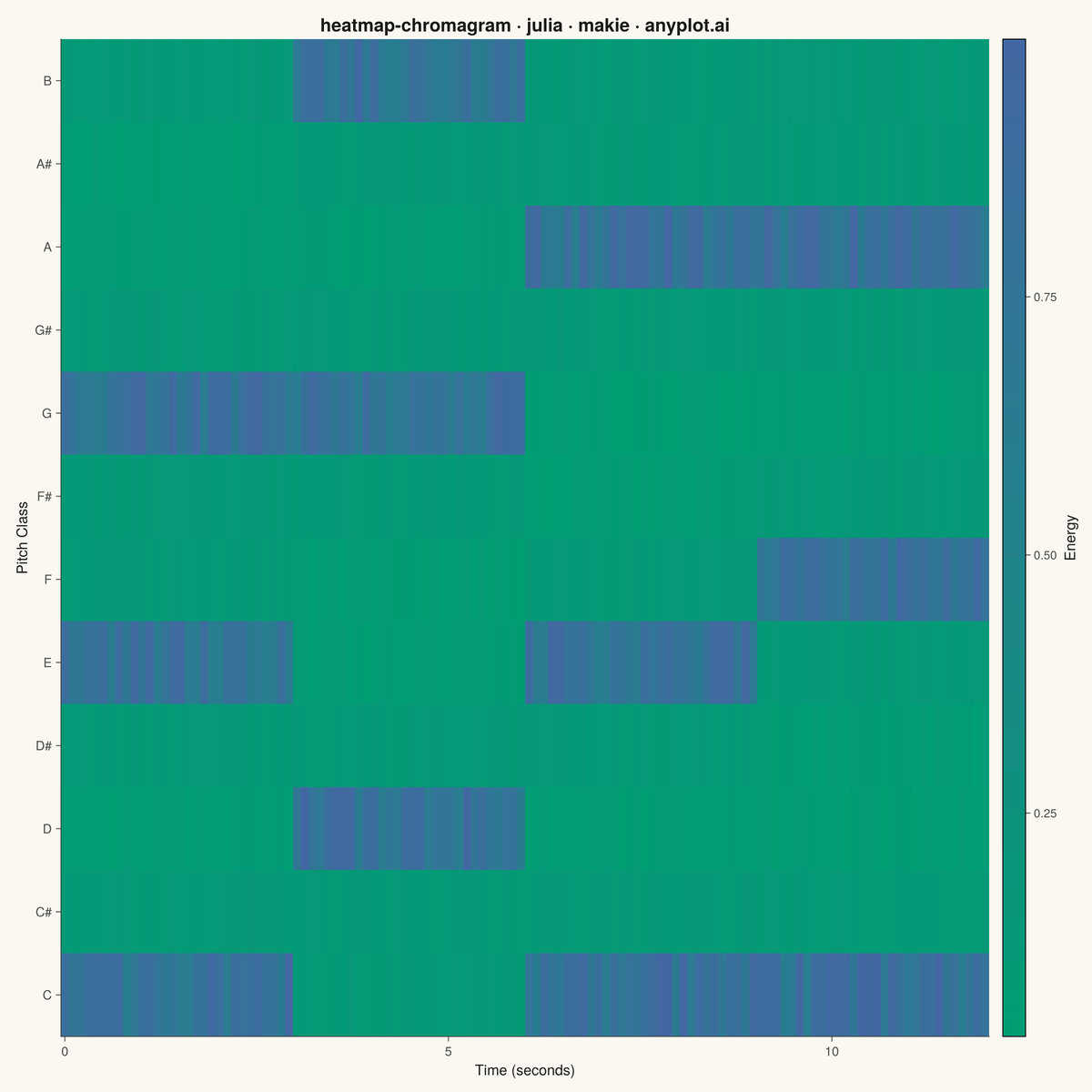

Music Chromagram (Pitch Class Distribution over Time) rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# heatmap-chromagram: Music Chromagram (Pitch Class Distribution over Time)
# Library: makie 0.22.10 | Julia 1.11.9
# Quality: 88/100 | Created: 2026-06-24

using CairoMakie
using Colors
using Random

Random.seed!(42)

# Theme tokens
const THEME       = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG     = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const ELEVATED_BG = THEME == "light" ? colorant"#FFFDF6" : colorant"#242420"
const INK         = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT    = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"

# Imprint sequential colormap for energy (single-polarity continuous data)
const ANYPLOT_SEQ = cgrad([colorant"#009E73", colorant"#4467A3"])

# Data: chromagram of a I-V-vi-IV progression in C major
const PITCH_NAMES = ["C", "C#", "D", "D#", "E", "F", "F#", "G", "G#", "A", "A#", "B"]
const N_PITCH     = 12
const N_FRAMES    = 120  # 12 seconds at 10 fps

time_seconds = collect(range(0.0, 12.0, length=N_FRAMES))

# Chord tones (1-based pitch indices)
# C major: C(1), E(5), G(8) | G major: D(3), G(8), B(12)
# A minor: C(1), E(5), A(10) | F major: C(1), F(6), A(10)
const CHORD_TONES = [
    [1, 5, 8],
    [3, 8, 12],
    [1, 5, 10],
    [1, 6, 10],
]

frames_per_chord = N_FRAMES ÷ 4

# Build chromagram matrix: chroma[frame, pitch_class]
chroma = zeros(N_FRAMES, N_PITCH)

for f in 1:N_FRAMES
    chord_idx = min(4, div(f - 1, frames_per_chord) + 1)
    tones = CHORD_TONES[chord_idx]
    for p in 1:N_PITCH
        if p in tones
            chroma[f, p] = 0.60 + 0.40 * rand()
        else
            circ_dist = minimum(min(abs(p - t), 12 - abs(p - t)) for t in tones)
            chroma[f, p] = 0.20 * exp(-0.9 * circ_dist) + 0.06 * rand()
        end
    end
end

# Plot
fig = Figure(
    size            = (1200, 1200),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title              = "heatmap-chromagram · julia · makie · anyplot.ai",
    titlesize          = 20,
    titlecolor         = INK,
    xlabel             = "Time (seconds)",
    ylabel             = "Pitch Class",
    xlabelsize         = 16,
    ylabelsize         = 16,
    xticklabelsize     = 14,
    yticklabelsize     = 14,
    xlabelcolor        = INK,
    ylabelcolor        = INK,
    xticklabelcolor    = INK_SOFT,
    yticklabelcolor    = INK_SOFT,
    xtickcolor         = INK_SOFT,
    ytickcolor         = INK_SOFT,
    backgroundcolor    = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinecolor     = INK_SOFT,
    bottomspinecolor   = INK_SOFT,
    xgridvisible       = false,
    ygridvisible       = false,
)

hm = heatmap!(ax, time_seconds, collect(1:N_PITCH), chroma; colormap = ANYPLOT_SEQ)

ax.yticks = (collect(1:N_PITCH), PITCH_NAMES)

# Chord boundary markers and region labels
vlines!(ax, [3.0, 6.0, 9.0]; color = INK_SOFT, linewidth = 1.5, linestyle = :dash)

for (xc, label) in zip([1.5, 4.5, 7.5, 10.5], ["C", "G", "Am", "F"])
    text!(ax, xc, 12.7; text = label, color = INK, fontsize = 14, align = (:center, :bottom))
end

ylims!(ax, 0.35, 13.6)

cb = Colorbar(
    fig[1, 2], hm;
    label          = "Energy",
    labelsize      = 16,
    ticklabelsize  = 13,
    labelcolor     = INK,
    ticklabelcolor = INK_SOFT,
    tickcolor      = INK_SOFT,
    width          = 25,
)

colgap!(fig.layout, 15)

# Save
save("plot-$(THEME).png", fig; px_per_unit = 2)
