Geographic Heatmap for Spatial Density — lets-plot

A geographic heatmap visualizes spatial density or intensity values across a map using continuous color gradients. Unlike choropleth maps that color discrete regions, this plot shows smooth density variations computed from point data or gridded values. The color intensity at each location represents the concentration or magnitude of the underlying data, making it ideal for identifying hotspots, clusters, and spatial patterns in geographic data.

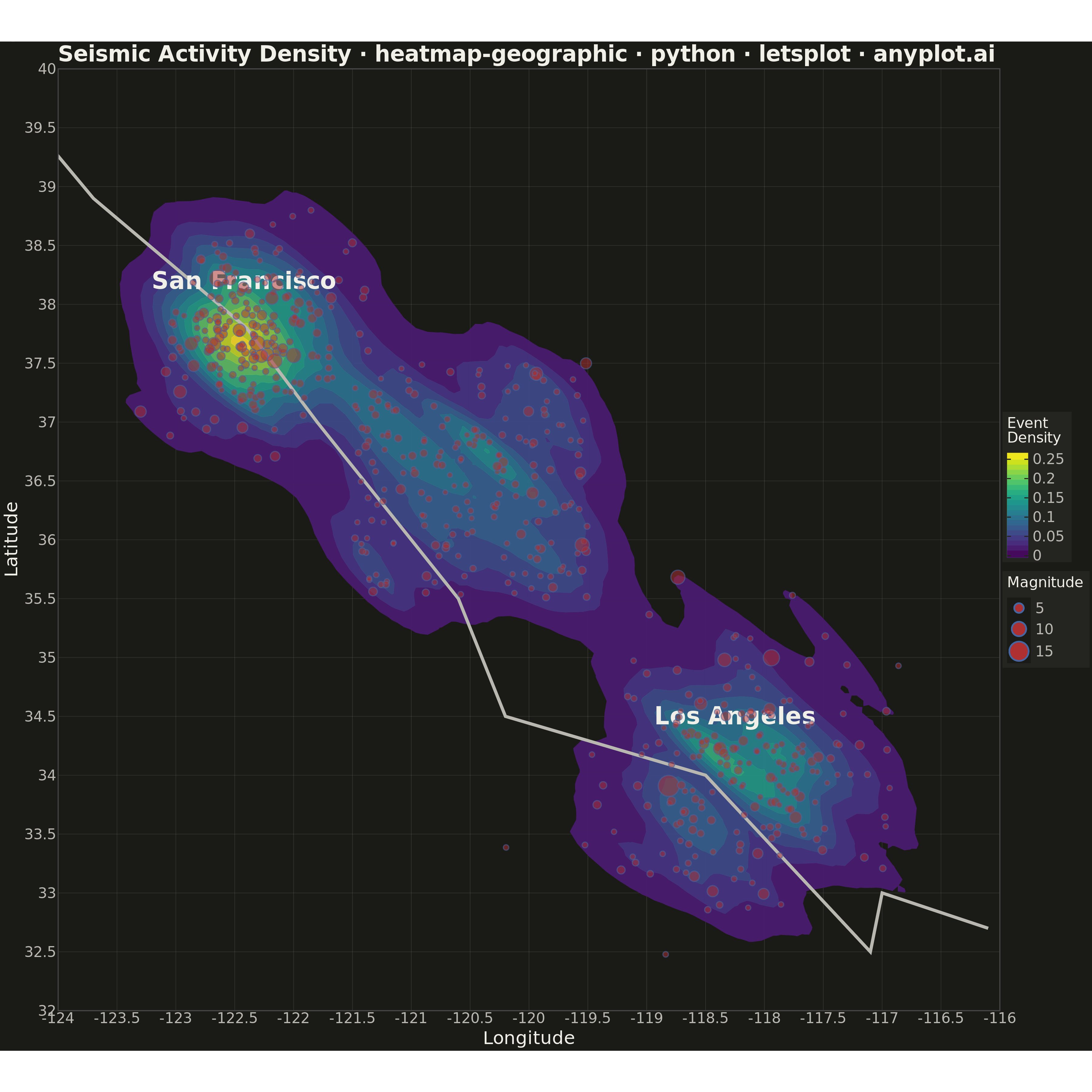

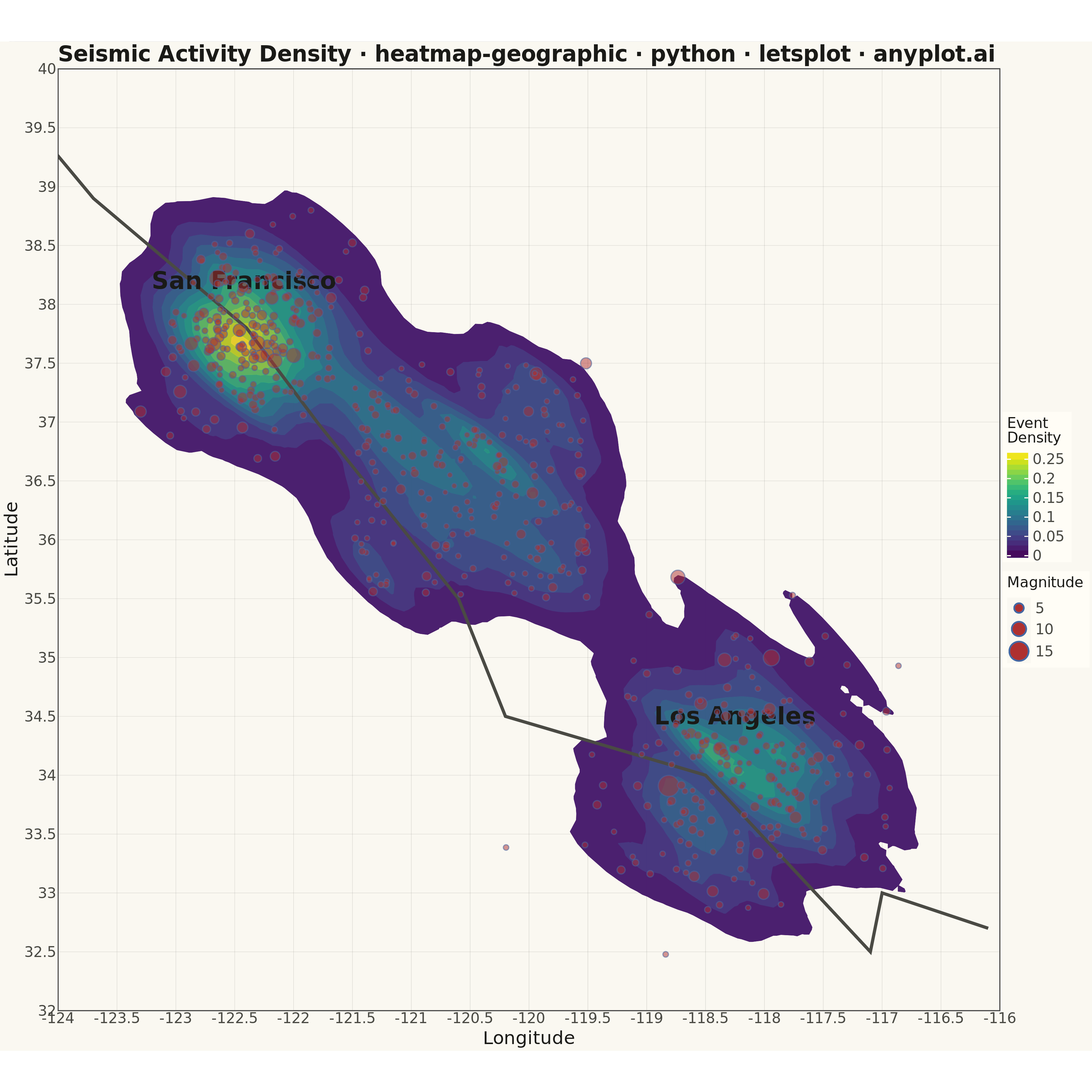

Geographic Heatmap for Spatial Density rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
heatmap-geographic: Geographic Heatmap for Spatial Density
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 85/100 | Updated: 2026-05-19
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    coord_fixed,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_contourf,
    geom_path,
    geom_point,
    geom_text,
    ggplot,
    ggsize,
    labs,
    layer_tooltips,
    scale_fill_viridis,
    scale_size,
    theme,
    theme_minimal,
)
from lets_plot.export import ggsave
from scipy.stats import gaussian_kde


LetsPlot.setup_html()

THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
RULE = "rgba(26,26,23,0.12)" if THEME == "light" else "rgba(240,239,232,0.12)"

# Data — synthetic California seismic events clustered around major fault lines
np.random.seed(42)
n_points = 600

la_lat = np.random.normal(34.05, 0.6, n_points // 3)
la_lon = np.random.normal(-118.25, 0.6, n_points // 3)
la_magnitude = np.random.exponential(2.0, n_points // 3) + 1

sf_lat = np.random.normal(37.77, 0.4, n_points // 3)
sf_lon = np.random.normal(-122.42, 0.4, n_points // 3)
sf_magnitude = np.random.exponential(2.2, n_points // 3) + 1.2

cv_lat = np.random.uniform(35.5, 37.5, n_points // 3)
cv_lon = np.random.uniform(-121.5, -119.5, n_points // 3)
cv_magnitude = np.random.exponential(1.5, n_points // 3) + 0.8

latitude = np.concatenate([la_lat, sf_lat, cv_lat])
longitude = np.concatenate([la_lon, sf_lon, cv_lon])
magnitude = np.concatenate([la_magnitude, sf_magnitude, cv_magnitude])

df = pd.DataFrame({"latitude": latitude, "longitude": longitude, "magnitude": magnitude})

# KDE on a regular grid for the continuous density heatmap
lon_min, lon_max = -124, -116
lat_min, lat_max = 32, 40
n_grid = 80

lon_grid = np.linspace(lon_min, lon_max, n_grid)
lat_grid = np.linspace(lat_min, lat_max, n_grid)
lon_mesh, lat_mesh = np.meshgrid(lon_grid, lat_grid)

positions = np.vstack([longitude, latitude])
kernel = gaussian_kde(positions, bw_method=0.15)
grid_positions = np.vstack([lon_mesh.ravel(), lat_mesh.ravel()])
density = kernel(grid_positions).reshape(lon_mesh.shape)

df_grid = pd.DataFrame({"longitude": lon_mesh.flatten(), "latitude": lat_mesh.flatten(), "density": density.flatten()})

# City labels for geographic context
city_labels = pd.DataFrame({"lon": [-122.42, -118.25], "lat": [38.2, 34.5], "city": ["San Francisco", "Los Angeles"]})

# Simplified California coastline for geographic context
ca_coast = pd.DataFrame(
    {
        "lon": [-124.4, -124.2, -123.7, -122.4, -121.8, -120.6, -120.2, -118.5, -117.1, -117.0, -116.1],
        "lat": [40.3, 39.5, 38.9, 37.8, 37.0, 35.5, 34.5, 34.0, 32.5, 33.0, 32.7],
    }
)

# Plot
plot = (
    ggplot()
    + geom_contourf(aes(x="longitude", y="latitude", z="density", fill="..level.."), data=df_grid, bins=12, alpha=0.85)
    + geom_path(aes(x="lon", y="lat"), data=ca_coast, color=INK_SOFT, size=1.5)
    + geom_text(aes(x="lon", y="lat", label="city"), data=city_labels, color=INK, size=13, hjust=0.5, fontface="bold")
    + geom_point(
        aes(x="longitude", y="latitude", size="magnitude"),
        data=df,
        color="#4467A3",
        alpha=0.5,
        shape=21,
        fill="#AE3030",
        stroke=0.5,
        tooltips=layer_tooltips()
        .line("Lat: @latitude{.2f}")
        .line("Lon: @longitude{.2f}")
        .line("Magnitude: @magnitude{.1f}"),
    )
    + scale_fill_viridis(name="Event\nDensity")
    + scale_size(range=[2, 10], name="Magnitude")
    + labs(
        x="Longitude",
        y="Latitude",
        title="Seismic Activity Density · heatmap-geographic · python · letsplot · anyplot.ai",
    )
    + coord_fixed(ratio=1.0, xlim=[lon_min, lon_max], ylim=[lat_min, lat_max])
    + ggsize(1200, 1200)
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        plot_title=element_text(size=24, face="bold", color=INK),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        legend_title=element_text(size=16, color=INK),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        panel_grid_major=element_line(color=RULE, size=0.5),
        panel_grid_minor=element_blank(),
    )
)

# Save
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Geographic Heatmap for Spatial Density on anyplot.ai.
