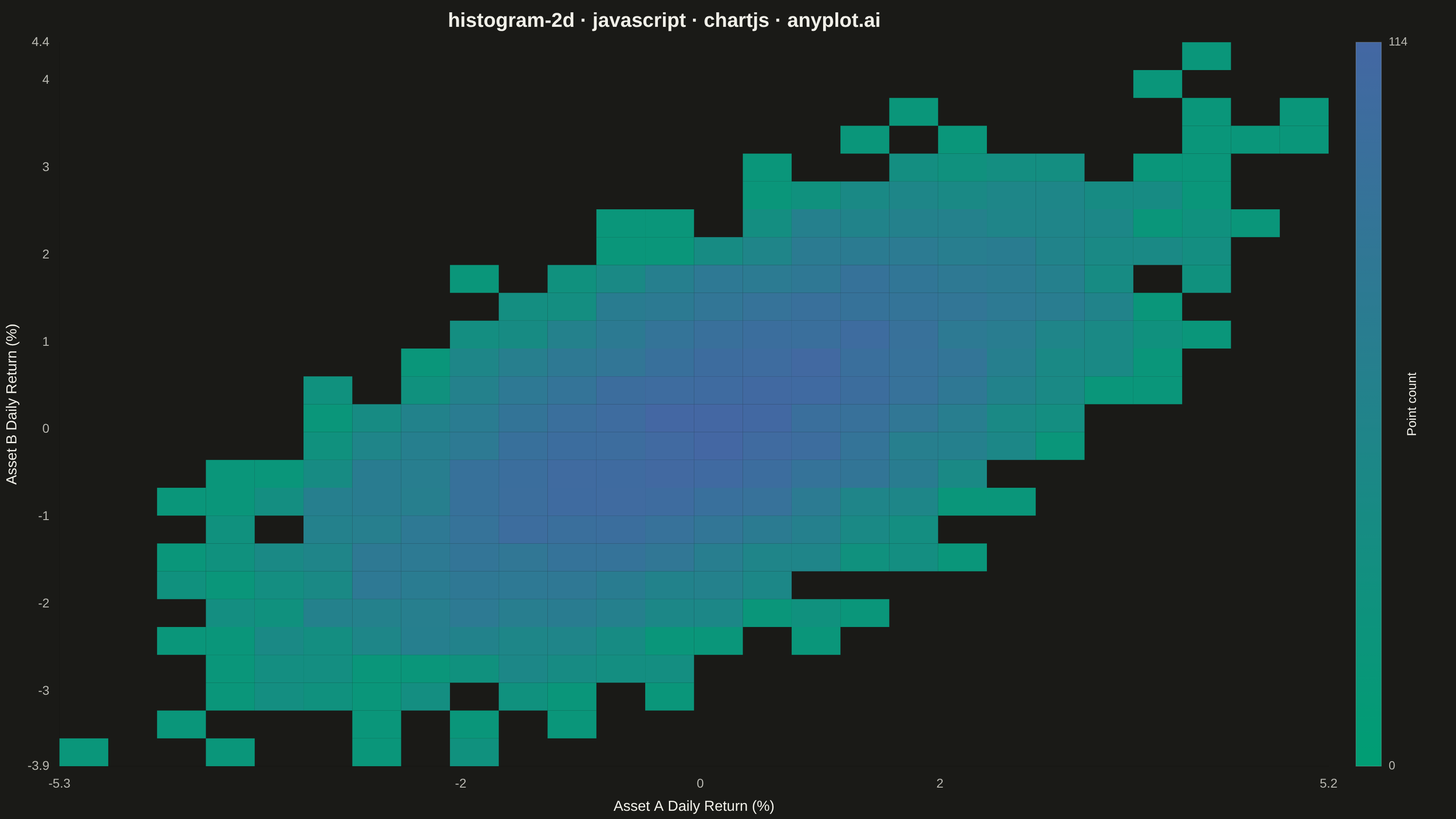

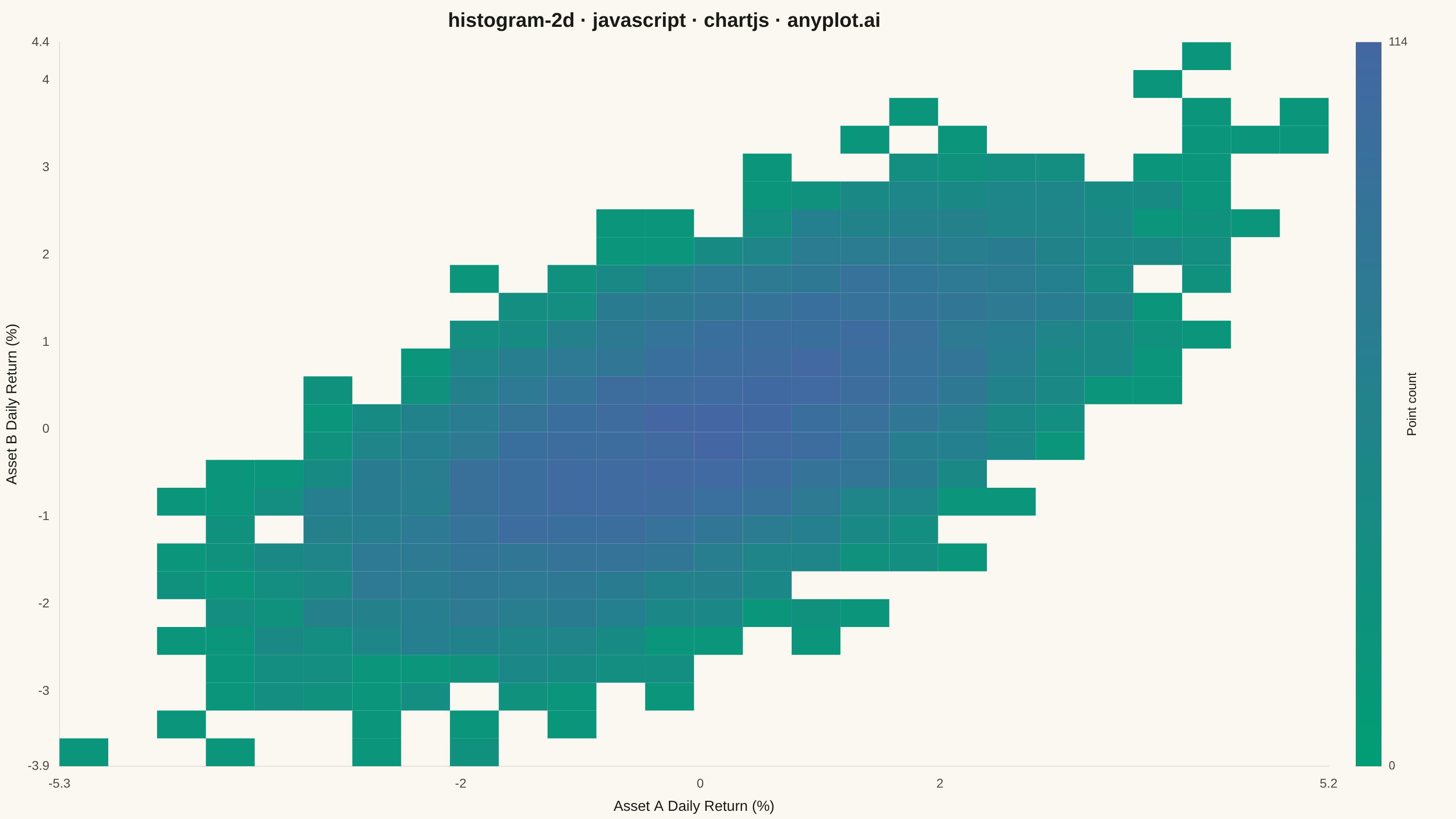

A two-dimensional histogram that displays the joint distribution of two continuous variables as a heatmap with rectangular bins. Each bin's color intensity represents the frequency or count of data points falling within that region, making it ideal for revealing density patterns, clusters, and correlations in bivariate data. Unlike scatter plots that can become cluttered with large datasets, 2D histograms effectively summarize point density.
// anyplot.ai
// histogram-2d: 2D Histogram Heatmap
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
// --- Data: correlated daily returns for two assets, deterministic LCG -------
function makeLcg(seed) {
let state = seed >>> 0;
return () => {
state = (state * 1664525 + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rand = makeLcg(42);
function randNormal() {
const u1 = Math.max(rand(), 1e-12);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const N_POINTS = 6000;
const CORRELATION = 0.65;
const assetAReturns = [];
const assetBReturns = [];
for (let i = 0; i < N_POINTS; i++) {
const z1 = randNormal();
const z2 = randNormal();
assetAReturns.push(z1 * 1.4);
assetBReturns.push(CORRELATION * z1 * 1.1 + Math.sqrt(1 - CORRELATION * CORRELATION) * z2 * 1.1);
}
// --- Bin the joint distribution into a fixed grid ---------------------------
const N_BINS = 26;
const xMin = Math.min(...assetAReturns);
const xMax = Math.max(...assetAReturns);
const yMin = Math.min(...assetBReturns);
const yMax = Math.max(...assetBReturns);
const binWidthX = (xMax - xMin) / N_BINS;
const binWidthY = (yMax - yMin) / N_BINS;
const counts = new Array(N_BINS * N_BINS).fill(0);
for (let i = 0; i < N_POINTS; i++) {
let bx = Math.floor((assetAReturns[i] - xMin) / binWidthX);
let by = Math.floor((assetBReturns[i] - yMin) / binWidthY);
if (bx === N_BINS) bx -= 1;
if (by === N_BINS) by -= 1;
counts[by * N_BINS + bx] += 1;
}
const maxCount = Math.max(...counts);
const logMaxCount = Math.log1p(maxCount);
const bins = [];
for (let by = 0; by < N_BINS; by++) {
for (let bx = 0; bx < N_BINS; bx++) {
const count = counts[by * N_BINS + bx];
if (count === 0) continue;
const left = xMin + bx * binWidthX;
const bottom = yMin + by * binWidthY;
bins.push({ left, right: left + binWidthX, bottom, top: bottom + binWidthY, count });
}
}
// --- Density color: imprint_seq, log-scaled (density varies widely) --------
function hexToRgb(hex) {
const value = parseInt(hex.slice(1), 16);
return [(value >> 16) & 255, (value >> 8) & 255, value & 255];
}
const seqLow = hexToRgb(t.seq[0]);
const seqHigh = hexToRgb(t.seq[1]);
function densityColor(count) {
const ratio = Math.log1p(count) / logMaxCount;
const r = Math.round(seqLow[0] + (seqHigh[0] - seqLow[0]) * ratio);
const g = Math.round(seqLow[1] + (seqHigh[1] - seqLow[1]) * ratio);
const b = Math.round(seqLow[2] + (seqHigh[2] - seqLow[2]) * ratio);
return `rgb(${r}, ${g}, ${b})`;
}
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Custom plugin: paints binned density rects + a colorbar legend ---------
// Chart.js has no core heatmap chart type; the plugin hooks below use the
// scatter chart's own linear scales to convert bin edges to pixel rects,
// entirely through Chart.js's public plugin API (no chartjs-chart-matrix).
const COLORBAR_WIDTH = 28;
const COLORBAR_OFFSET = 30;
const COLORBAR_RESERVED = 140;
const heatmapPlugin = {
id: "histogram2dHeatmap",
afterDatasetsDraw(chart) {
const { ctx, scales } = chart;
const { x: xScale, y: yScale } = scales;
ctx.save();
for (const bin of bins) {
const xPixelLeft = xScale.getPixelForValue(bin.left);
const xPixelRight = xScale.getPixelForValue(bin.right);
const yPixelTop = yScale.getPixelForValue(bin.top);
const yPixelBottom = yScale.getPixelForValue(bin.bottom);
ctx.fillStyle = densityColor(bin.count);
ctx.fillRect(
Math.min(xPixelLeft, xPixelRight),
Math.min(yPixelTop, yPixelBottom),
Math.abs(xPixelRight - xPixelLeft),
Math.abs(yPixelBottom - yPixelTop)
);
}
ctx.restore();
},
afterDraw(chart) {
const { ctx, chartArea } = chart;
const barX = chartArea.right + COLORBAR_OFFSET;
const barTop = chartArea.top;
const barHeight = chartArea.bottom - chartArea.top;
const gradient = ctx.createLinearGradient(0, barTop + barHeight, 0, barTop);
gradient.addColorStop(0, t.seq[0]);
gradient.addColorStop(1, t.seq[1]);
ctx.save();
ctx.fillStyle = gradient;
ctx.fillRect(barX, barTop, COLORBAR_WIDTH, barHeight);
ctx.strokeStyle = t.grid;
ctx.lineWidth = 1;
ctx.strokeRect(barX, barTop, COLORBAR_WIDTH, barHeight);
ctx.fillStyle = t.inkSoft;
ctx.font = "13px sans-serif";
ctx.textAlign = "left";
ctx.textBaseline = "middle";
ctx.fillText("0", barX + COLORBAR_WIDTH + 8, barTop + barHeight);
ctx.fillText(String(maxCount), barX + COLORBAR_WIDTH + 8, barTop);
ctx.translate(barX + COLORBAR_WIDTH + 34, barTop + barHeight / 2);
ctx.rotate(-Math.PI / 2);
ctx.textAlign = "center";
ctx.fillStyle = t.ink;
ctx.font = "14px sans-serif";
ctx.fillText("Point count", 0, 0);
ctx.restore();
},
};
// --- Chart ---------------------------------------------------------------
// A near-invisible dataset drives the scatter chart's linear scale ranges;
// the plugin above does the actual density painting.
new Chart(canvas, {
type: "scatter",
data: {
datasets: [
{
label: "Joint density",
data: [
{ x: xMin, y: yMin },
{ x: xMax, y: yMax },
],
pointRadius: 0,
showLine: false,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: { padding: { right: COLORBAR_RESERVED } },
plugins: {
title: {
display: true,
text: "histogram-2d · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22 },
},
legend: { display: false },
tooltip: { enabled: false },
},
scales: {
x: {
type: "linear",
min: xMin,
max: xMax,
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { display: false },
title: { display: true, text: "Asset A Daily Return (%)", color: t.ink, font: { size: 16 } },
},
y: {
type: "linear",
min: yMin,
max: yMax,
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { display: false },
title: { display: true, text: "Asset B Daily Return (%)", color: t.ink, font: { size: 16 } },
},
},
},
plugins: [heatmapPlugin],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/histogram-2d/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
