2D Histogram Heatmap — plotnine

A two-dimensional histogram that displays the joint distribution of two continuous variables as a heatmap with rectangular bins. Each bin's color intensity represents the frequency or count of data points falling within that region, making it ideal for revealing density patterns, clusters, and correlations in bivariate data. Unlike scatter plots that can become cluttered with large datasets, 2D histograms effectively summarize point density.

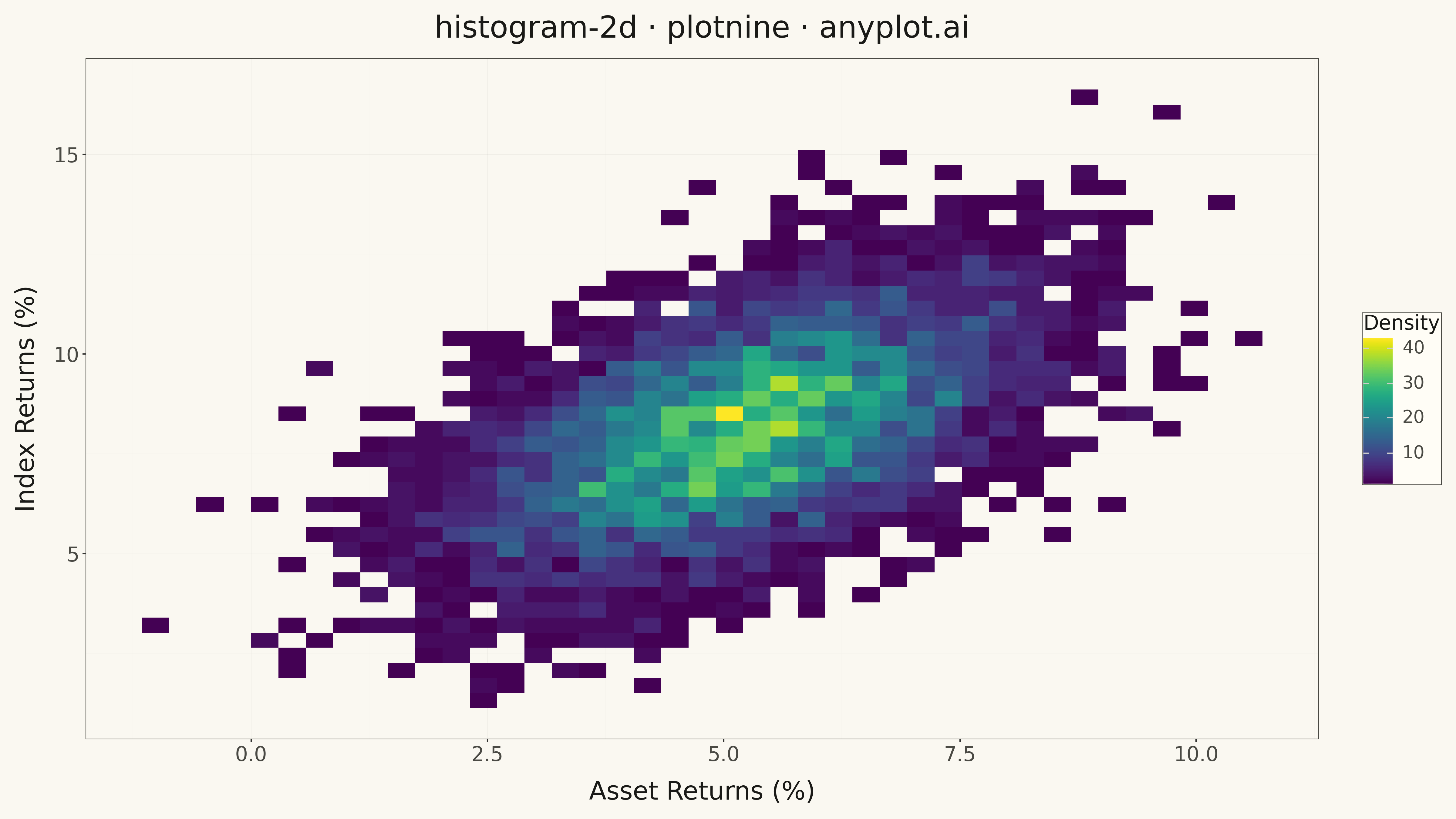

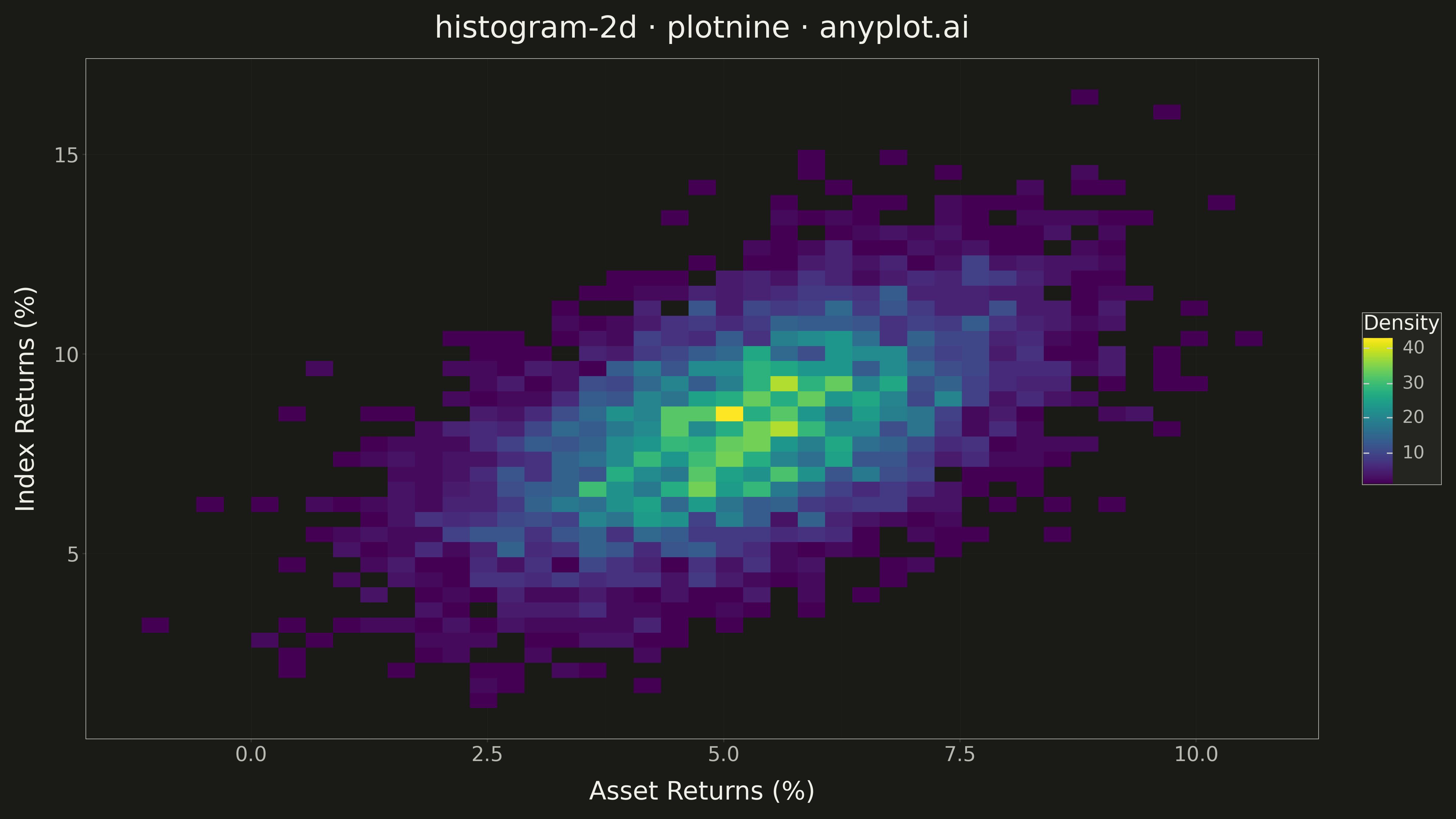

2D Histogram Heatmap rendered with plotnine

Python source (plotnine)

""" anyplot.ai
histogram-2d: 2D Histogram Heatmap
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-08
"""

import os

import numpy as np
import pandas as pd
from plotnine import aes, element_line, element_rect, element_text, geom_bin2d, ggplot, labs, scale_fill_cmap, theme


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data - Bivariate normal distribution with correlation
# Context: Financial returns across asset classes
np.random.seed(42)
n_points = 5000
mean = [5.2, 8.1]
cov = [[2.5, 1.8], [1.8, 4.2]]
xy = np.random.multivariate_normal(mean, cov, n_points)
df = pd.DataFrame({"asset_returns": xy[:, 0], "index_returns": xy[:, 1]})

# Create 2D histogram heatmap
plot = (
    ggplot(df, aes(x="asset_returns", y="index_returns"))
    + geom_bin2d(bins=40)
    + scale_fill_cmap(cmap_name="viridis", name="Density")
    + labs(x="Asset Returns (%)", y="Index Returns (%)", title="histogram-2d · plotnine · anyplot.ai")
    + theme(
        figure_size=(16, 9),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_border=element_rect(color=INK_SOFT, fill=None, size=0.5),
        panel_grid_major=element_line(color=INK_SOFT, size=0.2, alpha=0.08),
        panel_grid_minor=element_line(color=INK_SOFT, size=0.1, alpha=0.05),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT, size=0.4),
        plot_title=element_text(size=24, color=INK),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT, size=0.5),
        legend_text=element_text(size=14, color=INK_SOFT),
        legend_title=element_text(size=16, color=INK),
        text=element_text(size=14),
    )
)

# Save
plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)

Part of 2D Histogram Heatmap on anyplot.ai.
