2D Histogram Heatmap — Seaborn

A two-dimensional histogram that displays the joint distribution of two continuous variables as a heatmap with rectangular bins. Each bin's color intensity represents the frequency or count of data points falling within that region, making it ideal for revealing density patterns, clusters, and correlations in bivariate data. Unlike scatter plots that can become cluttered with large datasets, 2D histograms effectively summarize point density.

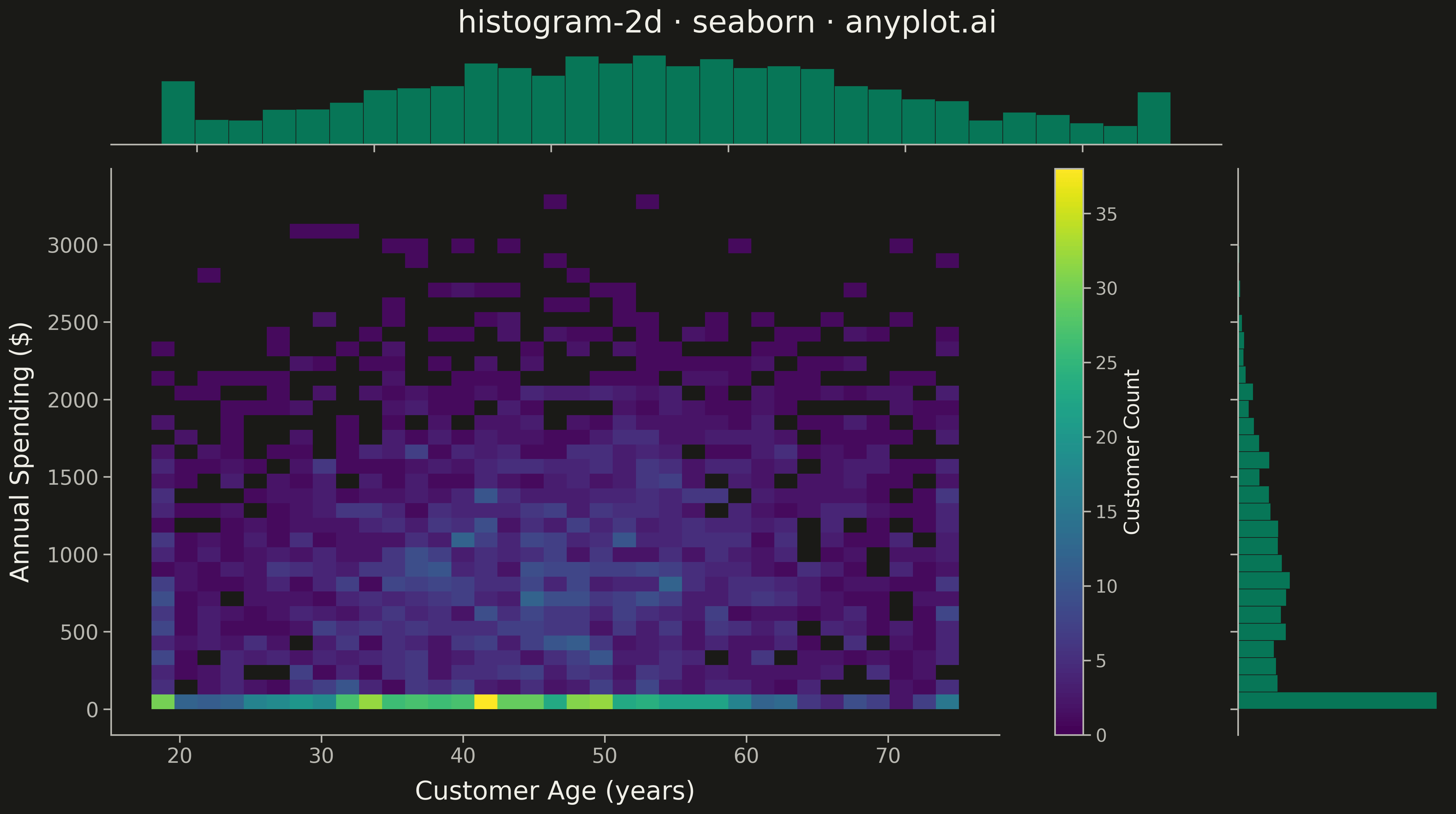

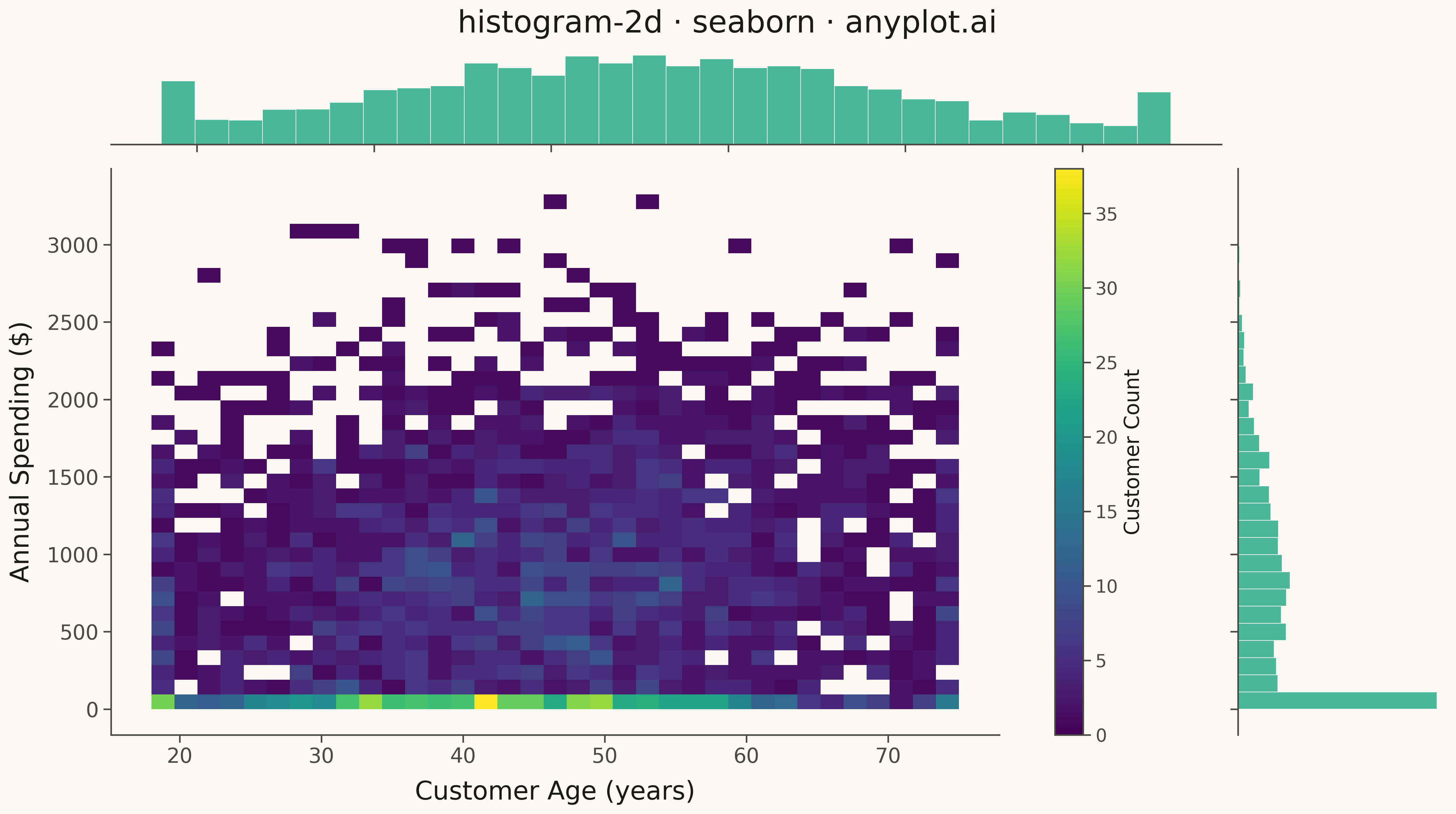

2D Histogram Heatmap rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
histogram-2d: 2D Histogram Heatmap
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-08
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Set theme
sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Data - Customer behavior: age vs. annual spending (physics experiment context)
# Using a real-world distribution of customer data with correlation
np.random.seed(42)
n_points = 3000
age = np.random.normal(45, 15, n_points)
age = np.clip(age, 18, 75)  # Realistic age range
spending = 500 + 8 * (age - 18) + np.random.normal(0, 800, n_points)
spending = np.clip(spending, 0, 6000)  # Realistic spending range

# Create figure with marginal histograms using JointGrid
g = sns.JointGrid(x=age, y=spending, height=10, ratio=5, space=0.2)

# Plot 2D histogram heatmap with improved bin sizing
sns.histplot(x=age, y=spending, bins=35, cmap="viridis", cbar=True, cbar_kws={"label": "Customer Count"}, ax=g.ax_joint)

# Plot marginal 1D histograms with theme-adaptive color
marginal_color = "#009E73"  # Okabe-Ito brand green
sns.histplot(x=age, bins=30, color=marginal_color, alpha=0.7, edgecolor=PAGE_BG, linewidth=0.5, ax=g.ax_marg_x)
sns.histplot(y=spending, bins=30, color=marginal_color, alpha=0.7, edgecolor=PAGE_BG, linewidth=0.5, ax=g.ax_marg_y)

# Styling - scale fonts for large canvas
g.ax_joint.set_xlabel("Customer Age (years)", fontsize=20, color=INK, labelpad=10)
g.ax_joint.set_ylabel("Annual Spending ($)", fontsize=20, color=INK, labelpad=10)
g.ax_joint.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Style colorbar
cbar = g.ax_joint.collections[0].colorbar
cbar.ax.tick_params(labelsize=14, colors=INK_SOFT)
cbar.ax.yaxis.label.set_size(16)
cbar.ax.yaxis.label.set_color(INK)

# Title
g.figure.suptitle("histogram-2d · seaborn · anyplot.ai", fontsize=24, y=0.98, color=INK)

# Hide marginal axis labels for cleaner look
g.ax_marg_x.set_ylabel("")
g.ax_marg_y.set_xlabel("")
g.ax_marg_x.tick_params(labelsize=12, colors=INK_SOFT)
g.ax_marg_y.tick_params(labelsize=12, colors=INK_SOFT)

# Adjust layout for better spacing
g.figure.set_size_inches(16, 9)
g.figure.tight_layout()
g.figure.subplots_adjust(top=0.93)

# Save at 4800x2700
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
plt.close()

Part of 2D Histogram Heatmap on anyplot.ai.
