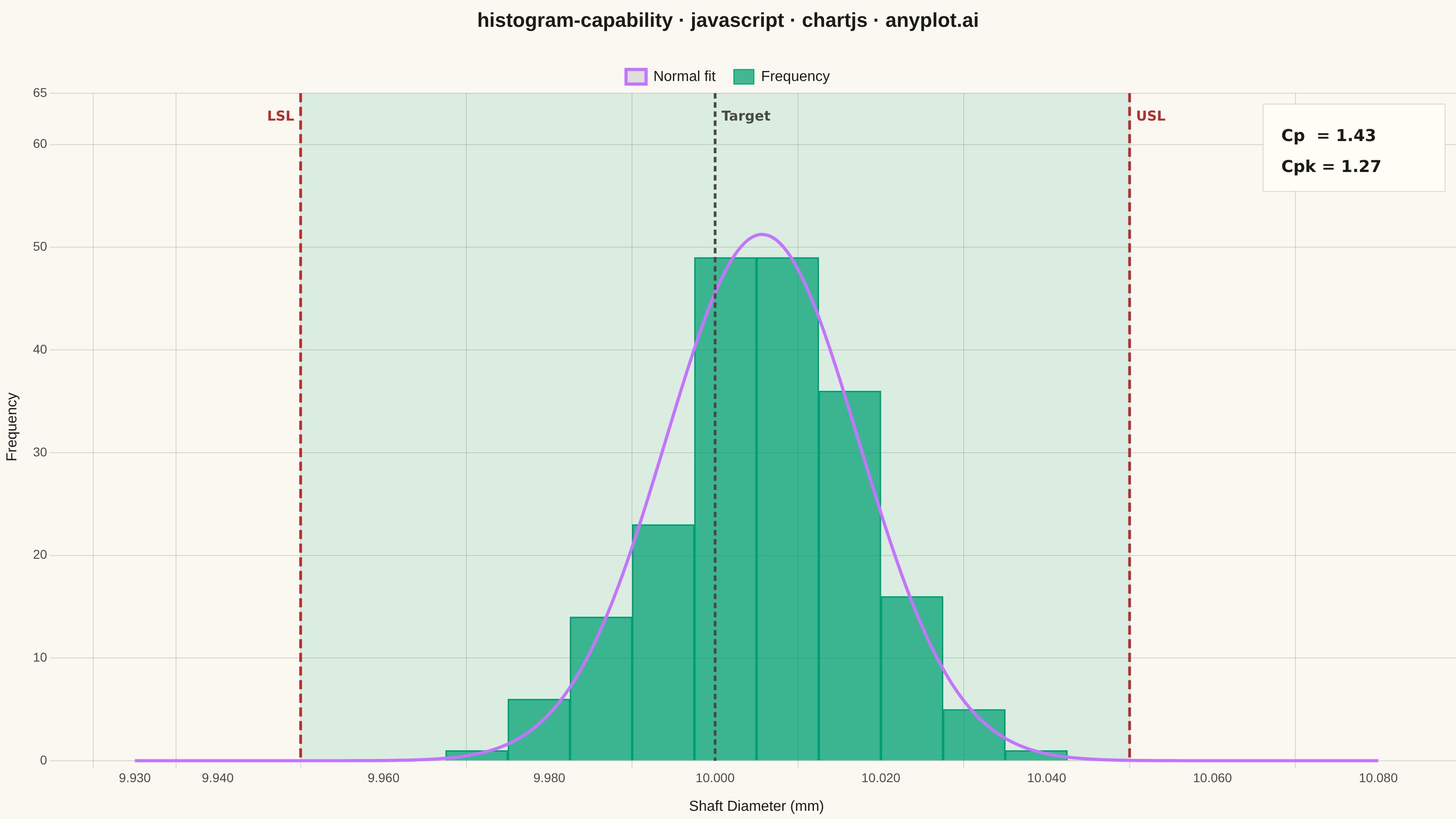

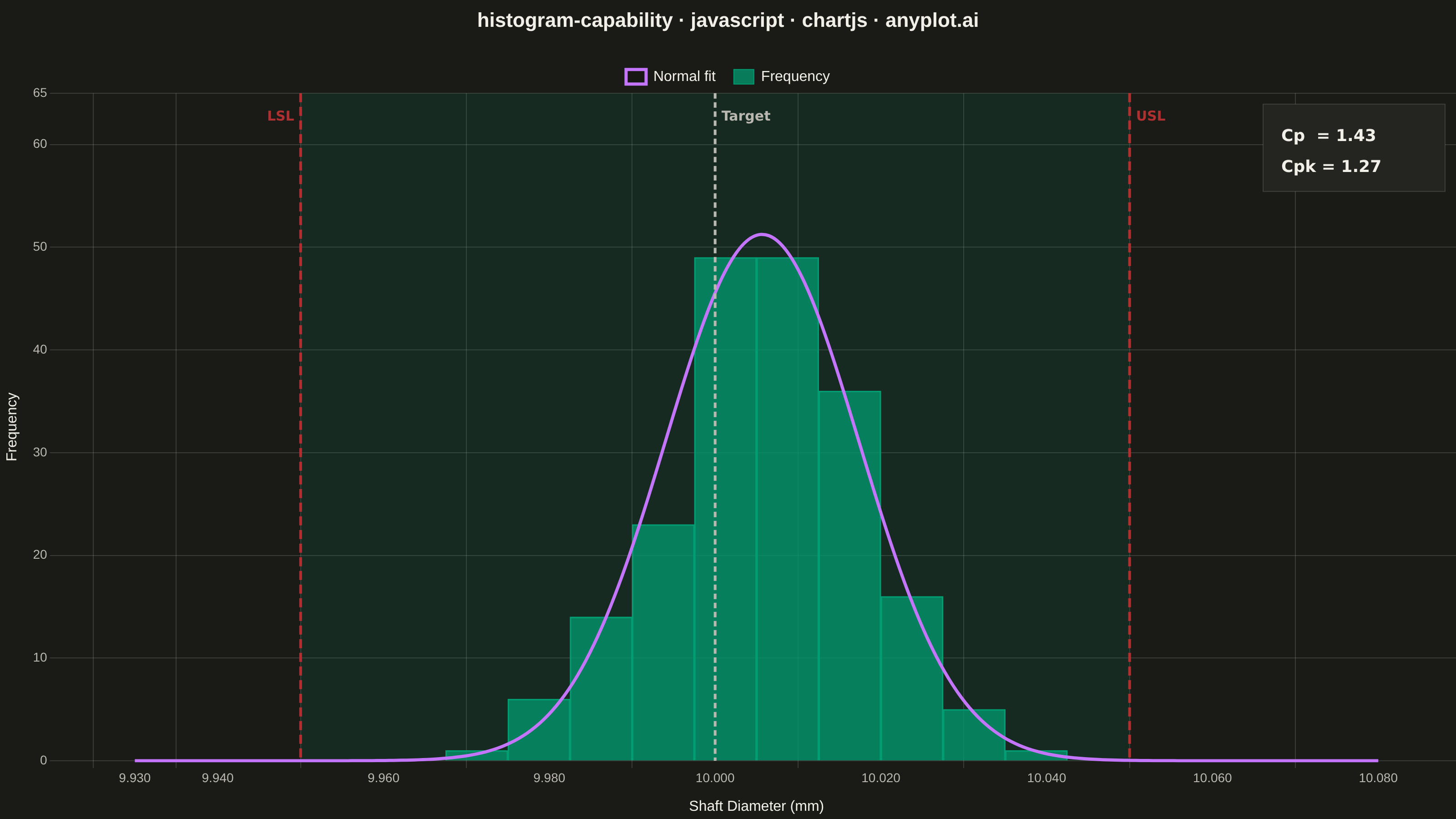

A process capability plot displays a histogram of measured process data overlaid with a fitted normal distribution curve and vertical lines for specification limits (LSL, USL) and target value. Capability indices (Cp, Cpk) are annotated on the plot to quantify how well the process meets specifications. This is a standard tool in quality engineering and Six Sigma for assessing whether a manufacturing or production process is capable of consistently producing output within tolerance.
// anyplot.ai
// histogram-capability: Process Capability Plot with Specification Limits
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-20
const t = window.ANYPLOT_TOKENS;
// ── Deterministic data generation (LCG + Box-Muller) ────────────────────────
let seed = 42;
function lcg() {
seed = (seed * 1664525 + 1013904223) & 0xffffffff;
return (seed >>> 0) / 0x100000000;
}
function randn() {
return Math.sqrt(-2 * Math.log(lcg() || 1e-10)) * Math.cos(2 * Math.PI * lcg());
}
// Process parameters (shaft diameter, mm)
const LSL = 9.95, USL = 10.05, TARGET = 10.00;
const POP_MEAN = 10.005, POP_STD = 0.0125;
const N = 200;
const measurements = Array.from({ length: N }, () => POP_MEAN + POP_STD * randn());
// Sample statistics — computed from data
const sampleMean = measurements.reduce((s, v) => s + v, 0) / N;
const sampleStd = Math.sqrt(measurements.reduce((s, v) => s + (v - sampleMean) ** 2, 0) / (N - 1));
// Capability indices
const Cp = (USL - LSL) / (6 * sampleStd);
const Cpk = Math.min((USL - sampleMean) / (3 * sampleStd), (sampleMean - LSL) / (3 * sampleStd));
// ── Histogram bins ───────────────────────────────────────────────────────────
const BIN_COUNT = 20;
const X_MIN = 9.93, X_MAX = 10.08;
const binWidth = (X_MAX - X_MIN) / BIN_COUNT;
const binCenters = Array.from({ length: BIN_COUNT }, (_, i) => X_MIN + (i + 0.5) * binWidth);
const freqs = new Array(BIN_COUNT).fill(0);
measurements.forEach(m => {
const idx = Math.min(Math.floor((m - X_MIN) / binWidth), BIN_COUNT - 1);
if (idx >= 0 && idx < BIN_COUNT) freqs[idx]++;
});
// ── Fitted normal distribution curve (scaled to histogram counts) ────────────
const CURVE_PTS = 150;
const normalData = Array.from({ length: CURVE_PTS }, (_, i) => {
const x = X_MIN + (i / (CURVE_PTS - 1)) * (X_MAX - X_MIN);
const z = (x - sampleMean) / sampleStd;
const y = (1 / (sampleStd * Math.sqrt(2 * Math.PI))) * Math.exp(-0.5 * z * z) * N * binWidth;
return { x, y };
});
const maxFreq = Math.max(...freqs, ...normalData.map(d => d.y));
const yMax = Math.ceil(maxFreq * 1.2 / 5) * 5;
// ── Spec-lines + capability annotation plugin ────────────────────────────────
const specPlugin = {
id: 'specLines',
beforeDatasetsDraw(chart) {
const { ctx, chartArea, scales } = chart;
const xScale = scales.x;
// In-spec region background shading (behind histogram bars)
const xLSL = xScale.getPixelForValue(LSL);
const xUSL = xScale.getPixelForValue(USL);
ctx.save();
ctx.fillStyle = t.palette[0] + '20';
ctx.fillRect(xLSL, chartArea.top, xUSL - xLSL, chartArea.bottom - chartArea.top);
ctx.restore();
},
afterDatasetsDraw(chart) {
const { ctx, chartArea, scales } = chart;
const xScale = scales.x;
ctx.save();
// Vertical spec-limit and target lines
const lines = [
{ value: LSL, color: '#AE3030', dash: [10, 5], label: 'LSL', labelSide: 'left' },
{ value: USL, color: '#AE3030', dash: [10, 5], label: 'USL', labelSide: 'right' },
{ value: TARGET, color: t.inkSoft, dash: [6, 4], label: 'Target', labelSide: 'right' },
];
lines.forEach(({ value, color, dash, label, labelSide }) => {
const px = xScale.getPixelForValue(value);
ctx.strokeStyle = color;
ctx.lineWidth = 3;
ctx.setLineDash(dash);
ctx.beginPath();
ctx.moveTo(px, chartArea.top);
ctx.lineTo(px, chartArea.bottom);
ctx.stroke();
ctx.setLineDash([]);
ctx.fillStyle = color;
ctx.font = 'bold 15px system-ui, sans-serif';
ctx.textAlign = labelSide === 'right' ? 'left' : 'right';
ctx.fillText(label, px + (labelSide === 'right' ? 7 : -7), chartArea.top + 26);
});
// Cp / Cpk annotation box (upper-right corner)
const bW = 200, bH = 96;
const bX = chartArea.right - bW - 12;
const bY = chartArea.top + 12;
ctx.fillStyle = t.elevatedBg;
ctx.strokeStyle = t.grid;
ctx.lineWidth = 1;
ctx.fillRect(bX, bY, bW, bH);
ctx.strokeRect(bX, bY, bW, bH);
ctx.fillStyle = t.ink;
ctx.font = 'bold 18px system-ui, sans-serif';
ctx.textAlign = 'left';
ctx.fillText(`Cp = ${Cp.toFixed(2)}`, bX + 20, bY + 36);
ctx.fillText(`Cpk = ${Cpk.toFixed(2)}`, bX + 20, bY + 70);
ctx.restore();
},
};
// ── Mount ────────────────────────────────────────────────────────────────────
const canvas = document.createElement('canvas');
document.getElementById('container').appendChild(canvas);
// ── Chart ────────────────────────────────────────────────────────────────────
new Chart(canvas, {
type: 'bar',
data: {
datasets: [
{
type: 'bar',
label: 'Frequency',
data: binCenters.map((c, i) => ({ x: c, y: freqs[i] })),
backgroundColor: t.palette[0] + 'bb',
borderColor: t.palette[0],
borderWidth: 1,
barPercentage: 1,
categoryPercentage: 1,
order: 2,
},
{
type: 'line',
label: 'Normal fit',
data: normalData,
borderColor: t.palette[1],
borderWidth: 3.5,
pointRadius: 0,
tension: 0.4,
fill: false,
order: 1,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: 'histogram-capability · javascript · chartjs · anyplot.ai',
color: t.ink,
font: { size: 22, weight: '600' },
padding: { top: 10, bottom: 20 },
},
legend: {
labels: {
color: t.ink,
font: { size: 16 },
boxWidth: 22,
padding: 20,
},
},
},
scales: {
x: {
type: 'linear',
min: X_MIN,
max: X_MAX,
ticks: {
color: t.inkSoft,
font: { size: 14 },
maxTicksLimit: 11,
callback: v => v.toFixed(3),
},
grid: { color: t.grid },
border: { display: false },
title: {
display: true,
text: 'Shaft Diameter (mm)',
color: t.ink,
font: { size: 16 },
padding: { top: 10 },
},
},
y: {
type: 'linear',
beginAtZero: true,
max: yMax,
ticks: {
color: t.inkSoft,
font: { size: 14 },
stepSize: 10,
},
grid: { color: t.grid },
border: { display: false },
title: {
display: true,
text: 'Frequency',
color: t.ink,
font: { size: 16 },
padding: { bottom: 10 },
},
},
},
},
plugins: [specPlugin],
});
Part of Process Capability Plot with Specification Limits on anyplot.ai.
