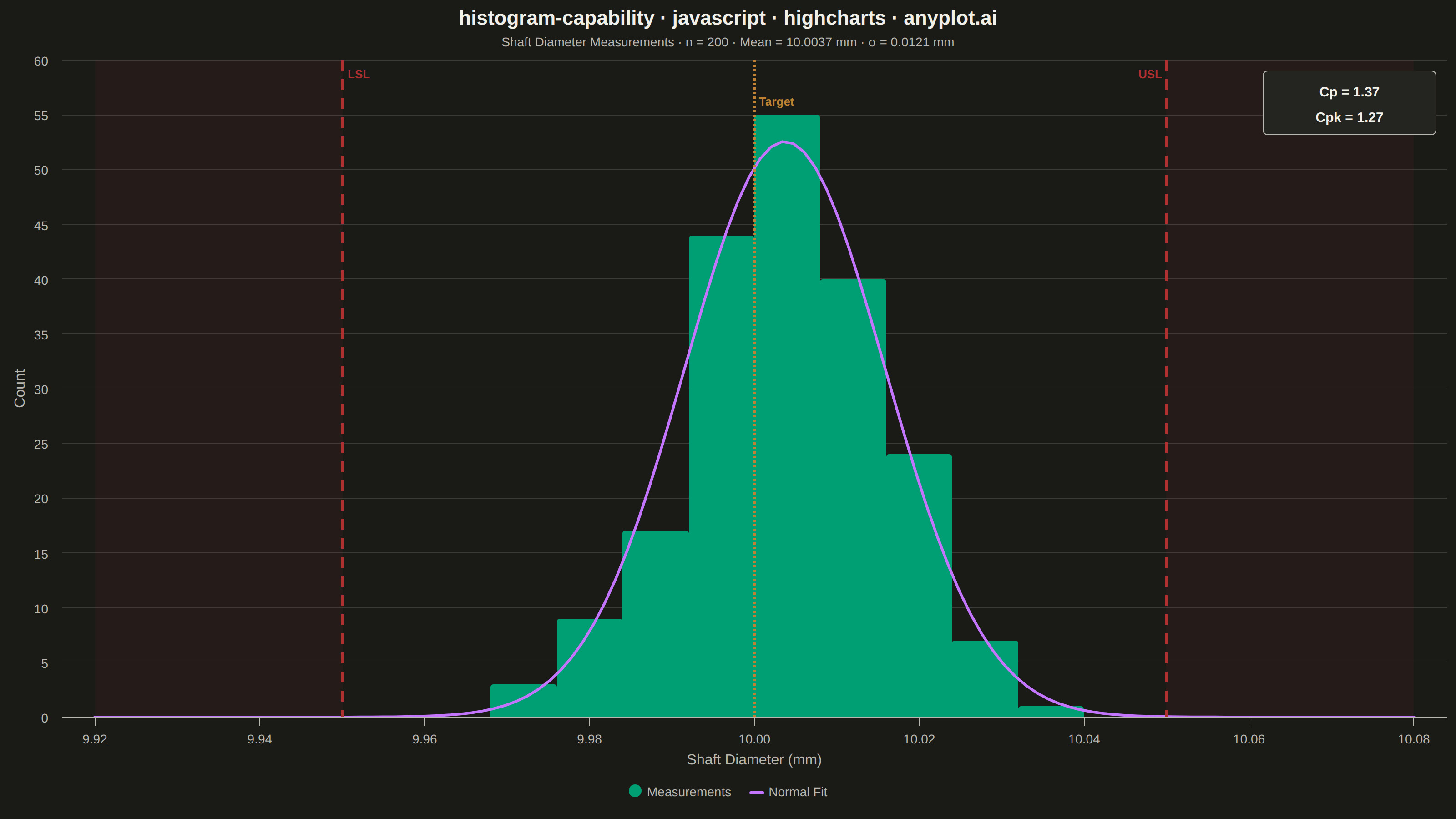

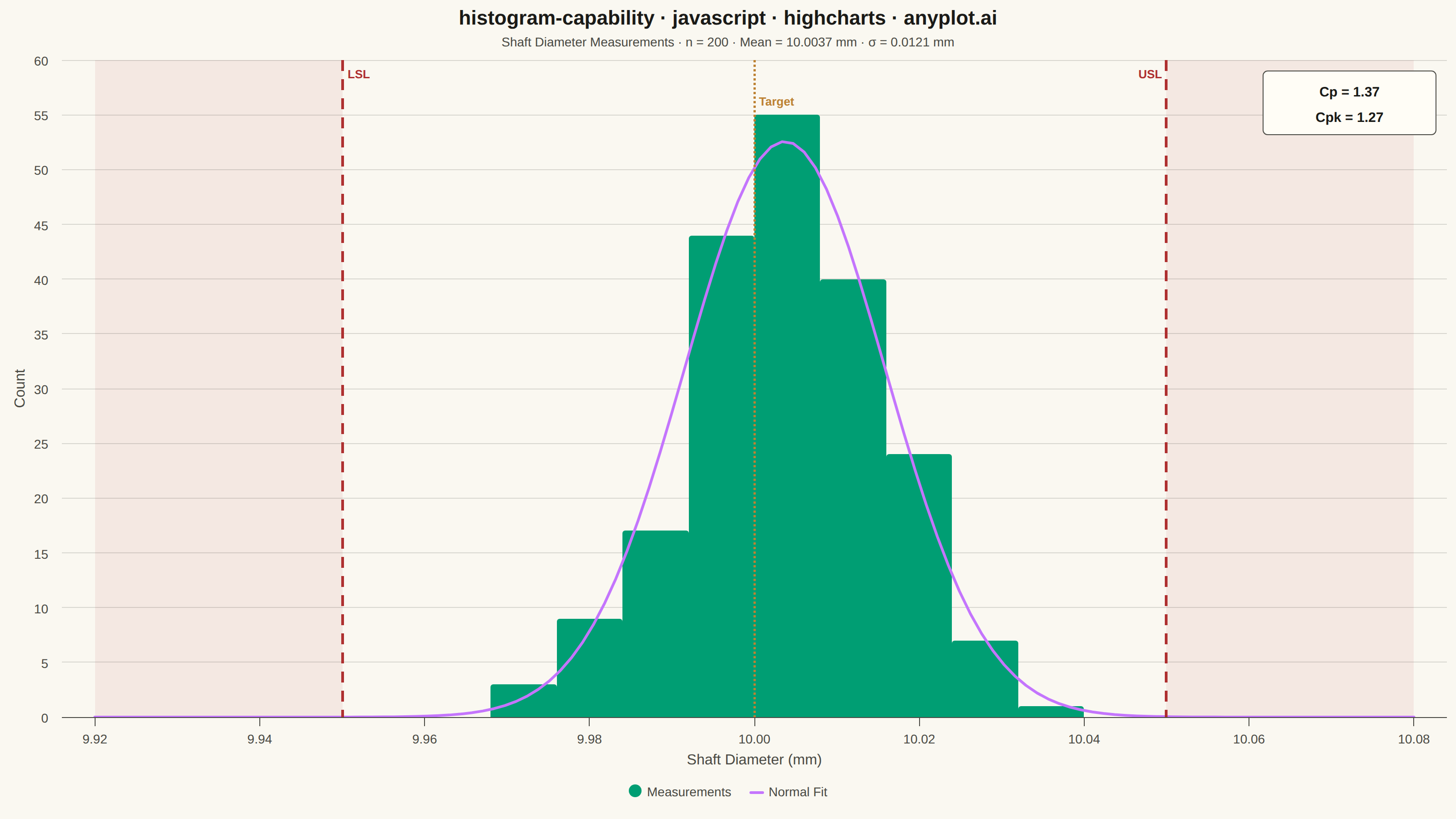

A process capability plot displays a histogram of measured process data overlaid with a fitted normal distribution curve and vertical lines for specification limits (LSL, USL) and target value. Capability indices (Cp, Cpk) are annotated on the plot to quantify how well the process meets specifications. This is a standard tool in quality engineering and Six Sigma for assessing whether a manufacturing or production process is capable of consistently producing output within tolerance.
// anyplot.ai
// histogram-capability: Process Capability Plot with Specification Limits
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-20
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Deterministic data generation (LCG + Box-Muller) ----------------------
let seed = 42;
function lcgNext() {
seed = (Math.imul(1664525, seed) + 1013904223) >>> 0;
return seed / 4294967296;
}
function randn() {
const u1 = Math.max(lcgNext(), 1e-15);
const u2 = lcgNext();
return Math.sqrt(-2.0 * Math.log(u1)) * Math.cos(2.0 * Math.PI * u2);
}
// Process parameters — shaft diameter (mm) quality control
const LSL = 9.95;
const USL = 10.05;
const TARGET = 10.00;
const TRUE_MEAN = 10.003;
const TRUE_SIGMA = 0.013;
const N = 200;
const measurements = Array.from({ length: N }, () => TRUE_MEAN + TRUE_SIGMA * randn());
// Sample statistics
const sampleMean = measurements.reduce((a, b) => a + b, 0) / N;
const sampleVariance = measurements.reduce((s, x) => s + (x - sampleMean) ** 2, 0) / (N - 1);
const sampleSigma = Math.sqrt(sampleVariance);
// Process capability indices
const cp = (USL - LSL) / (6 * sampleSigma);
const cpk = Math.min(
(USL - sampleMean) / (3 * sampleSigma),
(sampleMean - LSL) / (3 * sampleSigma)
);
// --- Histogram bins --------------------------------------------------------
const BIN_MIN = 9.92;
const BIN_MAX = 10.08;
const N_BINS = 20;
const BIN_WIDTH = (BIN_MAX - BIN_MIN) / N_BINS;
const binCounts = new Array(N_BINS).fill(0);
measurements.forEach(m => {
const i = Math.floor((m - BIN_MIN) / BIN_WIDTH);
if (i >= 0 && i < N_BINS) binCounts[i]++;
});
const histData = binCounts.map((count, i) => ({
x: BIN_MIN + (i + 0.5) * BIN_WIDTH,
y: count
}));
// --- Normal distribution curve (scaled to count space) ---------------------
function normalPDF(x, mu, sigma) {
return Math.exp(-0.5 * ((x - mu) / sigma) ** 2) / (sigma * Math.sqrt(2 * Math.PI));
}
const CURVE_POINTS = 120;
const normalCurveData = Array.from({ length: CURVE_POINTS }, (_, i) => {
const x = BIN_MIN + (i / (CURVE_POINTS - 1)) * (BIN_MAX - BIN_MIN);
const y = N * BIN_WIDTH * normalPDF(x, sampleMean, sampleSigma);
return [x, y];
});
// --- Chart -----------------------------------------------------------------
const chart = Highcharts.chart("container", {
chart: {
type: "column",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" }
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "histogram-capability · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" }
},
subtitle: {
text: `Shaft Diameter Measurements · n = ${N} · Mean = ${sampleMean.toFixed(4)} mm · σ = ${sampleSigma.toFixed(4)} mm`,
style: { color: t.inkSoft, fontSize: "14px" }
},
xAxis: {
title: {
text: "Shaft Diameter (mm)",
style: { color: t.inkSoft, fontSize: "16px" }
},
lineColor: t.inkSoft,
tickColor: t.inkSoft,
tickInterval: 0.02,
startOnTick: false,
endOnTick: false,
min: BIN_MIN,
max: BIN_MAX,
labels: {
formatter: function () { return this.value.toFixed(2); },
style: { color: t.inkSoft, fontSize: "14px" }
},
gridLineWidth: 0,
plotBands: [
{
from: BIN_MIN,
to: LSL,
color: "rgba(174, 48, 48, 0.08)",
zIndex: 0
},
{
from: USL,
to: BIN_MAX,
color: "rgba(174, 48, 48, 0.08)",
zIndex: 0
}
],
plotLines: [
{
color: "#AE3030",
width: 3,
value: LSL,
dashStyle: "Dash",
zIndex: 5,
label: {
text: "LSL",
align: "left",
rotation: 0,
x: 5,
y: 20,
style: { color: "#AE3030", fontSize: "13px", fontWeight: "bold" }
}
},
{
color: "#AE3030",
width: 3,
value: USL,
dashStyle: "Dash",
zIndex: 5,
label: {
text: "USL",
align: "right",
rotation: 0,
x: -5,
y: 20,
style: { color: "#AE3030", fontSize: "13px", fontWeight: "bold" }
}
},
{
color: "#BD8233",
width: 2.5,
value: TARGET,
dashStyle: "ShortDot",
zIndex: 4,
label: {
text: "Target",
align: "left",
rotation: 0,
x: 5,
y: 50,
style: { color: "#BD8233", fontSize: "13px", fontWeight: "bold" }
}
}
]
},
yAxis: {
title: {
text: "Count",
style: { color: t.inkSoft, fontSize: "16px" }
},
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
min: 0
},
legend: {
enabled: true,
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink }
},
tooltip: { enabled: false },
plotOptions: {
series: { animation: false },
column: {
pointRange: BIN_WIDTH,
groupPadding: 0,
pointPadding: 0,
borderWidth: 0
}
},
series: [
{
name: "Measurements",
type: "column",
data: histData,
color: t.palette[0]
},
{
name: "Normal Fit",
type: "line",
data: normalCurveData,
color: t.palette[1],
lineWidth: 3,
marker: { enabled: false }
}
]
});
// --- Cp / Cpk annotation box in plot area ----------------------------------
const BOX_W = 190, BOX_H = 70, BOX_PAD = 12, BOX_R = 5;
const boxX = chart.plotLeft + chart.plotWidth - BOX_W - BOX_PAD;
const boxY = chart.plotTop + BOX_PAD;
chart.renderer.rect(boxX, boxY, BOX_W, BOX_H, BOX_R).attr({
fill: t.elevatedBg,
stroke: t.inkSoft,
"stroke-width": 1,
zIndex: 7
}).add();
chart.renderer.text(`Cp = ${cp.toFixed(2)}`, boxX + BOX_W / 2, boxY + 28)
.attr({ align: "center", zIndex: 8 })
.css({ color: t.ink, fontSize: "15px", fontWeight: "600" })
.add();
chart.renderer.text(`Cpk = ${cpk.toFixed(2)}`, boxX + BOX_W / 2, boxY + 56)
.attr({ align: "center", zIndex: 8 })
.css({ color: t.ink, fontSize: "15px", fontWeight: "600" })
.add();
