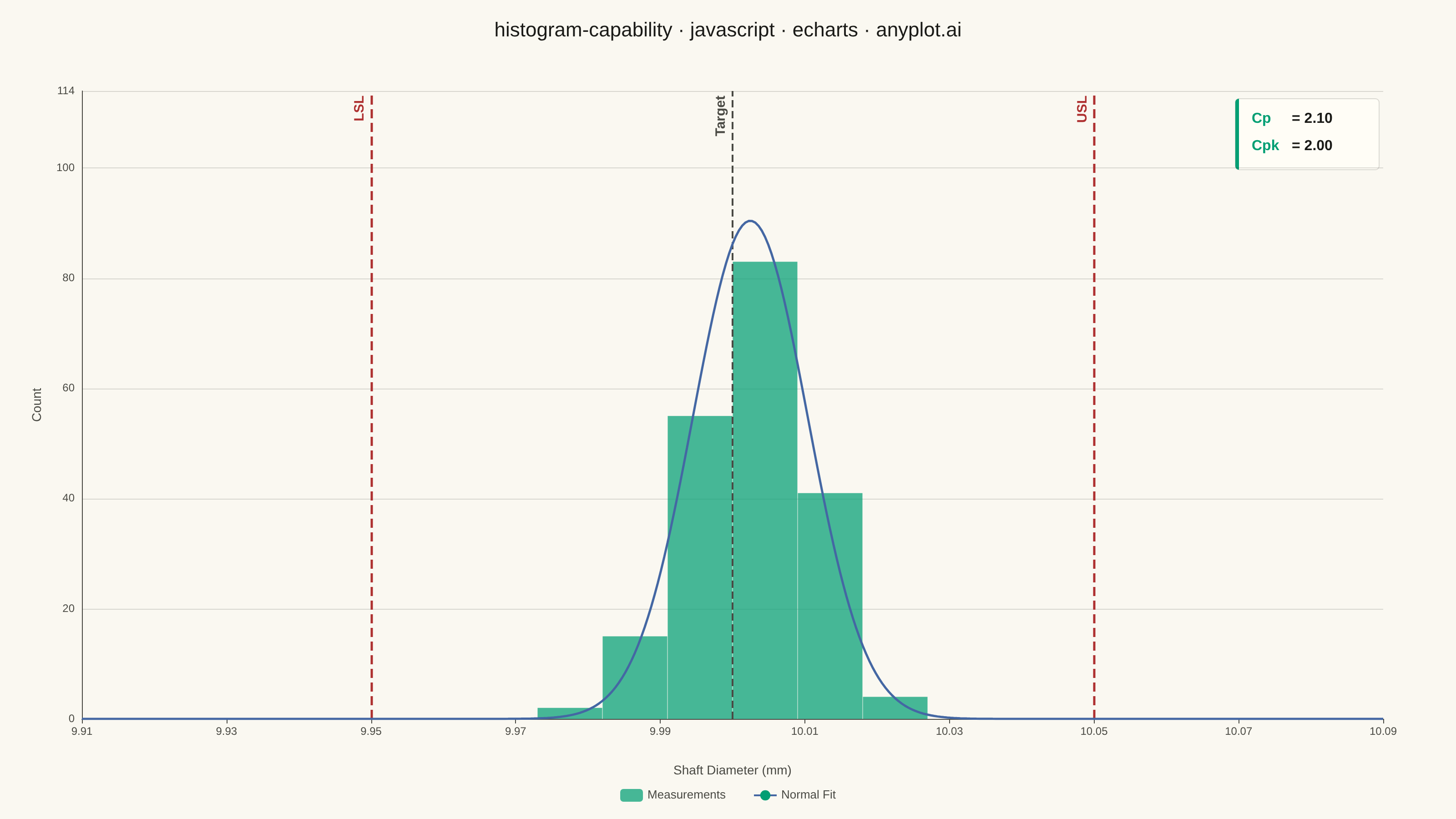

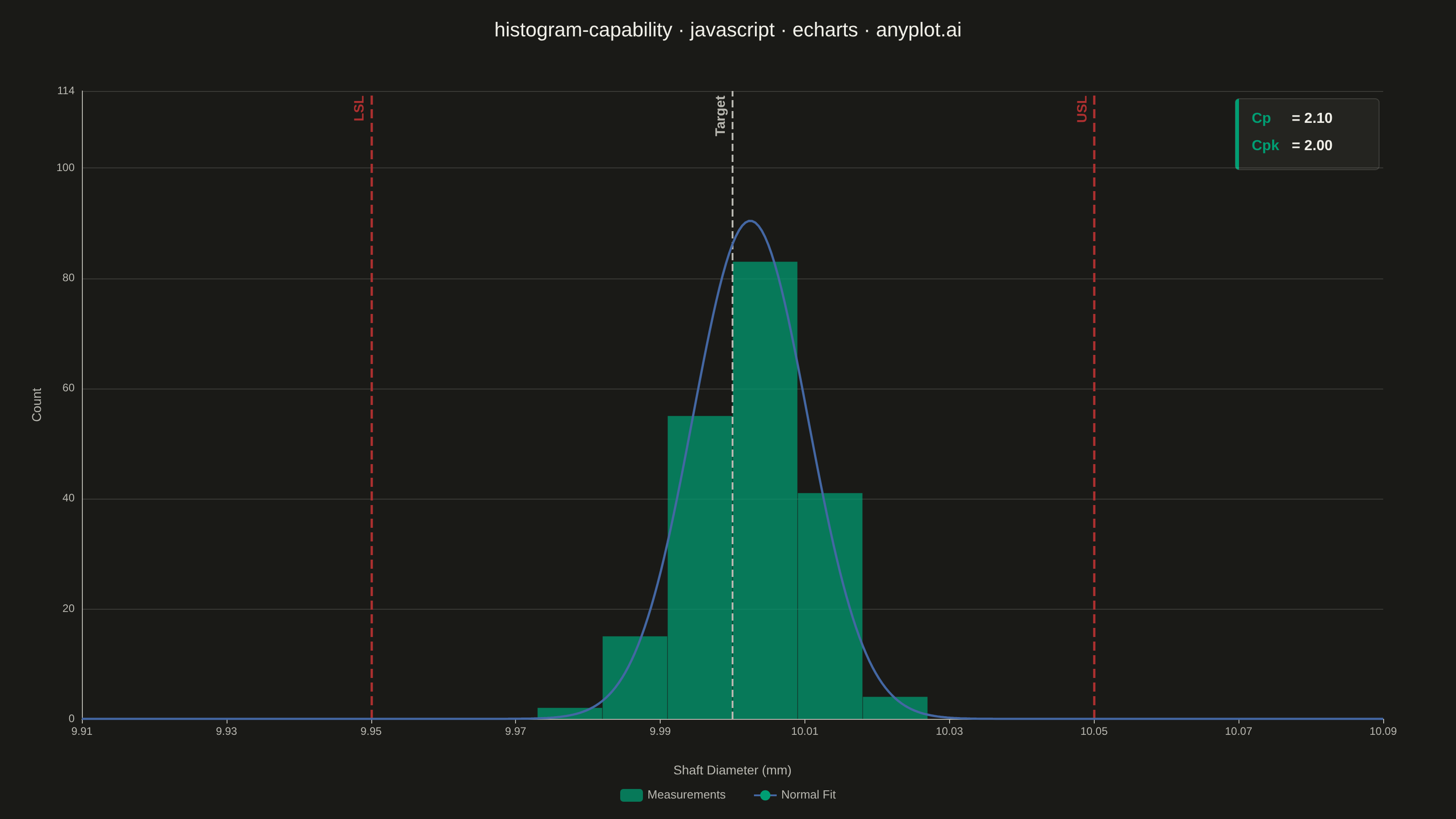

A process capability plot displays a histogram of measured process data overlaid with a fitted normal distribution curve and vertical lines for specification limits (LSL, USL) and target value. Capability indices (Cp, Cpk) are annotated on the plot to quantify how well the process meets specifications. This is a standard tool in quality engineering and Six Sigma for assessing whether a manufacturing or production process is capable of consistently producing output within tolerance.
// anyplot.ai
// histogram-capability: Process Capability Plot with Specification Limits
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 91/100 | Created: 2026-06-20
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// Deterministic LCG (seed 42) — no seeded RNG in browser
let _seed = 42;
function rand() {
_seed = (_seed * 1664525 + 1013904223) & 0xffffffff;
return (_seed >>> 0) / 0x100000000;
}
function randNorm(mu, s) {
const u1 = Math.max(rand(), 1e-12);
return mu + s * Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * rand());
}
// Process specification (shaft diameter, mm)
const LSL = 9.95;
const USL = 10.05;
const TARGET = 10.00;
const N = 200;
// Generate synthetic measurements: slightly off-center, capable process
const meas = Array.from({ length: N }, () => randNorm(10.002, 0.0085));
// Sample statistics
const mu = meas.reduce((a, b) => a + b, 0) / N;
const sigma = Math.sqrt(meas.reduce((a, v) => a + (v - mu) ** 2, 0) / (N - 1));
const cp = (USL - LSL) / (6 * sigma);
const cpk = Math.min((USL - mu) / (3 * sigma), (mu - LSL) / (3 * sigma));
// Histogram: 20 bins over [9.91, 10.09]
const X_LO = 9.91, X_HI = 10.09, N_BINS = 20;
const BW = (X_HI - X_LO) / N_BINS;
const counts = new Array(N_BINS).fill(0);
meas.forEach(v => {
const i = Math.floor((v - X_LO) / BW);
if (i >= 0 && i < N_BINS) counts[i]++;
});
const barData = counts.map((c, i) => [X_LO + (i + 0.5) * BW, c]);
// Fitted normal PDF curve, scaled to match count axis
const curve = [];
for (let i = 0; i <= 400; i++) {
const x = X_LO + (i / 400) * (X_HI - X_LO);
const pdf = Math.exp(-0.5 * ((x - mu) / sigma) ** 2) / (sigma * Math.sqrt(2 * Math.PI));
curve.push([x, pdf * N * BW]);
}
const yMax = Math.ceil(Math.max(...counts, ...curve.map(d => d[1])) * 1.25);
// Bar width: grid_px / N_BINS (grid: left=90, right=80, mount=1600 → 1430px / 20 bins ≈ 71px)
const BAR_WIDTH = 71;
const chart = echarts.init(document.getElementById("container"));
const TITLE = "histogram-capability · javascript · echarts · anyplot.ai";
const titleSize = Math.max(11, Math.round(22 * Math.min(1, 67 / TITLE.length)));
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: TITLE,
left: "center",
top: 18,
textStyle: { color: t.ink, fontSize: titleSize, fontWeight: "normal" }
},
grid: { left: 90, right: 80, top: 100, bottom: 110 },
xAxis: {
type: "value",
min: X_LO,
max: X_HI,
interval: 0.02,
name: "Shaft Diameter (mm)",
nameLocation: "middle",
nameGap: 50,
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: {
color: t.inkSoft,
fontSize: 12,
formatter: v => v.toFixed(2)
},
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { show: false },
axisTick: { lineStyle: { color: t.inkSoft } }
},
yAxis: {
type: "value",
name: "Count",
nameLocation: "middle",
nameGap: 42,
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
max: yMax,
axisLabel: { color: t.inkSoft, fontSize: 12 },
axisLine: { show: true, lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
axisTick: { show: false }
},
legend: {
data: [
{ name: "Measurements", icon: "roundRect" },
{ name: "Normal Fit" }
],
bottom: 14,
left: "center",
orient: "horizontal",
itemGap: 30,
textStyle: { color: t.inkSoft, fontSize: 13 }
},
// Cp / Cpk annotation box (upper-right — data sparse beyond USL)
graphic: [{
type: "group",
right: 84,
top: 108,
children: [
{
type: "rect",
shape: { width: 158, height: 78, r: 4 },
style: { fill: t.elevatedBg, stroke: t.grid, lineWidth: 1 }
},
// Brand green left-border accent
{
type: "rect",
shape: { x: 0, y: 0, width: 4, height: 78, r: [4, 0, 0, 4] },
style: { fill: t.palette[0], lineWidth: 0 }
},
// "Cp" label in brand green
{
type: "text",
top: 14,
left: 18,
style: {
text: "Cp",
font: "bold 16px 'Helvetica Neue', Arial, sans-serif",
fill: t.palette[0]
}
},
// Cp numeric value in ink
{
type: "text",
top: 14,
left: 62,
style: {
text: "= " + cp.toFixed(2),
font: "bold 16px 'Helvetica Neue', Arial, sans-serif",
fill: t.ink
}
},
// "Cpk" label in brand green
{
type: "text",
top: 44,
left: 18,
style: {
text: "Cpk",
font: "bold 16px 'Helvetica Neue', Arial, sans-serif",
fill: t.palette[0]
}
},
// Cpk numeric value in ink
{
type: "text",
top: 44,
left: 62,
style: {
text: "= " + cpk.toFixed(2),
font: "bold 16px 'Helvetica Neue', Arial, sans-serif",
fill: t.ink
}
}
]
}],
series: [
{
name: "Measurements",
type: "bar",
data: barData,
barWidth: BAR_WIDTH,
itemStyle: { color: t.palette[0], opacity: 0.72 },
markLine: {
symbol: ["none", "none"],
silent: true,
label: {
show: true,
fontSize: 15,
fontWeight: "bold",
formatter: params => params.name
},
data: [
{
name: "LSL",
xAxis: LSL,
lineStyle: { color: t.palette[4], type: "dashed", width: 2.5 },
label: { color: t.palette[4], position: "insideEndTop" }
},
{
name: "USL",
xAxis: USL,
lineStyle: { color: t.palette[4], type: "dashed", width: 2.5 },
label: { color: t.palette[4], position: "insideEndTop" }
},
{
name: "Target",
xAxis: TARGET,
lineStyle: { color: t.inkSoft, type: "dashed", width: 2 },
label: { color: t.inkSoft, position: "insideEndTop" }
}
]
}
},
{
name: "Normal Fit",
type: "line",
data: curve,
symbol: "none",
lineStyle: { color: t.palette[2], width: 2.5 },
z: 10
}
]
});
Part of Process Capability Plot with Specification Limits on anyplot.ai.
