Stacked Histogram — Apache ECharts

A histogram showing multiple groups stacked on top of each other within each bin. The total bar height represents the combined frequency, while colored segments show individual group contributions.

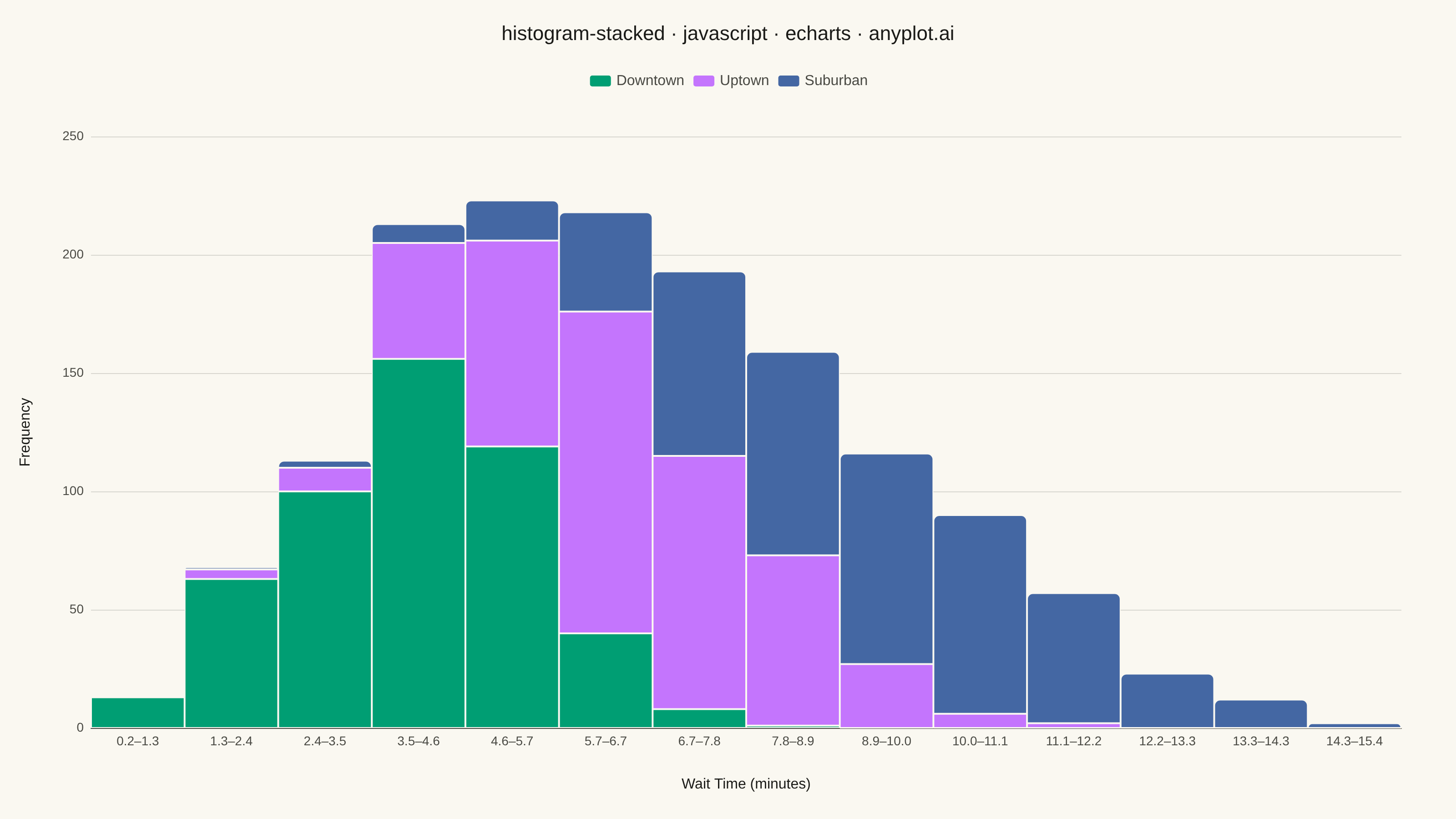

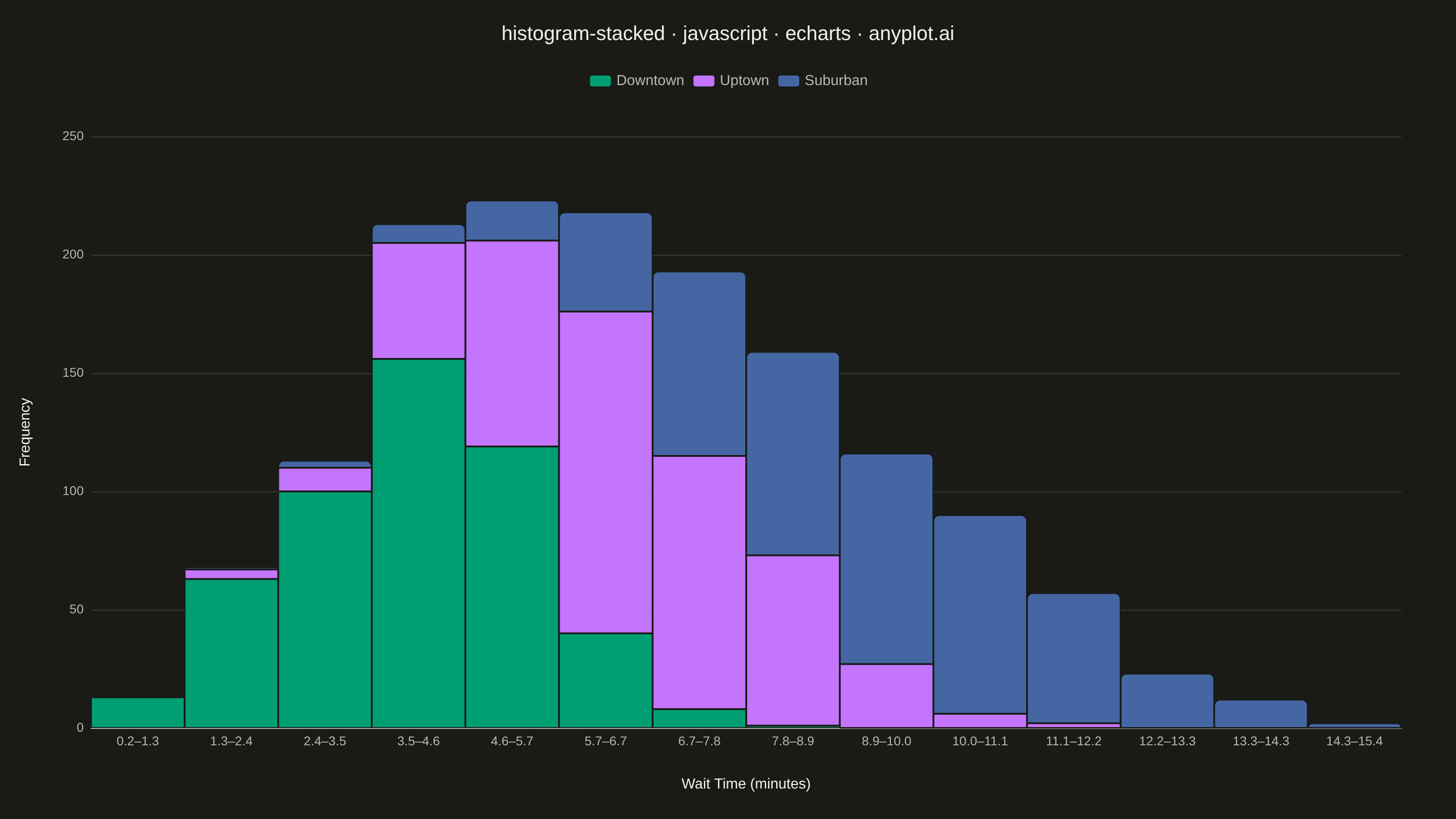

Stacked Histogram rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// histogram-stacked: Stacked Histogram
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic LCG — no Math.random) -------------------
function makeLcg(seed) {
  let state = seed >>> 0;
  return function rng() {
    state = (Math.imul(state, 1664525) + 1013904223) >>> 0;
    return state / 4294967296;
  };
}

function randomNormal(rng) {
  const u1 = Math.max(rng(), 1e-9);
  const u2 = rng();
  return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}

function sampleWaitTimes(rng, mean, stdDev, count) {
  const samples = [];
  for (let i = 0; i < count; i++) {
    samples.push(Math.max(0.2, mean + stdDev * randomNormal(rng)));
  }
  return samples;
}

const rng = makeLcg(42);
const waitTimesDowntown = sampleWaitTimes(rng, 4.0, 1.4, 500);
const waitTimesUptown = sampleWaitTimes(rng, 6.5, 1.8, 500);
const waitTimesSuburban = sampleWaitTimes(rng, 9.0, 2.2, 500);

const allWaitTimes = [...waitTimesDowntown, ...waitTimesUptown, ...waitTimesSuburban];
const rangeMin = Math.min(...allWaitTimes);
const rangeMax = Math.max(...allWaitTimes);
const binCount = 14;
const binWidth = (rangeMax - rangeMin) / binCount;
const binLabels = Array.from({ length: binCount }, (_, i) => {
  const lo = rangeMin + i * binWidth;
  const hi = rangeMin + (i + 1) * binWidth;
  return `${lo.toFixed(1)}–${hi.toFixed(1)}`;
});

function binFrequencies(values) {
  const counts = new Array(binCount).fill(0);
  for (const value of values) {
    let idx = Math.floor((value - rangeMin) / binWidth);
    if (idx >= binCount) idx = binCount - 1;
    if (idx < 0) idx = 0;
    counts[idx]++;
  }
  return counts;
}

const frequenciesDowntown = binFrequencies(waitTimesDowntown);
const frequenciesUptown = binFrequencies(waitTimesUptown);
const frequenciesSuburban = binFrequencies(waitTimesSuburban);

// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option ---------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "histogram-stacked · javascript · echarts · anyplot.ai",
    left: "center",
    top: 22,
    textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
  },
  legend: {
    data: ["Downtown", "Uptown", "Suburban"],
    top: 76,
    textStyle: { color: t.inkSoft, fontSize: 16 },
  },
  tooltip: {
    trigger: "axis",
    axisPointer: { type: "shadow" },
    backgroundColor: t.elevatedBg,
    borderColor: t.grid,
    textStyle: { color: t.ink },
    formatter: (params) => {
      const total = params.reduce((sum, p) => sum + p.value, 0);
      const lines = params.map((p) => `${p.marker} ${p.seriesName}: ${p.value}`);
      return `${params[0].axisValue}<br/>${lines.join("<br/>")}<br/><strong>Total: ${total}</strong>`;
    },
  },
  grid: { left: 100, right: 60, top: 150, bottom: 100 },
  xAxis: {
    type: "category",
    data: binLabels,
    name: "Wait Time (minutes)",
    nameLocation: "middle",
    nameGap: 54,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    name: "Frequency",
    nameLocation: "middle",
    nameGap: 64,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { show: false },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [
    {
      name: "Downtown",
      type: "bar",
      stack: "total",
      data: frequenciesDowntown,
      itemStyle: { color: t.palette[0], borderColor: t.pageBg, borderWidth: 1 },
      emphasis: { focus: "series" },
      barCategoryGap: "0%",
    },
    {
      name: "Uptown",
      type: "bar",
      stack: "total",
      data: frequenciesUptown,
      itemStyle: { color: t.palette[1], borderColor: t.pageBg, borderWidth: 1 },
      emphasis: { focus: "series" },
    },
    {
      name: "Suburban",
      type: "bar",
      stack: "total",
      data: frequenciesSuburban,
      itemStyle: {
        color: t.palette[2],
        borderColor: t.pageBg,
        borderWidth: 1,
        borderRadius: [6, 6, 0, 0],
      },
      emphasis: { focus: "series" },
    },
  ],
});

Retrieve this implementation
