Stacked Histogram — ggplot2

A histogram showing multiple groups stacked on top of each other within each bin. The total bar height represents the combined frequency, while colored segments show individual group contributions.

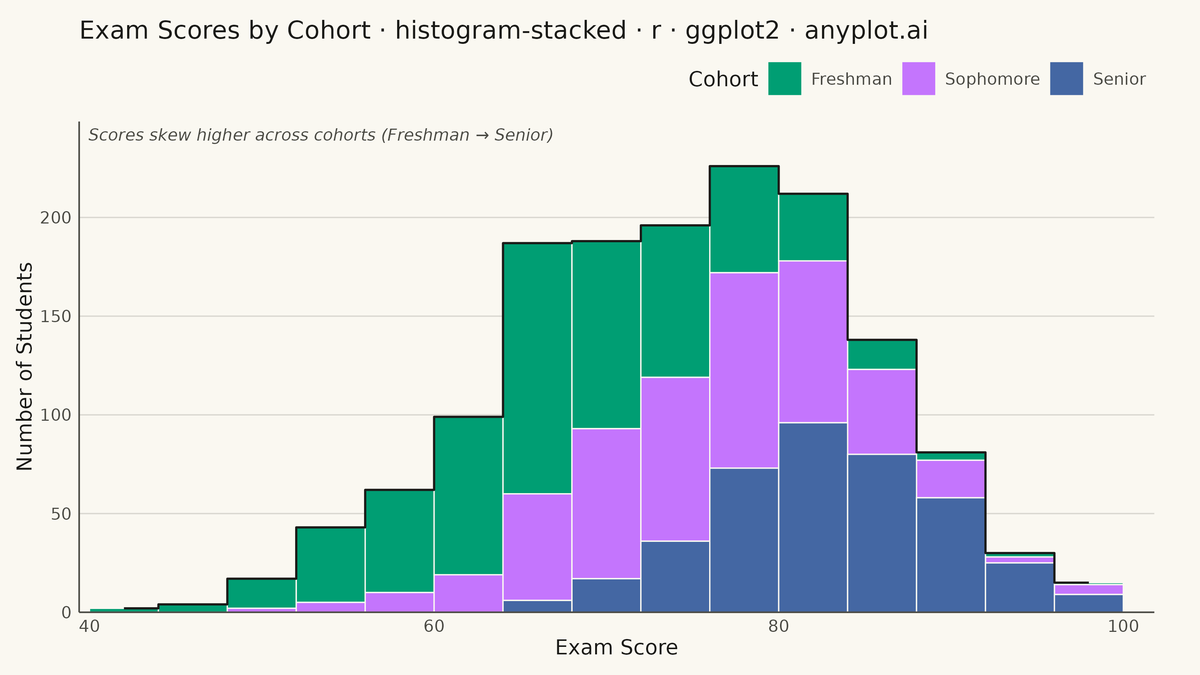

Stacked Histogram rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' histogram-stacked: Stacked Histogram
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 88/100 | Created: 2026-09-05

library(ggplot2)
library(dplyr)
library(ragg)

set.seed(42)

# --- Theme tokens -----------------------------------------------------------
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
# ggplot2 exposes no per-element grid alpha, so blend INK to 15% opacity instead
GRID_COLOR  <- scales::alpha(INK, 0.15)
IMPRINT_PALETTE <- c("#009E73", "#C475FD", "#4467A3", "#BD8233",
                     "#AE3030", "#2ABCCD", "#954477", "#99B314")

# --- Data --------------------------------------------------------------------
# Exam scores for three cohorts sitting the same test, stacked into shared bins
df <- bind_rows(
  tibble::tibble(score = rnorm(600, mean = 68, sd = 9),  cohort = "Freshman"),
  tibble::tibble(score = rnorm(500, mean = 76, sd = 8),  cohort = "Sophomore"),
  tibble::tibble(score = rnorm(400, mean = 83, sd = 7),  cohort = "Senior")
) %>%
  mutate(score = pmin(pmax(score, 0), 100),
         cohort = factor(cohort, levels = c("Freshman", "Sophomore", "Senior")))

cohort_levels <- levels(df$cohort)
shift_note <- sprintf(
  "Scores skew higher across cohorts (%s → %s)",
  cohort_levels[1], cohort_levels[length(cohort_levels)]
)

# --- Plot ---------------------------------------------------------------------
p <- ggplot(df, aes(x = score, fill = cohort)) +
  geom_histogram(binwidth = 4, boundary = 0, color = PAGE_BG, linewidth = 0.3) +
  # Distinctive touch: trace the combined total (stat recomputed across all
  # cohorts, ignoring the fill grouping) so the "total = combined frequency"
  # requirement is visible as a shape, not just implied by the stacking.
  stat_bin(
    data        = df,
    mapping     = aes(x = score, y = after_stat(count)),
    inherit.aes = FALSE,
    binwidth    = 4,
    boundary    = 0,
    geom        = "step",
    direction   = "mid",
    color       = INK,
    linewidth   = 0.5
  ) +
  annotate(
    "text",
    x        = -Inf,
    y        = Inf,
    label    = shift_note,
    hjust    = -0.02,
    vjust     = 1.6,
    size     = 2.8,
    fontface = "italic",
    color    = INK_SOFT
  ) +
  scale_fill_manual(values = IMPRINT_PALETTE[1:3]) +
  scale_x_continuous(expand = expansion(mult = c(0.01, 0.03))) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.1))) +
  labs(
    title = "Exam Scores by Cohort · histogram-stacked · r · ggplot2 · anyplot.ai",
    x = "Exam Score",
    y = "Number of Students",
    fill = "Cohort"
  ) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background     = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background    = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major.x  = element_blank(),
    panel.grid.minor    = element_blank(),
    panel.grid.major.y  = element_line(color = GRID_COLOR, linewidth = 0.3),
    axis.line           = element_line(color = INK_SOFT),
    axis.ticks          = element_blank(),
    axis.title          = element_text(color = INK, size = 10),
    axis.text           = element_text(color = INK_SOFT, size = 8),
    plot.title          = element_text(color = INK, size = 12, face = "plain"),
    legend.position      = "top",
    legend.justification = "right",
    legend.background   = element_rect(fill = PAGE_BG, color = NA),
    legend.key           = element_rect(fill = PAGE_BG, color = NA),
    legend.text          = element_text(color = INK_SOFT, size = 8),
    legend.title         = element_text(color = INK, size = 10),
    plot.margin          = margin(t = 10, r = 22, b = 8, l = 8)
  )

# --- Save ---------------------------------------------------------------------
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 8,
  height   = 4.5,
  units    = "in",
  dpi      = 400
)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/histogram-stacked/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "histogram-stacked",
  "language": "r",
  "library": "ggplot2",
  "page": "https://anyplot.ai/histogram-stacked/r/ggplot2",
  "hub": "https://anyplot.ai/histogram-stacked",
  "code_json": "https://api.anyplot.ai/specs/histogram-stacked/ggplot2/code",
  "spec_json": "https://api.anyplot.ai/specs/histogram-stacked",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-stacked/r/ggplot2/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-stacked/r/ggplot2/plot-dark.png",
  "quality_score": 88.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Stacked Histogram on anyplot.ai.
