Stacked Histogram — plotnine

A histogram showing multiple groups stacked on top of each other within each bin. The total bar height represents the combined frequency, while colored segments show individual group contributions.

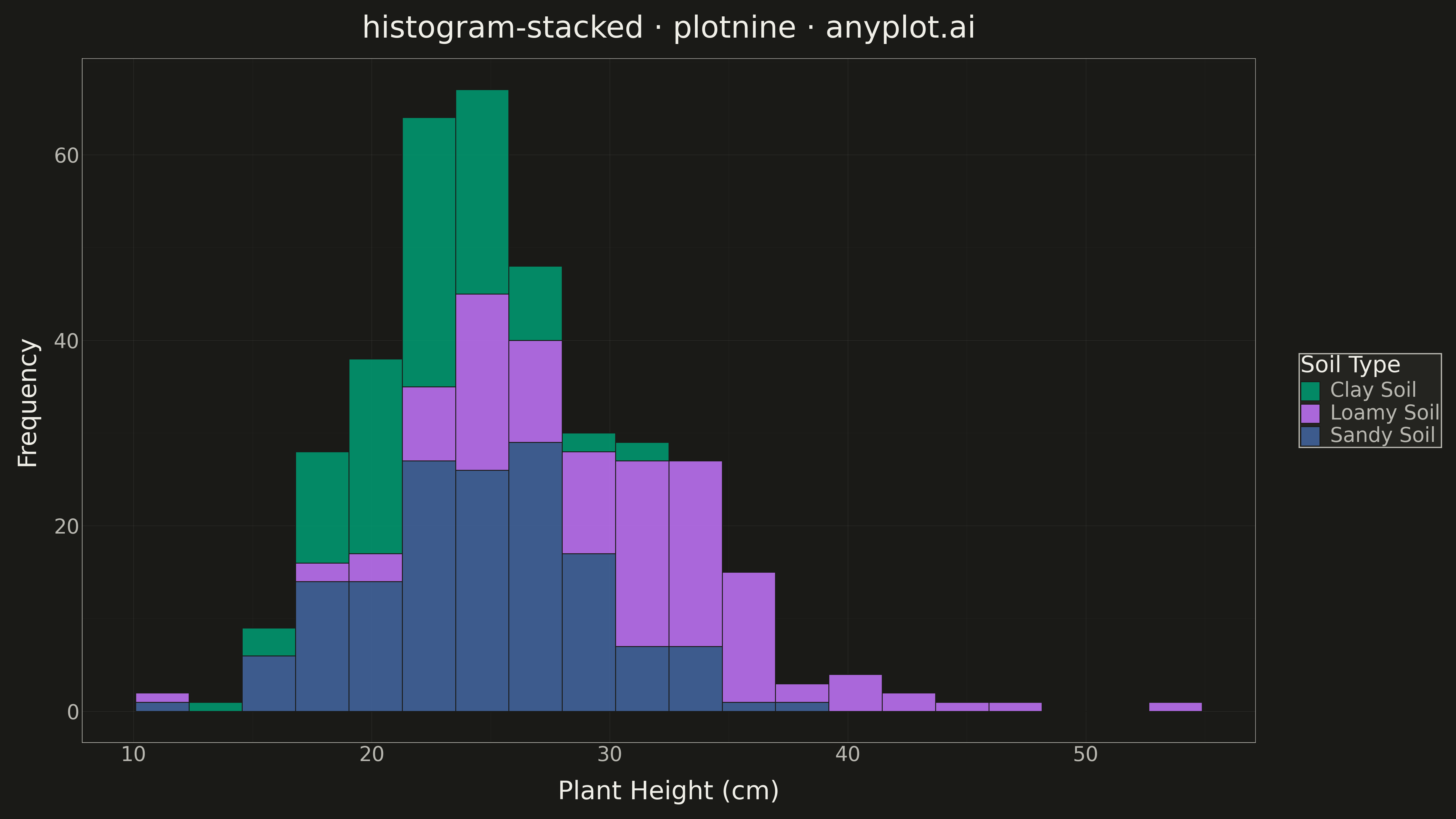

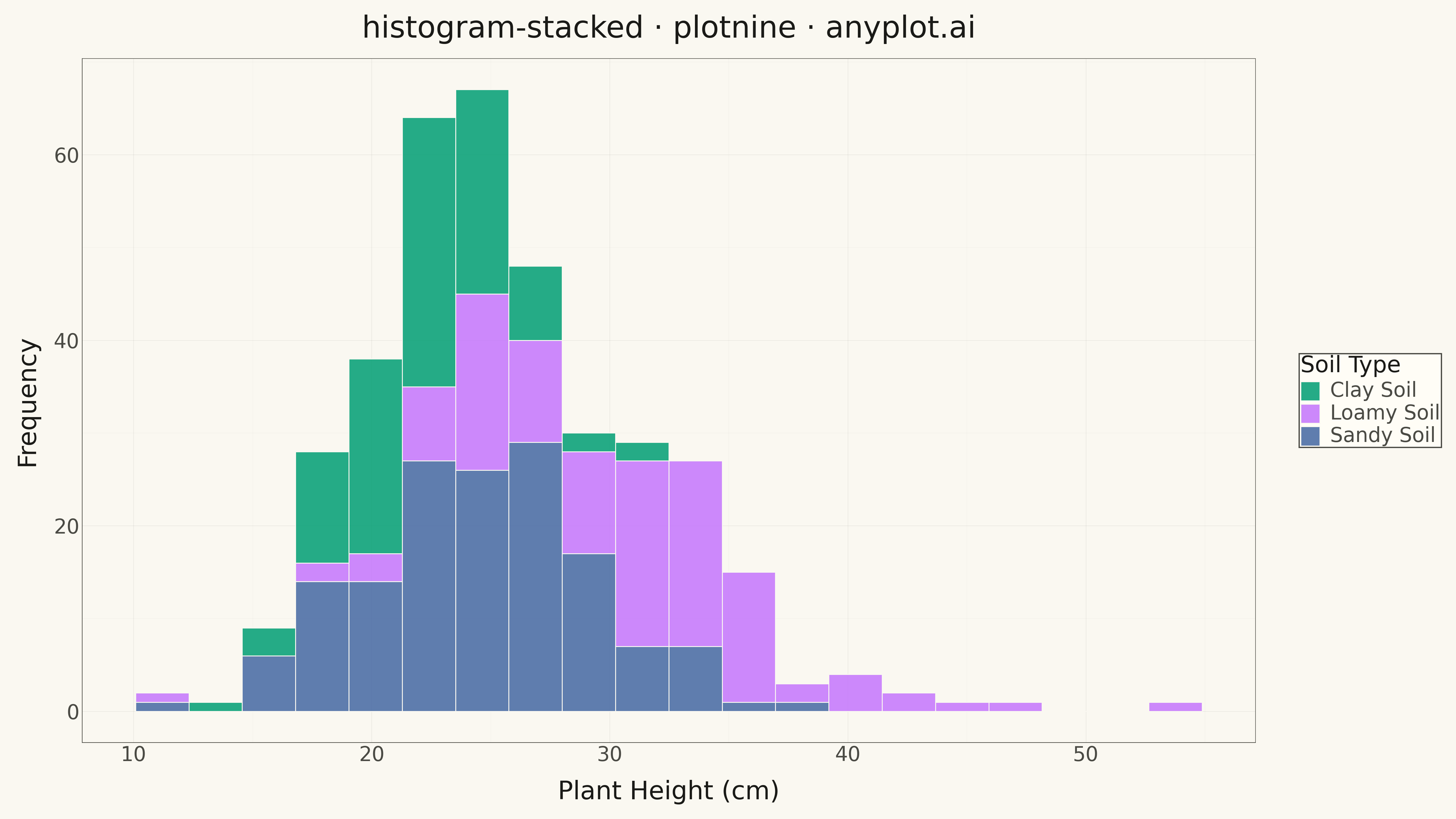

Stacked Histogram rendered with plotnine

Python source (plotnine)

""" anyplot.ai
histogram-stacked: Stacked Histogram
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-12
"""

import os
import pathlib

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_line,
    element_rect,
    element_text,
    geom_histogram,
    ggplot,
    labs,
    scale_fill_manual,
    theme,
    theme_minimal,
)


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Data - Plant growth measurements across different soil types
np.random.seed(42)

soil_a = np.random.normal(loc=25, scale=5, size=150)
soil_b = np.random.normal(loc=30, scale=6, size=120)
soil_c = np.random.normal(loc=22, scale=4, size=100)

df = pd.DataFrame(
    {
        "height": np.concatenate([soil_a, soil_b, soil_c]),
        "soil_type": (["Sandy Soil"] * 150 + ["Loamy Soil"] * 120 + ["Clay Soil"] * 100),
    }
)

# Plot
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10),
    panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.05),
    panel_border=element_rect(color=INK_SOFT, fill=None, size=0.4),
    axis_title=element_text(color=INK, size=20),
    axis_text=element_text(color=INK_SOFT, size=16),
    axis_line=element_line(color=INK_SOFT, size=0.5),
    plot_title=element_text(color=INK, size=24, weight="medium"),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(color=INK_SOFT, size=16),
    legend_title=element_text(color=INK, size=18),
    legend_position="right",
    figure_size=(16, 9),
)

plot = (
    ggplot(df, aes(x="height", fill="soil_type"))
    + geom_histogram(bins=20, position="stack", alpha=0.85, color=PAGE_BG, size=0.4)
    + labs(x="Plant Height (cm)", y="Frequency", title="histogram-stacked · plotnine · anyplot.ai", fill="Soil Type")
    + scale_fill_manual(values=IMPRINT)
    + theme_minimal()
    + anyplot_theme
)

# Save
plot_dir = pathlib.Path(__file__).parent
plot_dir.mkdir(parents=True, exist_ok=True)
plot.save(str(plot_dir / f"plot-{THEME}.png"), dpi=300)

Part of Stacked Histogram on anyplot.ai.
