Stacked Histogram — Makie.jl

A histogram showing multiple groups stacked on top of each other within each bin. The total bar height represents the combined frequency, while colored segments show individual group contributions.

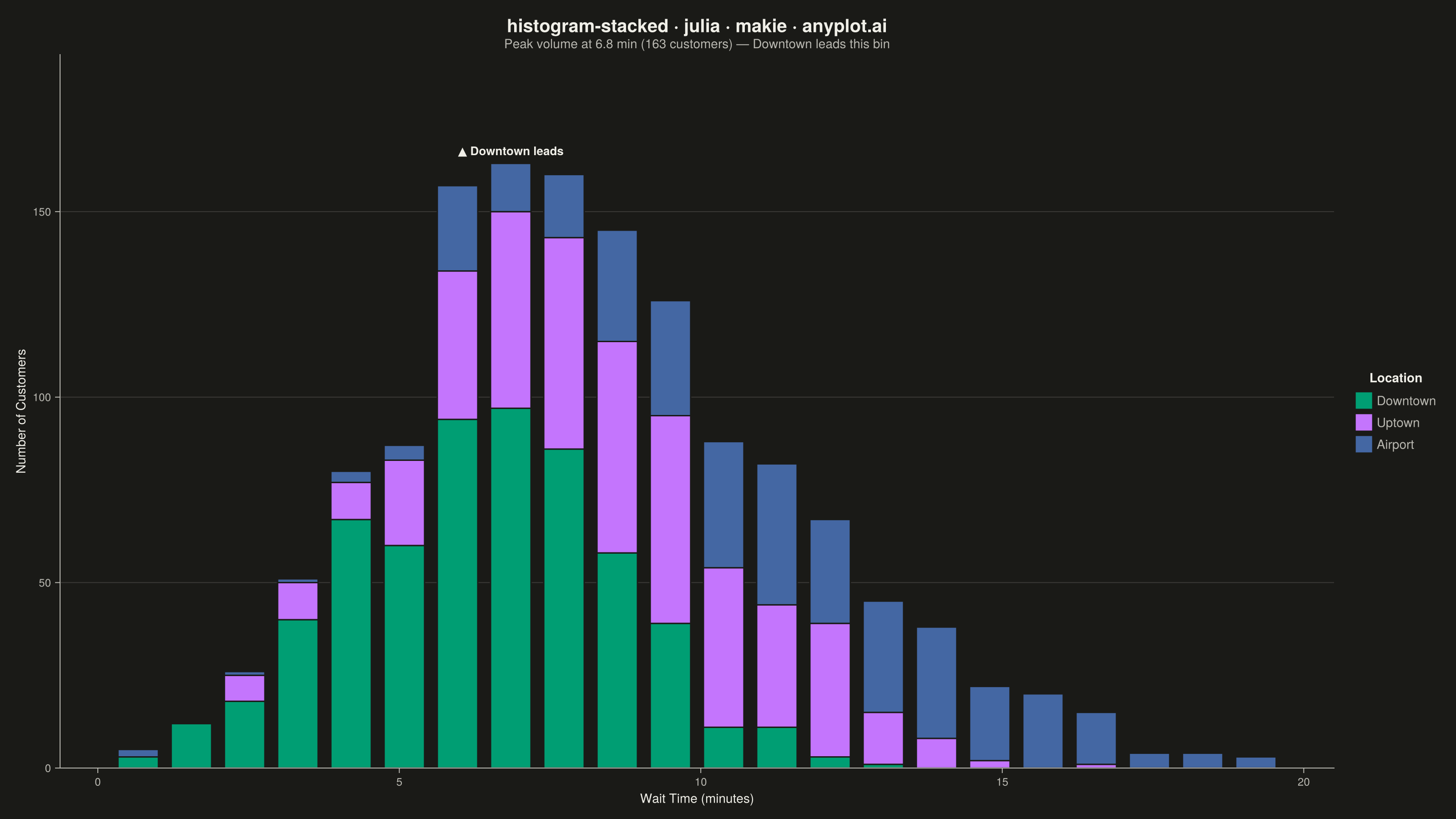

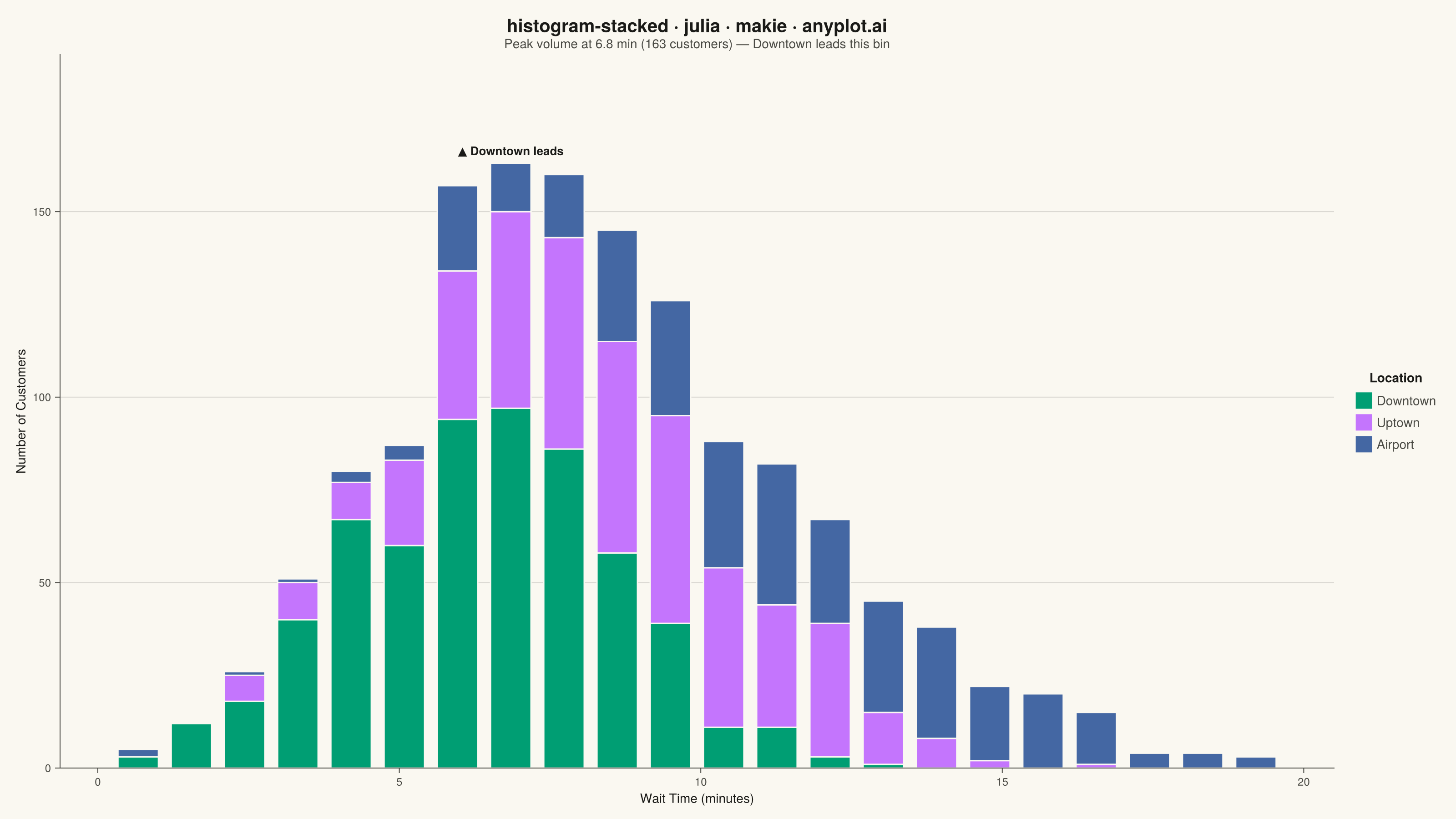

Stacked Histogram rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# histogram-stacked: Stacked Histogram
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 85/100 | Created: 2026-09-05

using CairoMakie
using Colors
using Random

Random.seed!(42)

# --- Theme tokens -------------------------------------------------------------
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const IMPRINT_PALETTE = [
    colorant"#009E73", colorant"#C475FD", colorant"#4467A3", colorant"#BD8233",
    colorant"#AE3030", colorant"#2ABCCD", colorant"#954477", colorant"#99B314",
]

# --- Data -----------------------------------------------------------------------
locations = ["Downtown", "Uptown", "Airport"]
wait_downtown = max.(randn(600) .* 2.2 .+ 6.5, 0.2)
wait_uptown   = max.(randn(450) .* 2.6 .+ 8.5, 0.2)
wait_airport  = max.(randn(350) .* 3.4 .+ 11.0, 0.2)
wait_times = vcat(wait_downtown, wait_uptown, wait_airport)
group_labels = vcat(
    fill(locations[1], length(wait_downtown)),
    fill(locations[2], length(wait_uptown)),
    fill(locations[3], length(wait_airport)),
)

n_bins = 22
bin_edges = range(minimum(wait_times), maximum(wait_times); length = n_bins + 1)
bin_width = step(bin_edges)
bin_centers = (bin_edges[1:end-1] .+ bin_edges[2:end]) ./ 2

counts = zeros(Int, n_bins, length(locations))
for (val, grp) in zip(wait_times, group_labels)
    bin_idx = clamp(searchsortedlast(bin_edges, val), 1, n_bins)
    grp_idx = findfirst(==(grp), locations)
    counts[bin_idx, grp_idx] += 1
end

x_flat = repeat(bin_centers; outer = length(locations))
height_flat = vec(counts)
stack_flat = repeat(1:length(locations); inner = n_bins)
color_flat = IMPRINT_PALETTE[stack_flat]

# Focal-point insight: which bin sees the most total traffic, and which
# location dominates it — turns the raw stack into a story instead of
# just displaying the composition.
totals = vec(sum(counts, dims = 2))
peak_idx = argmax(totals)
peak_x = bin_centers[peak_idx]
peak_total = totals[peak_idx]
peak_group = locations[argmax(counts[peak_idx, :])]

# --- Plot -----------------------------------------------------------------------
fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title             = "histogram-stacked · julia · makie · anyplot.ai",
    titlesize         = 20,
    titlecolor        = INK,
    subtitle          = "Peak volume at $(round(peak_x, digits = 1)) min ($(peak_total) customers) — $(peak_group) leads this bin",
    subtitlesize      = 14,
    subtitlecolor     = INK_SOFT,
    xlabel            = "Wait Time (minutes)",
    ylabel            = "Number of Customers",
    xlabelsize        = 14,
    ylabelsize        = 14,
    xlabelcolor       = INK,
    ylabelcolor       = INK,
    xticklabelsize    = 12,
    yticklabelsize    = 12,
    xticklabelcolor   = INK_SOFT,
    yticklabelcolor   = INK_SOFT,
    backgroundcolor   = PAGE_BG,
    topspinevisible   = false,
    rightspinevisible = false,
    leftspinecolor    = INK_SOFT,
    bottomspinecolor  = INK_SOFT,
    xtickcolor        = INK_SOFT,
    ytickcolor        = INK_SOFT,
    xgridvisible      = false,
    ygridcolor        = RGBAf(INK.r, INK.g, INK.b, 0.15),
)

barplot!(ax, x_flat, height_flat;
         stack = stack_flat, color = color_flat,
         width = bin_width * 0.95, strokewidth = 1.5, strokecolor = PAGE_BG)

# Callout on the busiest bin — a layered `text!` annotation gives the eye a
# focal point instead of leaving the composition shift to be inferred.
text!(ax, peak_x, peak_total;
      text = "▲ $(peak_group) leads",
      color = INK, fontsize = 13, font = :bold,
      align = (:center, :bottom), offset = (0, 6))
ylims!(ax, 0, maximum(totals) * 1.18)

legend_elements = [PolyElement(color = c) for c in IMPRINT_PALETTE[1:length(locations)]]
Legend(fig[1, 2], legend_elements, locations, "Location";
       labelcolor = INK_SOFT, titlecolor = INK,
       backgroundcolor = PAGE_BG, framevisible = false,
       patchsize = (18, 18), rowgap = 6)

# --- Save -----------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/histogram-stacked/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "histogram-stacked",
  "language": "julia",
  "library": "makie",
  "page": "https://anyplot.ai/histogram-stacked/julia/makie",
  "hub": "https://anyplot.ai/histogram-stacked",
  "code_json": "https://api.anyplot.ai/specs/histogram-stacked/makie/code",
  "spec_json": "https://api.anyplot.ai/specs/histogram-stacked",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-stacked/julia/makie/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-stacked/julia/makie/plot-dark.png",
  "quality_score": 85.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Stacked Histogram on anyplot.ai.
