Individual Conditional Expectation (ICE) Plot — Apache ECharts

An Individual Conditional Expectation (ICE) plot visualizes how the predicted outcome of a machine learning model changes for each individual observation as a single feature varies across its range. Unlike partial dependence plots (PDP) that show the average marginal effect, ICE plots display one line per observation, revealing heterogeneous effects, feature interactions, and subgroup-specific behaviors that would be hidden by averaging. This makes ICE plots essential for detecting when a feature's effect varies across the population.

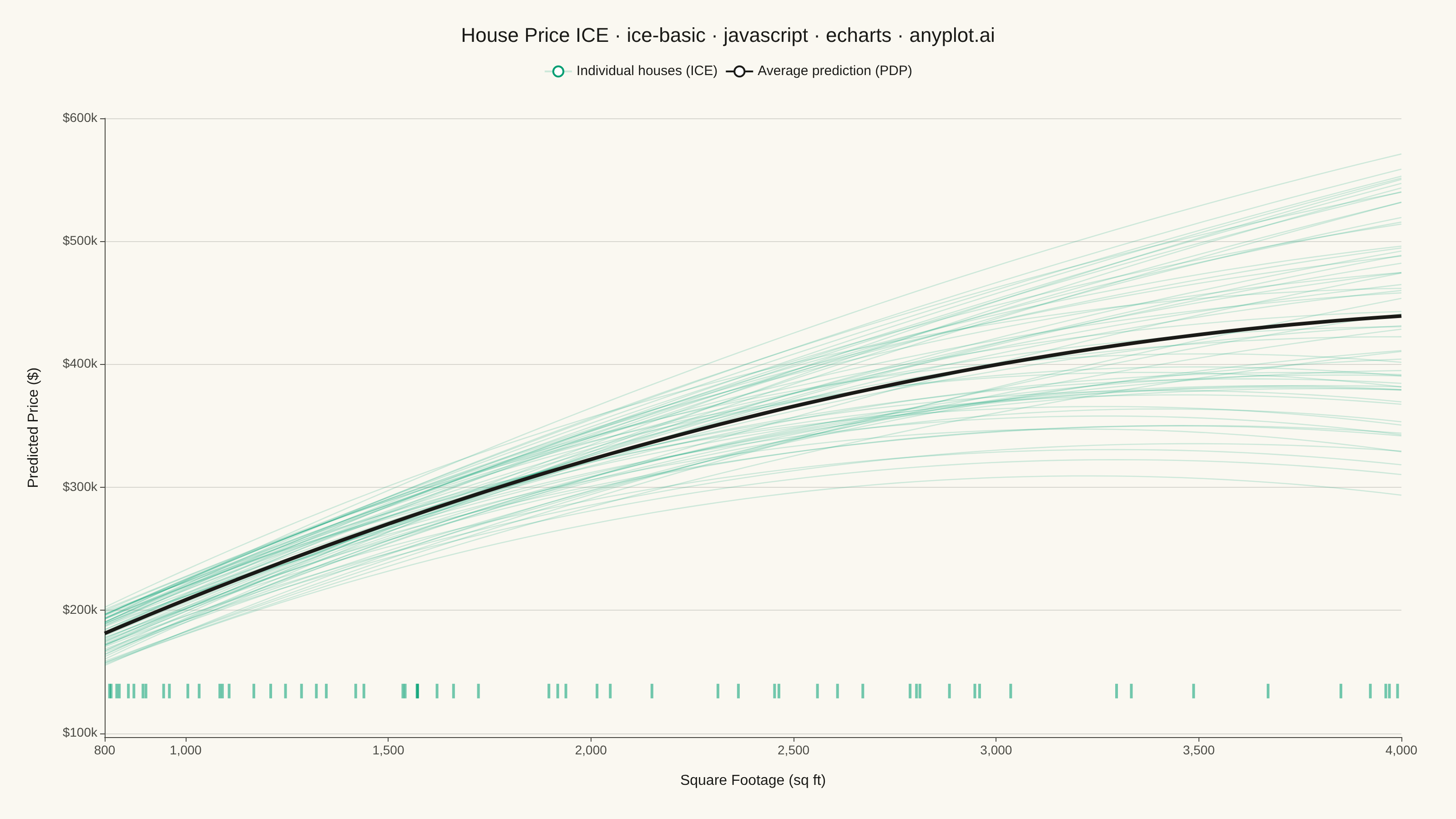

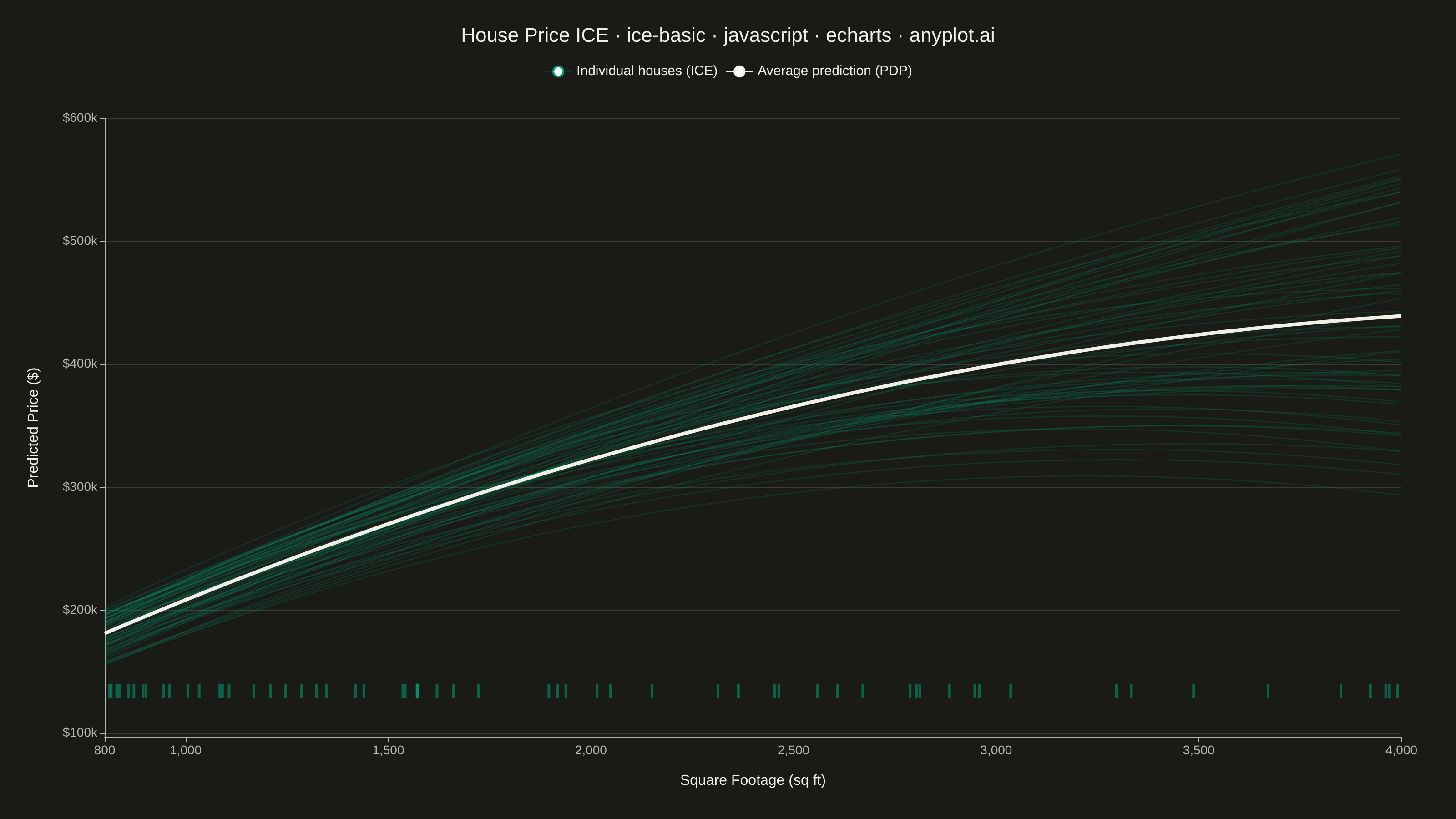

Individual Conditional Expectation (ICE) Plot rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// ice-basic: Individual Conditional Expectation (ICE) Plot
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-08-17

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic LCG) ------------------------------------
let seed = 42;
function lcg() {
  seed = (seed * 1103515245 + 12345) % 2147483648;
  return seed / 2147483648;
}

const N_OBS = 60;
const N_GRID = 60;
const SQFT_MIN = 800;
const SQFT_MAX = 4000;

const grid = [];
for (let j = 0; j < N_GRID; j++) {
  grid.push(SQFT_MIN + (j / (N_GRID - 1)) * (SQFT_MAX - SQFT_MIN));
}

// Simulated GradientBoostingRegressor predictions: each house gets its own
// baseline value, price-per-sqft slope, and saturation curvature, producing
// heterogeneous, non-linear individual curves around a shared trend — some
// houses keep appreciating with size, others hit a price ceiling.
const curves = [];
const actualSqft = [];
for (let i = 0; i < N_OBS; i++) {
  const base = 180000 + (lcg() - 0.5) * 50000;
  const slope = 120 + lcg() * 40;
  const curvature = 0.3 + lcg() * 1.0;
  actualSqft.push(SQFT_MIN + lcg() * (SQFT_MAX - SQFT_MIN));

  const curve = grid.map((sqft) => {
    const delta = sqft - SQFT_MIN;
    return base + slope * delta * (1 - (curvature * delta) / 6000);
  });
  curves.push(curve);
}

const pdp = grid.map((_, j) => {
  let sum = 0;
  for (let i = 0; i < N_OBS; i++) sum += curves[i][j];
  return sum / N_OBS;
});

let yMin = Infinity;
let yMax = -Infinity;
for (const curve of curves) {
  for (const v of curve) {
    if (v < yMin) yMin = v;
    if (v > yMax) yMax = v;
  }
}
const yRange = yMax - yMin;
const rugY = yMin - yRange * 0.05;
const yAxisMin = yMin - yRange * 0.14;

// --- Series -------------------------------------------------------------------
const iceSeries = curves.map((curve) => ({
  name: "Individual houses (ICE)",
  type: "line",
  data: grid.map((x, j) => [x, curve[j]]),
  showSymbol: false,
  silent: true,
  lineStyle: { color: t.palette[0], width: 1.3, opacity: 0.18 },
  itemStyle: { color: t.palette[0] },
  z: 1,
}));

const pdpSeries = {
  name: "Average prediction (PDP)",
  type: "line",
  data: grid.map((x, j) => [x, pdp[j]]),
  showSymbol: false,
  lineStyle: { color: t.ink, width: 4 },
  itemStyle: { color: t.ink },
  z: 3,
};

const rugSeries = {
  name: "Observed square footage",
  type: "scatter",
  data: actualSqft.map((x) => [x, rugY]),
  symbol: "rect",
  symbolSize: [3, 16],
  itemStyle: { color: t.muted, opacity: 0.55 },
  silent: true,
  z: 2,
};

// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option -----------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "House Price ICE · ice-basic · javascript · echarts · anyplot.ai",
    left: "center",
    top: 24,
    textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
  },
  legend: {
    data: ["Individual houses (ICE)", "Average prediction (PDP)"],
    top: 66,
    left: "center",
    textStyle: { color: t.ink, fontSize: 15 },
    itemWidth: 30,
    itemHeight: 14,
  },
  tooltip: {
    trigger: "item",
    formatter: (params) => {
      const [sqft, price] = params.data;
      return `${params.seriesName}<br/>${Math.round(sqft).toLocaleString()} sq ft → $${Math.round(price).toLocaleString()}`;
    },
  },
  grid: { left: 115, right: 60, top: 130, bottom: 90 },
  xAxis: {
    type: "value",
    min: SQFT_MIN,
    max: SQFT_MAX,
    name: "Square Footage (sq ft)",
    nameLocation: "middle",
    nameGap: 40,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    min: yAxisMin,
    name: "Predicted Price ($)",
    nameLocation: "middle",
    nameGap: 70,
    nameRotate: 90,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: {
      color: t.inkSoft,
      fontSize: 14,
      formatter: (value) => "$" + Math.round(value / 1000) + "k",
    },
    axisLine: { lineStyle: { color: t.inkSoft } },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [...iceSeries, pdpSeries, rugSeries],
});

Part of Individual Conditional Expectation (ICE) Plot on anyplot.ai.
