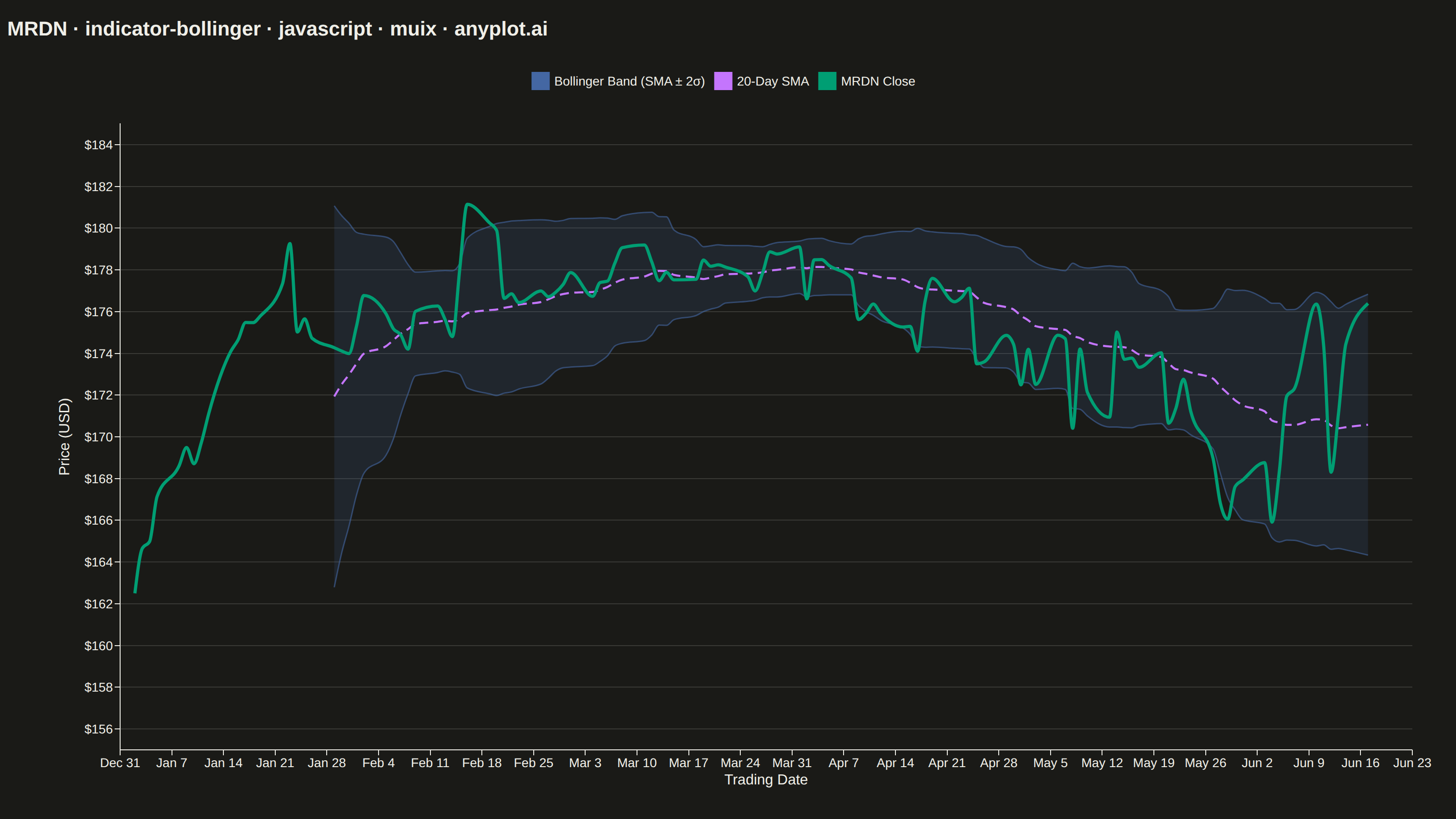

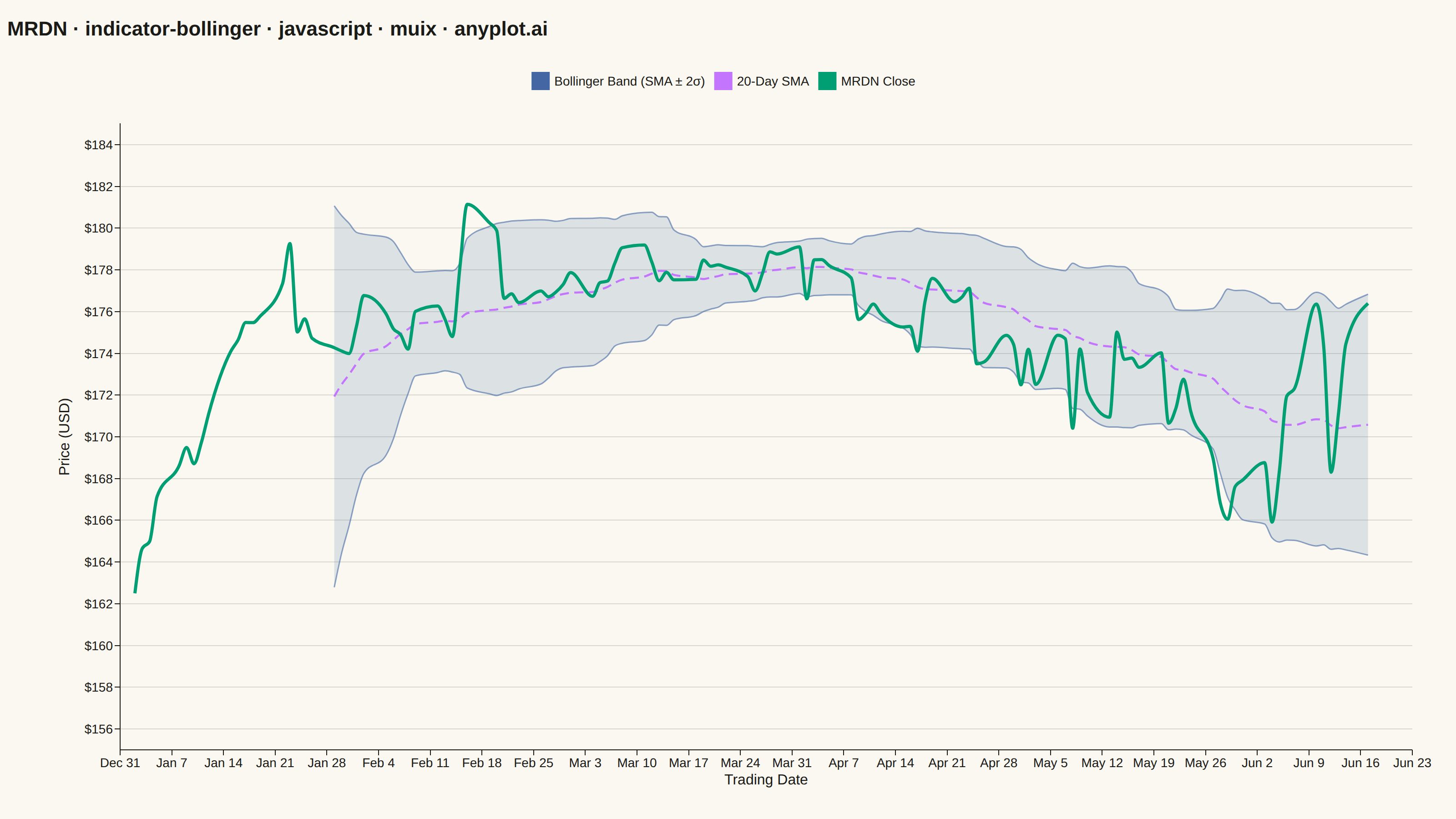

A Bollinger Bands chart displays price data with a volatility envelope consisting of three lines: a middle band (simple moving average), an upper band (SMA plus 2 standard deviations), and a lower band (SMA minus 2 standard deviations). This technical indicator helps traders identify overbought/oversold conditions, volatility patterns, and potential price breakouts by showing how prices relate to their recent statistical range.
// anyplot.ai
// indicator-bollinger: Bollinger Bands Indicator Chart
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 93/100 | Created: 2026-09-02
import { LineChart } from "@mui/x-charts/LineChart";
import { Box, Typography } from "@mui/material";
const t = window.ANYPLOT_TOKENS;
const [BRAND, SMA_COLOR, BAND_COLOR] = t.palette;
const hexToRgba = (hex, alpha) => {
const r = parseInt(hex.slice(1, 3), 16);
const g = parseInt(hex.slice(3, 5), 16);
const b = parseInt(hex.slice(5, 7), 16);
return `rgba(${r}, ${g}, ${b}, ${alpha})`;
};
const BAND_FILL = hexToRgba(BAND_COLOR, 0.16);
// --- Data (in-memory, deterministic) ----------------------------------------
const SYMBOL = "MRDN";
const N = 120;
const WINDOW = 20;
const START_PRICE = 162.5;
// Fixed-seed LCG (Numerical Recipes constants) — the browser has no seeded RNG.
let seed = 42;
const rand = () => {
seed = (seed * 1664525 + 1013904223) % 4294967296;
return seed / 4294967296;
};
const gaussian = () => {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
};
// Trading dates (weekdays only)
const dates = [];
const cursor = new Date(2024, 0, 2);
while (dates.length < N) {
const day = cursor.getDay();
if (day !== 0 && day !== 6) dates.push(new Date(cursor));
cursor.setDate(cursor.getDate() + 1);
}
// Daily close, with a calm "squeeze" regime and a high-volatility breakout
// regime so the bands visibly narrow and then widen (see spec "Notes").
const close = [START_PRICE];
for (let i = 1; i < N; i += 1) {
const squeeze = i >= 40 && i < 65;
const breakout = i >= 90;
const dailyVolPct = squeeze ? 0.35 : breakout ? 1.7 : 0.9;
const driftPct = 0.05;
const changePct = driftPct + dailyVolPct * gaussian();
close.push(Math.max(20, close[i - 1] * (1 + changePct / 100)));
}
const round2 = (v) => Math.round(v * 100) / 100;
// Rolling 20-period SMA and population std dev -> upper/lower bands.
const sma = [];
const upperBand = [];
const lowerBand = [];
const bandWidth = [];
for (let i = 0; i < N; i += 1) {
if (i < WINDOW - 1) {
sma.push(null);
upperBand.push(null);
lowerBand.push(null);
bandWidth.push(null);
continue;
}
const windowSlice = close.slice(i - WINDOW + 1, i + 1);
const mean = windowSlice.reduce((sum, v) => sum + v, 0) / WINDOW;
const variance =
windowSlice.reduce((sum, v) => sum + (v - mean) ** 2, 0) / WINDOW;
const stdDev = Math.sqrt(variance);
const upper = round2(mean + 2 * stdDev);
const lower = round2(mean - 2 * stdDev);
sma.push(round2(mean));
upperBand.push(upper);
lowerBand.push(lower);
bandWidth.push(round2(upper - lower));
}
const closeRounded = close.map(round2);
// Explicit y-axis bounds: the stacked band series' domain runs from 0 (its
// hidden base) to the upper band, which would force the axis to include 0
// and waste most of the canvas on empty space above/below the real range.
const allValues = [...closeRounded, ...sma, ...upperBand, ...lowerBand].filter(
(v) => v !== null,
);
const dataMin = Math.min(...allValues);
const dataMax = Math.max(...allValues);
const axisPadding = (dataMax - dataMin) * 0.15;
const yMin = Math.floor((dataMin - axisPadding) / 5) * 5;
const yMax = Math.ceil((dataMax + axisPadding) / 5) * 5;
const TITLE = `${SYMBOL} · indicator-bollinger · javascript · muix · anyplot.ai`;
// --- Chart (default-exported component — the harness mounts it) -------------
export default function Chart() {
const { width, height } = window.ANYPLOT_SIZE;
const titleHeight = 64;
return (
<Box sx={{ width, height, display: "flex", flexDirection: "column" }}>
<Typography
color="text.primary"
sx={{
height: titleHeight,
lineHeight: `${titleHeight}px`,
pl: 1,
fontSize: 22,
fontWeight: 600,
}}
>
{TITLE}
</Typography>
<LineChart
width={width}
height={height - titleHeight}
skipAnimation
margin={{ top: 72, right: 48, bottom: 76, left: 132 }}
xAxis={[
{
data: dates,
scaleType: "time",
label: "Trading Date",
labelStyle: { fontSize: 16 },
tickLabelStyle: { fontSize: 14 },
valueFormatter: (date) =>
date.toLocaleDateString("en-US", {
month: "short",
day: "numeric",
}),
},
]}
yAxis={[
{
label: "Price (USD)",
labelStyle: { fontSize: 16 },
// tickFontSize pushes the rotated axis title clear of the "$NNN"
// tick labels — the actual tick text size is set via tickLabelStyle.
tickFontSize: 40,
tickLabelStyle: { fontSize: 14 },
valueFormatter: (v) => `$${v.toFixed(0)}`,
min: yMin,
max: yMax,
},
]}
series={[
{
id: "bandBase",
data: lowerBand,
area: true,
stack: "band",
color: BAND_COLOR,
showMark: false,
connectNulls: false,
curve: "monotoneX",
},
{
id: "bandWidth",
data: bandWidth,
area: true,
stack: "band",
color: BAND_COLOR,
showMark: false,
connectNulls: false,
curve: "monotoneX",
label: "Bollinger Band (SMA ± 2σ)",
},
{
id: "sma",
data: sma,
color: SMA_COLOR,
showMark: false,
connectNulls: false,
curve: "monotoneX",
label: "20-Day SMA",
},
{
id: "close",
data: closeRounded,
color: BRAND,
showMark: false,
curve: "monotoneX",
label: `${SYMBOL} Close`,
},
]}
grid={{ horizontal: true }}
slotProps={{
legend: {
direction: "row",
position: { vertical: "top", horizontal: "middle" },
labelStyle: { fontSize: 14 },
},
}}
sx={{
"& .MuiLineElement-root": { strokeWidth: 2 },
"& .MuiLineElement-series-close": { strokeWidth: 3.5 },
"& .MuiLineElement-series-sma": {
strokeWidth: 2.25,
strokeDasharray: "10 6",
},
"& .MuiLineElement-series-bandBase": {
strokeWidth: 1.5,
strokeOpacity: 0.6,
},
"& .MuiLineElement-series-bandWidth": {
strokeWidth: 1.5,
strokeOpacity: 0.6,
},
"& .MuiAreaElement-series-bandBase": { fill: "none" },
"& .MuiAreaElement-series-bandWidth": { fill: BAND_FILL },
}}
/>
</Box>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/indicator-bollinger/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "indicator-bollinger",
"language": "javascript",
"library": "muix",
"page": "https://anyplot.ai/indicator-bollinger/javascript/muix",
"hub": "https://anyplot.ai/indicator-bollinger",
"code_json": "https://api.anyplot.ai/specs/indicator-bollinger/muix/code",
"spec_json": "https://api.anyplot.ai/specs/indicator-bollinger",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-bollinger/javascript/muix/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/indicator-bollinger/javascript/muix/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/indicator-bollinger/javascript/muix/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/indicator-bollinger/javascript/muix/plot-dark.html",
"quality_score": 93.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Bollinger Bands Indicator Chart on anyplot.ai.
