Bollinger Bands Indicator Chart — Seaborn

A Bollinger Bands chart displays price data with a volatility envelope consisting of three lines: a middle band (simple moving average), an upper band (SMA plus 2 standard deviations), and a lower band (SMA minus 2 standard deviations). This technical indicator helps traders identify overbought/oversold conditions, volatility patterns, and potential price breakouts by showing how prices relate to their recent statistical range.

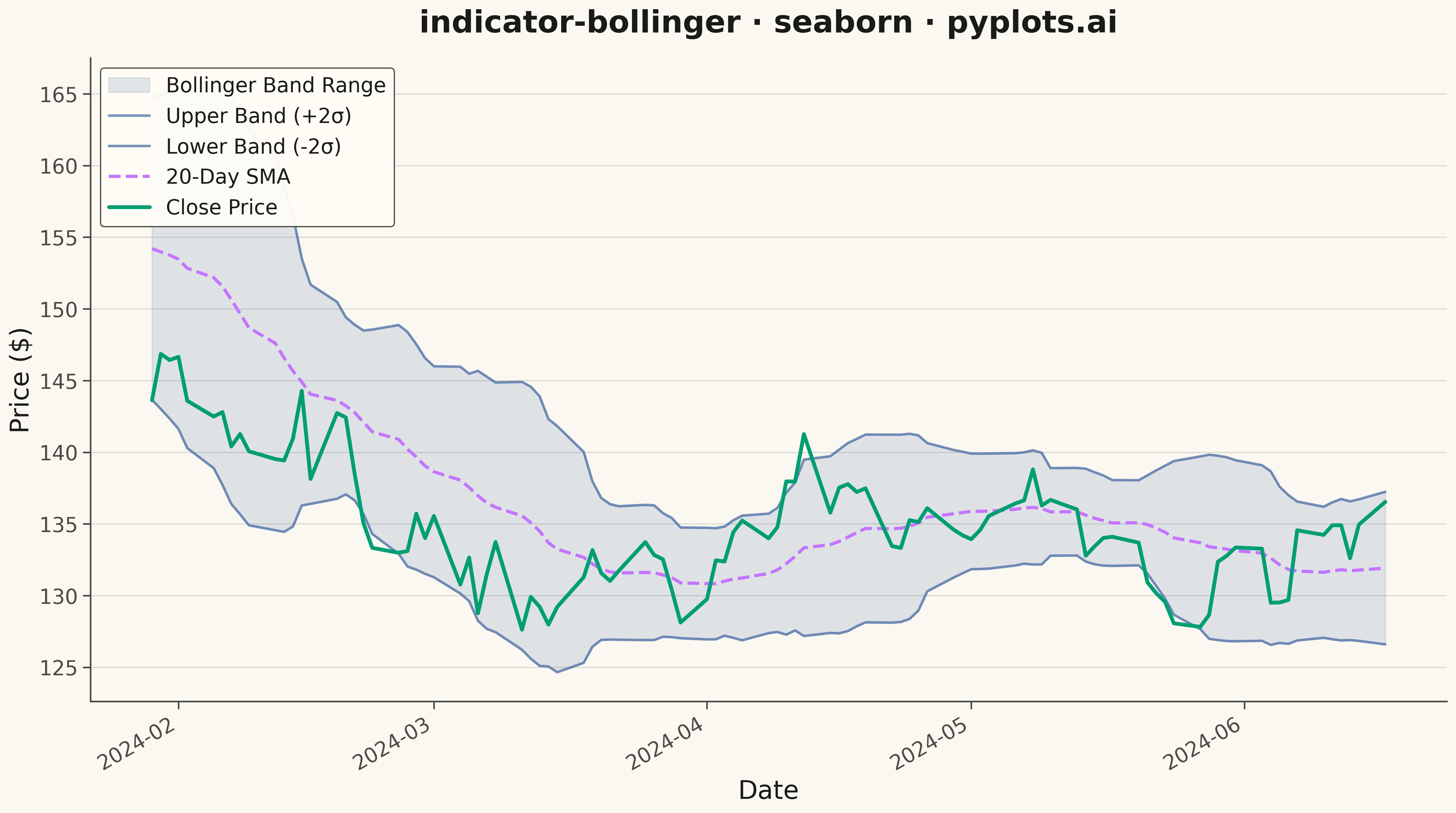

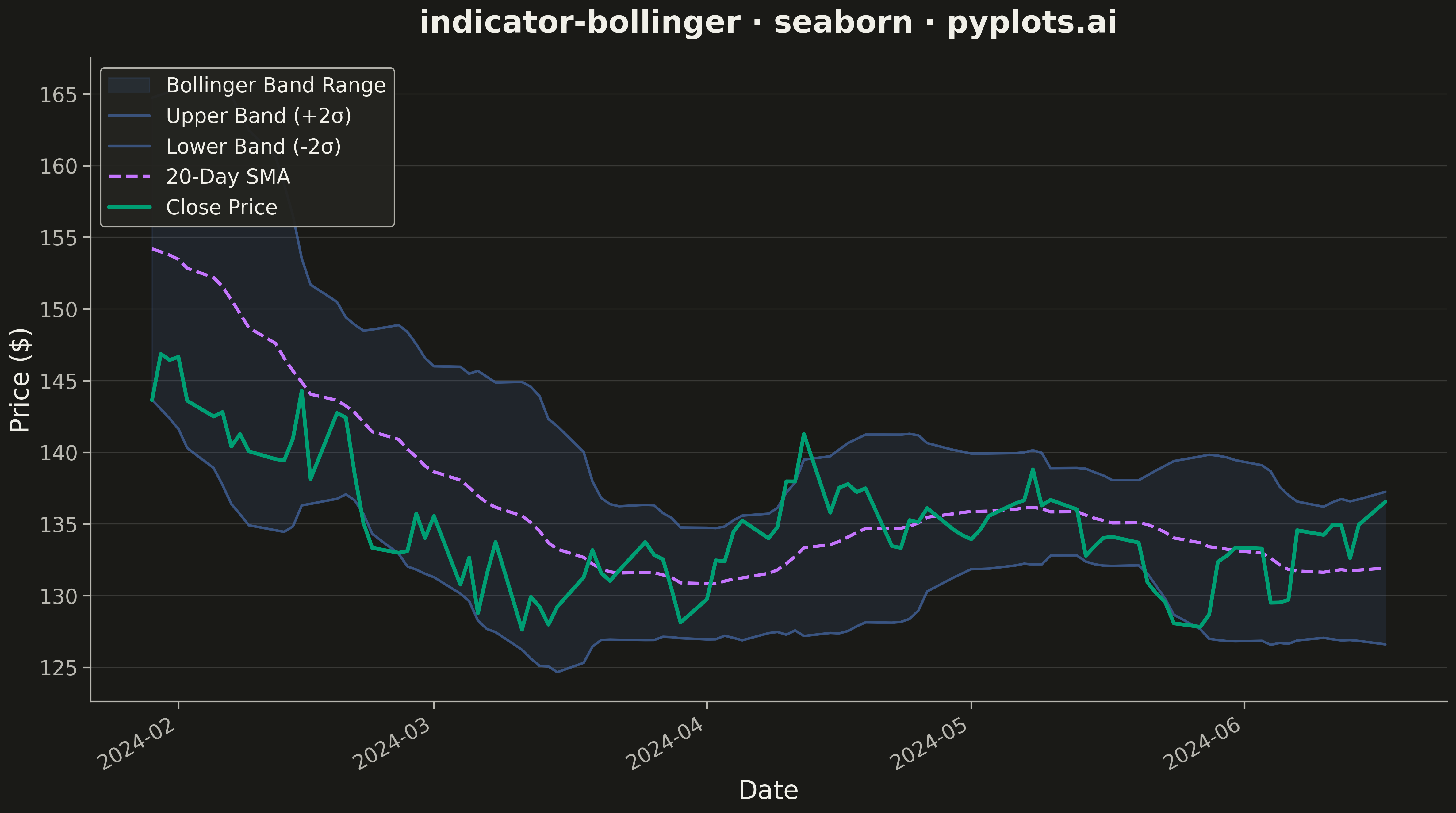

Bollinger Bands Indicator Chart rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
indicator-bollinger: Bollinger Bands Indicator Chart
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-17
"""

import os
import sys


# Prevent script name from shadowing seaborn package
cwd = os.getcwd()
sys.path = [p for p in sys.path if os.path.abspath(p) != os.path.abspath(os.path.dirname(__file__))]

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns


# Theme configuration
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
BRAND = "#009E73"  # Close price (primary)
SECONDARY = "#C475FD"  # SMA (middle band)
TERTIARY = "#4467A3"  # Bollinger Bands

# Apply theme
sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Data - Generate realistic stock price data with Bollinger Bands
np.random.seed(42)

# Generate 120 trading days of price data
n_days = 120
dates = pd.date_range(start="2024-01-02", periods=n_days, freq="B")

# Simulate price movement with trend and volatility
returns = np.random.normal(0.0005, 0.015, n_days)
price_base = 150
prices = price_base * np.cumprod(1 + returns)

# Add some volatility clustering (higher volatility periods)
volatility_boost = np.zeros(n_days)
volatility_boost[30:50] = np.random.normal(0, 0.01, 20)  # High volatility period
volatility_boost[80:95] = np.random.normal(0, 0.008, 15)  # Another volatile period
prices = prices * (1 + volatility_boost)

# Calculate Bollinger Bands (20-period SMA, 2 standard deviations)
window = 20
close = pd.Series(prices)
sma = close.rolling(window=window).mean()
std = close.rolling(window=window).std()
upper_band = sma + 2 * std
lower_band = sma - 2 * std

# Create DataFrame
df = pd.DataFrame({"date": dates, "close": close, "sma": sma, "upper_band": upper_band, "lower_band": lower_band})

# Drop NaN values from rolling calculation
df = df.dropna().reset_index(drop=True)

# Create plot
fig, ax = plt.subplots(figsize=(16, 9))

# Plot Bollinger Bands fill between upper and lower
ax.fill_between(
    df["date"], df["lower_band"], df["upper_band"], alpha=0.15, color=TERTIARY, label="Bollinger Band Range"
)

# Plot upper band
ax.plot(df["date"], df["upper_band"], color=TERTIARY, linewidth=2, alpha=0.7, label="Upper Band (+2σ)")

# Plot lower band
ax.plot(df["date"], df["lower_band"], color=TERTIARY, linewidth=2, alpha=0.7, label="Lower Band (-2σ)")

# Plot SMA (middle band) - dashed line
ax.plot(df["date"], df["sma"], color=SECONDARY, linewidth=2.5, linestyle="--", label="20-Day SMA")

# Plot close price - prominent line
ax.plot(df["date"], df["close"], color=BRAND, linewidth=3, label="Close Price")

# Styling
ax.set_title("indicator-bollinger · seaborn · pyplots.ai", fontsize=24, fontweight="bold", pad=20)
ax.set_xlabel("Date", fontsize=20)
ax.set_ylabel("Price ($)", fontsize=20)
ax.tick_params(axis="both", labelsize=16)

# Format x-axis dates
fig.autofmt_xdate(rotation=30)

# Legend
ax.legend(fontsize=16, loc="upper left", framealpha=0.95, frameon=True)

# Grid
ax.yaxis.grid(True, alpha=0.15, linewidth=0.8)
ax.set_axisbelow(True)

# Remove top and right spines
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)

plt.tight_layout()

# Save to script directory
script_dir = os.path.dirname(os.path.abspath(__file__))
output_path = os.path.join(script_dir, f"plot-{THEME}.png")
plt.savefig(output_path, dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Bollinger Bands Indicator Chart on anyplot.ai.
