Bollinger Bands Indicator Chart — Bokeh

A Bollinger Bands chart displays price data with a volatility envelope consisting of three lines: a middle band (simple moving average), an upper band (SMA plus 2 standard deviations), and a lower band (SMA minus 2 standard deviations). This technical indicator helps traders identify overbought/oversold conditions, volatility patterns, and potential price breakouts by showing how prices relate to their recent statistical range.

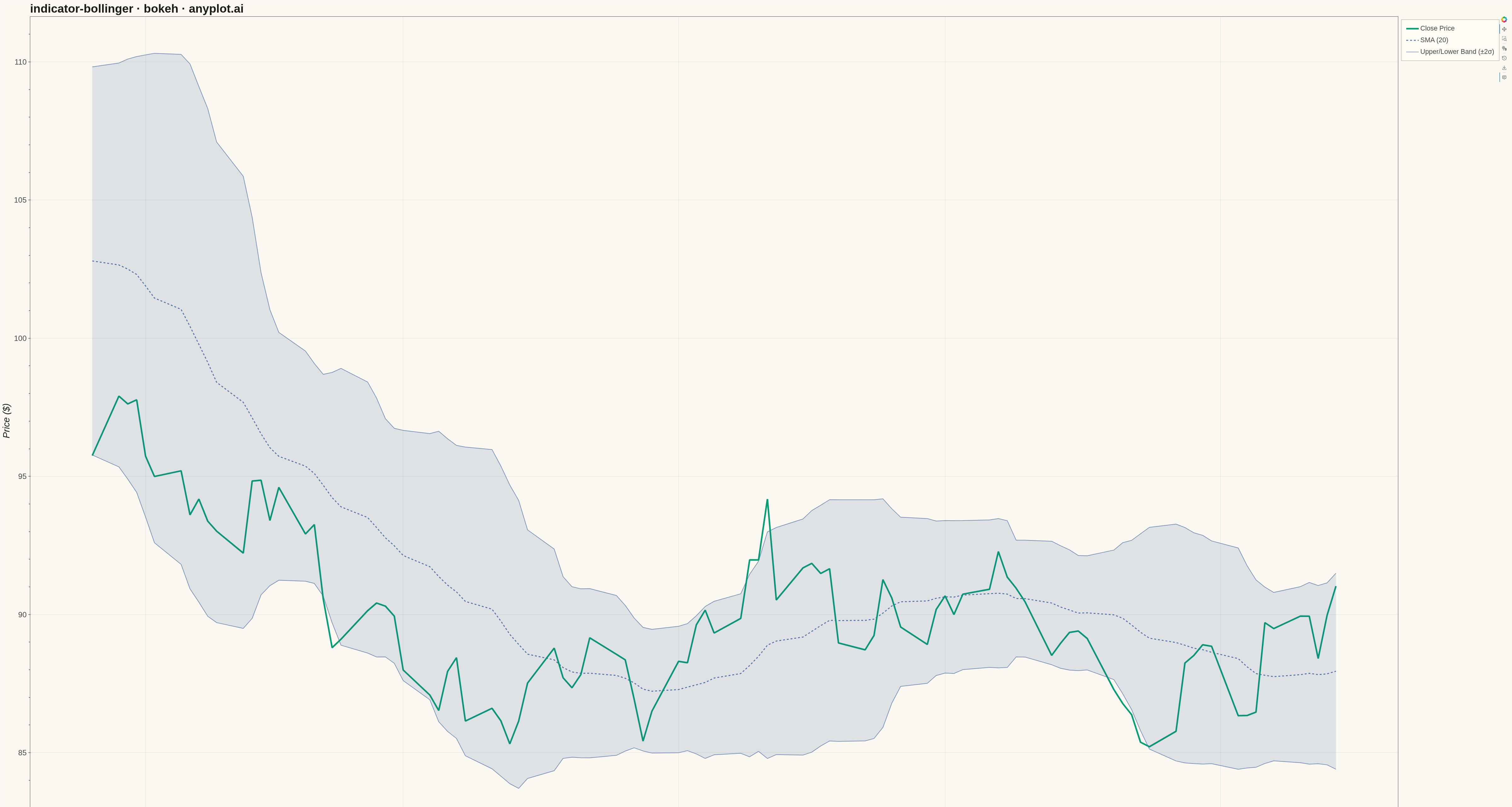

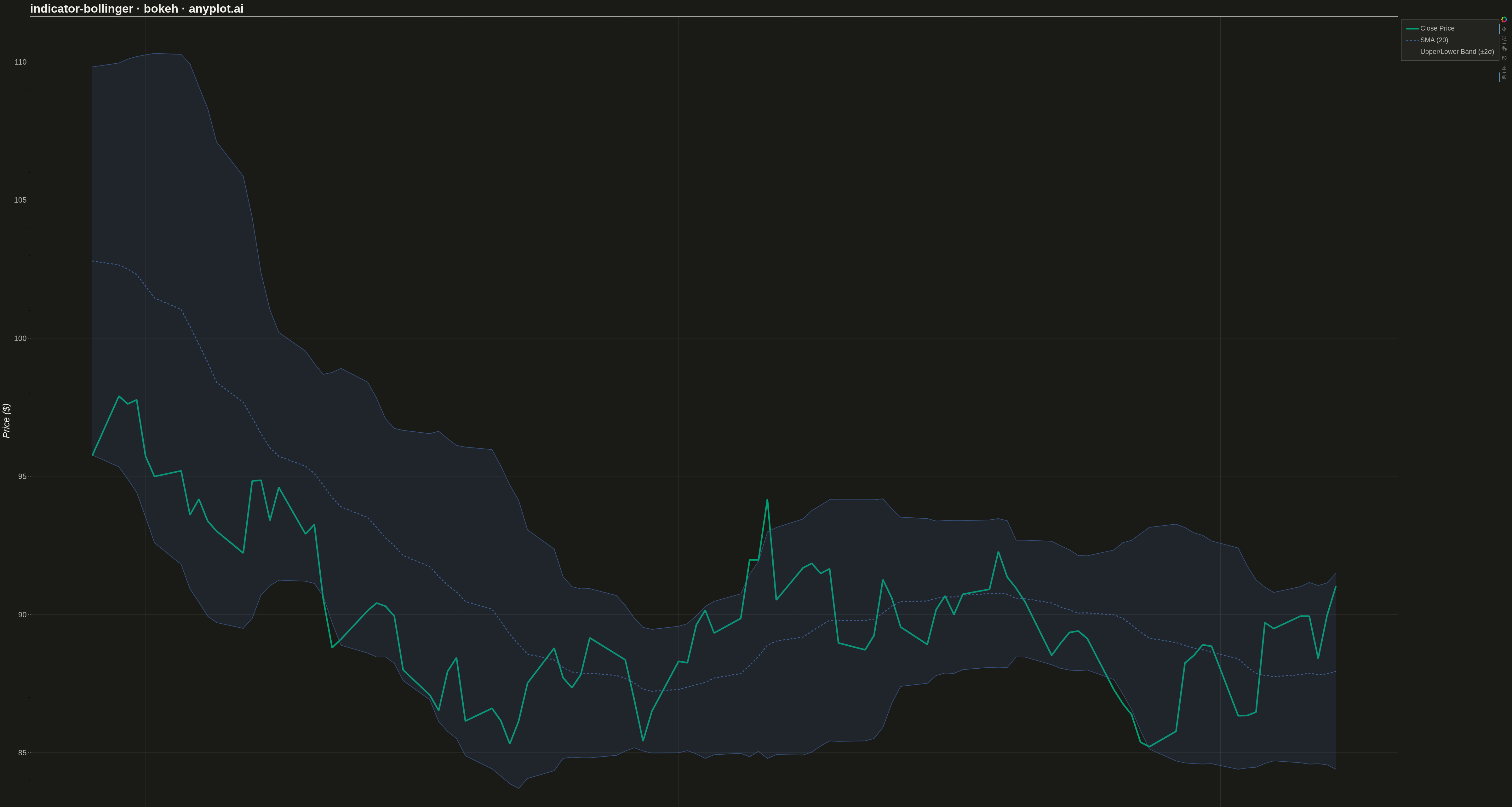

Bollinger Bands Indicator Chart rendered with Bokeh

Python source (Bokeh)

""" anyplot.ai
indicator-bollinger: Bollinger Bands Indicator Chart
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-17
"""

import os
import sys
import time
from pathlib import Path


# Prevent this script from shadowing the bokeh package
sys.path = [p for p in sys.path if "implementations" not in p]

import numpy as np
import pandas as pd
from bokeh.io import output_file, save
from bokeh.models import Band, ColumnDataSource, HoverTool, Legend
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (positions 1-3)
BRAND = "#009E73"  # Position 1 - first series (price)
ACCENT_BLUE = "#4467A3"  # Position 3 - SMA and bands
ACCENT_ORANGE = "#C475FD"  # Position 2 - optional

# Data - Generate synthetic stock price data
np.random.seed(42)
n_days = 120

# Generate realistic price movement using random walk with drift
dates = pd.date_range("2024-01-01", periods=n_days, freq="B")  # Business days
returns = np.random.normal(0.0005, 0.015, n_days)  # Daily returns with slight upward drift
price = 100 * np.cumprod(1 + returns)

# Calculate Bollinger Bands (20-period SMA, 2 standard deviations)
window = 20
sma = pd.Series(price).rolling(window=window).mean().values
std = pd.Series(price).rolling(window=window).std().values
upper_band = sma + 2 * std
lower_band = sma - 2 * std

# Create DataFrame for cleaner handling
df = pd.DataFrame({"date": dates, "close": price, "sma": sma, "upper_band": upper_band, "lower_band": lower_band})

# Drop NaN values from the start (due to rolling window)
df = df.dropna().reset_index(drop=True)

# Create ColumnDataSource
source = ColumnDataSource(df)

# Create figure
p = figure(
    width=4800,
    height=2700,
    title="indicator-bollinger · bokeh · anyplot.ai",
    x_axis_label="Date",
    y_axis_label="Price ($)",
    x_axis_type="datetime",
    tools="pan,wheel_zoom,box_zoom,reset,save",
)

# Add the band fill between upper and lower bands
band = Band(
    base="date",
    lower="lower_band",
    upper="upper_band",
    source=source,
    fill_alpha=0.15,
    fill_color=ACCENT_BLUE,
    line_color=ACCENT_BLUE,
    line_alpha=0.4,
)
p.add_layout(band)

# Plot the bands and price lines with legend
# Upper band
upper_line = p.line(
    "date", "upper_band", source=source, line_color=ACCENT_BLUE, line_width=2, line_dash="solid", alpha=0.6
)

# Lower band
lower_line = p.line(
    "date", "lower_band", source=source, line_color=ACCENT_BLUE, line_width=2, line_dash="solid", alpha=0.6
)

# Middle band (SMA) - dashed line
sma_line = p.line("date", "sma", source=source, line_color=ACCENT_BLUE, line_width=3, line_dash="dashed", alpha=0.9)

# Price line - most prominent (first series in Okabe-Ito)
price_line = p.line("date", "close", source=source, line_color=BRAND, line_width=5, alpha=1.0)

# Add hover tool for interactivity
hover = HoverTool(
    tooltips=[
        ("Date", "@date{%F}"),
        ("Close", "$@close{0.2f}"),
        ("SMA (20)", "$@sma{0.2f}"),
        ("Upper Band", "$@upper_band{0.2f}"),
        ("Lower Band", "$@lower_band{0.2f}"),
    ],
    formatters={"@date": "datetime"},
    mode="vline",
    renderers=[price_line],
)
p.add_tools(hover)

# Create legend
legend = Legend(
    items=[("Close Price", [price_line]), ("SMA (20)", [sma_line]), ("Upper/Lower Band (±2σ)", [upper_line])],
    location="top_left",
)

p.add_layout(legend, "right")

# Style the plot - text sizing for 4800×2700 px
p.title.text_font_size = "28pt"
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"

# Legend styling
p.legend.label_text_font_size = "16pt"
p.legend.glyph_width = 40
p.legend.glyph_height = 25
p.legend.spacing = 12
p.legend.padding = 15

# Grid styling - subtle
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK

# Theme-adaptive chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT

p.title.text_color = INK
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT

if p.legend:
    p.legend.background_fill_color = ELEVATED_BG
    p.legend.border_line_color = INK_SOFT
    p.legend.label_text_color = INK_SOFT

# Save interactive HTML
output_file(f"plot-{THEME}.html")
save(p)

# Screenshot with headless Chrome (Selenium 4 / Selenium Manager)
W, H = 4800, 2700
opts = Options()
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)  # let bokeh's JS render the canvas
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()

Part of Bollinger Bands Indicator Chart on anyplot.ai.
