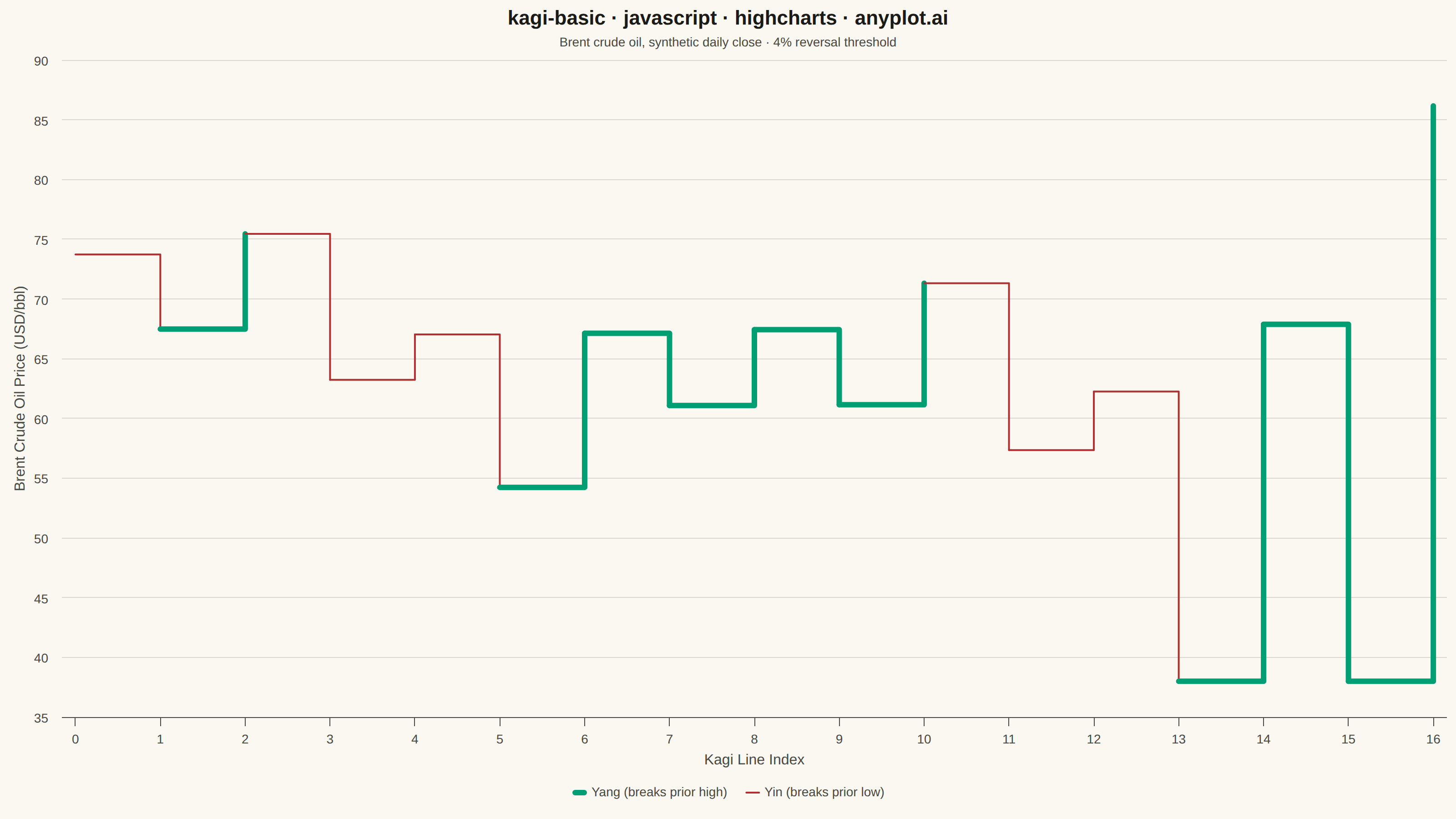

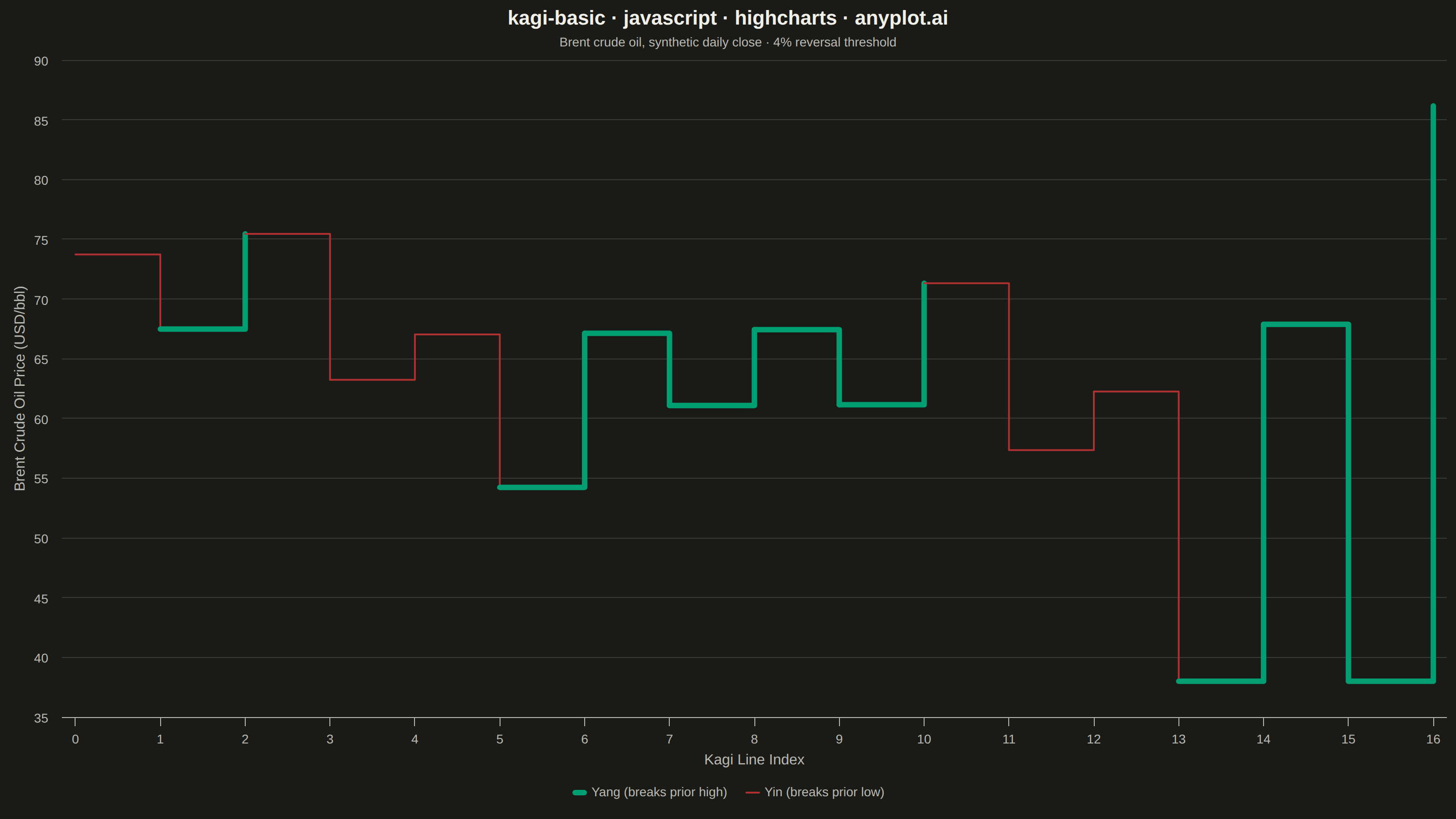

A Kagi chart is a Japanese charting technique that displays price movements using vertical lines of varying thickness. Unlike time-based charts, Kagi charts change direction only when price moves by a significant amount (the reversal threshold), effectively filtering out market noise. Thick lines (yang) indicate uptrends when price exceeds previous highs, while thin lines (yin) show downtrends when price falls below previous lows, making trend identification intuitive.
// anyplot.ai
// kagi-basic: Basic Kagi Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 86/100 | Created: 2026-09-02
const t = window.ANYPLOT_TOKENS;
// --- Data: synthetic Brent crude oil daily close, USD/bbl (deterministic LCG) ---
function lcg(seed) {
let state = seed;
return function next() {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const rand = lcg(20260902);
const n = 260;
const closes = [];
let price = 74;
let momentum = 0;
for (let i = 0; i < n; i++) {
momentum = momentum * 0.82 + (rand() - 0.5) * 2.6;
price = Math.max(38, price + momentum);
closes.push(Math.round(price * 100) / 100);
}
// --- Kagi construction: collapse the close series into turning-point vertices ---
const REVERSAL = 0.04; // 4% reversal threshold
const vertices = [closes[0]];
let dir = null; // "up" | "down"
let extreme = closes[0];
for (let i = 1; i < closes.length; i++) {
const p = closes[i];
if (dir === null) {
if ((p - closes[0]) / closes[0] >= REVERSAL) {
dir = "up";
extreme = p;
} else if ((closes[0] - p) / closes[0] >= REVERSAL) {
dir = "down";
extreme = p;
}
continue;
}
if (dir === "up") {
if (p >= extreme) {
extreme = p;
} else if ((extreme - p) / extreme >= REVERSAL) {
vertices.push(extreme);
dir = "down";
extreme = p;
}
} else {
if (p <= extreme) {
extreme = p;
} else if ((p - extreme) / extreme >= REVERSAL) {
vertices.push(extreme);
dir = "up";
extreme = p;
}
}
}
vertices.push(extreme);
// --- Yang/yin classification: thickness flips only when a column breaks the
// prior same-direction extreme (the last shoulder for up, the last waist for down) ---
let thick = null;
const segments = [];
for (let i = 1; i < vertices.length; i++) {
const goingUp = vertices[i] > vertices[i - 1];
if (i === 1) {
thick = goingUp;
} else {
const priorExtreme = vertices[i - 2];
if (goingUp && vertices[i] > priorExtreme) thick = true;
else if (!goingUp && vertices[i] < priorExtreme) thick = false;
}
segments.push({
data: [
[i - 1, vertices[i - 1]],
[i, vertices[i]],
],
thick,
});
}
const YANG = t.palette[0]; // "#009E73" brand green — uptrend breakout
const YIN = t.palette[4]; // "#AE3030" matte red — downtrend breakdown
// --- Standout-move callout: find the single largest vertex-to-vertex swing
// and shade its column with a plotBand tinted in its own yang/yin color, so
// the reader's eye lands on the move that matters most, not just the trend ---
let standout = segments[0];
let standoutDelta = 0;
for (const seg of segments) {
const delta = Math.abs(seg.data[1][1] - seg.data[0][1]);
if (delta > standoutDelta) {
standoutDelta = delta;
standout = seg;
}
}
const standoutUp = standout.data[1][1] > standout.data[0][1];
const standoutLabel =
"Standout " + (standoutUp ? "breakout: +$" : "breakdown: -$") + standoutDelta.toFixed(2);
// --- Chart ---------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "line",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "kagi-basic · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "Brent crude oil, synthetic daily close · 4% reversal threshold",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
title: { text: "Kagi Line Index", style: { color: t.inkSoft, fontSize: "16px" } },
allowDecimals: false,
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
plotBands: [
{
from: standout.data[0][0],
to: standout.data[1][0],
color: Highcharts.color(standoutUp ? YANG : YIN)
.setOpacity(0.14)
.get(),
label: {
text: standoutLabel,
style: { color: t.ink, fontSize: "12px", fontWeight: "600" },
align: "center",
verticalAlign: "top",
y: 14,
},
},
],
},
yAxis: {
title: {
text: "Brent Crude Oil Price (USD/bbl)",
style: { color: t.inkSoft, fontSize: "16px" },
},
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
legend: {
enabled: true,
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
tooltip: {
enabled: true,
formatter: function formatTooltip() {
return "Line " + this.point.x + "<br>$" + this.point.y.toFixed(2);
},
},
plotOptions: {
series: { animation: false, marker: { enabled: false }, enableMouseTracking: true },
},
series: [
...segments.map((seg) => ({
type: "line",
step: "left",
data: seg.data,
color: seg.thick ? YANG : YIN,
lineWidth: seg.thick ? 6 : 2,
showInLegend: false,
})),
{
name: "Yang (breaks prior high)",
type: "line",
color: YANG,
lineWidth: 6,
data: [],
showInLegend: true,
enableMouseTracking: false,
},
{
name: "Yin (breaks prior low)",
type: "line",
color: YIN,
lineWidth: 2,
data: [],
showInLegend: true,
enableMouseTracking: false,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/kagi-basic/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "kagi-basic",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/kagi-basic/javascript/highcharts",
"hub": "https://anyplot.ai/kagi-basic",
"code_json": "https://api.anyplot.ai/specs/kagi-basic/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/kagi-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/kagi-basic/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/kagi-basic/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/kagi-basic/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/kagi-basic/javascript/highcharts/plot-dark.html",
"quality_score": 86.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Basic Kagi Chart on anyplot.ai.
