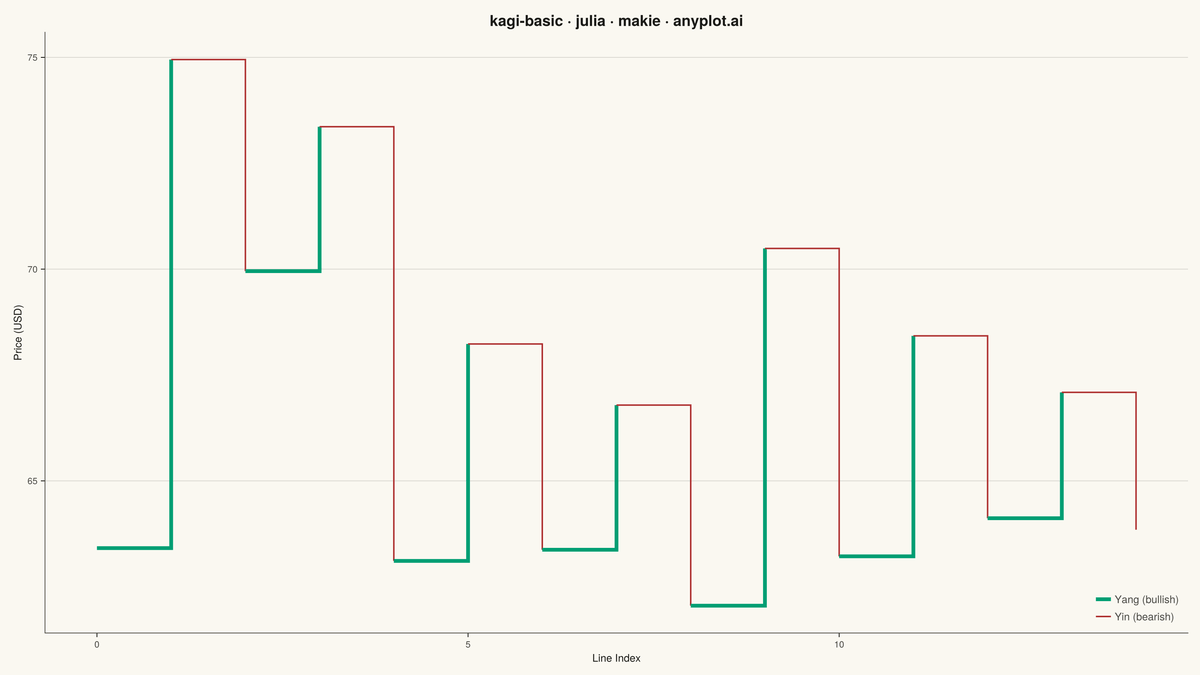

A Kagi chart is a Japanese charting technique that displays price movements using vertical lines of varying thickness. Unlike time-based charts, Kagi charts change direction only when price moves by a significant amount (the reversal threshold), effectively filtering out market noise. Thick lines (yang) indicate uptrends when price exceeds previous highs, while thin lines (yin) show downtrends when price falls below previous lows, making trend identification intuitive.
# anyplot.ai
# kagi-basic: Basic Kagi Chart
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 87/100 | Created: 2026-09-02
using CairoMakie
using Colors
using Random
Random.seed!(42)
# --- Theme tokens ------------------------------------------------------------
THEME = get(ENV, "ANYPLOT_THEME", "light")
PAGE_BG = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
INK = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
YANG_COLOR = colorant"#009E73" # Imprint position 1 — brand green, bullish
YIN_COLOR = colorant"#AE3030" # Imprint position 5 — semantic red, bearish
# --- Data: synthetic daily closing prices for a mid-cap stock ---------------
n_days = 240
daily_returns = randn(n_days) .* 0.012 .+ 0.0004
closes = 68.0 .* cumprod(1 .+ daily_returns)
# --- Kagi construction (4% reversal threshold) ------------------------------
reversal = 0.04
turn_x = Int[0]
turn_y = Float64[closes[1]]
direction = 0 # 0 = undetermined, 1 = up (yang), -1 = down (yin)
for price in closes[2:end]
global direction
last_y = turn_y[end]
if direction == 0
if price >= last_y * (1 + reversal)
direction = 1
turn_y[end] = price
elseif price <= last_y * (1 - reversal)
direction = -1
turn_y[end] = price
end
elseif direction == 1
if price > last_y
turn_y[end] = price
elseif price <= last_y * (1 - reversal)
push!(turn_x, turn_x[end] + 1)
push!(turn_y, price)
direction = -1
end
else
if price < last_y
turn_y[end] = price
elseif price >= last_y * (1 + reversal)
push!(turn_x, turn_x[end] + 1)
push!(turn_y, price)
direction = 1
end
end
end
# --- Plot ---------------------------------------------------------------------
fig = Figure(
resolution = (1600, 900),
fontsize = 14,
backgroundcolor = PAGE_BG,
)
ax = Axis(
fig[1, 1];
title = "kagi-basic · julia · makie · anyplot.ai",
titlesize = 20,
titlecolor = INK,
xlabel = "Line Index",
ylabel = "Price (USD)",
xlabelsize = 14,
ylabelsize = 14,
xticklabelsize = 12,
yticklabelsize = 12,
xlabelcolor = INK,
ylabelcolor = INK,
xticklabelcolor = INK_SOFT,
yticklabelcolor = INK_SOFT,
backgroundcolor = PAGE_BG,
topspinevisible = false,
rightspinevisible = false,
leftspinecolor = INK_SOFT,
bottomspinecolor = INK_SOFT,
xgridvisible = false,
ygridcolor = RGBAf(INK.r, INK.g, INK.b, 0.15),
yticks = Makie.LinearTicks(7),
)
# Each leg of the staircase is drawn with Makie's native stairs! step-plot
# recipe (shoulder/waist geometry via step = :post); color and thickness
# encode the leg's direction.
for i in 1:(length(turn_x) - 1)
is_up = turn_y[i + 1] > turn_y[i]
seg_color = is_up ? YANG_COLOR : YIN_COLOR
seg_width = is_up ? 5.0 : 2.0
stairs!(
ax,
[turn_x[i], turn_x[i + 1]],
[turn_y[i], turn_y[i + 1]];
step = :post,
color = seg_color,
linewidth = seg_width,
)
end
# Small markers at each reversal (shoulder/waist) point sharpen the
# data-storytelling focal point beyond the raw staircase geometry.
scatter!(
ax,
turn_x[2:(end - 1)],
turn_y[2:(end - 1)];
color = PAGE_BG,
strokecolor = INK_SOFT,
strokewidth = 1.5,
markersize = 7,
)
lines!(ax, [NaN, NaN], [NaN, NaN]; color = YANG_COLOR, linewidth = 5.0, label = "Yang (bullish)")
lines!(ax, [NaN, NaN], [NaN, NaN]; color = YIN_COLOR, linewidth = 2.0, label = "Yin (bearish)")
axislegend(ax; position = :rb, framevisible = false, labelcolor = INK_SOFT)
# --- Save ----------------------------------------------------------------------

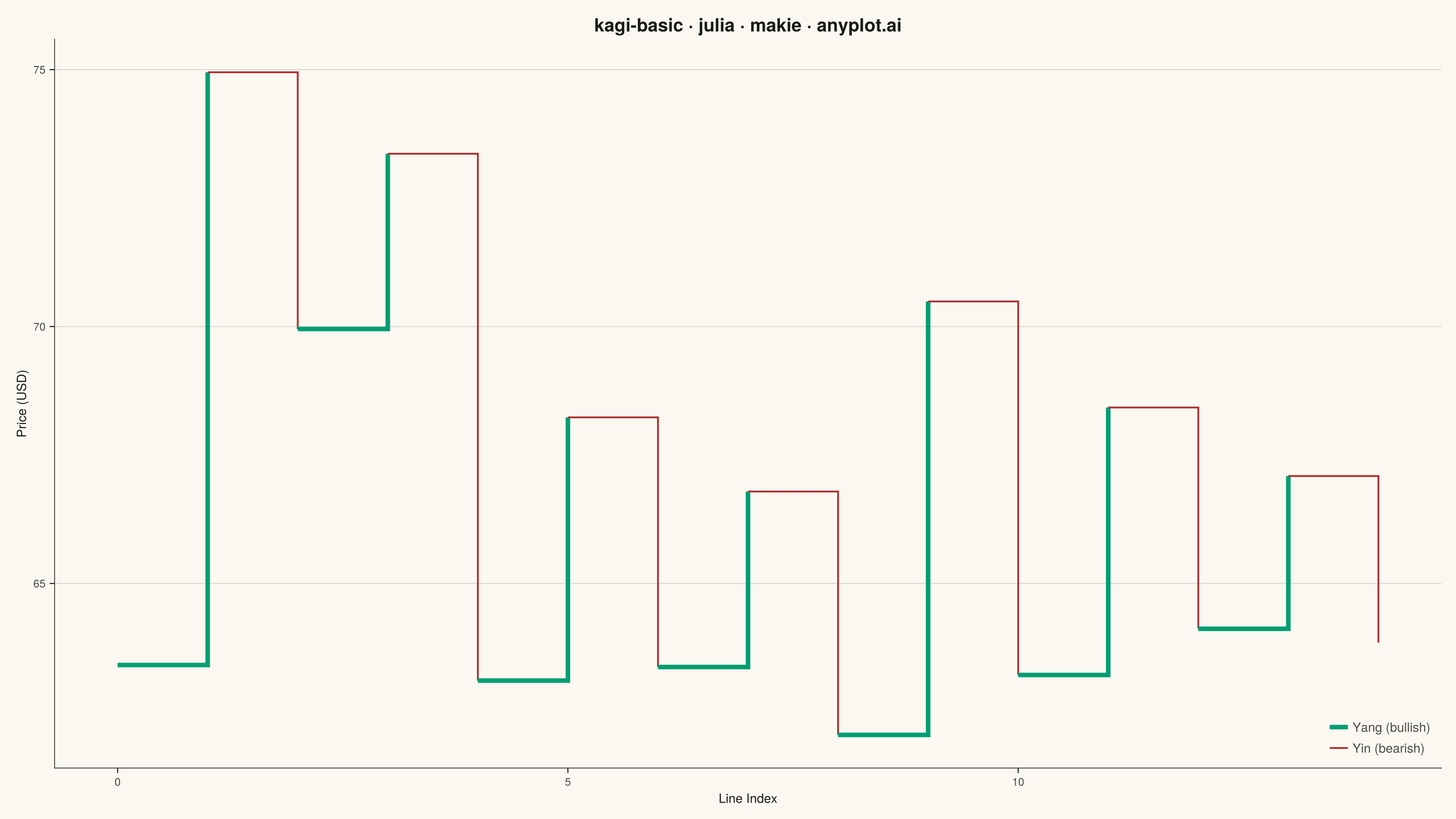

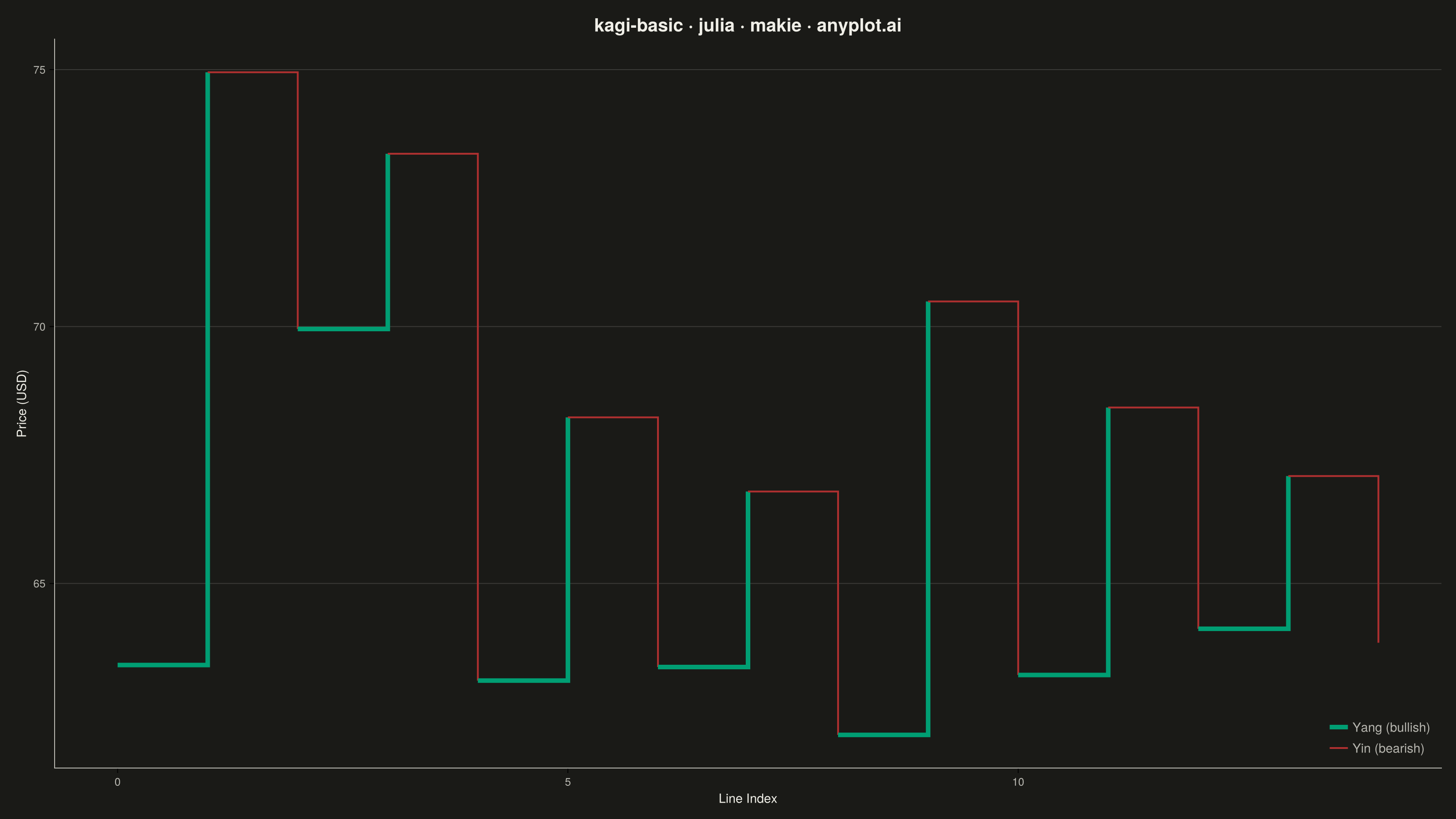

save("plot-$(THEME).png", fig; px_per_unit = 2)
