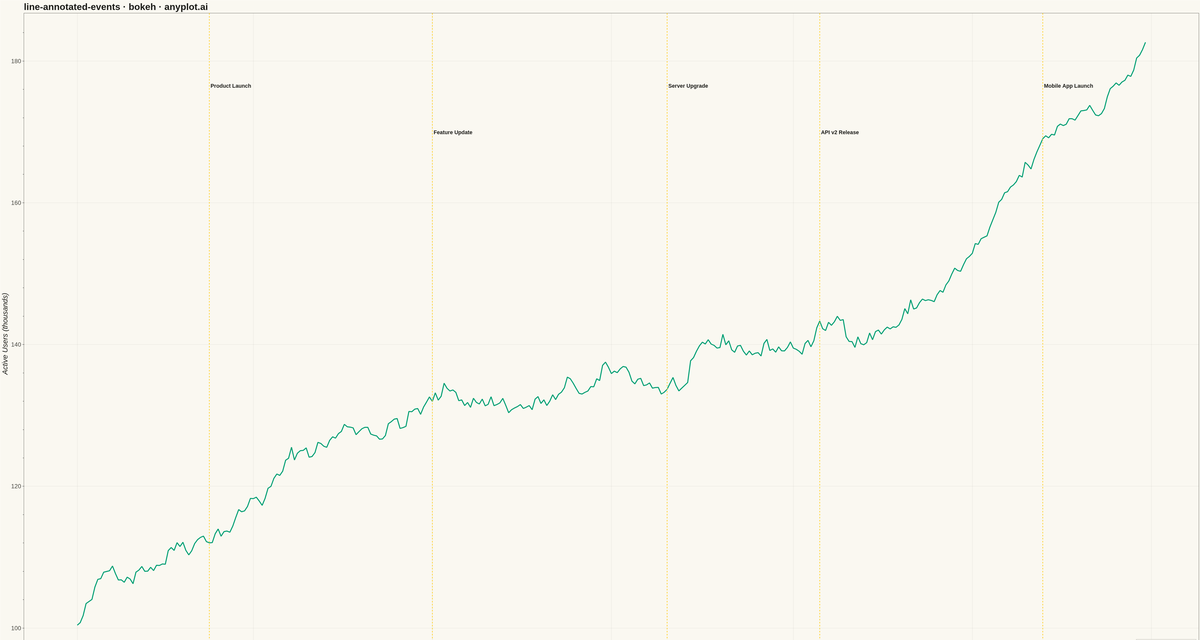

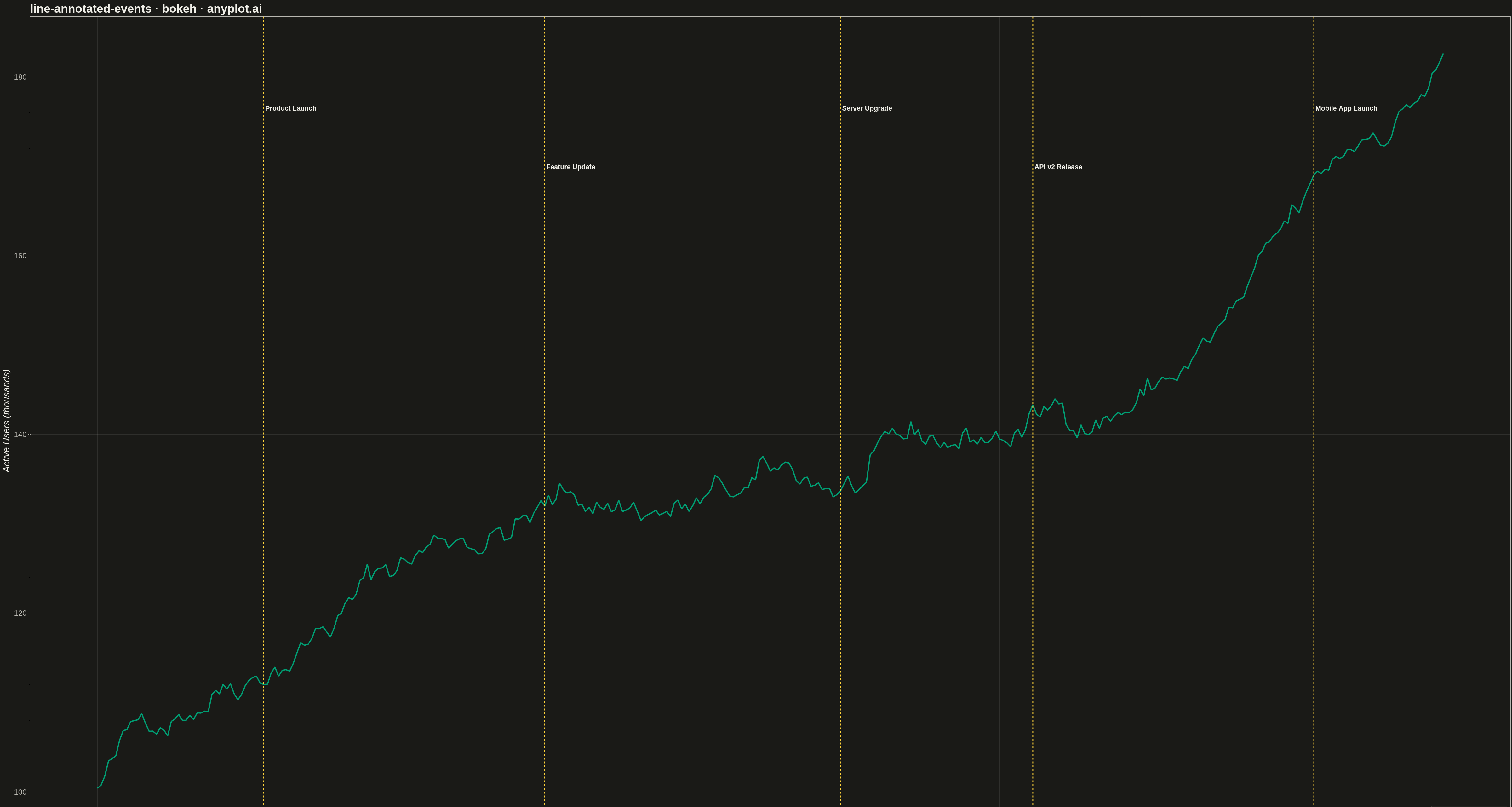

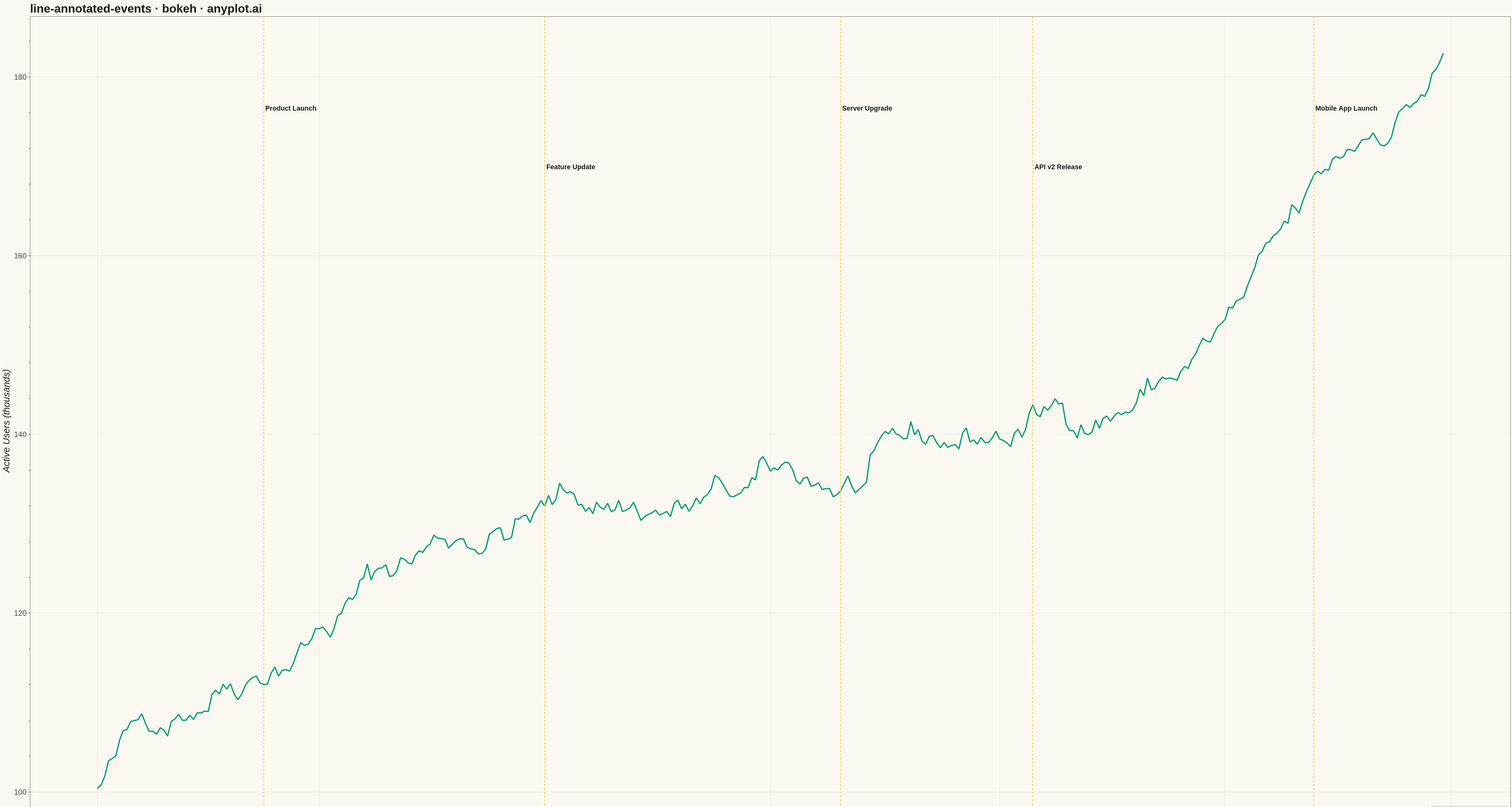

A line plot with annotations at key points marking important events or milestones. This visualization enhances time series data by highlighting significant occurrences such as product launches, policy changes, or market events directly on the chart. Vertical lines, markers, and text labels draw attention to specific moments in time, making it easy to correlate data trends with real-world events.
""" anyplot.ai
line-annotated-events: Annotated Line Plot with Event Markers
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-16
"""
if __name__ == "__main__":
import os
import time
from pathlib import Path
import numpy as np
import pandas as pd
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, Label, Span
from bokeh.plotting import figure
from bokeh.resources import CDN
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
np.random.seed(42)
dates = pd.date_range("2024-01-01", periods=365, freq="D")
base_trend = np.linspace(100, 180, 365)
seasonal = 15 * np.sin(np.arange(365) * 2 * np.pi / 365)
noise = np.cumsum(np.random.randn(365) * 0.8)
values = base_trend + seasonal + noise
event_dates = pd.to_datetime(["2024-02-15", "2024-05-01", "2024-07-20", "2024-09-10", "2024-11-25"])
event_labels = ["Product Launch", "Feature Update", "Server Upgrade", "API v2 Release", "Mobile App Launch"]
event_heights = [0.92, 0.84, 0.92, 0.84, 0.92]
source = ColumnDataSource(data={"date": dates, "value": values})
p = figure(
width=4800,
height=2700,
title="line-annotated-events · bokeh · anyplot.ai",
x_axis_type="datetime",
x_axis_label="Date",
y_axis_label="Active Users (thousands)",
)
p.line("date", "value", source=source, line_width=4, color="#009E73", legend_label="Daily Active Users")
for event_date, label, h in zip(event_dates, event_labels, event_heights, strict=True):
vline = Span(location=event_date, dimension="height", line_color="#FFD43B", line_width=3, line_dash="dashed")
p.add_layout(vline)
y_range = values.max() - values.min()
y_pos = values.min() + y_range * h
event_label = Label(
x=event_date,
y=y_pos,
text=label,
text_font_size="16pt",
text_color=INK,
text_font_style="bold",
x_offset=5,
y_offset=0,
)
p.add_layout(event_label)
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "22pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "18pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10
p.legend.label_text_font_size = "18pt"
p.legend.location = "bottom_right"
p.legend.background_fill_color = ELEVATED_BG
p.legend.border_line_color = INK_SOFT
p.legend.label_text_color = INK_SOFT
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
p.toolbar_location = None
output_file(f"plot-{THEME}.html")
save(p, resources=CDN, title="line-annotated-events · bokeh · anyplot.ai")
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Annotated Line Plot with Event Markers on anyplot.ai.
