Annotated Line Plot with Event Markers — Plotly

A line plot with annotations at key points marking important events or milestones. This visualization enhances time series data by highlighting significant occurrences such as product launches, policy changes, or market events directly on the chart. Vertical lines, markers, and text labels draw attention to specific moments in time, making it easy to correlate data trends with real-world events.

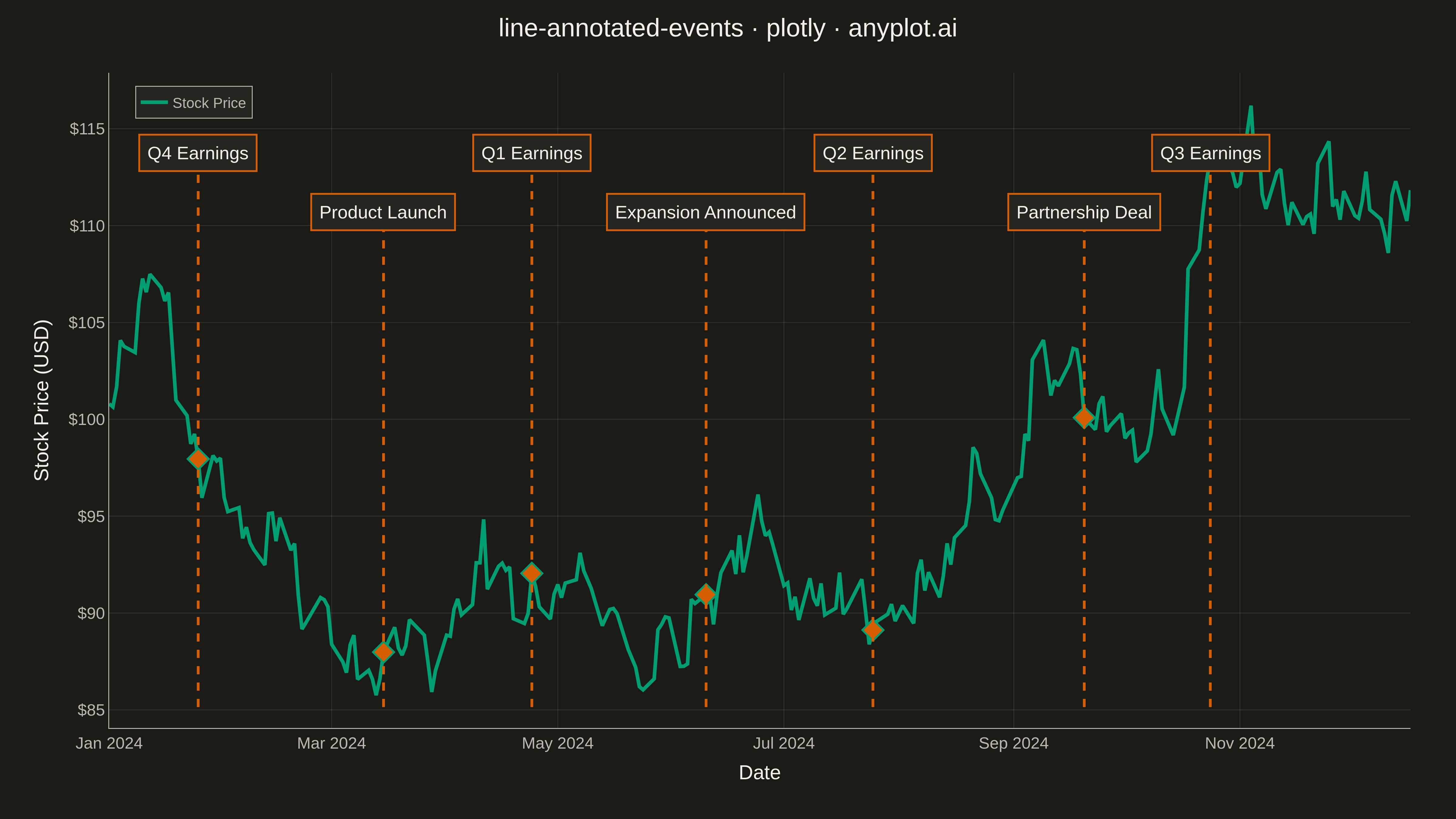

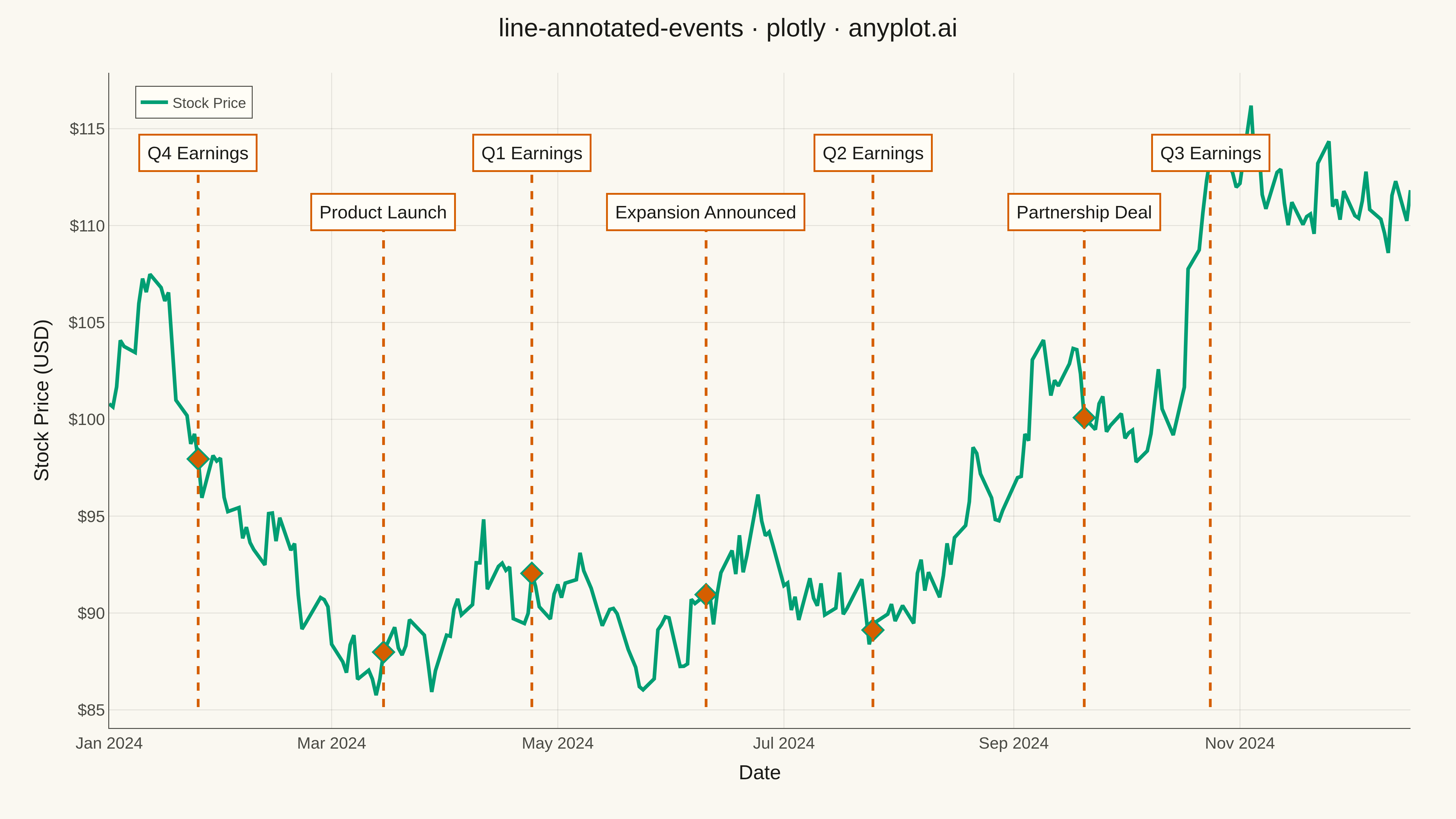

Annotated Line Plot with Event Markers rendered with Plotly

Python source (Plotly)

""" anyplot.ai
line-annotated-events: Annotated Line Plot with Event Markers
Library: plotly 6.7.0 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-16
"""

import numpy as np
import pandas as pd
import plotly.graph_objects as go


# Data - Simulated stock price data with events
np.random.seed(42)

# Generate daily stock prices over a year
dates = pd.date_range("2024-01-01", periods=252, freq="B")  # Business days
returns = np.random.normal(0.0005, 0.015, len(dates))
prices = 100 * np.exp(np.cumsum(returns))

# Define significant events (earnings announcements, product launches)
events = [
    {"date": pd.Timestamp("2024-01-25"), "label": "Q4 Earnings"},
    {"date": pd.Timestamp("2024-03-15"), "label": "Product Launch"},
    {"date": pd.Timestamp("2024-04-24"), "label": "Q1 Earnings"},
    {"date": pd.Timestamp("2024-06-10"), "label": "Expansion Announced"},
    {"date": pd.Timestamp("2024-07-25"), "label": "Q2 Earnings"},
    {"date": pd.Timestamp("2024-09-20"), "label": "Partnership Deal"},
    {"date": pd.Timestamp("2024-10-24"), "label": "Q3 Earnings"},
]

# Create figure
fig = go.Figure()

# Add main price line
fig.add_trace(
    go.Scatter(
        x=dates,
        y=prices,
        mode="lines",
        name="Stock Price",
        line={"color": "#306998", "width": 4},
        hovertemplate="Date: %{x|%Y-%m-%d}<br>Price: $%{y:.2f}<extra></extra>",
    )
)

# Add vertical lines and markers for events with alternating heights
y_range = prices.max() - prices.min()
heights = [0.92, 0.82, 0.92, 0.82, 0.92, 0.82, 0.92]  # Alternating heights

for i, event in enumerate(events):
    event_date = event["date"]
    event_label = event["label"]
    y_position = prices.min() + y_range * heights[i]

    # Find the closest price at event date
    closest_idx = np.abs(dates - event_date).argmin()
    price_at_event = prices[closest_idx]

    # Add vertical dashed line
    fig.add_shape(
        type="line",
        x0=event_date,
        x1=event_date,
        y0=prices.min() - y_range * 0.02,
        y1=y_position - y_range * 0.02,
        line={"color": "#FFD43B", "width": 3, "dash": "dash"},
    )

    # Add marker at the event date on the price line
    fig.add_trace(
        go.Scatter(
            x=[event_date],
            y=[price_at_event],
            mode="markers",
            marker={"size": 18, "color": "#FFD43B", "symbol": "diamond", "line": {"color": "#306998", "width": 2}},
            showlegend=False,
            hovertemplate=f"{event_label}<br>Date: %{{x|%Y-%m-%d}}<br>Price: $%{{y:.2f}}<extra></extra>",
        )
    )

    # Add annotation label
    fig.add_annotation(
        x=event_date,
        y=y_position,
        text=event_label,
        showarrow=False,
        font={"size": 20, "color": "#333333"},
        bgcolor="rgba(255, 212, 59, 0.9)",
        bordercolor="#FFD43B",
        borderwidth=2,
        borderpad=8,
    )

# Update layout
fig.update_layout(
    title={"text": "line-annotated-events · plotly · pyplots.ai", "font": {"size": 40}, "x": 0.5, "xanchor": "center"},
    xaxis={
        "title": {"text": "Date", "font": {"size": 36}},
        "tickfont": {"size": 28},
        "showgrid": True,
        "gridcolor": "rgba(0,0,0,0.1)",
        "gridwidth": 1,
    },
    yaxis={
        "title": {"text": "Stock Price (USD)", "font": {"size": 36}},
        "tickfont": {"size": 28},
        "tickprefix": "$",
        "showgrid": True,
        "gridcolor": "rgba(0,0,0,0.1)",
        "gridwidth": 1,
    },
    template="plotly_white",
    showlegend=True,
    legend={
        "x": 0.02,
        "y": 0.98,
        "font": {"size": 24},
        "bgcolor": "rgba(255,255,255,0.9)",
        "bordercolor": "rgba(0,0,0,0.2)",
        "borderwidth": 1,
    },
    margin={"l": 120, "r": 50, "t": 120, "b": 100},
    plot_bgcolor="white",
)

# Save as PNG and HTML
fig.write_image("plot.png", width=1600, height=900, scale=3)
fig.write_html("plot.html", include_plotlyjs=True)

Part of Annotated Line Plot with Event Markers on anyplot.ai.
