Annotated Line Plot with Event Markers — Matplotlib

A line plot with annotations at key points marking important events or milestones. This visualization enhances time series data by highlighting significant occurrences such as product launches, policy changes, or market events directly on the chart. Vertical lines, markers, and text labels draw attention to specific moments in time, making it easy to correlate data trends with real-world events.

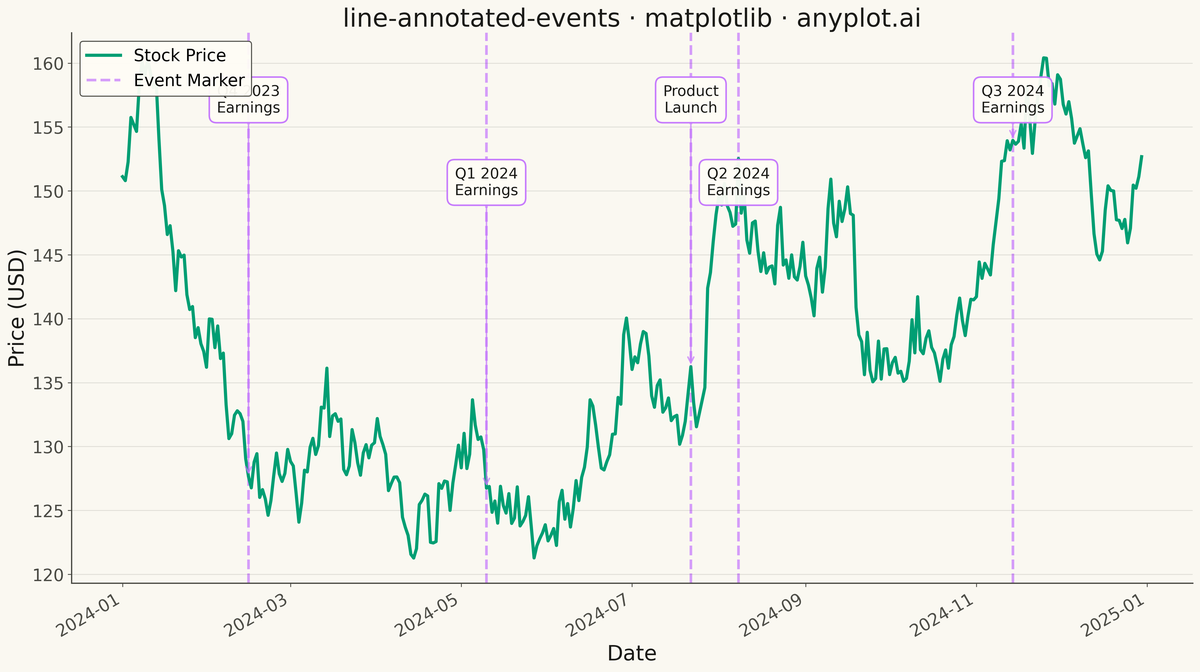

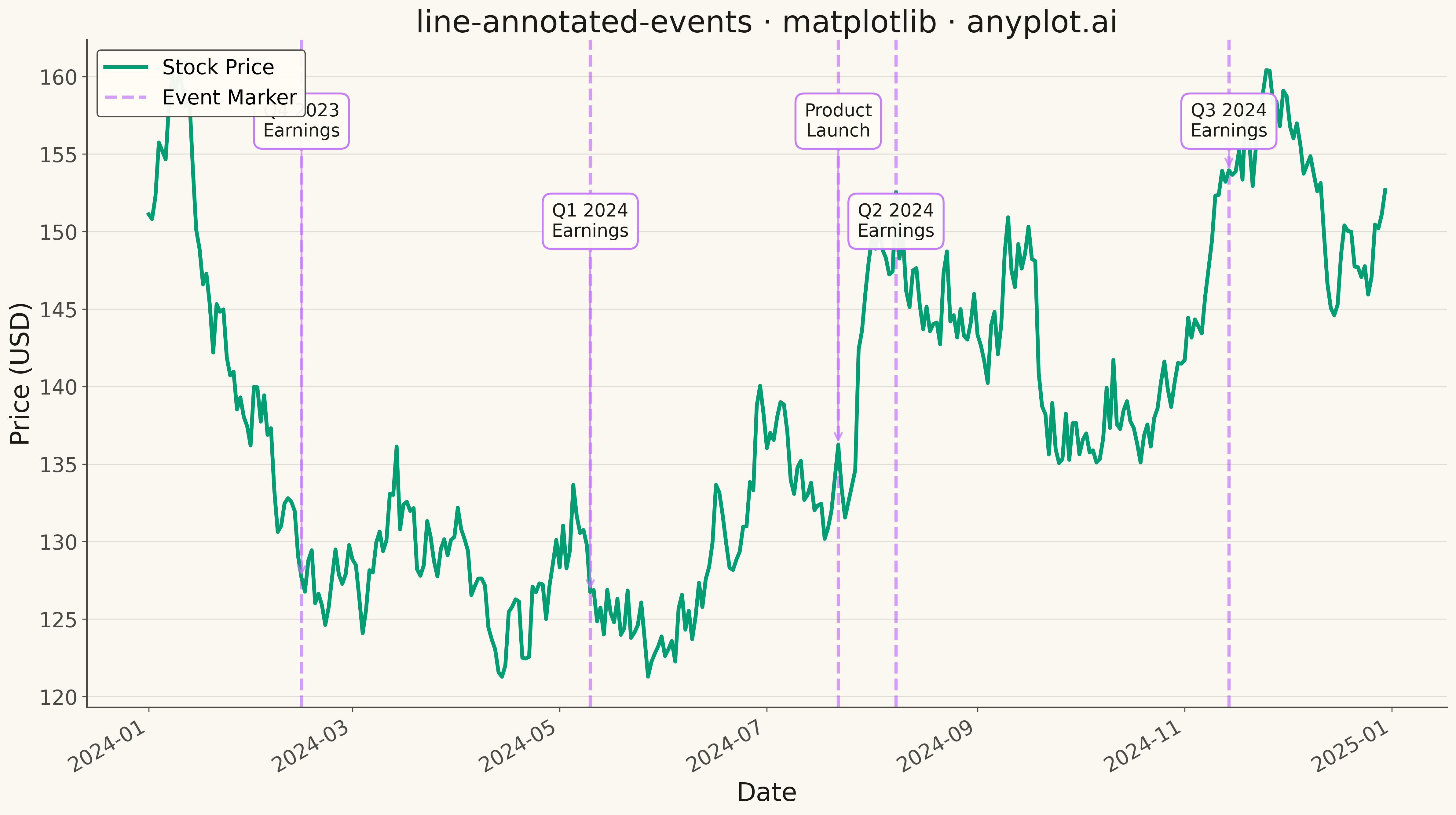

Annotated Line Plot with Event Markers rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
line-annotated-events: Annotated Line Plot with Event Markers
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-16
"""

import os

import matplotlib.lines as mlines
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd


# Theme tokens

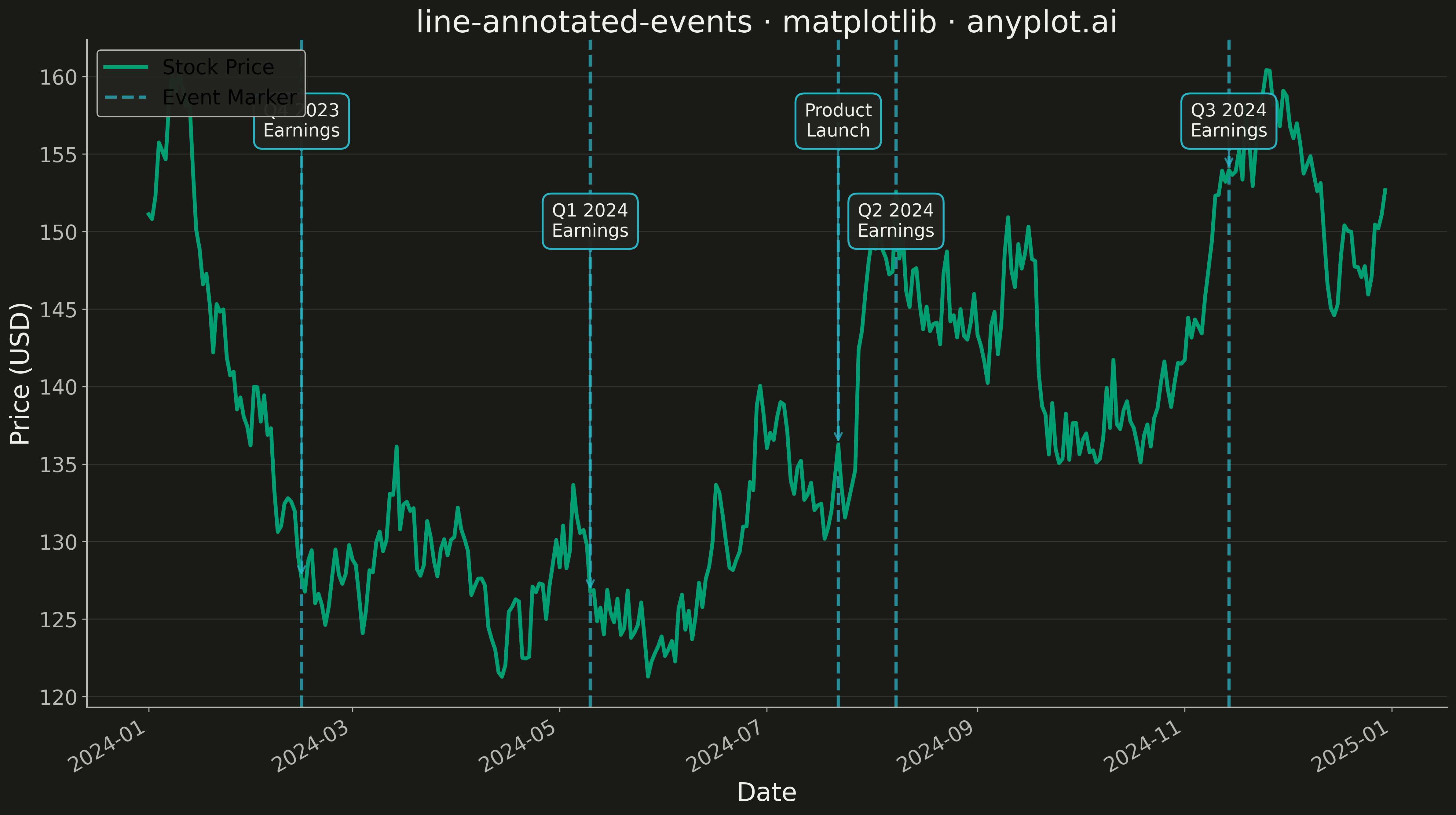

THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"

# Data
np.random.seed(42)
dates = pd.date_range("2024-01-01", periods=365, freq="D")
base_price = 150
returns = np.random.randn(365) * 0.015
prices = base_price * np.cumprod(1 + returns)

# Event dates and labels
events = [
    (pd.Timestamp("2024-02-15"), "Q4 2023\nEarnings"),
    (pd.Timestamp("2024-05-10"), "Q1 2024\nEarnings"),
    (pd.Timestamp("2024-07-22"), "Product\nLaunch"),
    (pd.Timestamp("2024-08-08"), "Q2 2024\nEarnings"),
    (pd.Timestamp("2024-11-14"), "Q3 2024\nEarnings"),
]

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Main line in brand color
ax.plot(dates, prices, linewidth=3, color=BRAND, label="Stock Price", zorder=2)

# Event markers with alternating heights
event_color = "#C475FD" if THEME == "light" else "#2ABCCD"
heights = [0.85, 0.70, 0.85, 0.70, 0.85]

for i, (event_date, event_label) in enumerate(events):
    # Vertical dashed line for event
    ax.axvline(x=event_date, color=event_color, linestyle="--", linewidth=2.5, alpha=0.7, zorder=1)

    # Text annotation with FancyBboxPatch-style box
    y_pos = ax.get_ylim()[0] + (ax.get_ylim()[1] - ax.get_ylim()[0]) * heights[i]
    ax.annotate(
        event_label,
        xy=(event_date, prices[dates.get_loc(event_date)]),
        xytext=(event_date, y_pos),
        fontsize=14,
        ha="center",
        va="bottom",
        color=INK,
        bbox={"boxstyle": "round,pad=0.5", "facecolor": ELEVATED_BG, "edgecolor": event_color, "linewidth": 1.5, "alpha": 0.95},
        arrowprops={"arrowstyle": "->", "color": event_color, "lw": 1.5, "alpha": 0.7},
    )

# Styling
ax.set_xlabel("Date", fontsize=20, color=INK)
ax.set_ylabel("Price (USD)", fontsize=20, color=INK)
ax.set_title("line-annotated-events · matplotlib · anyplot.ai", fontsize=24, color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT, labelcolor=INK_SOFT)

# Grid
ax.yaxis.grid(True, alpha=0.15, linewidth=0.8, color=INK_SOFT)

# Spines
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)
    ax.spines[s].set_linewidth(1.2)

# Legend with proper Line2D proxy for event marker
event_line = mlines.Line2D([], [], color=event_color, linestyle="--", linewidth=2.5, label="Event Marker", alpha=0.7)
ax.legend(
    handles=[ax.get_lines()[0], event_line],
    fontsize=16,
    loc="upper left",
    frameon=True,
    facecolor=ELEVATED_BG,
    edgecolor=INK_SOFT,
    framealpha=0.95,
)

# Format x-axis for date readability
fig.autofmt_xdate(rotation=30, ha="right")

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Annotated Line Plot with Event Markers on anyplot.ai.
