Line Plot with Confidence Interval — Bokeh

A line plot with a confidence interval displays a central trend line (typically mean or median) surrounded by a shaded band representing uncertainty or variability. The combination of a clear central line and semi-transparent confidence region effectively communicates both the estimated value and its associated uncertainty, making it essential for visualizing statistical estimates, model predictions, and forecast ranges.

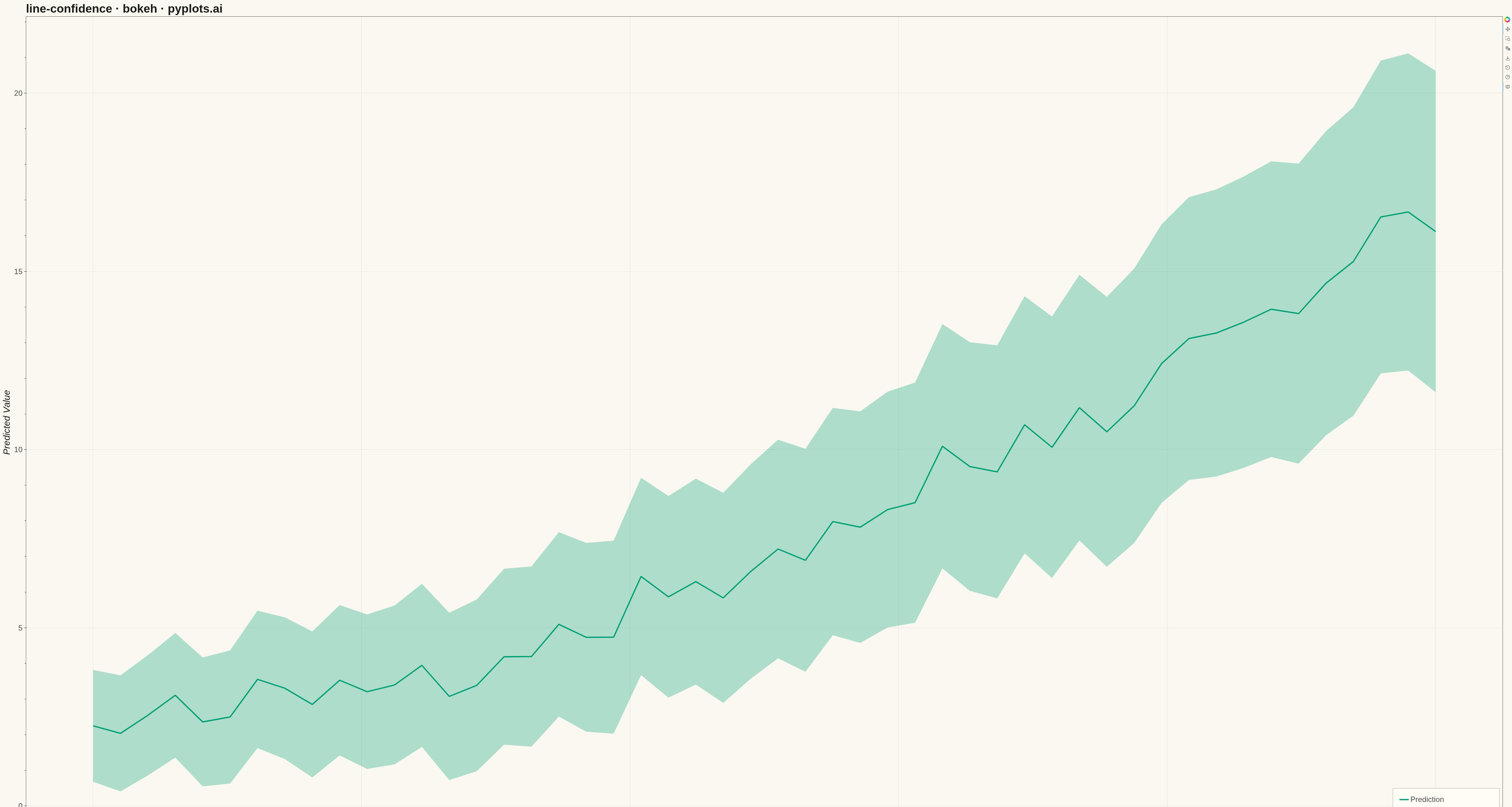

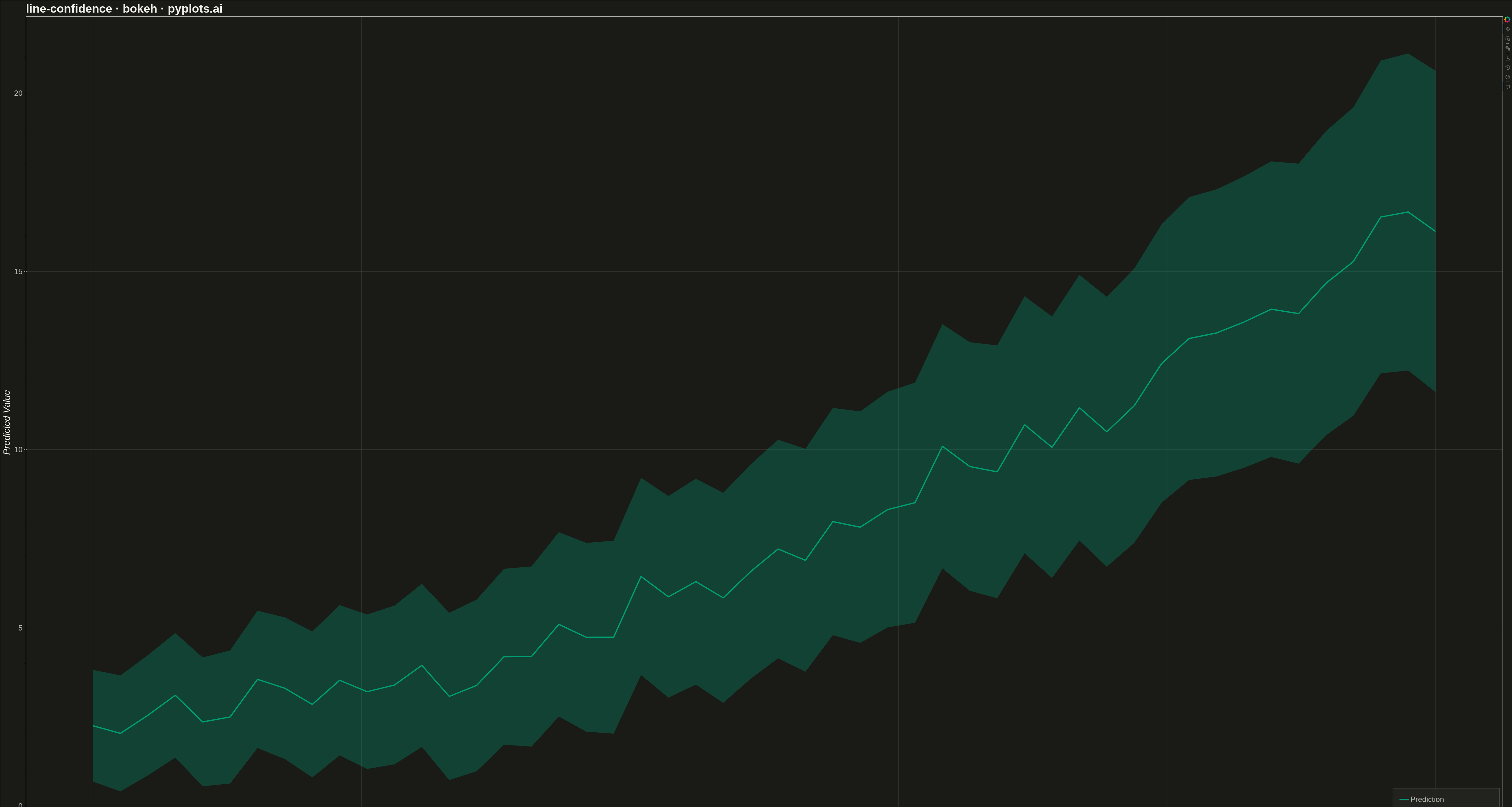

Line Plot with Confidence Interval rendered with Bokeh

Python source (Bokeh)

""" anyplot.ai
line-confidence: Line Plot with Confidence Interval
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-09
"""

import os
import time
from pathlib import Path

import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Legend
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options


# Theme-adaptive colors
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data - Simulating model predictions with 95% confidence interval
np.random.seed(42)
x = np.linspace(0, 10, 50)

# True underlying function with some curvature
y_true = 2 + 0.5 * x + 0.1 * x**2

# Add noise to create observed "predictions"
y = y_true + np.random.normal(0, 0.5, len(x))

# Confidence interval (widens slightly over prediction horizon)
uncertainty = 0.8 + 0.15 * x
y_lower = y - 1.96 * uncertainty
y_upper = y + 1.96 * uncertainty

# Create ColumnDataSource
source = ColumnDataSource(data={"x": x, "y": y, "y_lower": y_lower, "y_upper": y_upper})

# Create figure (4800 x 2700 px for 16:9 aspect ratio)
p = figure(
    width=4800,
    height=2700,
    title="line-confidence · bokeh · pyplots.ai",
    x_axis_label="Time (units)",
    y_axis_label="Predicted Value",
)

# Style the plot - scaled for large canvas
p.title.text_font_size = "28pt"
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"

# Add confidence band using varea
band = p.varea(x="x", y1="y_lower", y2="y_upper", source=source, fill_color="#009E73", fill_alpha=0.3)

# Add central trend line
line = p.line(x="x", y="y", source=source, line_color="#009E73", line_width=4)

# Add HoverTool for interactivity
hover = HoverTool(tooltips=[("Time", "@x{0.00}"), ("Prediction", "@y{0.00}")])
p.add_tools(hover)

# Add legend with improved placement
legend = Legend(items=[("Prediction", [line]), ("95% Confidence Interval", [band])], location="bottom_right")
legend.label_text_font_size = "18pt"
legend.glyph_height = 30
legend.glyph_width = 30
legend.spacing = 15
legend.padding = 20
legend.background_fill_alpha = 0.9
p.add_layout(legend)

# Theme-adaptive styling
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT

p.title.text_color = INK
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT

p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10

if p.legend:
    p.legend.background_fill_color = ELEVATED_BG
    p.legend.border_line_color = INK_SOFT
    p.legend.label_text_color = INK_SOFT

# Write the interactive HTML (also a required catalog artifact)
output_file(f"plot-{THEME}.html")
save(p)

# Screenshot it with headless Chrome — Selenium 4 / Selenium Manager
# auto-resolves a working driver for the system Chrome.
W, H = 4800, 2700
opts = Options()
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)  # let bokeh's JS render the canvas
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()

Part of Line Plot with Confidence Interval on anyplot.ai.
