Line Plot with Confidence Interval — Plotly

A line plot with a confidence interval displays a central trend line (typically mean or median) surrounded by a shaded band representing uncertainty or variability. The combination of a clear central line and semi-transparent confidence region effectively communicates both the estimated value and its associated uncertainty, making it essential for visualizing statistical estimates, model predictions, and forecast ranges.

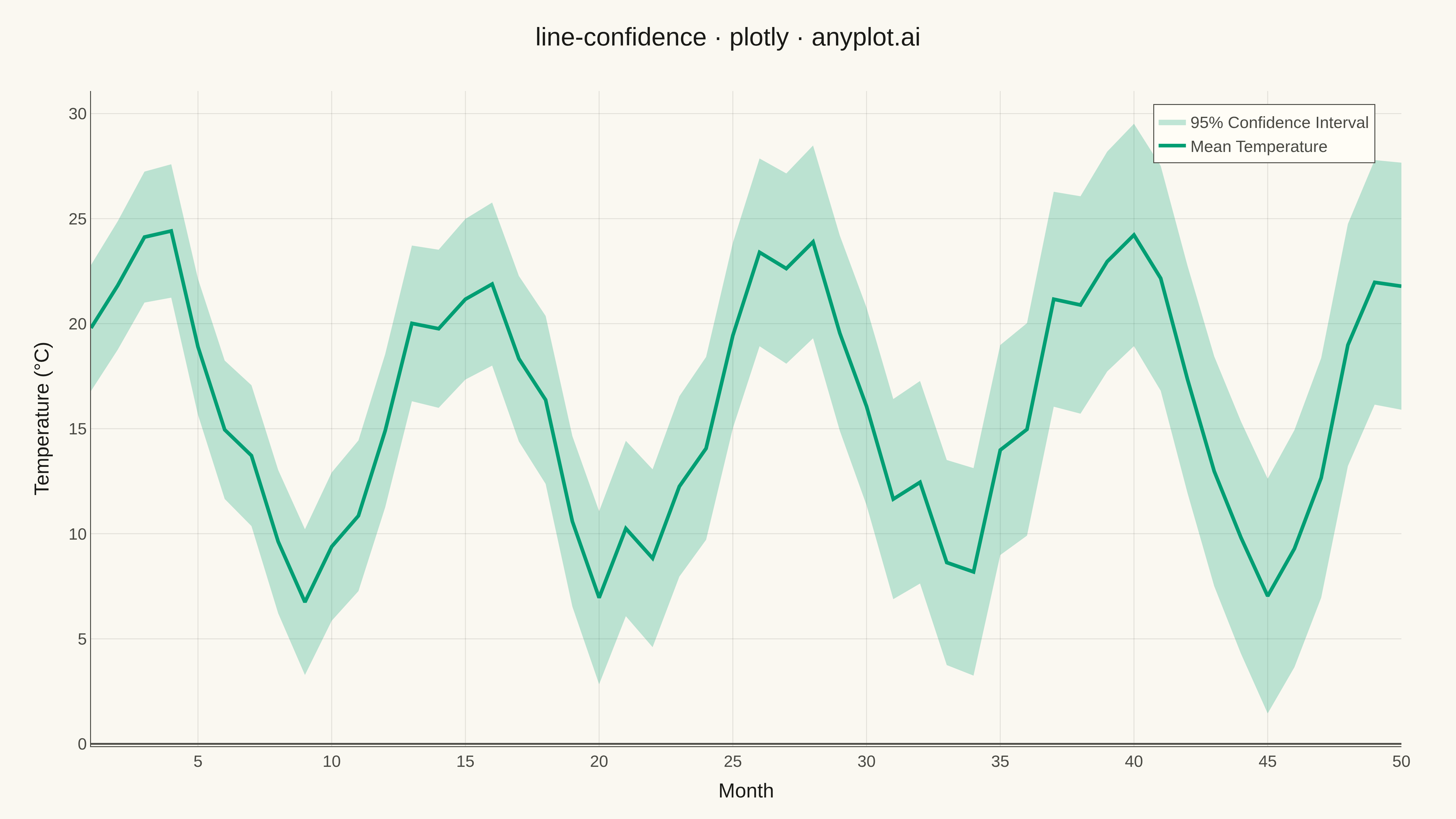

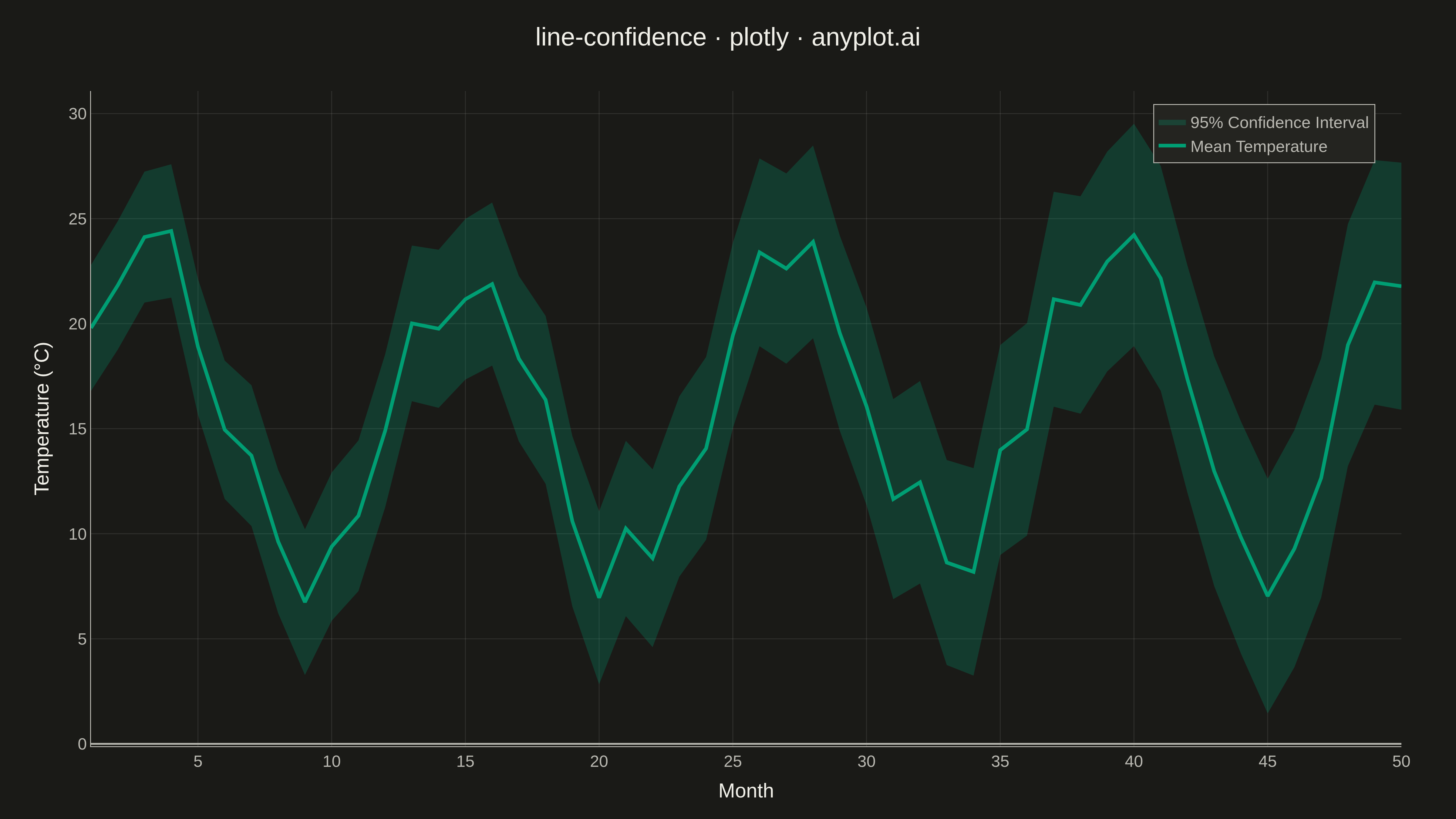

Line Plot with Confidence Interval rendered with Plotly

Python source (Plotly)

""" anyplot.ai
line-confidence: Line Plot with Confidence Interval
Library: plotly 6.7.0 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-09
"""

import os

import numpy as np
import plotly.graph_objects as go


# Theme tokens (see prompts/default-style-guide.md)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"
BRAND = "#009E73"  # Okabe-Ito position 1 — ALWAYS first series

# Data - Monthly temperature forecast with 95% confidence interval
np.random.seed(42)

# Generate 50 months of data
months = np.arange(1, 51)

# Create a realistic temperature trend with seasonality
base_trend = 15 + 0.05 * months  # Slight warming trend
seasonality = 8 * np.sin(2 * np.pi * months / 12)  # Annual cycle
noise = np.random.normal(0, 1.5, len(months))

# Central temperature values (mean forecast)
temperature_mean = base_trend + seasonality + noise

# Confidence interval widens slightly over time (uncertainty grows)
uncertainty = 1.5 + 0.03 * months
y_lower = temperature_mean - 1.96 * uncertainty
y_upper = temperature_mean + 1.96 * uncertainty

# Create figure
fig = go.Figure()

# Add confidence band (shaded area) with custom hover
band_color = f"rgba({int(BRAND[1:3], 16)}, {int(BRAND[3:5], 16)}, {int(BRAND[5:7], 16)}, 0.25)"
fig.add_trace(
    go.Scatter(
        x=np.concatenate([months, months[::-1]]),
        y=np.concatenate([y_upper, y_lower[::-1]]),
        fill="toself",
        fillcolor=band_color,
        line=dict(color="rgba(255, 255, 255, 0)"),
        hovertemplate="<b>95% CI</b><br>Month: %{x:.0f}<extra></extra>",
        showlegend=True,
        name="95% Confidence Interval",
    )
)

# Add central line (mean) with custom hover
fig.add_trace(
    go.Scatter(
        x=months,
        y=temperature_mean,
        mode="lines",
        line=dict(color=BRAND, width=4),
        hovertemplate="<b>Mean Temperature</b><br>Month: %{x:.0f}<br>Temp: %{y:.1f}°C<extra></extra>",
        name="Mean Temperature",
    )
)

# Update layout for large canvas with theme-adaptive colors
fig.update_layout(
    title=dict(text="line-confidence · plotly · anyplot.ai", font=dict(size=28, color=INK), x=0.5, xanchor="center"),
    xaxis=dict(
        title=dict(text="Month", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        gridcolor=GRID,
        gridwidth=1,
        showgrid=True,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    yaxis=dict(
        title=dict(text="Temperature (°C)", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        gridcolor=GRID,
        gridwidth=1,
        showgrid=True,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    legend=dict(
        font=dict(size=18, color=INK_SOFT),
        x=0.98,
        y=0.98,
        xanchor="right",
        yanchor="top",
        bgcolor=ELEVATED_BG,
        bordercolor=INK_SOFT,
        borderwidth=1,
    ),
    template="plotly_white",
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    margin=dict(l=100, r=60, t=100, b=80),
)

# Save as PNG (4800 × 2700 px)
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)

# Save as HTML for interactivity
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Line Plot with Confidence Interval on anyplot.ai.
