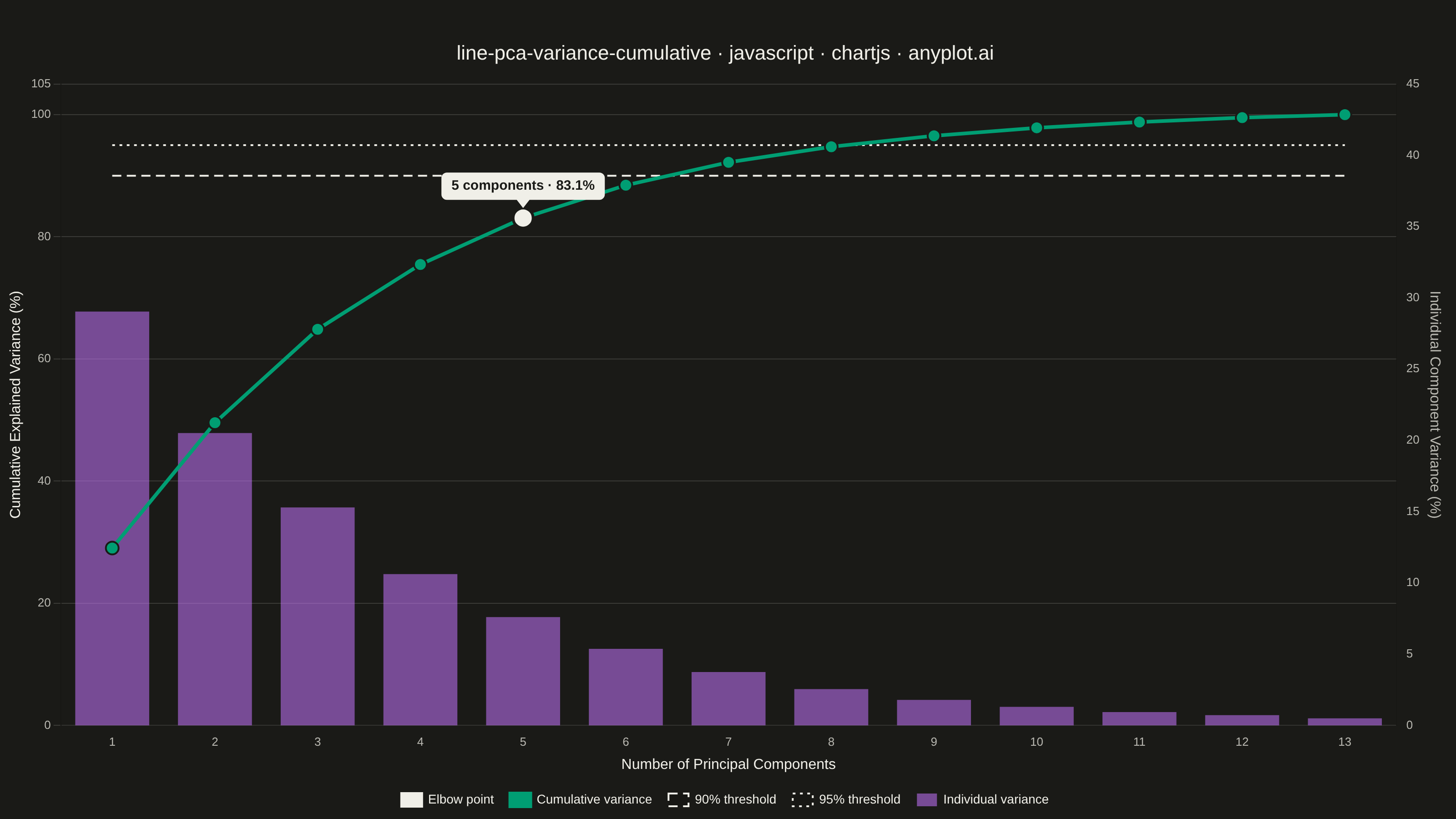

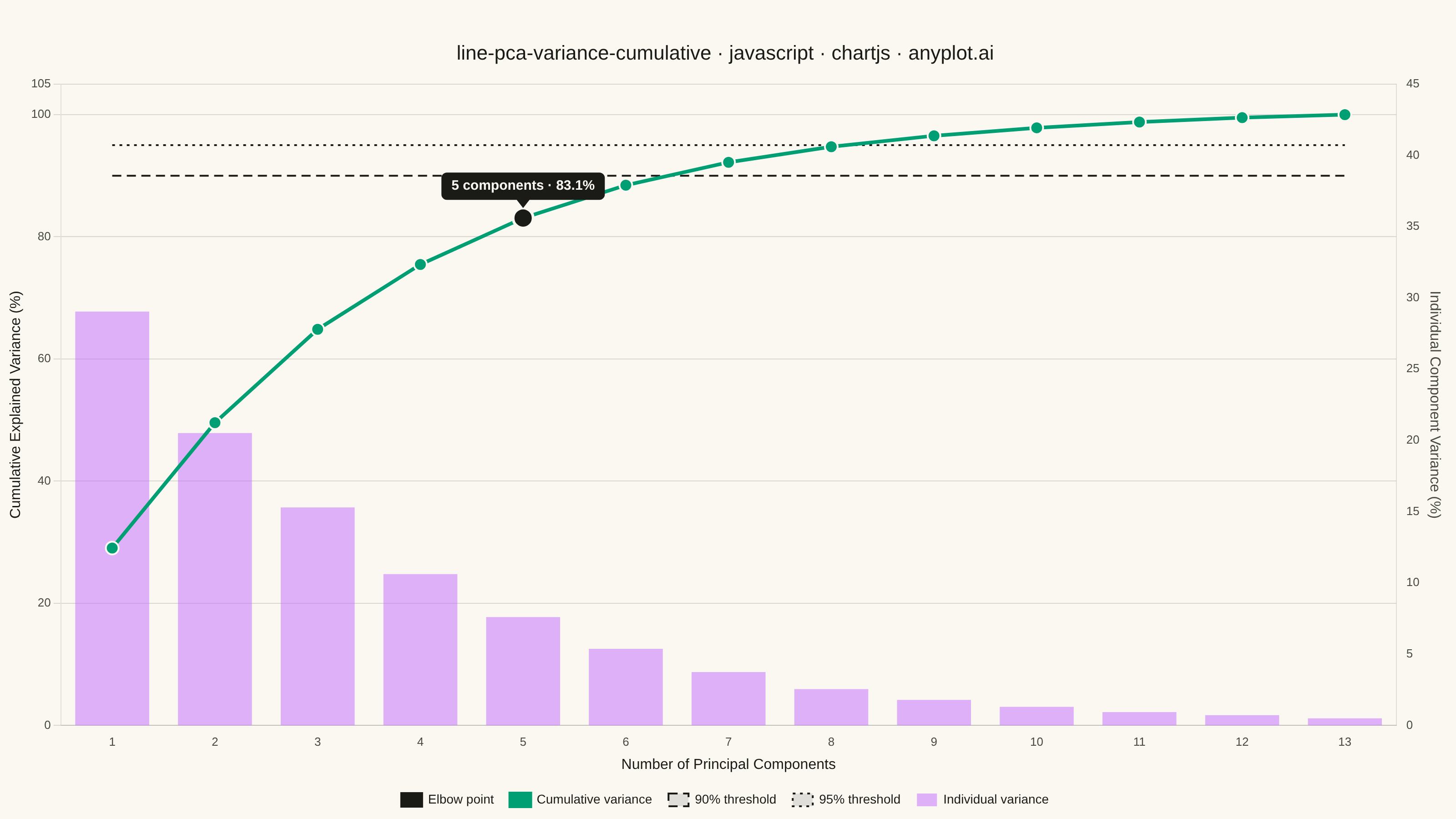

A line plot showing the cumulative proportion of explained variance as a function of the number of Principal Component Analysis (PCA) components. This visualization helps determine the optimal number of components to retain by displaying the trade-off between dimensionality reduction and information preservation. The cumulative curve typically exhibits an elbow pattern where additional components yield diminishing returns, and horizontal threshold lines (e.g., 90%, 95%) guide component selection decisions.
// anyplot.ai
// line-pca-variance-cumulative: Cumulative Explained Variance for PCA Component Selection
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 93/100 | Created: 2026-08-26
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// 13 standardized chemical-composition features (alcohol, acidity, phenols,
// color intensity, etc.) from a wine-cultivar dataset — a classic PCA example.
// Individual variance ratios decay geometrically with a small deterministic
// wobble (fixed-seed LCG), then are normalized so they sum to 1.0.
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1103515245 + 12345) & 0x7fffffff;
return state / 0x7fffffff;
};
}
const rand = lcg(42);
const nComponents = 13;
const rawRatios = Array.from({ length: nComponents }, (_, i) => {
const decay = Math.exp(-0.34 * i);
const wobble = 1 + (rand() - 0.5) * 0.12;
return decay * wobble;
});
const rawTotal = rawRatios.reduce((a, b) => a + b, 0);
const individualRatio = rawRatios.map((v) => v / rawTotal);
const componentLabels = individualRatio.map((_, i) => String(i + 1));
const cumulativePct = [];
individualRatio.reduce((acc, v, i) => {
const next = acc + v;
cumulativePct[i] = next * 100;
return next;
}, 0);
const individualPct = individualRatio.map((v) => v * 100);
// Elbow detection (kneedle-style): the point on the cumulative curve with the
// largest perpendicular distance from the line connecting the first and last
// points — the classic scree-plot "knee".
function findElbowIndex(xs, ys) {
const x1 = xs[0], y1 = ys[0];
const xN = xs[xs.length - 1], yN = ys[ys.length - 1];
const denom = Math.hypot(xN - x1, yN - y1);
let bestIdx = 0;
let bestDist = -1;
xs.forEach((x, i) => {
const dist = Math.abs((yN - y1) * x - (xN - x1) * ys[i] + xN * y1 - yN * x1) / denom;
if (dist > bestDist) {
bestDist = dist;
bestIdx = i;
}
});
return bestIdx;
}
const elbowIdx = findElbowIndex(
componentLabels.map(Number),
cumulativePct
);
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Elbow callout (custom Chart.js plugin, no external deps) ----------------
// Labels the elbow marker with the component count + cumulative variance so
// the recommendation is self-explanatory without cross-referencing the legend.
const elbowCalloutPlugin = {
id: "elbowCallout",
afterDatasetsDraw(chart) {
const meta = chart.getDatasetMeta(4);
const point = meta.data[elbowIdx];
if (!point) return;
const { ctx } = chart;
const { x, y } = point.getProps(["x", "y"], true);
const label = `${elbowIdx + 1} components · ${cumulativePct[elbowIdx].toFixed(1)}%`;
ctx.save();
ctx.font = "600 15px sans-serif";
const textWidth = ctx.measureText(label).width;
const boxWidth = textWidth + 22;
const boxHeight = 30;
const boxX = x - boxWidth / 2;
const boxY = y - boxHeight - 20;
ctx.fillStyle = t.ink;
ctx.beginPath();
ctx.roundRect(boxX, boxY, boxWidth, boxHeight, 6);
ctx.moveTo(x - 7, boxY + boxHeight);
ctx.lineTo(x + 7, boxY + boxHeight);
ctx.lineTo(x, boxY + boxHeight + 9);
ctx.closePath();
ctx.fill();
ctx.fillStyle = t.pageBg;
ctx.textAlign = "center";
ctx.textBaseline = "middle";
ctx.fillText(label, x, boxY + boxHeight / 2);
ctx.restore();
},
};
// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
type: "bar",
data: {
labels: componentLabels,
datasets: [
{
type: "bar",
label: "Individual variance",
data: individualPct,
backgroundColor: `${t.palette[1]}8c`,
borderWidth: 0,
yAxisID: "y1",
order: 3,
},
{
type: "line",
label: "Cumulative variance",
data: cumulativePct,
borderColor: t.palette[0],
backgroundColor: t.palette[0],
pointBackgroundColor: t.palette[0],
pointBorderColor: t.pageBg,
pointRadius: 7,
pointBorderWidth: 2,
borderWidth: 4,
tension: 0,
yAxisID: "y",
order: 1,
},
{
type: "line",
label: "90% threshold",
data: componentLabels.map(() => 90),
borderColor: t.ink,
borderDash: [10, 6],
borderWidth: 2,
pointRadius: 0,
yAxisID: "y",
order: 2,
},
{
type: "line",
label: "95% threshold",
data: componentLabels.map(() => 95),
borderColor: t.ink,
borderDash: [3, 5],
borderWidth: 2,
pointRadius: 0,
yAxisID: "y",
order: 2,
},
{
type: "line",
label: "Elbow point",
data: componentLabels.map((_, i) => (i === elbowIdx ? cumulativePct[i] : null)),
showLine: false,
backgroundColor: t.ink,
borderColor: t.ink,
pointRadius: 11,
pointBackgroundColor: t.ink,
pointBorderColor: t.pageBg,
pointBorderWidth: 3,
yAxisID: "y",
order: 0,
},
],
},
plugins: [elbowCalloutPlugin],
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: { padding: { top: 46, right: 10, bottom: 4, left: 4 } },
plugins: {
title: {
display: true,
text: "line-pca-variance-cumulative · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22, weight: "500" },
padding: { bottom: 20 },
},
legend: {
position: "bottom",
labels: { color: t.ink, font: { size: 14 }, boxWidth: 22, padding: 18 },
},
},
scales: {
x: {
title: { display: true, text: "Number of Principal Components", color: t.ink, font: { size: 16 } },
ticks: { color: t.inkSoft, font: { size: 13 } },
grid: { display: false },
},
y: {
position: "left",
min: 0,
max: 105,
title: { display: true, text: "Cumulative Explained Variance (%)", color: t.ink, font: { size: 16 } },
ticks: { color: t.inkSoft, font: { size: 13 }, stepSize: 20 },
grid: { color: t.grid },
},
y1: {
position: "right",
min: 0,
max: 45,
title: { display: true, text: "Individual Component Variance (%)", color: t.inkSoft, font: { size: 16 } },
ticks: { color: t.inkSoft, font: { size: 13 } },
grid: { display: false },
},
},
},
});
