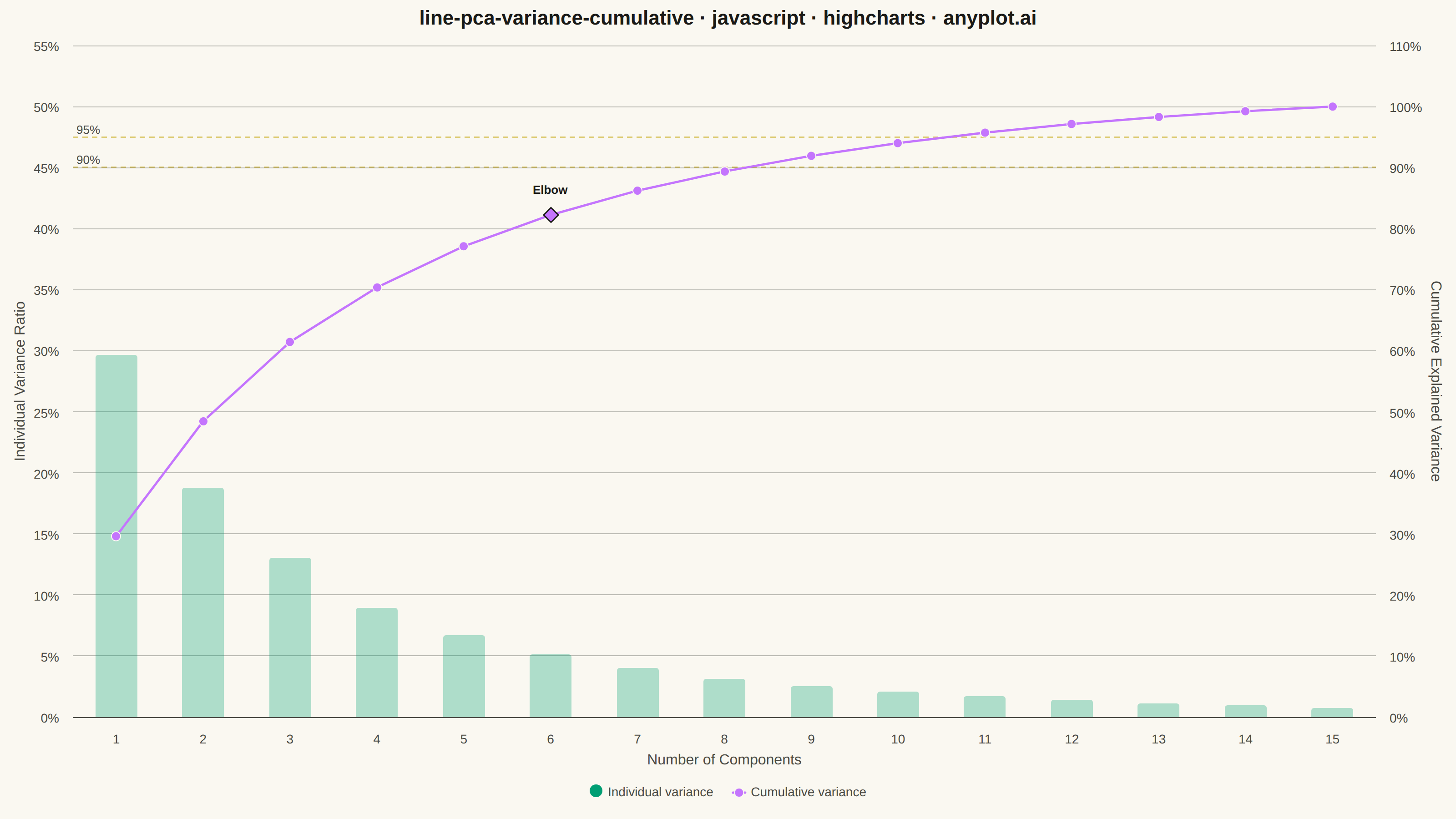

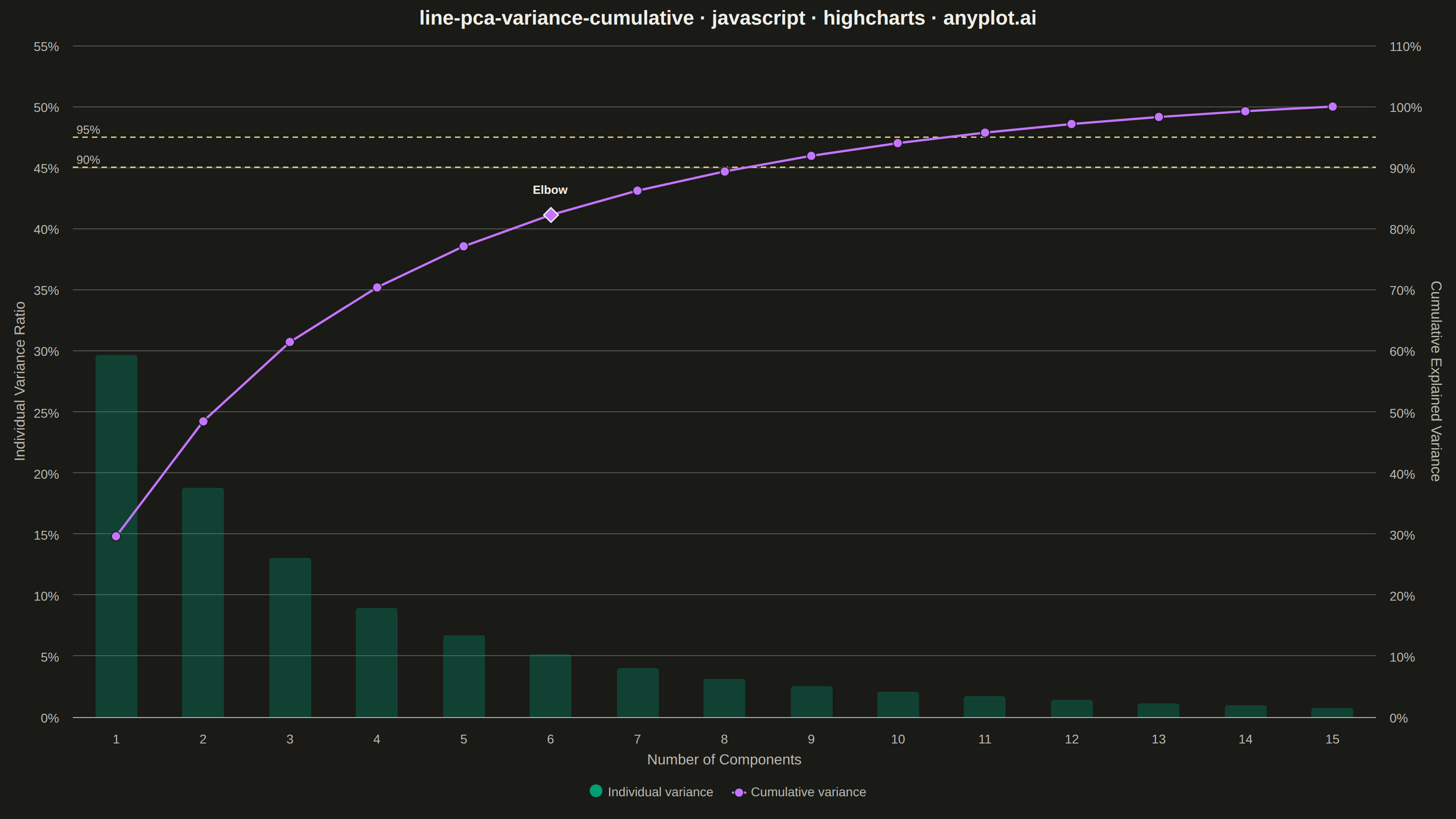

A line plot showing the cumulative proportion of explained variance as a function of the number of Principal Component Analysis (PCA) components. This visualization helps determine the optimal number of components to retain by displaying the trade-off between dimensionality reduction and information preservation. The cumulative curve typically exhibits an elbow pattern where additional components yield diminishing returns, and horizontal threshold lines (e.g., 90%, 95%) guide component selection decisions.
// anyplot.ai
// line-pca-variance-cumulative: Cumulative Explained Variance for PCA Component Selection
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-08-26
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Simulated eigenvalues from PCA on a 15-sensor manufacturing quality-control
// dataset (temperature, pressure, vibration, etc. readings on a production line).
const rawEigenvalues = [
312, 198, 137, 94, 71, 54, 42, 33, 27, 22, 18, 15, 12, 10, 8,
];
const totalVariance = rawEigenvalues.reduce((sum, v) => sum + v, 0);
const individualRatio = rawEigenvalues.map((v) => v / totalVariance);
const cumulativeRatio = individualRatio.reduce((acc, v, i) => {
acc.push((i > 0 ? acc[i - 1] : 0) + v);
return acc;
}, []);
const nComponents = rawEigenvalues.map((_, i) => i + 1);
// Elbow detection: point of max perpendicular distance from the chord
// connecting the first and last cumulative points (standard elbow heuristic).
const x1 = 0;
const y1 = cumulativeRatio[0];
const x2 = cumulativeRatio.length - 1;
const y2 = cumulativeRatio[cumulativeRatio.length - 1];
const chordLength = Math.hypot(x2 - x1, y2 - y1);
const distances = cumulativeRatio.map((y, i) => {
const x = i;
return Math.abs((y2 - y1) * x - (x2 - x1) * y + x2 * y1 - y2 * x1) / chordLength;
});
const elbowIndex = distances.indexOf(Math.max(...distances));
// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "line-pca-variance-cumulative · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
xAxis: {
categories: nComponents.map(String),
title: { text: "Number of Components", style: { color: t.inkSoft, fontSize: "16px" } },
lineColor: t.inkSoft,
tickColor: t.inkSoft,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
yAxis: [
{
title: { text: "Individual Variance Ratio", style: { color: t.inkSoft, fontSize: "16px" } },
labels: {
style: { color: t.inkSoft, fontSize: "14px" },
formatter() {
return Math.round(this.value * 100) + "%";
},
},
gridLineColor: t.grid,
max: Math.max(...individualRatio) * 1.6,
},
{
title: { text: "Cumulative Explained Variance", style: { color: t.inkSoft, fontSize: "16px" } },
labels: {
style: { color: t.inkSoft, fontSize: "14px" },
formatter() {
return Math.round(this.value * 100) + "%";
},
},
gridLineColor: t.grid,
min: 0,
max: 1,
opposite: true,
plotLines: [
{
value: 0.9,
color: t.amber,
dashStyle: "Dash",
width: 1.5,
label: { text: "90%", style: { color: t.inkSoft, fontSize: "13px" }, align: "left", x: 4 },
},
{
value: 0.95,
color: t.amber,
dashStyle: "Dash",
width: 1.5,
label: { text: "95%", style: { color: t.inkSoft, fontSize: "13px" }, align: "left", x: 4 },
},
],
},
],
legend: {
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
plotOptions: {
series: { animation: false },
column: { borderWidth: 0, opacity: 0.55 },
},
series: [
{
type: "column",
name: "Individual variance",
data: individualRatio,
yAxis: 0,
color: t.palette[0],
},
{
type: "line",
name: "Cumulative variance",
data: cumulativeRatio.map((v, i) =>
i === elbowIndex
? { y: v, marker: { radius: 8, symbol: "diamond", fillColor: t.palette[1], lineColor: t.ink, lineWidth: 1.5 } }
: v
),
yAxis: 1,
color: t.palette[1],
lineWidth: 2.5,
marker: { radius: 5, fillColor: t.palette[1], lineColor: t.pageBg, lineWidth: 1 },
dataLabels: {
enabled: true,
formatter() {
return this.point.index === elbowIndex ? "Elbow" : null;
},
style: { color: t.ink, fontSize: "13px", fontWeight: "600", textOutline: "none" },
y: -16,
},
},
],
});
