Time Series Line Plot — Apache ECharts

A time series line plot displays data points connected by lines over a datetime x-axis, with smart date formatting that automatically adjusts tick labels based on the time scale (days, months, years). This plot type is essential for temporal data analysis where proper date formatting and readability are critical. Unlike basic line plots, time series plots handle datetime parsing, timezone awareness, and intelligent tick label formatting.

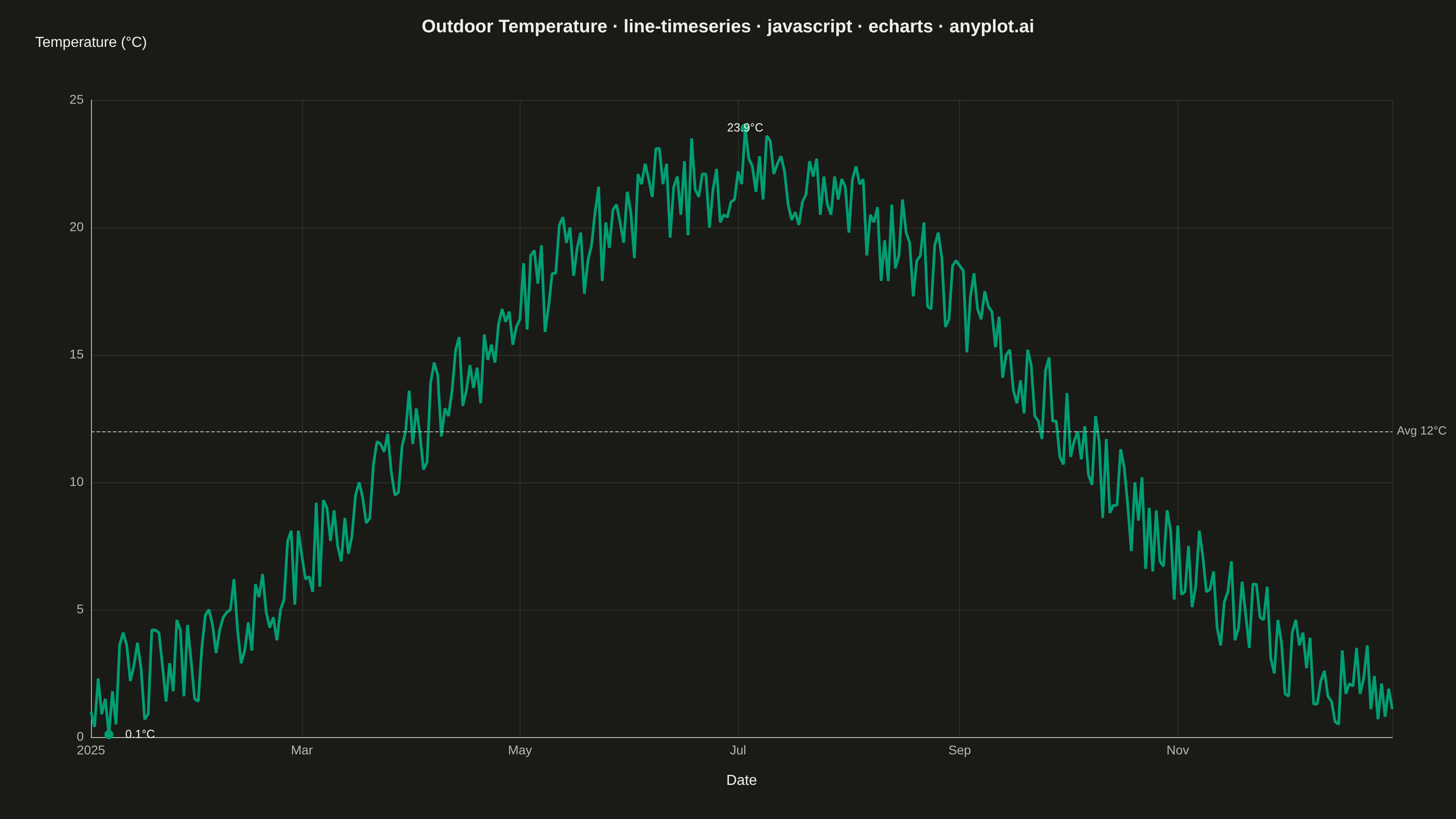

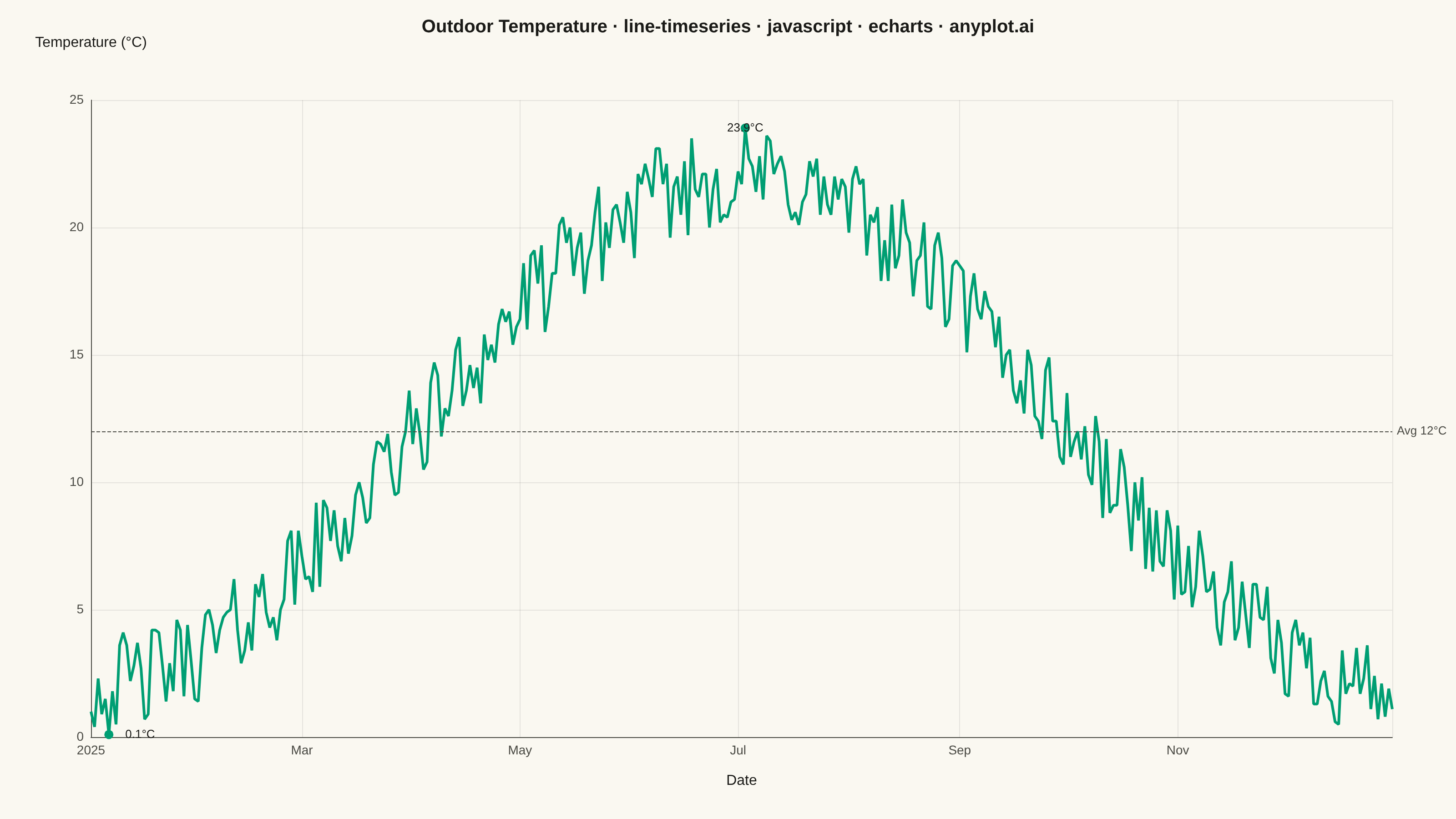

Time Series Line Plot rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// line-timeseries: Time Series Line Plot
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Daily outdoor temperature readings over a full year — seasonal trend + noise,
// generated with a fixed-seed LCG since the browser has no seeded RNG.
let seed = 42;
function nextRandom() {
  seed = (seed * 1664525 + 1013904223) % 4294967296;
  return seed / 4294967296;
}

const numDays = 365;
const startDate = new Date("2025-01-01T00:00:00Z");
const data = [];
let peak = { date: null, value: -Infinity };
let trough = { date: null, value: Infinity };
for (let i = 0; i < numDays; i++) {
  const date = new Date(startDate.getTime() + i * 86400000);
  const isoDate = date.toISOString().slice(0, 10);
  const seasonal = 12 + 10 * Math.sin((2 * Math.PI * i) / 365 - Math.PI / 2);
  const noise = (nextRandom() - 0.5) * 4;
  const value = Number((seasonal + noise).toFixed(1));
  data.push([isoDate, value]);
  if (value > peak.value) peak = { date: isoDate, value };
  if (value < trough.value) trough = { date: isoDate, value };
}
const average = Number(
  (data.reduce((sum, [, v]) => sum + v, 0) / data.length).toFixed(1)
);

// --- Init ---------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option ---------------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "Outdoor Temperature · line-timeseries · javascript · echarts · anyplot.ai",
    left: "center",
    textStyle: { color: t.ink, fontSize: 20 },
  },
  grid: { left: 100, right: 70, top: 110, bottom: 90 },
  dataZoom: [{ type: "inside" }],
  xAxis: {
    type: "time",
    name: "Date",
    nameLocation: "middle",
    nameGap: 40,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: true, lineStyle: { color: t.grid, opacity: 0.6 } },
  },
  yAxis: {
    type: "value",
    name: "Temperature (°C)",
    nameTextStyle: { color: t.ink, fontSize: 16 },
    nameGap: 55,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { show: true, lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid, opacity: 0.6 } },
  },
  series: [
    {
      type: "line",
      data,
      showSymbol: false,
      smooth: false,
      lineStyle: { color: t.palette[0], width: 3 },
      itemStyle: { color: t.palette[0] },
      markPoint: {
        symbol: "circle",
        symbolSize: 10,
        itemStyle: { color: t.palette[0] },
        label: { color: t.ink, fontSize: 13, formatter: (p) => `${p.value}°C` },
        data: [
          { name: "Peak", coord: [peak.date, peak.value], value: peak.value },
          {
            name: "Trough",
            coord: [trough.date, trough.value],
            value: trough.value,
            label: { position: "right", offset: [8, 0] },
          },
        ],
      },
      markLine: {
        symbol: "none",
        label: { color: t.inkSoft, fontSize: 13, formatter: `Avg ${average}°C` },
        lineStyle: { color: t.inkSoft, type: "dashed" },
        data: [{ yAxis: average }],
      },
    },
  ],
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-timeseries/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "line-timeseries",
  "language": "javascript",
  "library": "echarts",
  "page": "https://anyplot.ai/line-timeseries/javascript/echarts",
  "hub": "https://anyplot.ai/line-timeseries",
  "code_json": "https://api.anyplot.ai/specs/line-timeseries/echarts/code",
  "spec_json": "https://api.anyplot.ai/specs/line-timeseries",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries/javascript/echarts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries/javascript/echarts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries/javascript/echarts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries/javascript/echarts/plot-dark.html",
  "quality_score": 88.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Time Series Line Plot on anyplot.ai.
