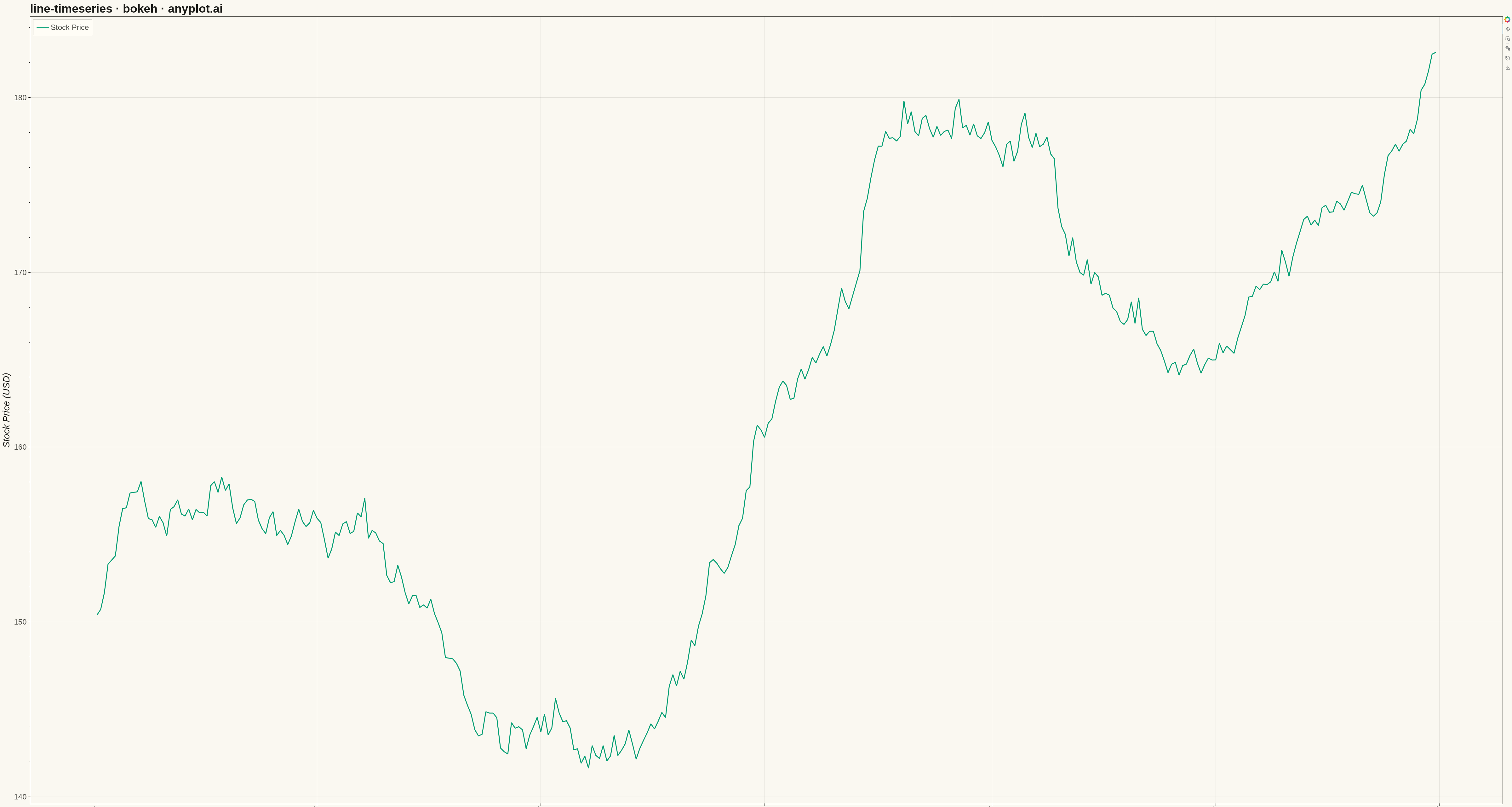

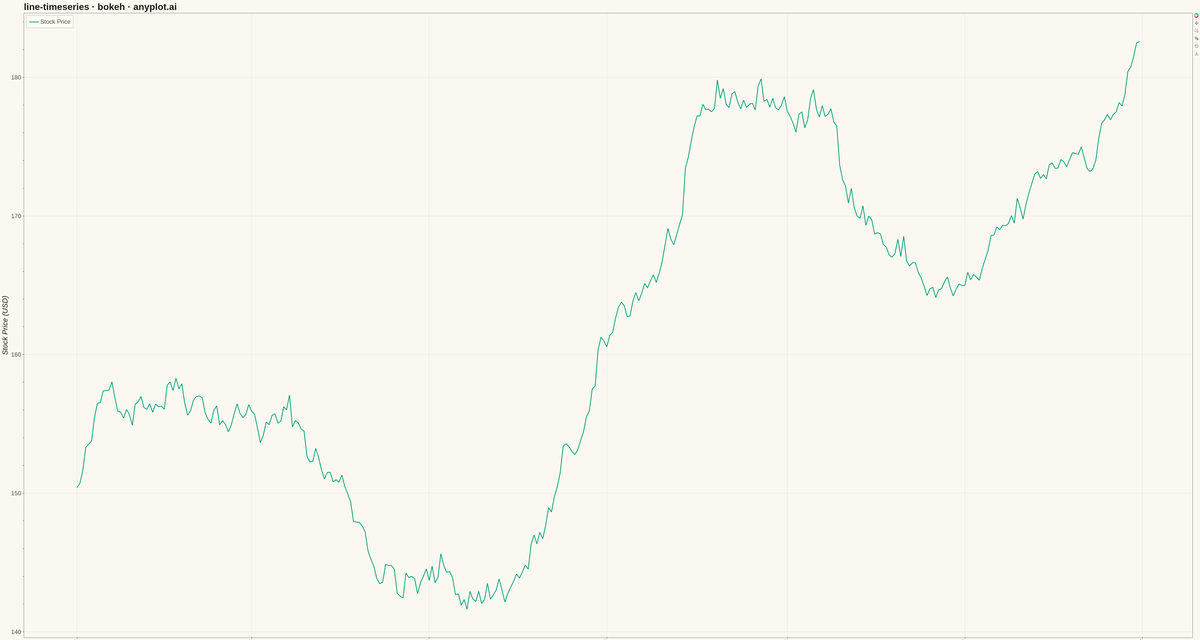

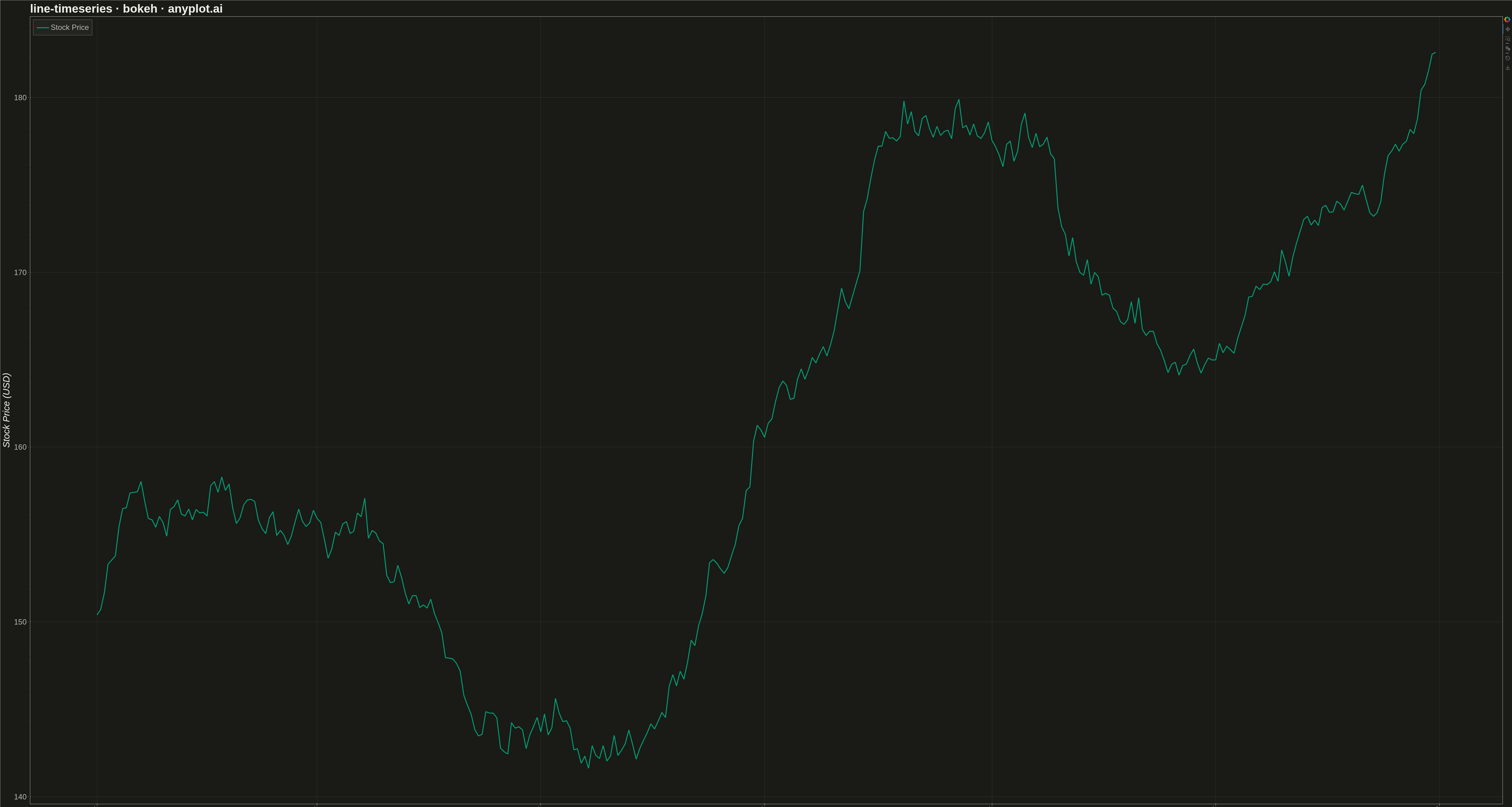

A time series line plot displays data points connected by lines over a datetime x-axis, with smart date formatting that automatically adjusts tick labels based on the time scale (days, months, years). This plot type is essential for temporal data analysis where proper date formatting and readability are critical. Unlike basic line plots, time series plots handle datetime parsing, timezone awareness, and intelligent tick label formatting.
""" anyplot.ai
line-timeseries: Time Series Line Plot
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-09
"""
import os
import sys
import time
from pathlib import Path
import numpy as np
import pandas as pd
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Fix name collision: temporarily remove local directory from sys.path
_local_path = str(Path.cwd())
_sys_path_backup = sys.path.copy()
sys.path = [p for p in sys.path if p != "" and p != "." and p != _local_path]
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource
from bokeh.plotting import figure
sys.path = _sys_path_backup
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73" # Okabe-Ito position 1
# Data - Stock price simulation over one year
np.random.seed(42)
dates = pd.date_range(start="2024-01-01", end="2024-12-31", freq="D")
n_points = len(dates)
# Simulate stock price with trend, seasonality, and noise
base_price = 150
trend = np.linspace(0, 30, n_points)
seasonality = 10 * np.sin(np.linspace(0, 4 * np.pi, n_points))
noise = np.cumsum(np.random.randn(n_points) * 0.8)
prices = base_price + trend + seasonality + noise
prices = np.maximum(prices, 50)
source = ColumnDataSource(data={"date": dates, "price": prices})
# Create figure
p = figure(
width=4800,
height=2700,
title="line-timeseries · bokeh · anyplot.ai",
x_axis_label="Date",
y_axis_label="Stock Price (USD)",
x_axis_type="datetime",
tools="pan,wheel_zoom,box_zoom,reset,save",
)
# Plot the line
p.line(x="date", y="price", source=source, line_width=3, line_color=BRAND, legend_label="Stock Price")
# Styling - text sizes for 4800x2700 px canvas
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "22pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "18pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_color = INK_SOFT
# Grid styling
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
# Legend styling
p.legend.location = "top_left"
p.legend.label_text_font_size = "18pt"
p.legend.label_text_color = INK_SOFT
p.legend.background_fill_color = ELEVATED_BG
p.legend.border_line_color = INK_SOFT
p.legend.border_line_width = 1
p.legend.glyph_height = 25
p.legend.glyph_width = 40
# Axis styling
p.xaxis.major_label_orientation = 0.8
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
# Background
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
# Save HTML
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with headless Chrome
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Time Series Line Plot on anyplot.ai.
