Time Series Line Plot — ggplot2

A time series line plot displays data points connected by lines over a datetime x-axis, with smart date formatting that automatically adjusts tick labels based on the time scale (days, months, years). This plot type is essential for temporal data analysis where proper date formatting and readability are critical. Unlike basic line plots, time series plots handle datetime parsing, timezone awareness, and intelligent tick label formatting.

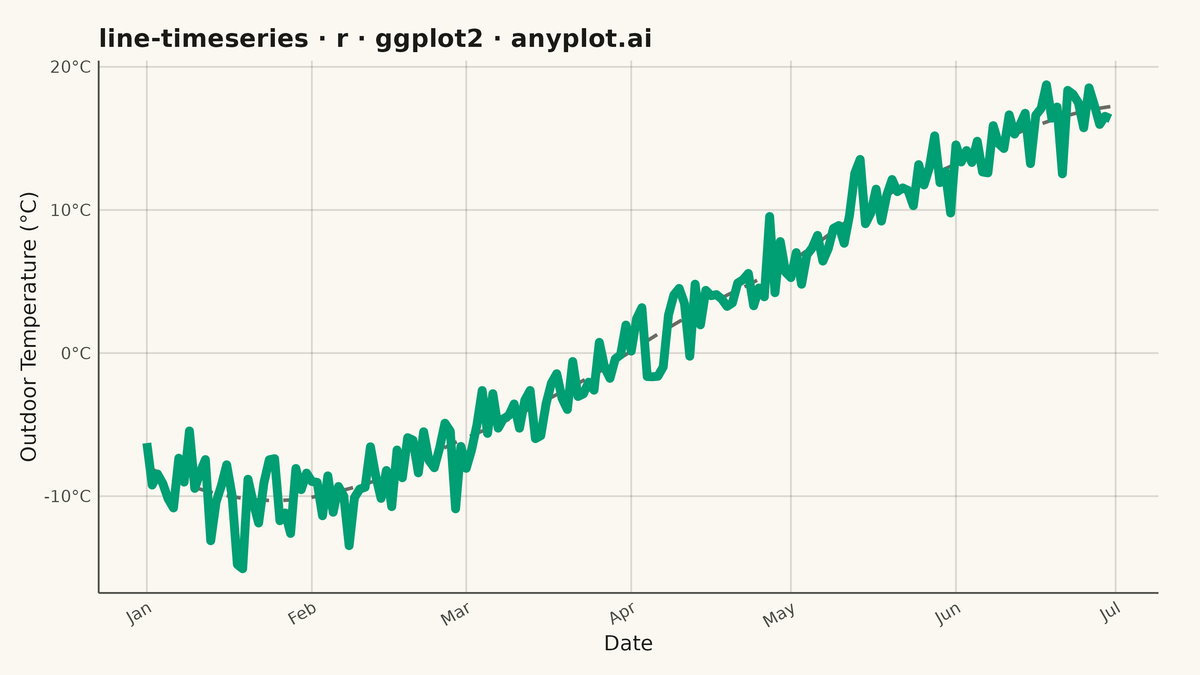

Time Series Line Plot rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' line-timeseries: Time Series Line Plot
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 88/100 | Created: 2026-09-05

library(ggplot2)
library(scales)
library(ragg)

set.seed(42)

# --- Theme tokens -----------------------------------------------------------
THEME    <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG  <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK      <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
GRID     <- scales::alpha(INK, 0.15)  # faint grid — element_line has no alpha arg
BRAND    <- "#009E73"  # Imprint palette position 1 — ALWAYS first series
MUTED    <- if (THEME == "light") "#6B6A63" else "#A8A79F"  # Imprint muted anchor — reference line

# --- Data ---------------------------------------------------------------
# Six months of daily outdoor temperature readings with a seasonal warm-up
# trend, weekly wobble, and day-to-day sensor noise.
n_days <- 182
dates <- seq(as.Date("2024-01-01"), by = "day", length.out = n_days)
day_idx <- seq_len(n_days)

seasonal_trend <- 4 + 14 * sin(2 * pi * (day_idx - 109) / 365)
weekly_wobble <- 1.2 * sin(2 * pi * day_idx / 7)
sensor_noise <- rnorm(n_days, mean = 0, sd = 1.6)
temperature_c <- seasonal_trend + weekly_wobble + sensor_noise

df <- tibble::tibble(date = dates, temperature_c = temperature_c)

title_text <- "line-timeseries · r · ggplot2 · anyplot.ai"

# --- Plot -----------------------------------------------------------------
p <- ggplot(df, aes(x = date, y = temperature_c)) +
  geom_smooth(
    method = "loess", span = 0.3, se = FALSE,
    color = MUTED, linewidth = 0.8, linetype = "dashed"
  ) +
  geom_line(color = BRAND, linewidth = 2) +
  scale_x_date(
    date_breaks = "1 month",
    labels = scales::label_date("%b")
  ) +
  scale_y_continuous(labels = scales::label_number(suffix = "°C")) +
  labs(
    title = title_text,
    x = "Date",
    y = "Outdoor Temperature (°C)"
  ) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background   = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background  = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major  = element_line(color = GRID, linewidth = 0.4),
    panel.grid.minor  = element_blank(),
    panel.border      = element_blank(),
    axis.line         = element_line(color = INK_SOFT, linewidth = 0.4),
    axis.ticks        = element_blank(),
    axis.title        = element_text(color = INK, size = 10),
    axis.text         = element_text(color = INK_SOFT, size = 8),
    axis.text.x       = element_text(angle = 30, hjust = 1),
    plot.title        = element_text(color = INK, size = 12, face = "bold"),
    plot.margin       = margin(t = 14, r = 20, b = 10, l = 10)
  )

# --- Save -------------------------------------------------------------------
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 8,
  height   = 4.5,
  units    = "in",
  dpi      = 400
)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-timeseries/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "line-timeseries",
  "language": "r",
  "library": "ggplot2",
  "page": "https://anyplot.ai/line-timeseries/r/ggplot2",
  "hub": "https://anyplot.ai/line-timeseries",
  "code_json": "https://api.anyplot.ai/specs/line-timeseries/ggplot2/code",
  "spec_json": "https://api.anyplot.ai/specs/line-timeseries",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries/r/ggplot2/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries/r/ggplot2/plot-dark.png",
  "quality_score": 88.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Time Series Line Plot on anyplot.ai.
