Time Series Line Plot — Makie.jl

A time series line plot displays data points connected by lines over a datetime x-axis, with smart date formatting that automatically adjusts tick labels based on the time scale (days, months, years). This plot type is essential for temporal data analysis where proper date formatting and readability are critical. Unlike basic line plots, time series plots handle datetime parsing, timezone awareness, and intelligent tick label formatting.

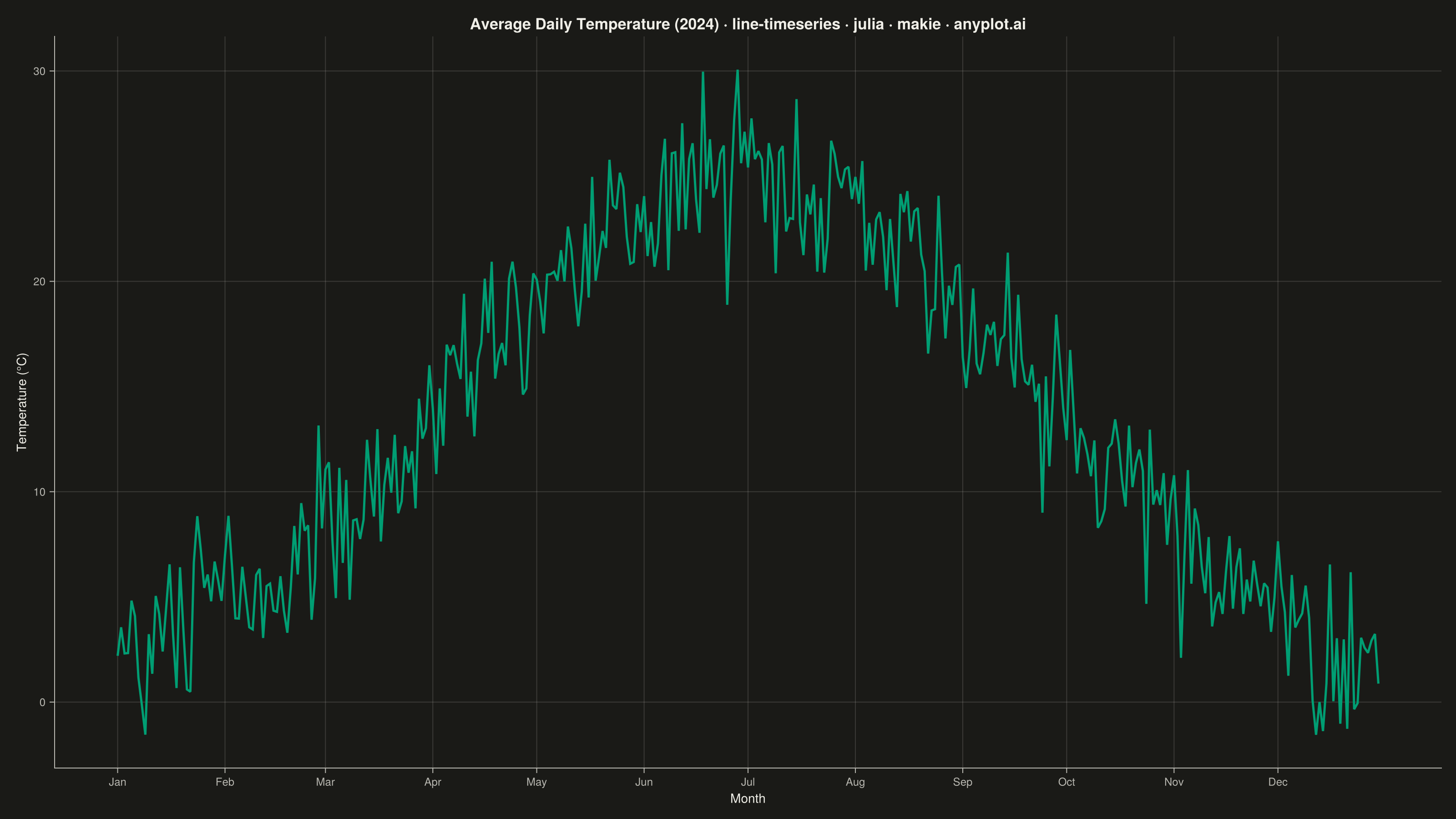

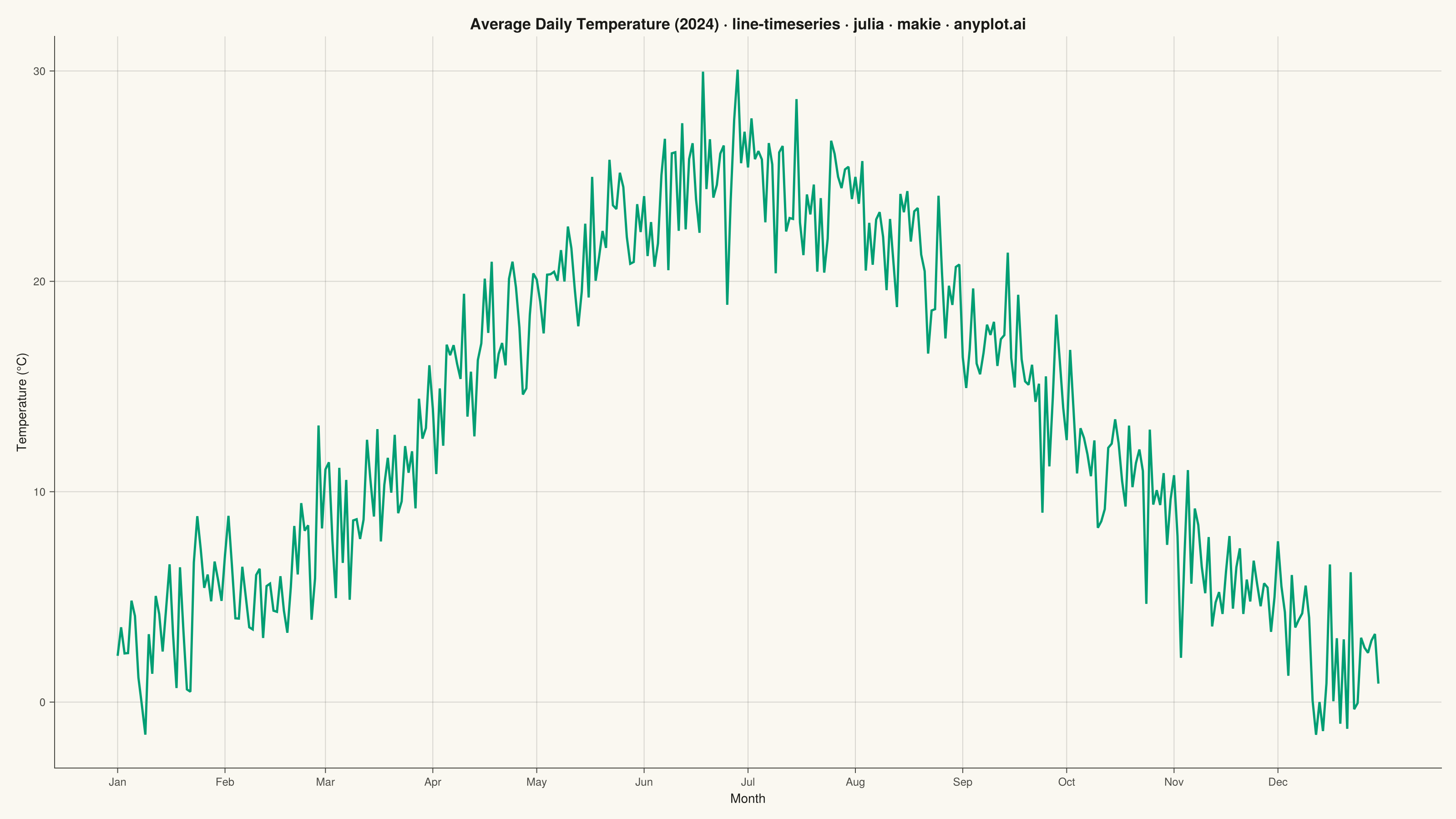

Time Series Line Plot rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# line-timeseries: Time Series Line Plot
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 85/100 | Created: 2026-09-05

using CairoMakie
using Colors
using Dates
using Random

Random.seed!(42)

# --- Theme tokens ------------------------------------------------------------
THEME    = get(ENV, "ANYPLOT_THEME", "light")
PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
BRAND    = colorant"#009E73"  # Imprint palette position 1 — always first series

# --- Data ----------------------------------------------------------------------
# Daily average temperature readings across a full year, in degrees Celsius.
start_date = Date(2024, 1, 1)
n_days = 365
dates = start_date .+ Day.(0:(n_days - 1))
day_offset = Float64.(Dates.value.(dates .- start_date))

seasonal_cycle = 14.0 .+ 11.0 .* sin.(2π .* day_offset ./ 365 .- (π / 2))
daily_noise = randn(n_days) .* 2.2
temperature_c = seasonal_cycle .+ daily_noise

# Smart tick locator: one tick per month, labeled with the abbreviated month name.
month_starts = unique(Date.(year.(dates), month.(dates), 1))
tick_positions = Float64.(Dates.value.(month_starts .- start_date))
tick_labels = Dates.format.(month_starts, "u")

# --- Plot ------------------------------------------------------------------------
title_str = "Average Daily Temperature (2024) · line-timeseries · julia · makie · anyplot.ai"
n_chars = length(title_str)
title_fontsize = n_chars > 67 ? max(14, round(Int, 26 * 67 / n_chars)) : 26

peak_idx = argmax(temperature_c)
peak_x = day_offset[peak_idx]
peak_y = temperature_c[peak_idx]
peak_label = "Peak: $(round(peak_y, digits=1))°C ($(Dates.format(dates[peak_idx], "u d")))"

fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title             = title_str,
    titlesize         = title_fontsize,
    titlecolor        = INK,
    xlabel            = "Month",
    ylabel            = "Temperature (°C)",
    xlabelsize        = 14,
    ylabelsize        = 14,
    xlabelcolor       = INK,
    ylabelcolor       = INK,
    xticklabelsize    = 12,
    yticklabelsize    = 12,
    xticklabelcolor   = INK_SOFT,
    yticklabelcolor   = INK_SOFT,
    xtickcolor        = INK_SOFT,
    ytickcolor        = INK_SOFT,
    xticksvisible     = false,
    yticksvisible     = false,
    xticks            = (tick_positions, tick_labels),
    backgroundcolor   = PAGE_BG,
    topspinevisible   = false,
    rightspinevisible = false,
    leftspinecolor    = INK_SOFT,
    bottomspinecolor  = INK_SOFT,
    xgridcolor        = RGBAf(INK.r, INK.g, INK.b, 0.15),
    ygridcolor        = RGBAf(INK.r, INK.g, INK.b, 0.15),
    xminorgridvisible = false,
    yminorgridvisible = false,
)

lines!(ax, day_offset, temperature_c; color = BRAND, linewidth = 2.5)
ylims!(ax, minimum(temperature_c) - 3, peak_y + 5)

# Focal point: highlight the seasonal peak for a touch of data storytelling.
scatter!(ax, [peak_x], [peak_y]; color = BRAND, markersize = 14, strokewidth = 2, strokecolor = PAGE_BG)
text!(
    ax, peak_x, peak_y;
    text   = peak_label,
    color  = INK,
    fontsize = 13,
    align  = (:center, :bottom),
    offset = (0, 8),
)

# --- Save --------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-timeseries/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "line-timeseries",
  "language": "julia",
  "library": "makie",
  "page": "https://anyplot.ai/line-timeseries/julia/makie",
  "hub": "https://anyplot.ai/line-timeseries",
  "code_json": "https://api.anyplot.ai/specs/line-timeseries/makie/code",
  "spec_json": "https://api.anyplot.ai/specs/line-timeseries",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries/julia/makie/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-timeseries/julia/makie/plot-dark.png",
  "quality_score": 85.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Time Series Line Plot on anyplot.ai.
