Time Series Line Plot — lets-plot

A time series line plot displays data points connected by lines over a datetime x-axis, with smart date formatting that automatically adjusts tick labels based on the time scale (days, months, years). This plot type is essential for temporal data analysis where proper date formatting and readability are critical. Unlike basic line plots, time series plots handle datetime parsing, timezone awareness, and intelligent tick label formatting.

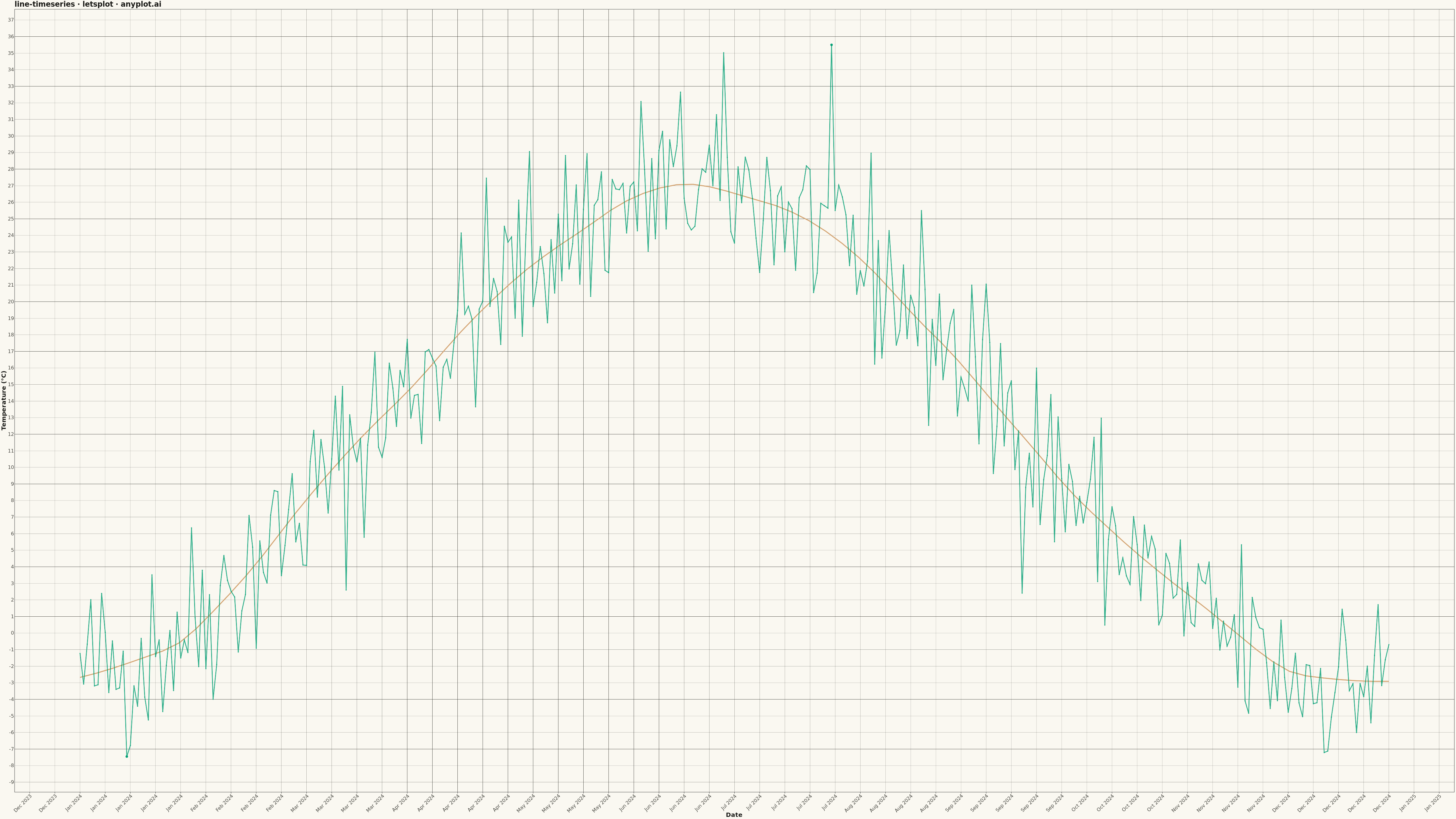

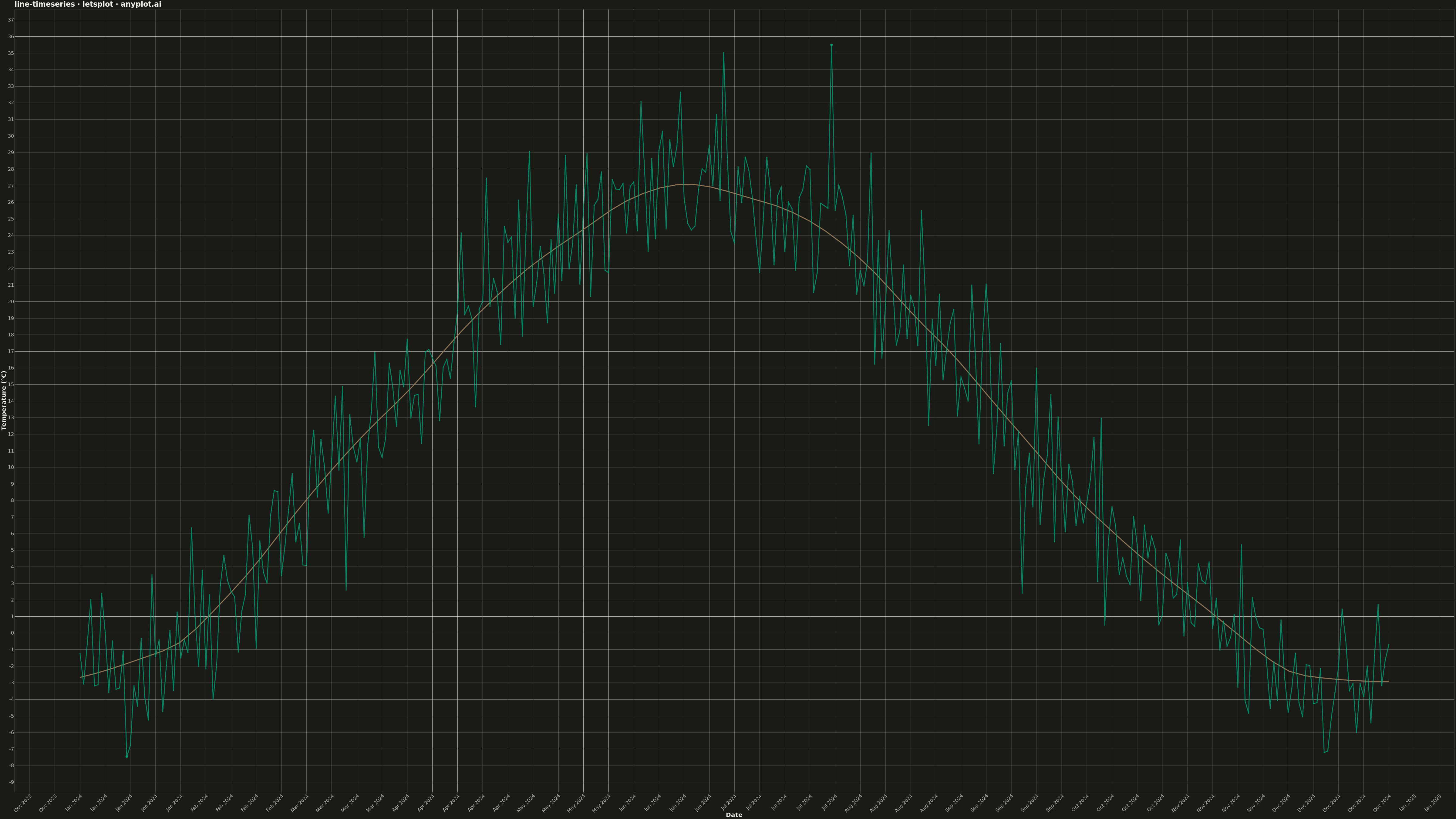

Time Series Line Plot rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
line-timeseries: Time Series Line Plot
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-09
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
ACCENT_SOFT = "#D4A574" if THEME == "light" else "#8B7355"
BRAND = "#009E73"

# Data - Daily temperature readings over one year
np.random.seed(42)
dates = pd.date_range(start="2024-01-01", periods=365, freq="D")

# Simulate realistic temperature data with seasonal pattern
day_of_year = np.arange(365)
seasonal_pattern = 15 * np.sin(2 * np.pi * (day_of_year - 80) / 365)
baseline = 12
noise = np.random.randn(365) * 3
temperature = baseline + seasonal_pattern + noise

df = pd.DataFrame({"date": dates, "temperature": temperature})

# Find peak and trough for visual emphasis
max_idx = df["temperature"].idxmax()
min_idx = df["temperature"].idxmin()
extremes = pd.DataFrame([df.iloc[max_idx], df.iloc[min_idx]])

# Theme-adaptive styling with enhanced refinement
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_grid_major=element_line(color=INK_SOFT, size=0.25, linetype="solid"),
    panel_grid_minor=element_blank(),
    axis_title=element_text(size=20, color=INK, face="bold"),
    axis_text=element_text(size=16, color=INK_SOFT),
    axis_text_x=element_text(angle=45, hjust=1),
    plot_title=element_text(size=24, color=INK, face="bold"),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(size=16, color=INK_SOFT),
    legend_title=element_text(size=16, color=INK),
    axis_line=element_line(color=INK_SOFT, size=0.4),
)

# Create plot with layered visual hierarchy
plot = (
    ggplot(df, aes(x="date", y="temperature"))
    + geom_smooth(method="loess", span=0.15, color=ACCENT_SOFT, size=1.2, alpha=0.5, se=False)
    + geom_line(color=BRAND, size=1.0, alpha=0.8)
    + geom_point(color=BRAND, size=1.5, alpha=0.6)
    + geom_point(data=extremes, color=BRAND, size=3.5, alpha=0.95)
    + labs(x="Date", y="Temperature (°C)", title="line-timeseries · letsplot · anyplot.ai")
    + scale_x_datetime(format="%b %Y")
    + ggsize(1600, 900)
    + anyplot_theme
)

# Save
ggsave(plot, f"plot-{THEME}.png", path=".", w=4800, h=2700, unit="px", dpi=100)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Time Series Line Plot on anyplot.ai.
