Time Series Line Plot — Altair

A time series line plot displays data points connected by lines over a datetime x-axis, with smart date formatting that automatically adjusts tick labels based on the time scale (days, months, years). This plot type is essential for temporal data analysis where proper date formatting and readability are critical. Unlike basic line plots, time series plots handle datetime parsing, timezone awareness, and intelligent tick label formatting.

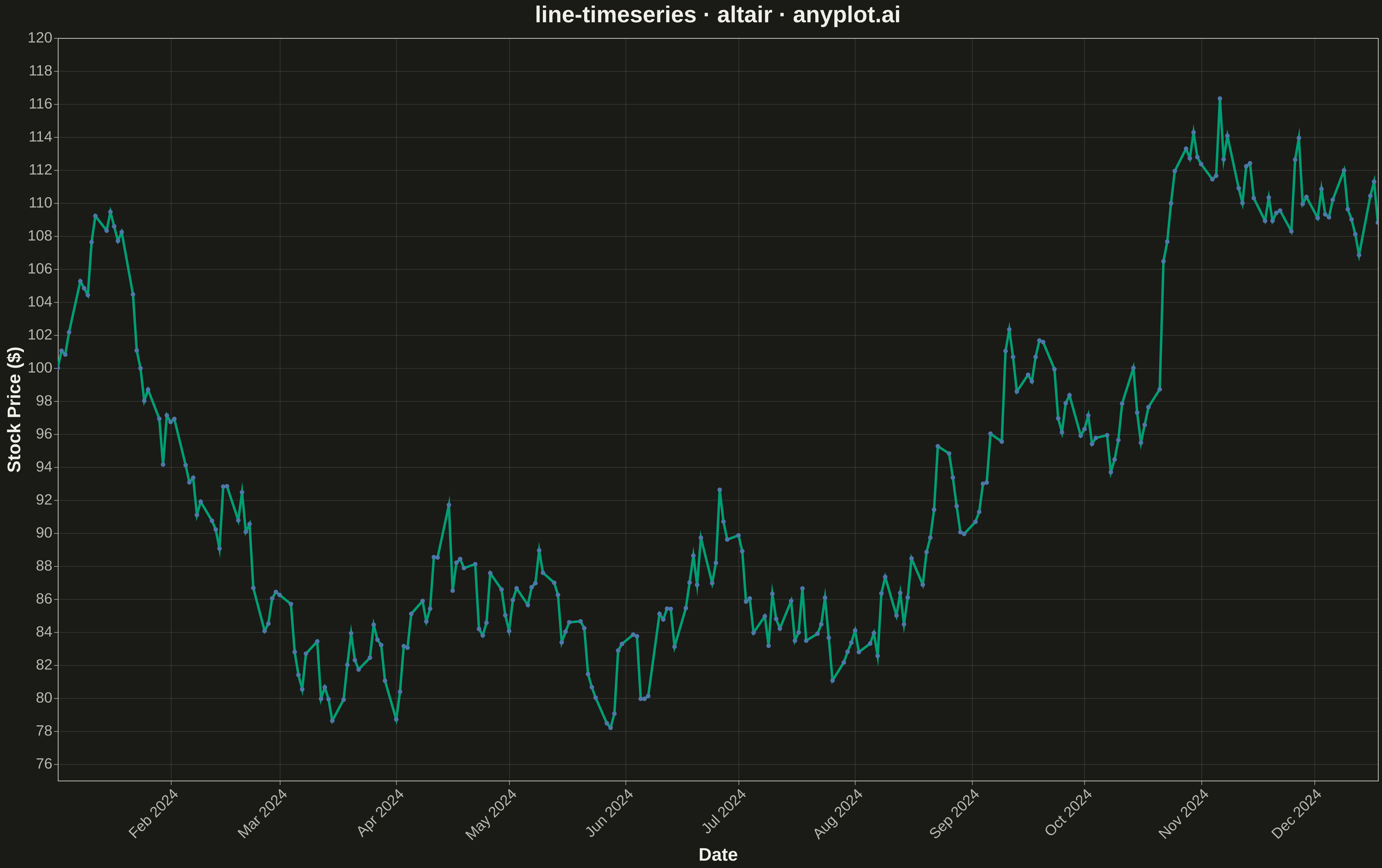

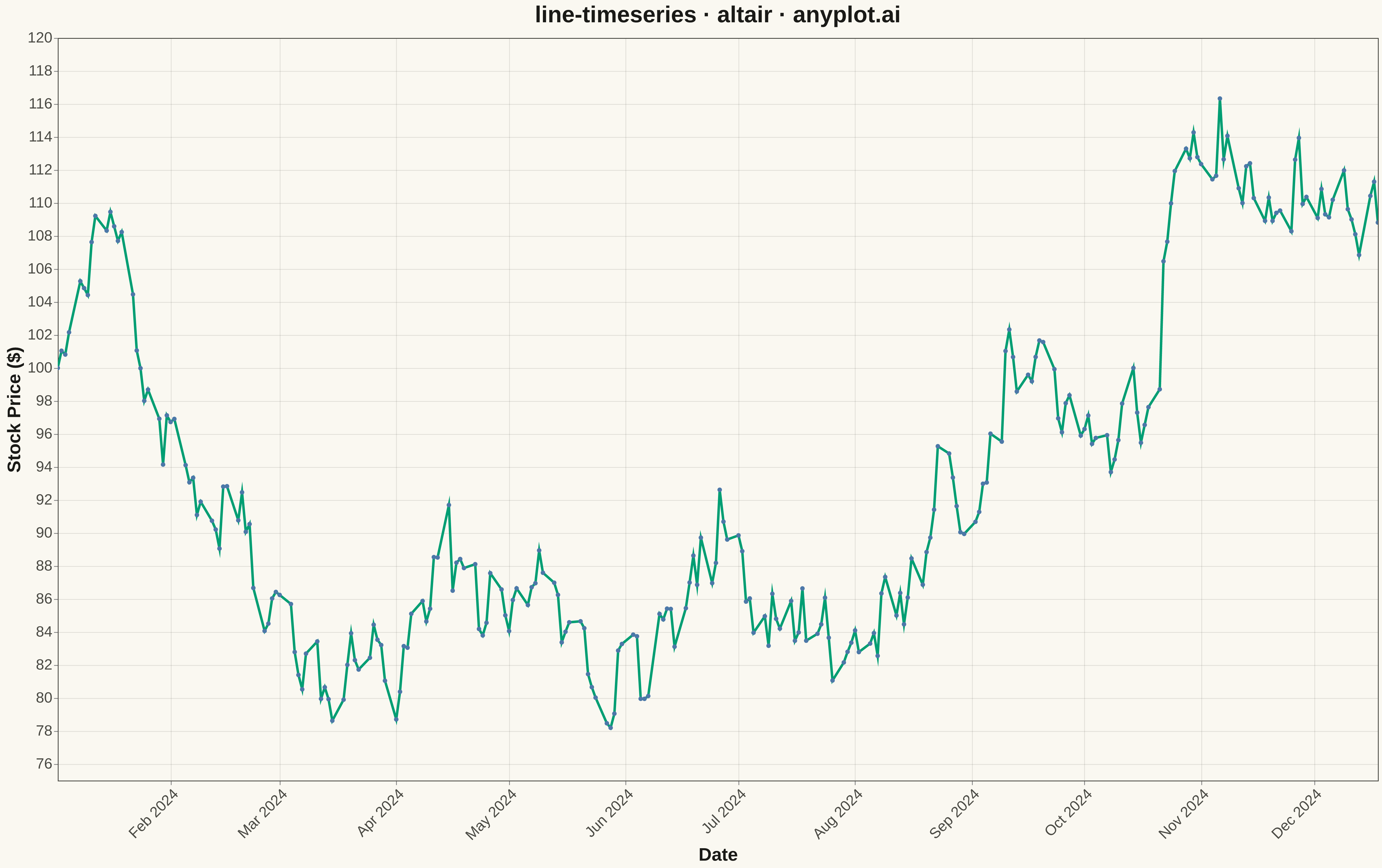

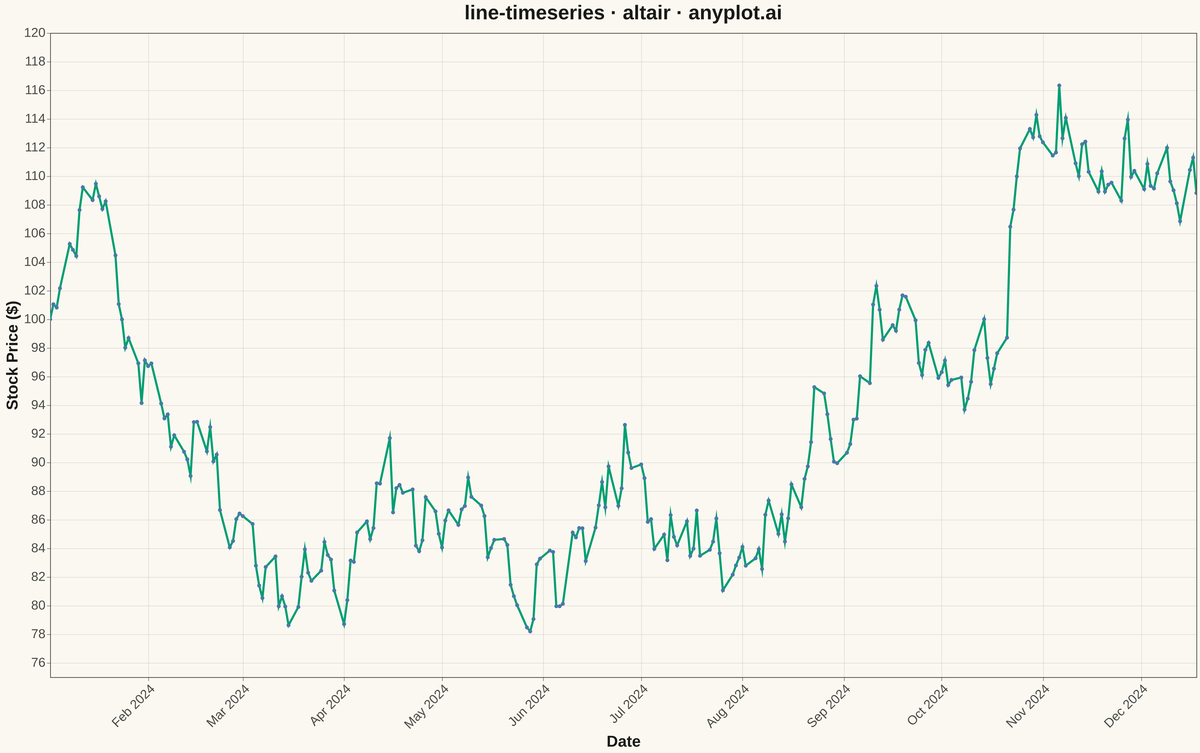

Time Series Line Plot rendered with Altair

Python source (Altair)

""" anyplot.ai
line-timeseries: Time Series Line Plot
Library: altair 6.1.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-09
"""

import os
import sys


# Remove the current directory from sys.path to avoid importing altair.py
sys.path = [p for p in sys.path if p != "" and not p.endswith("python")]

import altair as alt
import numpy as np
import pandas as pd


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"  # Okabe-Ito position 1

# Data - Daily stock prices over one year
np.random.seed(42)

# Generate 252 trading days (one year of stock market data)
dates = pd.date_range(start="2024-01-02", periods=252, freq="B")

# Simulate stock price with trend and volatility
price = 100.0
prices = [price]
for _ in range(251):
    # Random walk with slight upward drift
    change = np.random.randn() * 2 + 0.05
    price = max(price + change, 50)  # Floor at 50
    prices.append(price)

df = pd.DataFrame({"date": dates, "price": prices})

# Create time series line chart
chart = (
    alt.Chart(df)
    .mark_line(strokeWidth=3, color=BRAND, point=True, size=150)
    .encode(
        x=alt.X(
            "date:T",
            title="Date",
            axis=alt.Axis(
                format="%b %Y",
                labelFontSize=18,
                titleFontSize=22,
                labelAngle=-45,
                tickCount=12,
                labelColor=INK_SOFT,
                titleColor=INK,
                domainColor=INK_SOFT,
                gridColor=INK,
                gridOpacity=0.10,
            ),
        ),
        y=alt.Y(
            "price:Q",
            title="Stock Price ($)",
            scale=alt.Scale(zero=False),
            axis=alt.Axis(
                labelFontSize=18,
                titleFontSize=22,
                labelColor=INK_SOFT,
                titleColor=INK,
                domainColor=INK_SOFT,
                gridColor=INK,
                gridOpacity=0.10,
            ),
        ),
        tooltip=[
            alt.Tooltip("date:T", title="Date", format="%B %d, %Y"),
            alt.Tooltip("price:Q", title="Price", format="$.2f"),
        ],
    )
    .properties(
        width=1600,
        height=900,
        background=PAGE_BG,
        title=alt.Title("line-timeseries · altair · anyplot.ai", fontSize=28, anchor="middle", color=INK),
    )
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT, strokeWidth=1)
    .configure_title(color=INK, fontSize=28)
    .configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
    .interactive()
)

# Save outputs
script_dir = os.path.dirname(os.path.abspath(__file__))
chart.save(os.path.join(script_dir, f"plot-{THEME}.png"), scale_factor=3.0)
chart.save(os.path.join(script_dir, f"plot-{THEME}.html"))

Part of Time Series Line Plot on anyplot.ai.
