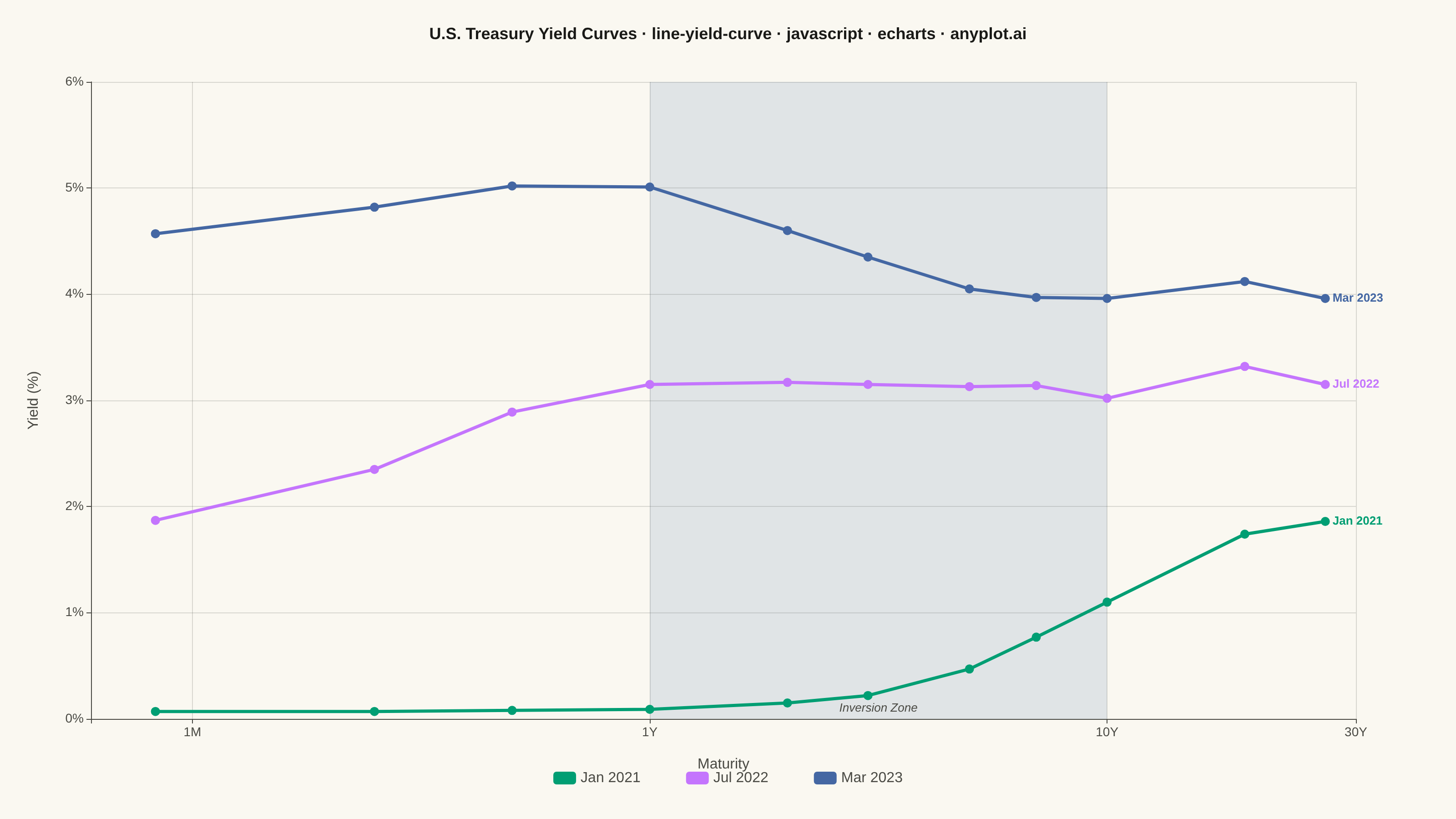

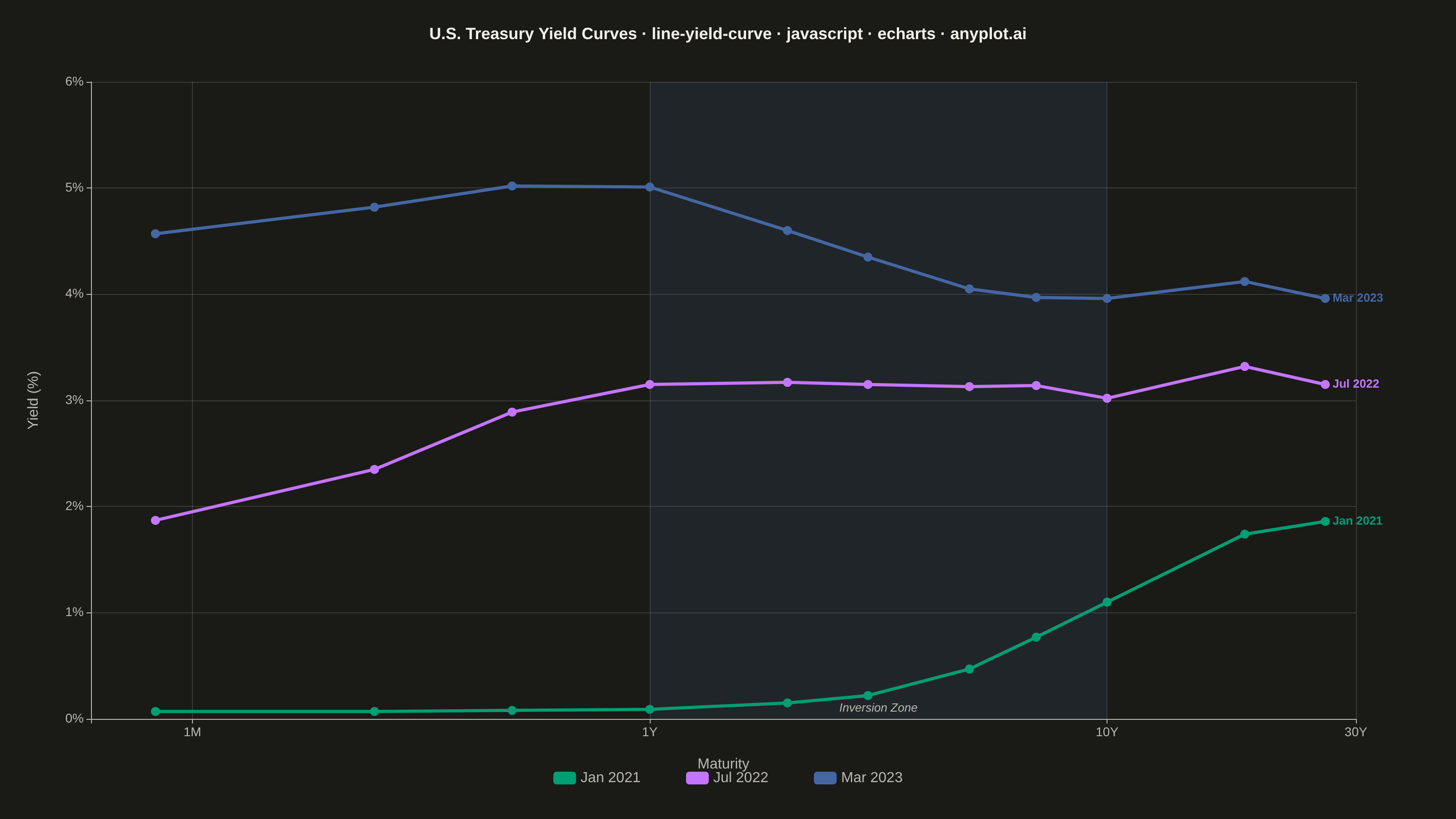

A yield curve plots interest rates (yields) of bonds against their maturities, from short-term (e.g., 1 month) to long-term (e.g., 30 years). It is one of the most iconic charts in macroeconomics and finance, used to assess market expectations for future interest rates, economic growth, and inflation. An inverted yield curve (where short-term rates exceed long-term rates) is a widely followed recession indicator. The plot should support displaying multiple curves (e.g., different dates) on the same axes to show how the term structure evolves over time.
// anyplot.ai
// line-yield-curve: Yield Curve (Interest Rate Term Structure)
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-10
const t = window.ANYPLOT_TOKENS;
// U.S. Treasury yield curve snapshots — normal, flattening, and inverted
const maturities = [
{ label: "1M", years: 0.083 },
{ label: "3M", years: 0.25 },
{ label: "6M", years: 0.5 },
{ label: "1Y", years: 1 },
{ label: "2Y", years: 2 },
{ label: "3Y", years: 3 },
{ label: "5Y", years: 5 },
{ label: "7Y", years: 7 },
{ label: "10Y", years: 10 },
{ label: "20Y", years: 20 },
{ label: "30Y", years: 30 },
];
const curves = [
{
date: "Jan 2021",
yields: [0.07, 0.07, 0.08, 0.09, 0.15, 0.22, 0.47, 0.77, 1.10, 1.74, 1.86],
},
{
date: "Jul 2022",
yields: [1.87, 2.35, 2.89, 3.15, 3.17, 3.15, 3.13, 3.14, 3.02, 3.32, 3.15],
},
{
date: "Mar 2023",
yields: [4.57, 4.82, 5.02, 5.01, 4.60, 4.35, 4.05, 3.97, 3.96, 4.12, 3.96],
},
];
// Build [maturity_years, yield_pct] pairs for each curve
const seriesData = curves.map(c =>
maturities.map((m, i) => [m.years, c.yields[i]])
);
// Title sizing — scale down if longer than ~67-char baseline
const titleText = "U.S. Treasury Yield Curves · line-yield-curve · javascript · echarts · anyplot.ai";
const titleFontSize = Math.max(14, Math.round(22 * 67 / titleText.length));
const chart = echarts.init(document.getElementById("container"));
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: titleText,
left: "center",
top: 24,
textStyle: {
color: t.ink,
fontSize: titleFontSize,
fontWeight: "bold",
},
},
legend: {
data: curves.map(c => c.date),
bottom: 32,
itemGap: 50,
icon: "roundRect",
textStyle: { color: t.inkSoft, fontSize: 16 },
},
grid: {
left: 100,
right: 110,
top: 90,
bottom: 110,
borderWidth: 0,
},
tooltip: {
trigger: "axis",
backgroundColor: t.elevatedBg,
borderColor: t.grid,
borderWidth: 1,
textStyle: { color: t.ink, fontSize: 14 },
padding: [10, 14],
axisPointer: {
type: "line",
lineStyle: { color: t.inkSoft, width: 1, type: "dashed" },
},
formatter: function(params) {
const xVal = params[0].value[0];
const mat = maturities.reduce((prev, cur) =>
Math.abs(cur.years - xVal) < Math.abs(prev.years - xVal) ? cur : prev
);
let html = `<div style="font-weight:600;margin-bottom:6px">${mat.label}</div>`;
params.forEach(p => {
html += `${p.marker} ${p.seriesName}: <b>${p.value[1].toFixed(2)}%</b><br/>`;
});
return html;
},
},
// Log scale reflects true time spacing of the term structure
xAxis: {
type: "log",
logBase: 10,
min: 0.06,
max: 35,
name: "Maturity",
nameLocation: "middle",
nameGap: 42,
nameTextStyle: { color: t.inkSoft, fontSize: 16 },
axisLabel: {
color: t.inkSoft,
fontSize: 14,
formatter: function(val) {
// Match only the major decade ticks (0.1, 1, 10) via log-distance
const lv = Math.log10(val);
if (Math.abs(lv + 1) < 0.05) return "1M"; // 0.1 yr ≈ 1.2 months
if (Math.abs(lv) < 0.05) return "1Y";
if (Math.abs(lv - 1) < 0.05) return "10Y";
if (val >= 25) return "30Y";
return "";
},
},
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
axisTick: { lineStyle: { color: t.inkSoft } },
},
yAxis: {
type: "value",
name: "Yield (%)",
nameLocation: "middle",
nameGap: 55,
nameTextStyle: { color: t.inkSoft, fontSize: 16 },
min: 0,
max: 6,
interval: 1,
axisLabel: {
color: t.inkSoft,
fontSize: 14,
formatter: "{value}%",
},
axisLine: { show: true, lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
// Normal upward-sloping curve — Jan 2021 (Imprint palette[0], brand green)
{
name: curves[0].date,
type: "line",
data: seriesData[0],
lineStyle: { width: 3.5, color: t.palette[0] },
itemStyle: { color: t.palette[0] },
symbol: "circle",
symbolSize: 10,
endLabel: { show: true, formatter: "{a}", color: t.palette[0], fontSize: 13, fontWeight: "bold" },
},
// Flattening curve — Jul 2022 (short end rising, long end flat)
{
name: curves[1].date,
type: "line",
data: seriesData[1],
lineStyle: { width: 3.5, color: t.palette[1] },
itemStyle: { color: t.palette[1] },
symbol: "circle",
symbolSize: 10,
endLabel: { show: true, formatter: "{a}", color: t.palette[1], fontSize: 13, fontWeight: "bold" },
},
// Inverted curve — Mar 2023, with 1Y–10Y inversion zone shaded
{
name: curves[2].date,
type: "line",
data: seriesData[2],
lineStyle: { width: 3.5, color: t.palette[2] },
itemStyle: { color: t.palette[2] },
symbol: "circle",
symbolSize: 10,
endLabel: { show: true, formatter: "{a}", color: t.palette[2], fontSize: 13, fontWeight: "bold" },
markArea: {
silent: true,
itemStyle: {
color: t.palette[2],
opacity: 0.14,
},
data: [[
{ xAxis: 1, name: "Inversion Zone" },
{ xAxis: 10 },
]],
label: {
show: true,
position: "insideBottom",
color: t.inkSoft,
fontSize: 13,
fontStyle: "italic",
formatter: "Inversion Zone",
},
},
},
],
});
