Yield Curve (Interest Rate Term Structure) — plotnine

A yield curve plots interest rates (yields) of bonds against their maturities, from short-term (e.g., 1 month) to long-term (e.g., 30 years). It is one of the most iconic charts in macroeconomics and finance, used to assess market expectations for future interest rates, economic growth, and inflation. An inverted yield curve (where short-term rates exceed long-term rates) is a widely followed recession indicator. The plot should support displaying multiple curves (e.g., different dates) on the same axes to show how the term structure evolves over time.

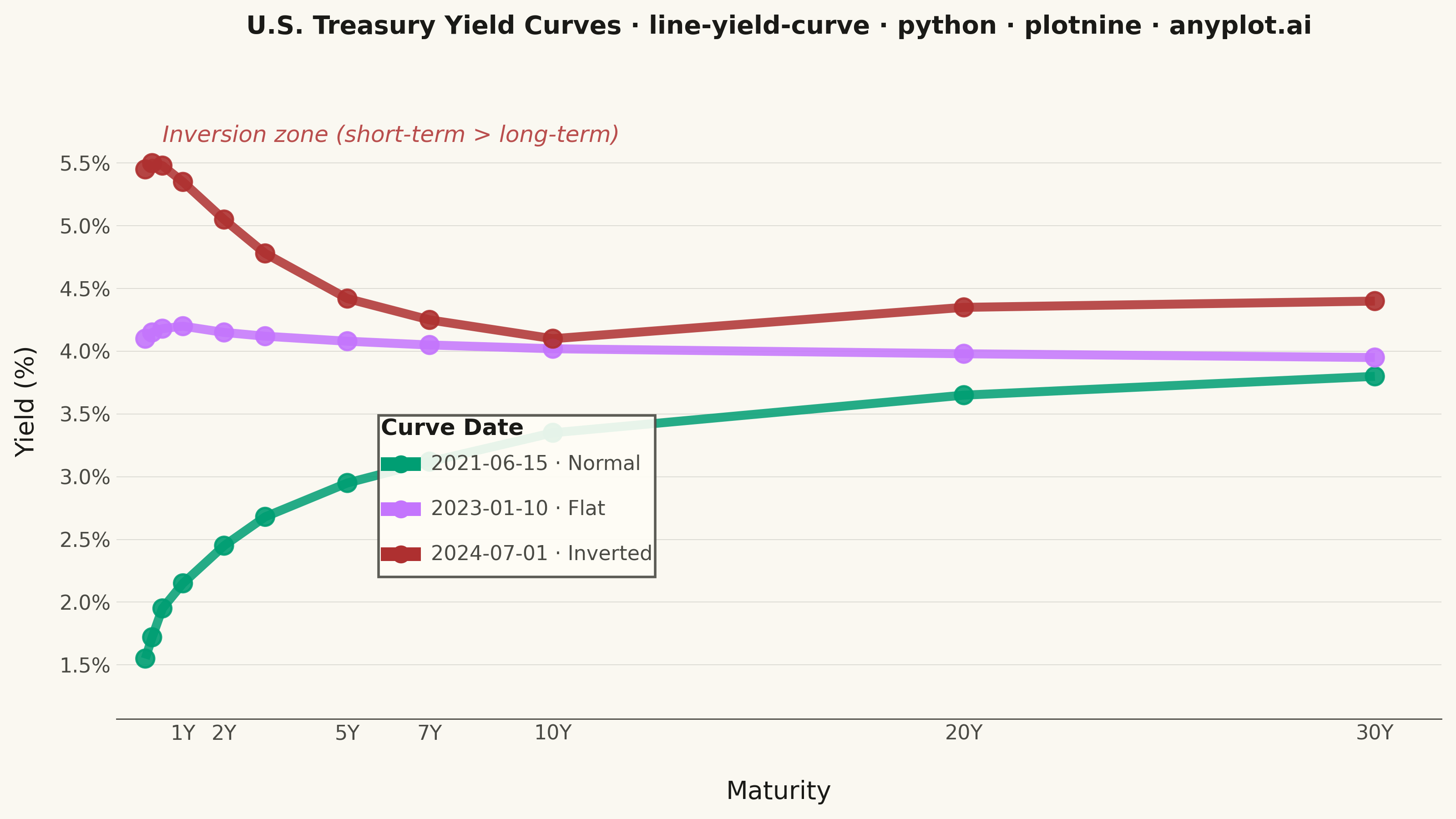

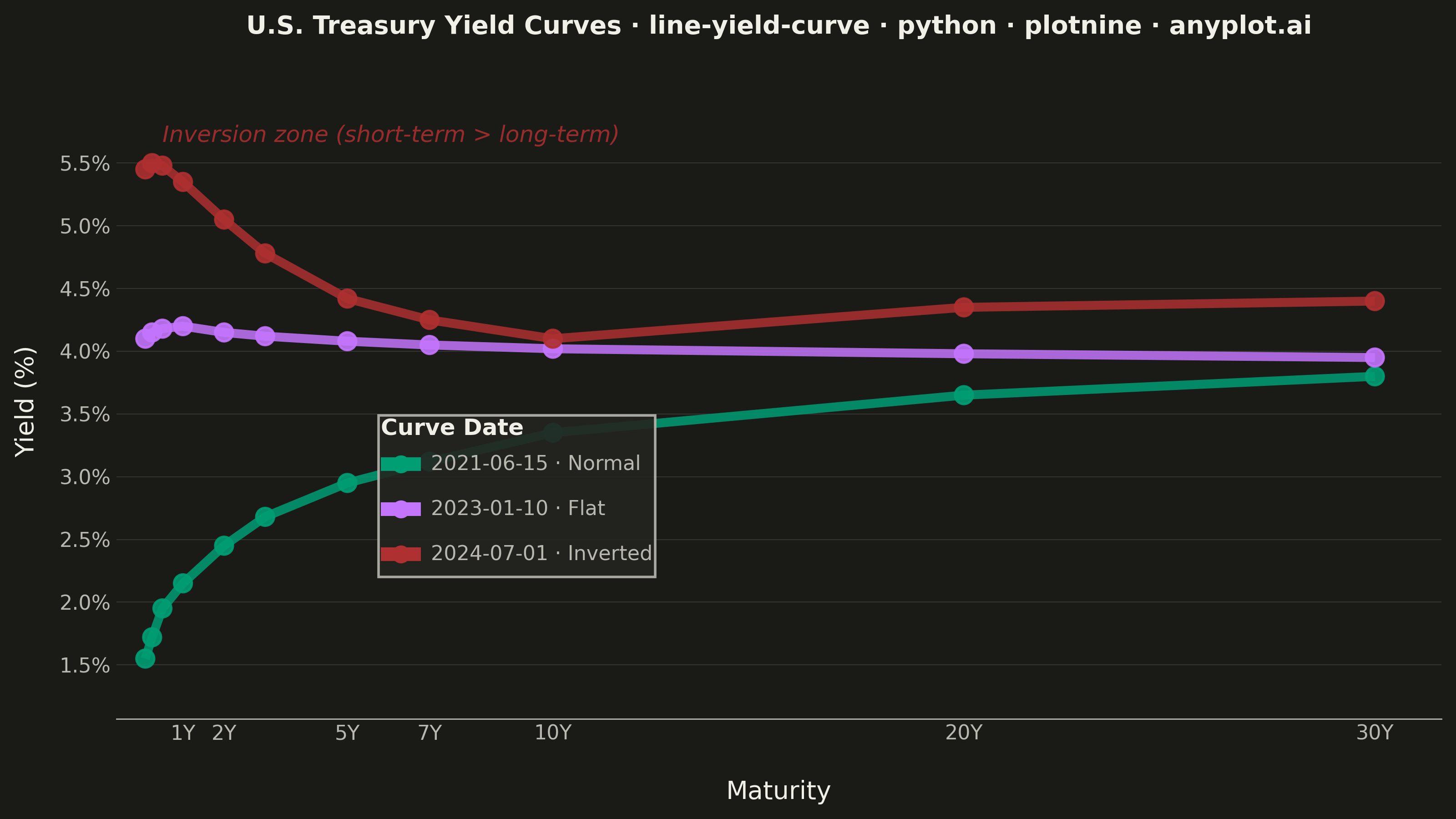

Yield Curve (Interest Rate Term Structure) rendered with plotnine

Python source (plotnine)

""" anyplot.ai
line-yield-curve: Yield Curve (Interest Rate Term Structure)
Library: plotnine 0.15.5 | Python 3.13.13
Quality: 91/100 | Updated: 2026-06-10
"""

import os

import pandas as pd
from plotnine import (
    aes,
    annotate,
    coord_cartesian,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_line,
    geom_point,
    ggplot,
    guide_legend,
    guides,
    labs,
    scale_color_manual,
    scale_x_continuous,
    scale_y_continuous,
    theme,
    theme_minimal,
)


# Theme tokens (see prompts/default-style-guide.md)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Imprint palette — first series always #009E73; matte red for recession/inversion signal
PALETTE_NORMAL = "#009E73"  # brand green — growth / upward-sloping
PALETTE_FLAT = "#C475FD"  # lavender — neutral / transitional
PALETTE_INVERTED = "#AE3030"  # matte red — recession indicator / inverted

# Data
maturity_years = [1 / 12, 0.25, 0.5, 1, 2, 3, 5, 7, 10, 20, 30]

yields_normal = [1.55, 1.72, 1.95, 2.15, 2.45, 2.68, 2.95, 3.12, 3.35, 3.65, 3.80]
yields_flat = [4.10, 4.15, 4.18, 4.20, 4.15, 4.12, 4.08, 4.05, 4.02, 3.98, 3.95]
yields_inverted = [5.45, 5.50, 5.48, 5.35, 5.05, 4.78, 4.42, 4.25, 4.10, 4.35, 4.40]

curve_labels = ["2021-06-15 · Normal", "2023-01-10 · Flat", "2024-07-01 · Inverted"]

df = pd.DataFrame(
    {
        "maturity_years": maturity_years * 3,
        "yield_pct": yields_normal + yields_flat + yields_inverted,
        "curve": [curve_labels[0]] * 11 + [curve_labels[1]] * 11 + [curve_labels[2]] * 11,
    }
)

# Ordered categorical for legend ordering (plotnine: pd.Categorical + scale interaction)
df["curve"] = pd.Categorical(df["curve"], categories=curve_labels, ordered=True)

# Inversion zone bounds
inv_short_max = max(yields_inverted[:4])  # 5.50
inv_long_min = min(yields_inverted[4:])  # 4.10

# Tick positions — well-spaced to avoid label cramping
tick_positions = [1, 2, 5, 7, 10, 20, 30]
tick_labels = ["1Y", "2Y", "5Y", "7Y", "10Y", "20Y", "30Y"]

# Title with length-scaled fontsize (see prompts/plot-generator.md)
title = "U.S. Treasury Yield Curves · line-yield-curve · python · plotnine · anyplot.ai"
n = len(title)
title_fontsize = max(8, round(12 * 67 / n)) if n > 67 else 12

# Plot
plot = (
    ggplot(df, aes(x="maturity_years", y="yield_pct", color="curve"))
    # Inversion zone shading — more prominent than previous (alpha=0.10 vs 0.06)
    + annotate(
        "rect",
        xmin=-0.5,
        xmax=10.5,
        ymin=inv_long_min - 0.08,
        ymax=inv_short_max + 0.08,
        fill=PALETTE_INVERTED,
        alpha=0.10,
    )
    + annotate(
        "text",
        x=0.5,
        y=inv_short_max + 0.22,
        label="Inversion zone (short-term > long-term)",
        size=9,
        color=PALETTE_INVERTED,
        alpha=0.85,
        fontstyle="italic",
        ha="left",
    )
    # geom layers sized for 3200×1800 canvas
    + geom_line(size=2.0, alpha=0.85)
    + geom_point(size=3.5, alpha=0.9)
    + scale_x_continuous(breaks=tick_positions, labels=tick_labels, limits=(0, 31), expand=(0.02, 0))
    + scale_y_continuous(
        breaks=[1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5], labels=lambda b: [f"{v:.1f}%" for v in b]
    )
    + scale_color_manual(values=[PALETTE_NORMAL, PALETTE_FLAT, PALETTE_INVERTED])
    # coord_cartesian for view clipping without data removal (plotnine pattern)
    + coord_cartesian(ylim=(1.3, 5.9))
    # guide_legend for fine-grained legend control
    + guides(color=guide_legend(title="Curve Date", override_aes={"size": 3, "alpha": 1}))
    + labs(x="Maturity", y="Yield (%)", title=title)
    + theme_minimal()
    + theme(
        figure_size=(8, 4.5),
        text=element_text(family="sans-serif", color=INK),
        axis_title=element_text(size=10, color=INK, margin={"t": 8, "r": 8}),
        axis_text=element_text(size=8, color=INK_SOFT),
        plot_title=element_text(size=title_fontsize, weight="bold", color=INK, margin={"b": 10}),
        legend_title=element_text(size=9, weight="bold", color=INK),
        legend_text=element_text(size=8, color=INK_SOFT),
        legend_position=(0.25, 0.30),
        legend_background=element_rect(fill=ELEVATED_BG, alpha=0.9, color=INK_SOFT),
        legend_key=element_rect(fill="none", color="none"),
        panel_grid_major_x=element_blank(),
        panel_grid_minor=element_blank(),
        panel_grid_major_y=element_line(color=INK, size=0.3, alpha=0.15),
        axis_line_x=element_line(color=INK_SOFT, size=0.5),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
    )
)

# Save
plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in")

Part of Yield Curve (Interest Rate Term Structure) on anyplot.ai.
