Grouped Lollipop Chart — Chart.js

A grouped lollipop chart displays multiple series across categorical variables using thin stems and circular markers arranged in groups. Each category has multiple lollipops side by side, one for each series, enabling direct comparison of metrics across groups. It combines the clarity of dot plots with the organization of grouped bar charts while reducing visual clutter.

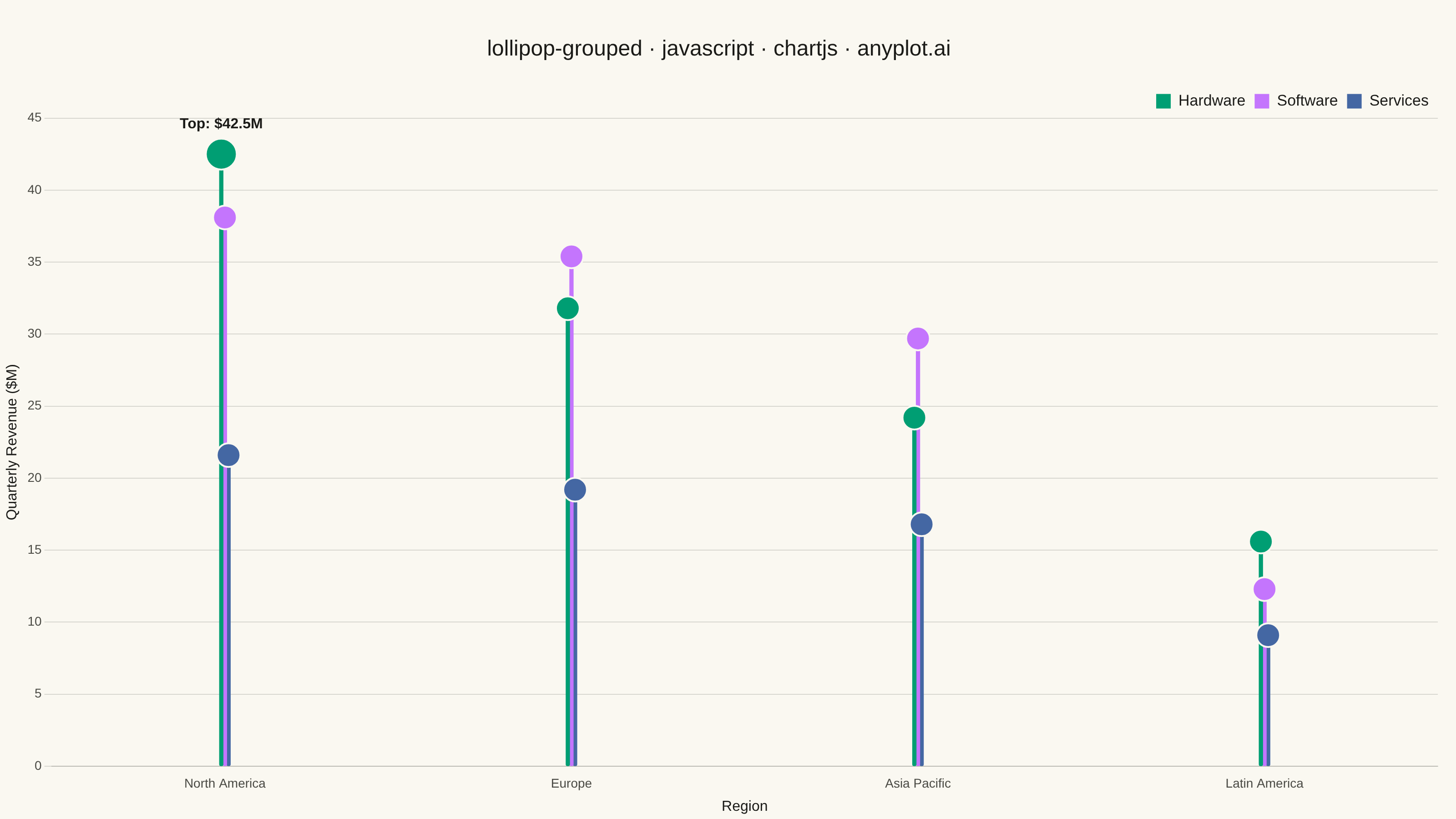

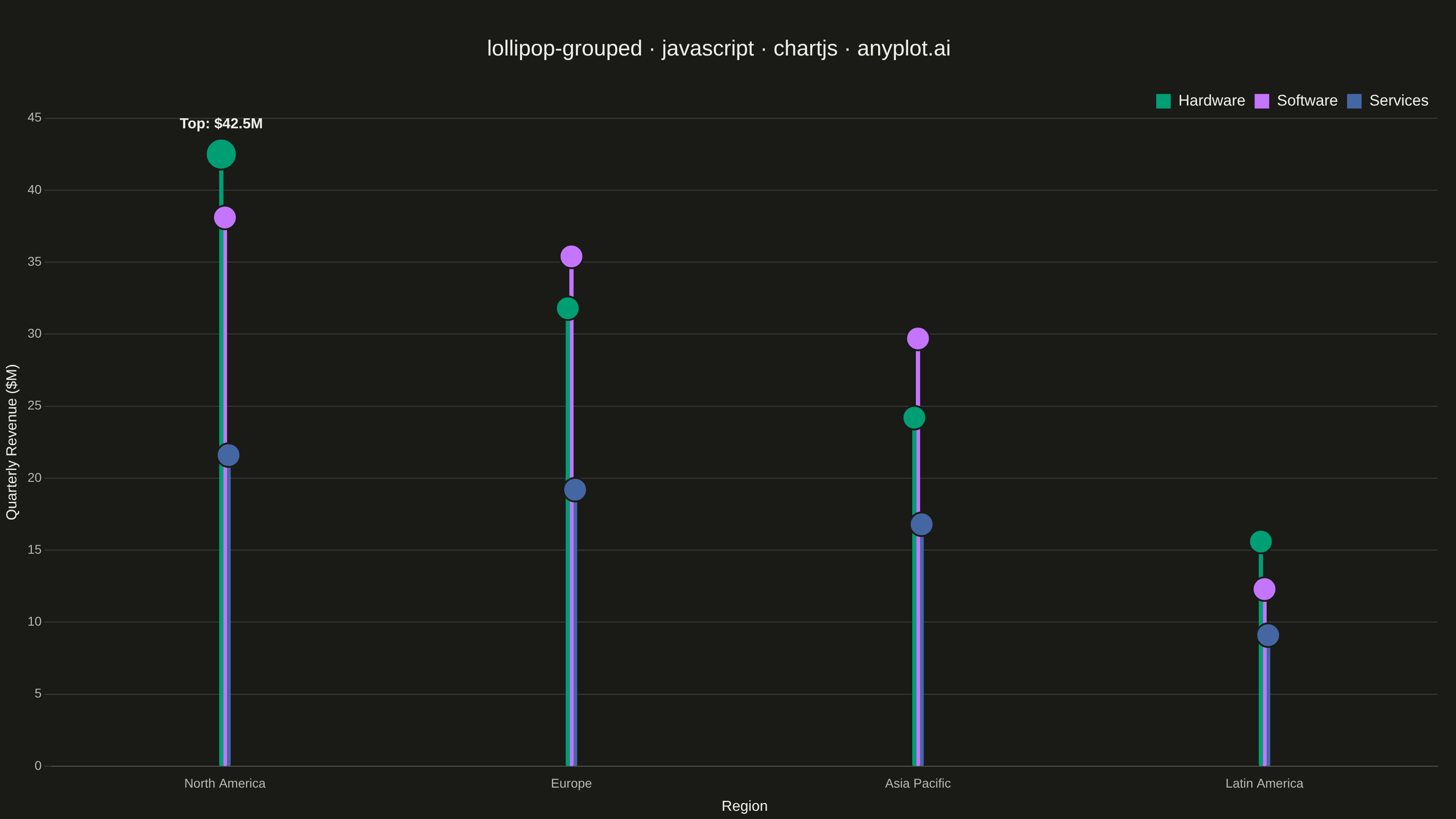

Grouped Lollipop Chart rendered with Chart.js

Renders

JavaScript source (Chart.js)

// anyplot.ai
// lollipop-grouped: Grouped Lollipop Chart
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-02

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Quarterly revenue ($M) by product line, across four sales regions.
const regions = ["North America", "Europe", "Asia Pacific", "Latin America"];
const productLines = ["Hardware", "Software", "Services"];
const revenueByProduct = [
  [42.5, 31.8, 24.2, 15.6], // Hardware
  [38.1, 35.4, 29.7, 12.3], // Software
  [21.6, 19.2, 16.8, 9.1], // Services
];

// Emphasize the single top-performing lollipop with a larger dot + callout.
const top = { value: -Infinity, datasetIndex: -1, dataIndex: -1 };
revenueByProduct.forEach((series, datasetIndex) => {
  series.forEach((value, dataIndex) => {
    if (value > top.value) Object.assign(top, { value, datasetIndex, dataIndex });
  });
});

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Custom plugin: draws the lollipop dot on top of each thin stem bar ------
// Chart.js has no native lollipop controller; drawing the marker with a plugin
// keeps every dataset a plain "bar" so the category scale's built-in grouped
// offset positions the stems (and therefore the dots) for us.
const lollipopDots = {
  id: "lollipopDots",
  afterDatasetsDraw(chart) {
    const { ctx } = chart;
    chart.data.datasets.forEach((dataset, datasetIndex) => {
      const meta = chart.getDatasetMeta(datasetIndex);
      meta.data.forEach((bar, dataIndex) => {
        const isTop = datasetIndex === top.datasetIndex && dataIndex === top.dataIndex;
        const radius = isTop ? 17 : 13;
        const { x, y } = bar.getProps(["x", "y"], true);
        ctx.save();
        ctx.beginPath();
        ctx.arc(x, y, radius, 0, Math.PI * 2);
        ctx.fillStyle = dataset.backgroundColor;
        ctx.fill();
        ctx.lineWidth = 2;
        ctx.strokeStyle = t.pageBg;
        ctx.stroke();
        ctx.restore();
        if (isTop) {
          ctx.save();
          ctx.font = "bold 16px sans-serif";
          ctx.fillStyle = t.ink;
          ctx.textAlign = "center";
          ctx.textBaseline = "bottom";
          ctx.fillText(`Top: $${top.value}M`, x, y - radius - 8);
          ctx.restore();
        }
      });
    });
  },
};

// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
  type: "bar",
  data: {
    labels: regions,
    datasets: productLines.map((label, i) => ({
      label,
      data: revenueByProduct[i],
      backgroundColor: t.palette[i],
      barThickness: 4,
      borderRadius: 2,
      borderSkipped: false,
      categoryPercentage: 0.7,
      barPercentage: 0.9,
    })),
  },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    layout: { padding: { top: 40, right: 20 } },
    plugins: {
      title: {
        display: true,
        text: "lollipop-grouped · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 24, weight: "500" },
        padding: { bottom: 24 },
      },
      legend: {
        position: "top",
        align: "end",
        labels: {
          color: t.ink,
          font: { size: 17 },
          boxWidth: 16,
          boxHeight: 16,
        },
      },
    },
    scales: {
      x: {
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { display: false },
        border: { color: t.grid },
        title: {
          display: true,
          text: "Region",
          color: t.ink,
          font: { size: 16 },
        },
      },
      y: {
        beginAtZero: true,
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { color: t.grid },
        border: { display: false },
        title: {
          display: true,
          text: "Quarterly Revenue ($M)",
          color: t.ink,
          font: { size: 16 },
        },
      },
    },
  },
  plugins: [lollipopDots],
});
