Grouped Lollipop Chart — Altair

A grouped lollipop chart displays multiple series across categorical variables using thin stems and circular markers arranged in groups. Each category has multiple lollipops side by side, one for each series, enabling direct comparison of metrics across groups. It combines the clarity of dot plots with the organization of grouped bar charts while reducing visual clutter.

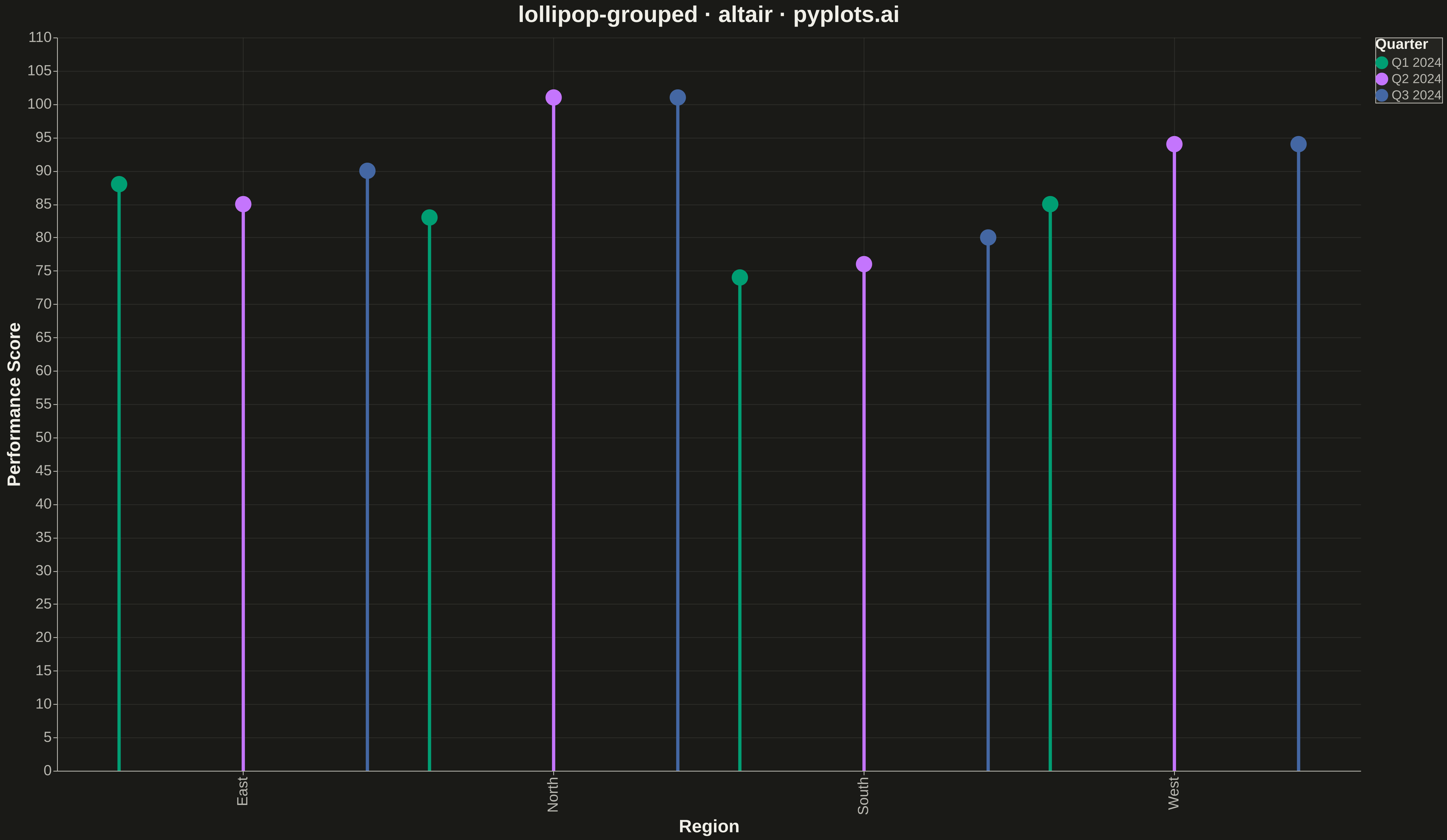

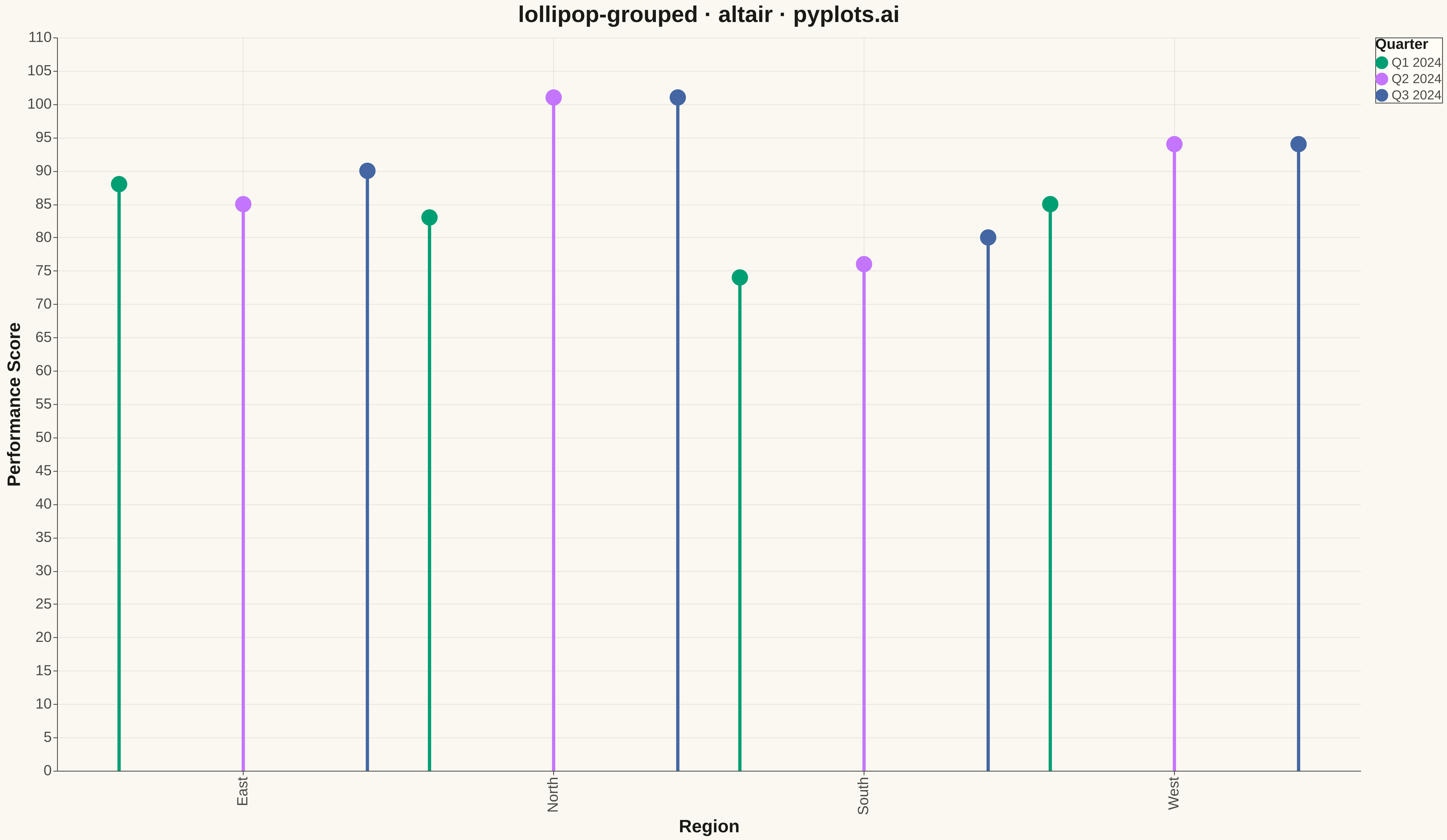

Grouped Lollipop Chart rendered with Altair

Python source (Altair)

""" anyplot.ai
lollipop-grouped: Grouped Lollipop Chart
Library: altair 6.1.0 | Python 3.13.13
Quality: 99/100 | Updated: 2026-05-17
"""

import os
import sys


# Remove current directory from path to avoid shadowing the altair package
sys.path = [p for p in sys.path if os.path.abspath(p) != os.getcwd()]

import altair as alt
import numpy as np
import pandas as pd


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data: Quarterly performance metrics across regions
np.random.seed(42)

categories = ["North", "South", "East", "West"]
series = ["Q1 2024", "Q2 2024", "Q3 2024"]

data = []
base_values = {"North": 85, "South": 72, "East": 78, "West": 90}
quarter_adjustments = {"Q1 2024": 0, "Q2 2024": 5, "Q3 2024": 10}

for cat in categories:
    for ser in series:
        value = base_values[cat] + quarter_adjustments[ser] + np.random.randint(-8, 12)
        data.append({"category": cat, "series": ser, "value": value})

df = pd.DataFrame(data)

# Create offset positions for grouped lollipops
df["series_order"] = df["series"].map({s: i for i, s in enumerate(series)})
df["x_offset"] = (df["series_order"] - (len(series) - 1) / 2) * 0.25

# Color scale using Okabe-Ito palette
color_scale = alt.Scale(domain=series, range=IMPRINT[: len(series)])

# Base chart
base = alt.Chart(df).encode(
    x=alt.X("category:N", title="Region", axis=alt.Axis(labelFontSize=18, titleFontSize=22)),
    xOffset="x_offset:Q",
    color=alt.Color(
        "series:N",
        scale=color_scale,
        title="Quarter",
        legend=alt.Legend(titleFontSize=18, labelFontSize=16, symbolSize=200),
    ),
    tooltip=["category:N", "series:N", alt.Tooltip("value:Q", format=".0f")],
)

# Stems (lines from 0 to value)
stems = base.mark_rule(strokeWidth=4).encode(
    y=alt.Y(
        "value:Q",
        title="Performance Score",
        axis=alt.Axis(labelFontSize=18, titleFontSize=22),
        scale=alt.Scale(domain=[0, 110]),
    ),
    y2=alt.datum(0),
)

# Markers (circular dots)
markers = base.mark_circle(size=400, opacity=1).encode(y=alt.Y("value:Q"))

# Combine stems and markers
chart = (
    (stems + markers)
    .properties(
        width=1600,
        height=900,
        background=PAGE_BG,
        title=alt.Title("lollipop-grouped · altair · pyplots.ai", fontSize=28, anchor="middle"),
    )
    .configure_axis(
        grid=True,
        gridOpacity=0.10,
        gridColor=INK_SOFT,
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        labelColor=INK_SOFT,
        titleColor=INK,
    )
    .configure_view(strokeWidth=0, fill=PAGE_BG)
    .configure_title(color=INK)
    .configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
)

# Save outputs
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")

Part of Grouped Lollipop Chart on anyplot.ai.
