Grouped Lollipop Chart — Highcharts

A grouped lollipop chart displays multiple series across categorical variables using thin stems and circular markers arranged in groups. Each category has multiple lollipops side by side, one for each series, enabling direct comparison of metrics across groups. It combines the clarity of dot plots with the organization of grouped bar charts while reducing visual clutter.

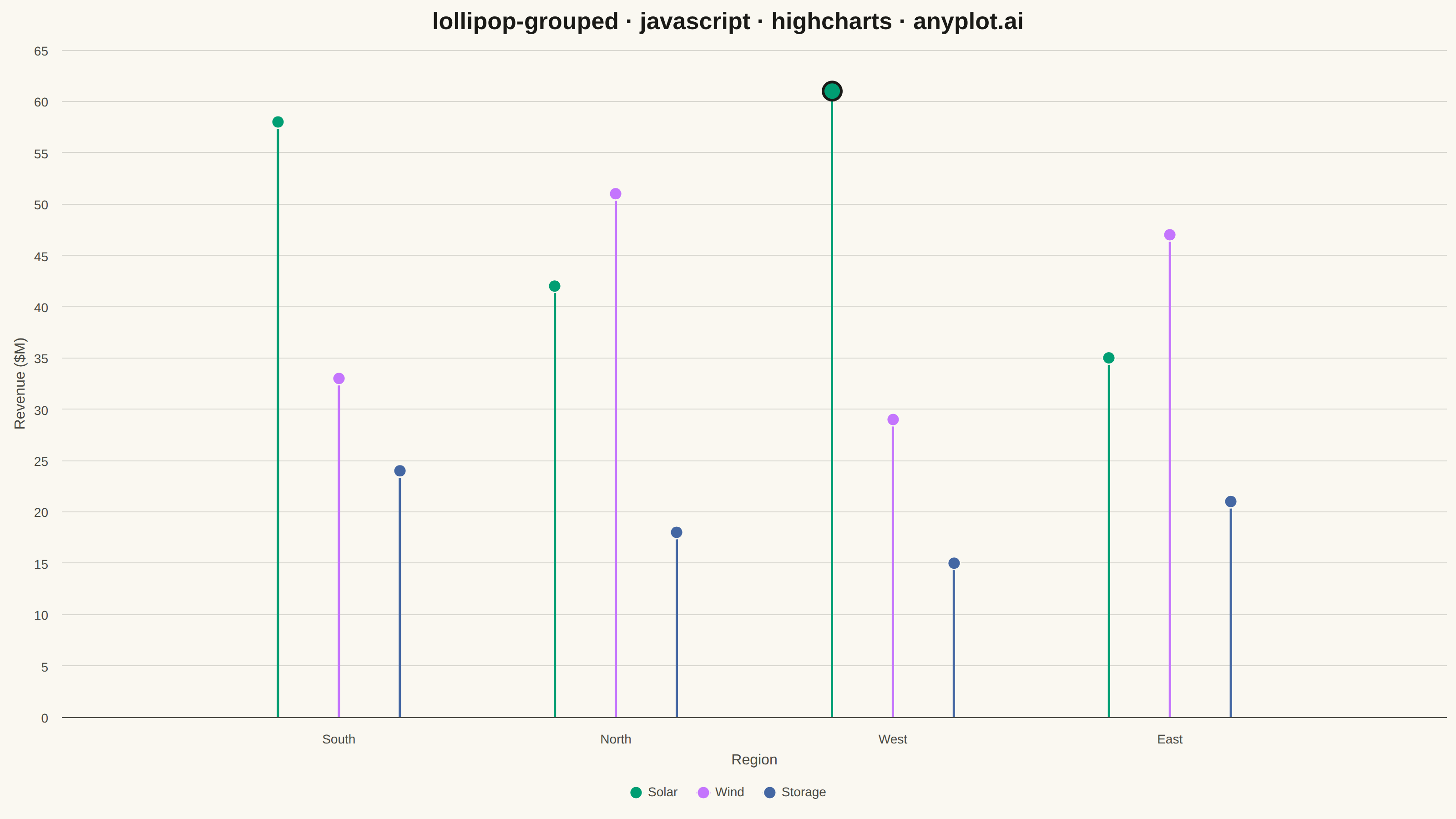

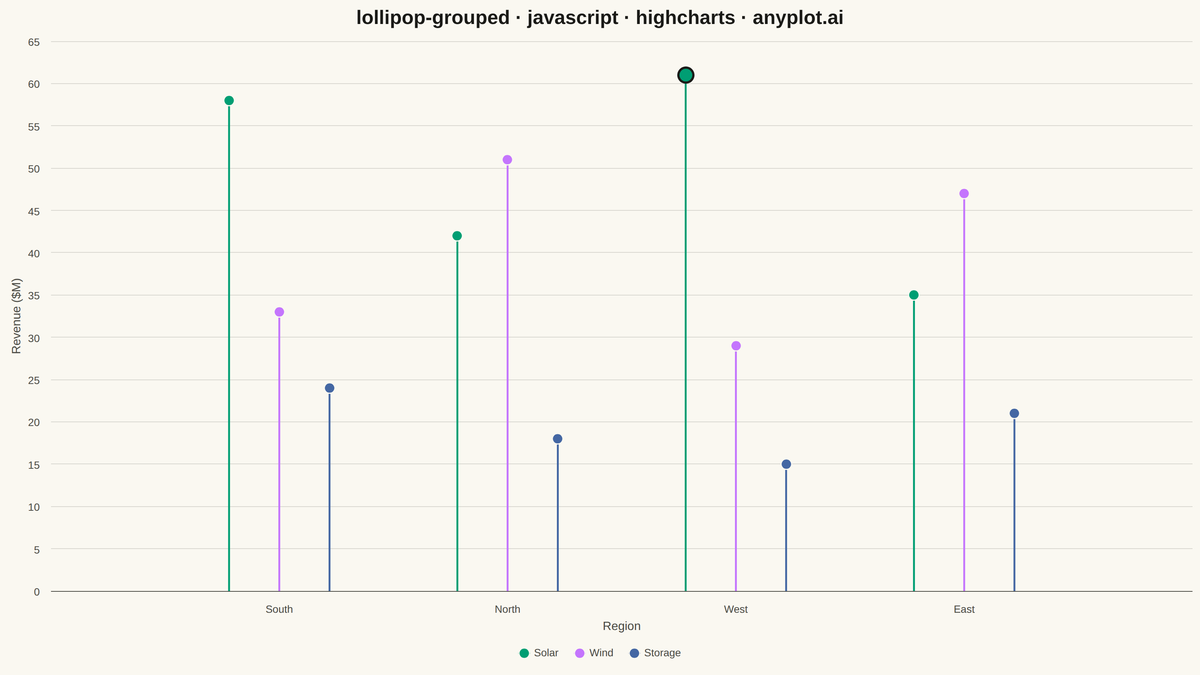

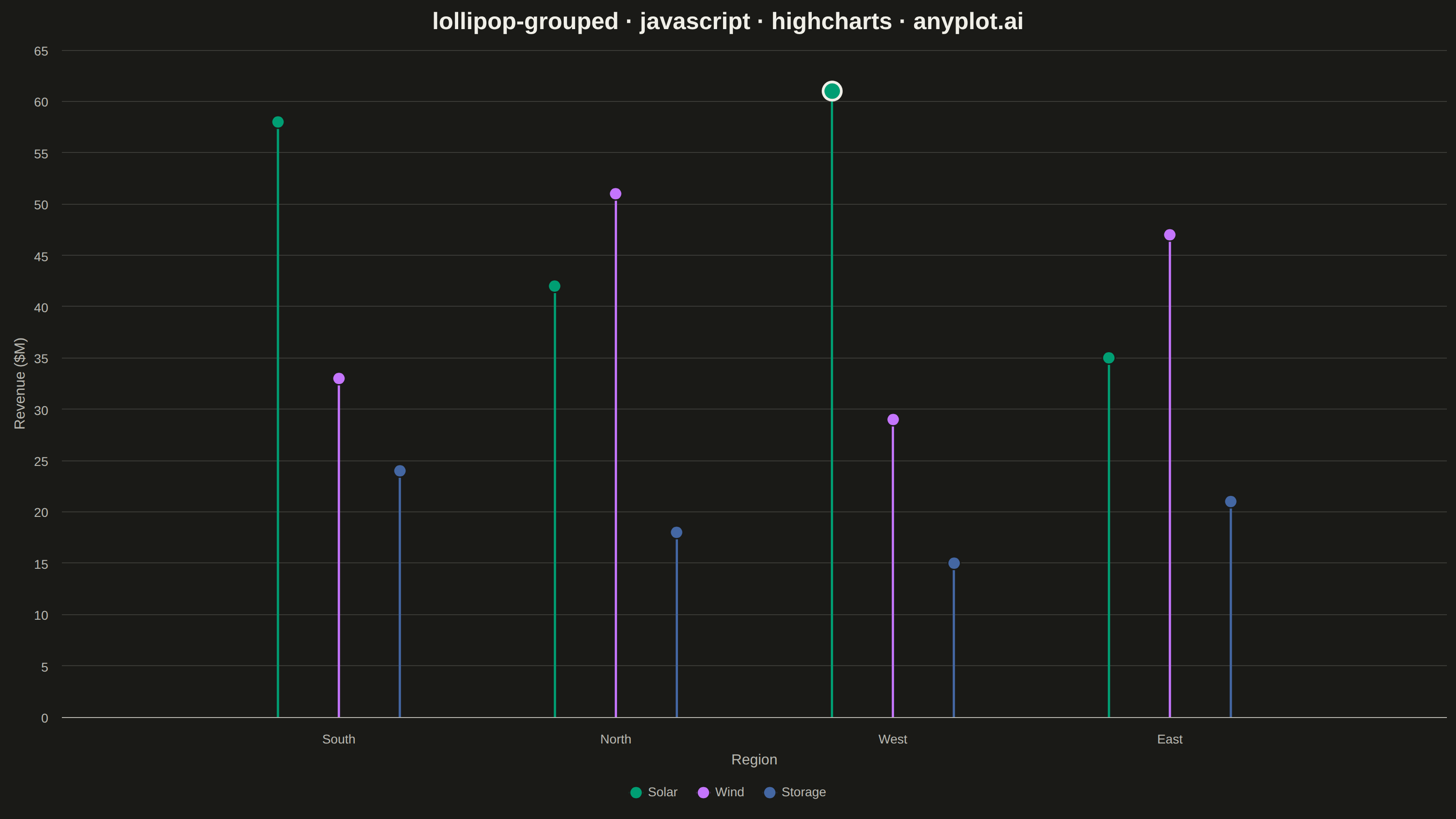

Grouped Lollipop Chart rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// lollipop-grouped: Grouped Lollipop Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-02

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Quarterly product-line revenue ($M) by region, sorted by total descending.
const categories = ["South", "North", "West", "East"];
const seriesNames = ["Solar", "Wind", "Storage"];
const revenueByProduct = {
  Solar: [58, 42, 61, 35],
  Wind: [33, 51, 29, 47],
  Storage: [24, 18, 15, 21],
};

// Side-by-side offset for lollipops within a group.
const offsetStep = 0.22;
const seriesOffsets = seriesNames.map((_, i) => (i - (seriesNames.length - 1) / 2) * offsetStep);

// Standout data point (single highest value) gets a subtle focal-point
// emphasis — a larger radius and a bolder ink ring — to give the chart a
// point of visual hierarchy beyond the raw category comparison.
const globalMax = Math.max(...seriesNames.flatMap((name) => revenueByProduct[name]));

// Each lollipop is a 2-point segment (baseline -> value) followed by a null
// gap, so a single "line" series draws every stem for that product line
// without connecting across categories.
const series = seriesNames.map((name, si) => {
  const x0 = seriesOffsets[si];
  const data = [];
  categories.forEach((_, ci) => {
    const x = ci + x0;
    const value = revenueByProduct[name][ci];
    const isFocal = value === globalMax;
    data.push({ x, y: 0, marker: { enabled: false } });
    data.push({
      x,
      y: value,
      marker: isFocal ? { enabled: true, radius: 10, lineWidth: 3, lineColor: t.ink } : { enabled: true },
    });
    data.push({ x, y: null });
  });
  return {
    name,
    type: "line",
    data,
    color: t.palette[si],
    lineWidth: 2.5,
    marker: { enabled: true, radius: 7, symbol: "circle", lineColor: t.pageBg, lineWidth: 1.5 },
  };
});

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: { backgroundColor: "transparent", animation: false, style: { fontFamily: "inherit" } },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "lollipop-grouped · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "26px", fontWeight: "700" },
  },
  xAxis: {
    categories,
    min: -0.5,
    max: categories.length - 0.5,
    startOnTick: false,
    endOnTick: false,
    tickPositions: categories.map((_, ci) => ci),
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    title: { text: "Region", style: { color: t.inkSoft, fontSize: "16px" } },
  },
  yAxis: {
    min: 0,
    title: { text: "Revenue ($M)", style: { color: t.inkSoft, fontSize: "16px" } },
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  legend: {
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  tooltip: {
    formatter: function () {
      if (this.y === 0 || this.y === null) return false;
      const category = categories[Math.round(this.x)];
      return `<b>${this.series.name}</b><br/>${category}: $${this.y}M`;
    },
  },
  plotOptions: {
    series: { animation: false, enableMouseTracking: true },
  },
  series,
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/lollipop-grouped/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "lollipop-grouped",
  "language": "javascript",
  "library": "highcharts",
  "page": "https://anyplot.ai/lollipop-grouped/javascript/highcharts",
  "hub": "https://anyplot.ai/lollipop-grouped",
  "code_json": "https://api.anyplot.ai/specs/lollipop-grouped/highcharts/code",
  "spec_json": "https://api.anyplot.ai/specs/lollipop-grouped",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/lollipop-grouped/javascript/highcharts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/lollipop-grouped/javascript/highcharts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/lollipop-grouped/javascript/highcharts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/lollipop-grouped/javascript/highcharts/plot-dark.html",
  "quality_score": 89.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Grouped Lollipop Chart on anyplot.ai.
