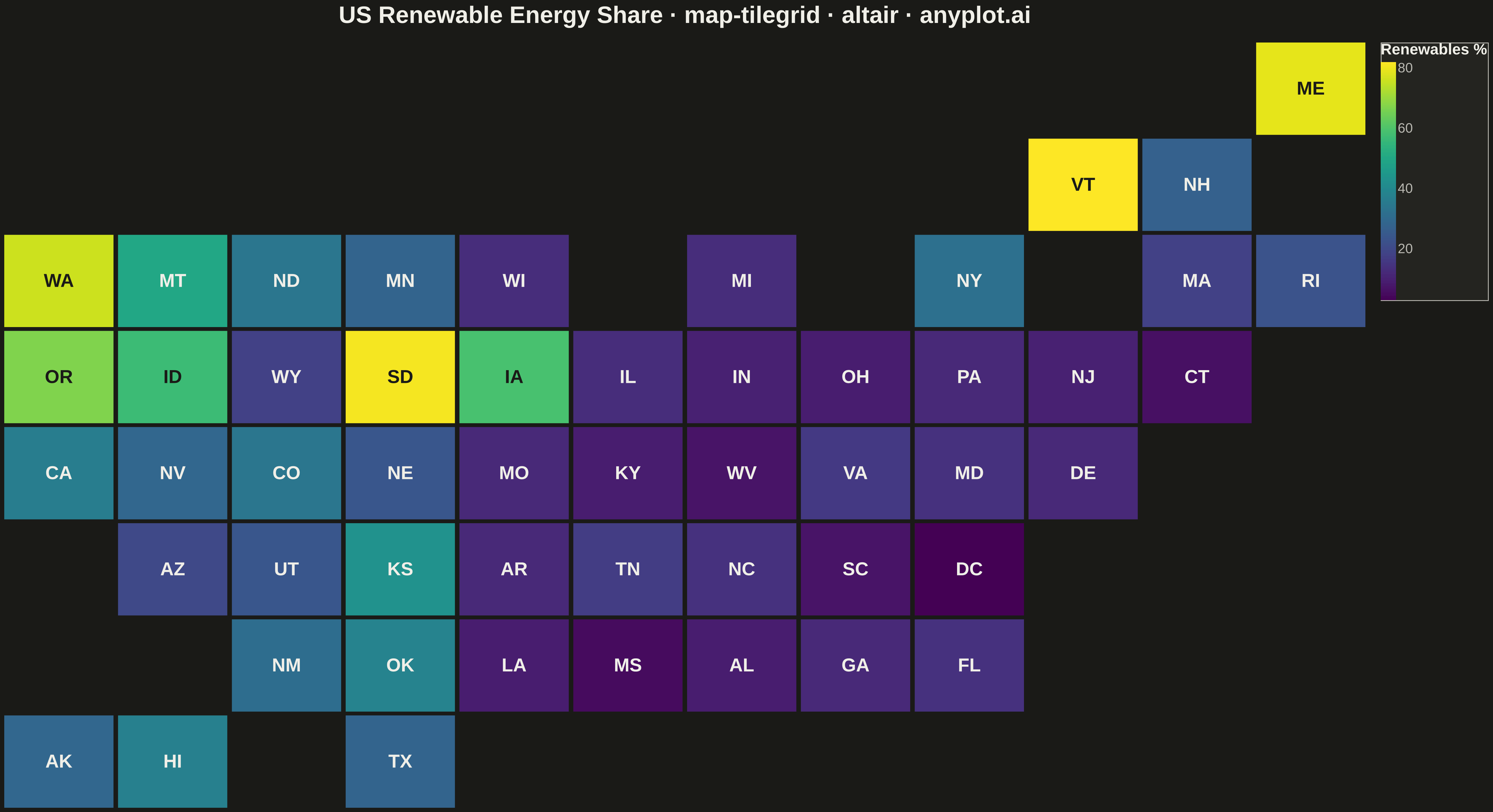

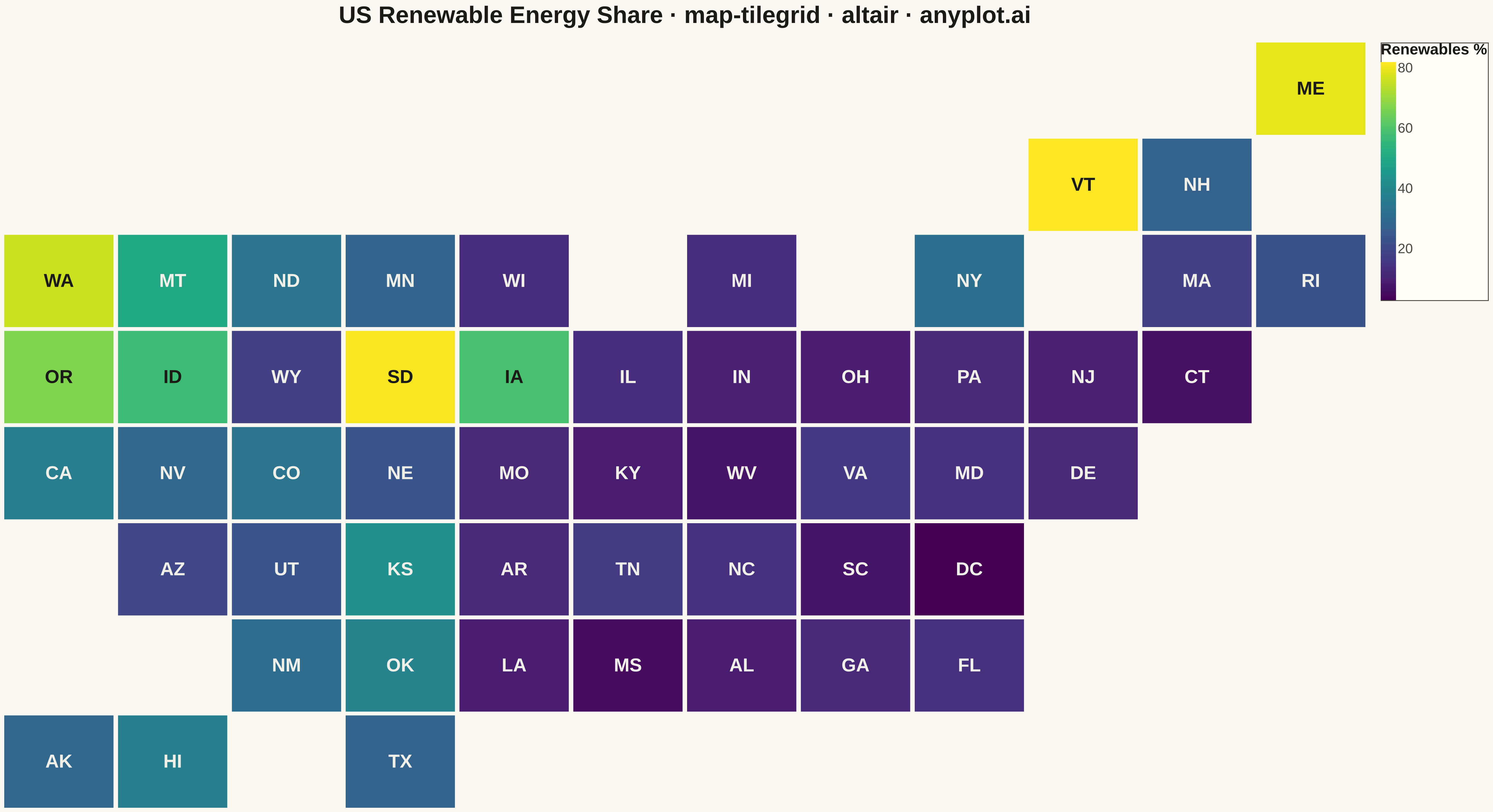

A tile grid map represents geographic regions (states, countries, provinces) as equally-sized tiles — squares or hexagons — arranged to approximate their real-world geographic positions. Unlike choropleth maps where large-area regions dominate visually, every region receives identical visual weight, making tile grid maps ideal for per-capita or per-region comparisons where the statistic matters more than physical area. Tiles are colored by a data variable and labeled with region abbreviations for identification.
""" anyplot.ai
map-tilegrid: Tile Grid Map for Equal-Area Geographic Comparison
Library: altair 6.1.0 | Python 3.13.13
Quality: 90/100 | Created: 2026-05-14
"""
import os
import altair as alt
import pandas as pd
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Data — US states tile grid positions (row 0 = north) and renewable energy share (%)
state_grid = [
("ME", 0, 11),
("NH", 1, 10),
("VT", 1, 9),
("WA", 2, 0),
("MT", 2, 1),
("ND", 2, 2),
("MN", 2, 3),
("WI", 2, 4),
("MI", 2, 6),
("NY", 2, 8),
("MA", 2, 10),
("RI", 2, 11),
("OR", 3, 0),
("ID", 3, 1),
("WY", 3, 2),
("SD", 3, 3),
("IA", 3, 4),
("IL", 3, 5),
("IN", 3, 6),
("OH", 3, 7),
("PA", 3, 8),
("NJ", 3, 9),
("CT", 3, 10),
("CA", 4, 0),
("NV", 4, 1),
("CO", 4, 2),
("NE", 4, 3),
("MO", 4, 4),
("KY", 4, 5),
("WV", 4, 6),
("VA", 4, 7),
("MD", 4, 8),
("DE", 4, 9),
("AZ", 5, 1),
("UT", 5, 2),
("KS", 5, 3),
("AR", 5, 4),
("TN", 5, 5),
("NC", 5, 6),
("SC", 5, 7),
("DC", 5, 8),
("NM", 6, 2),
("OK", 6, 3),
("LA", 6, 4),
("MS", 6, 5),
("AL", 6, 6),
("GA", 6, 7),
("FL", 6, 8),
("AK", 7, 0),
("HI", 7, 1),
("TX", 7, 3),
]
renewable_share = {
"AK": 29,
"AL": 9,
"AR": 12,
"AZ": 20,
"CA": 36,
"CO": 34,
"CT": 6,
"DC": 3,
"DE": 12,
"FL": 14,
"GA": 12,
"HI": 37,
"IA": 59,
"ID": 57,
"IL": 13,
"IN": 10,
"KS": 43,
"KY": 9,
"LA": 9,
"MA": 18,
"MD": 14,
"ME": 79,
"MI": 13,
"MN": 28,
"MO": 12,
"MS": 5,
"MT": 50,
"NC": 14,
"ND": 34,
"NE": 24,
"NH": 27,
"NJ": 10,
"NM": 31,
"NV": 29,
"NY": 32,
"OH": 9,
"OK": 38,
"OR": 67,
"PA": 12,
"RI": 23,
"SC": 7,
"SD": 81,
"TN": 17,
"TX": 28,
"UT": 24,
"VA": 16,
"VT": 82,
"WA": 76,
"WI": 13,
"WV": 7,
"WY": 18,
}
df = pd.DataFrame(state_grid, columns=["state", "row", "col"])
df["value"] = df["state"].map(renewable_share)
# Plot
x_enc = alt.X("col:O", scale=alt.Scale(paddingInner=0.04, paddingOuter=0), axis=None)
y_enc = alt.Y("row:O", scale=alt.Scale(paddingInner=0.04, paddingOuter=0), axis=None)
base = alt.Chart(df)
tiles = base.mark_rect().encode(
x=x_enc,
y=y_enc,
color=alt.Color(
"value:Q",
scale=alt.Scale(scheme="viridis"),
legend=alt.Legend(
title="Renewables %", titleFontSize=18, labelFontSize=16, gradientLength=280, gradientThickness=18
),
),
tooltip=[alt.Tooltip("state:N", title="State"), alt.Tooltip("value:Q", title="Renewable %", format=".0f")],
)
labels = base.mark_text(fontSize=22, fontWeight="bold").encode(
x=x_enc,
y=y_enc,
text="state:N",
color=alt.condition("datum.value > 50", alt.value("#1A1A17"), alt.value("#F0EFE8")),
)
chart = (
alt.layer(tiles, labels)
.properties(
width=1600,
height=900,
title="US Renewable Energy Share · map-tilegrid · altair · anyplot.ai",
background=PAGE_BG,
)
.configure_title(color=INK, fontSize=28, anchor="middle", offset=16)
.configure_view(fill=PAGE_BG, stroke=None)
.configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
)
# Save
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")
Part of Tile Grid Map for Equal-Area Geographic Comparison on anyplot.ai.
